Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

6 part groups · 6 illustrations

Illustrations

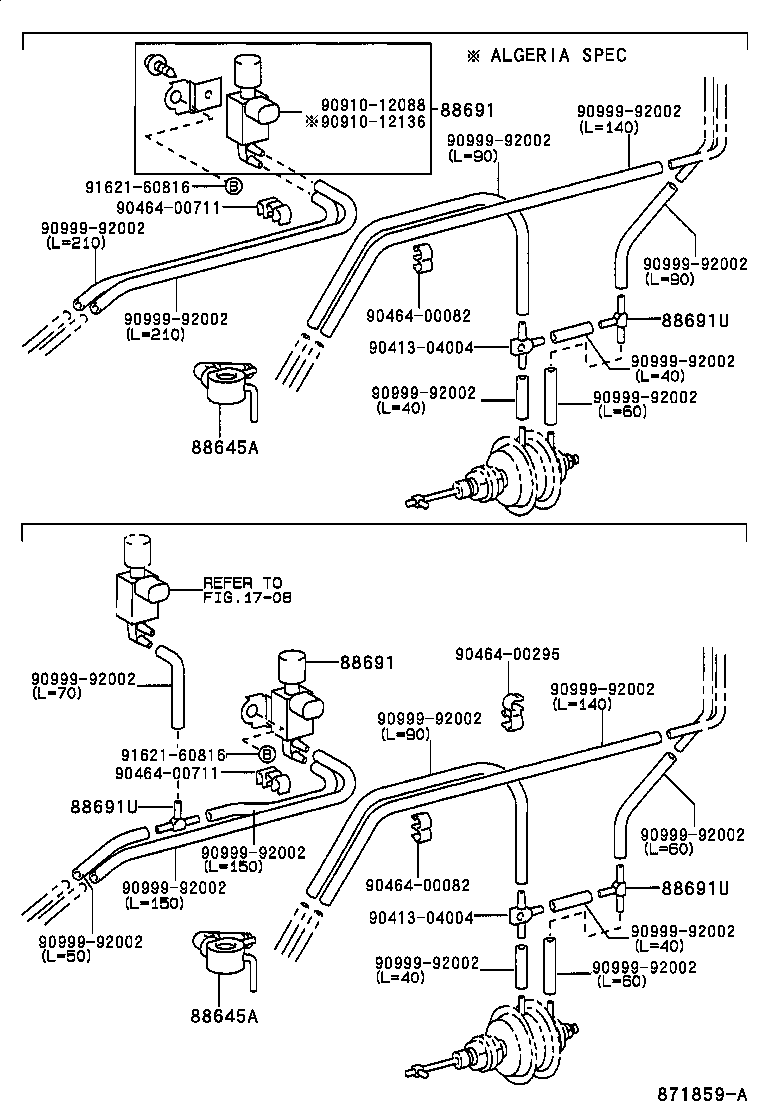

Figure 871857B 871857B 1995-05 → — Figure 871857B 871857B 1999-05 → — Figure 871857B 871857B 1999-08 → — Figure 871857B 871857B 2001-02 → — Figure 871859A 871859A 1995-05 → — Figure 871859A 871859A 1995-05 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88645A Union (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691U Way(FOR VACUUM HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
