Heating & Air Conditioning - Cooler Piping

26 part groups · 9 illustrations

Illustrations

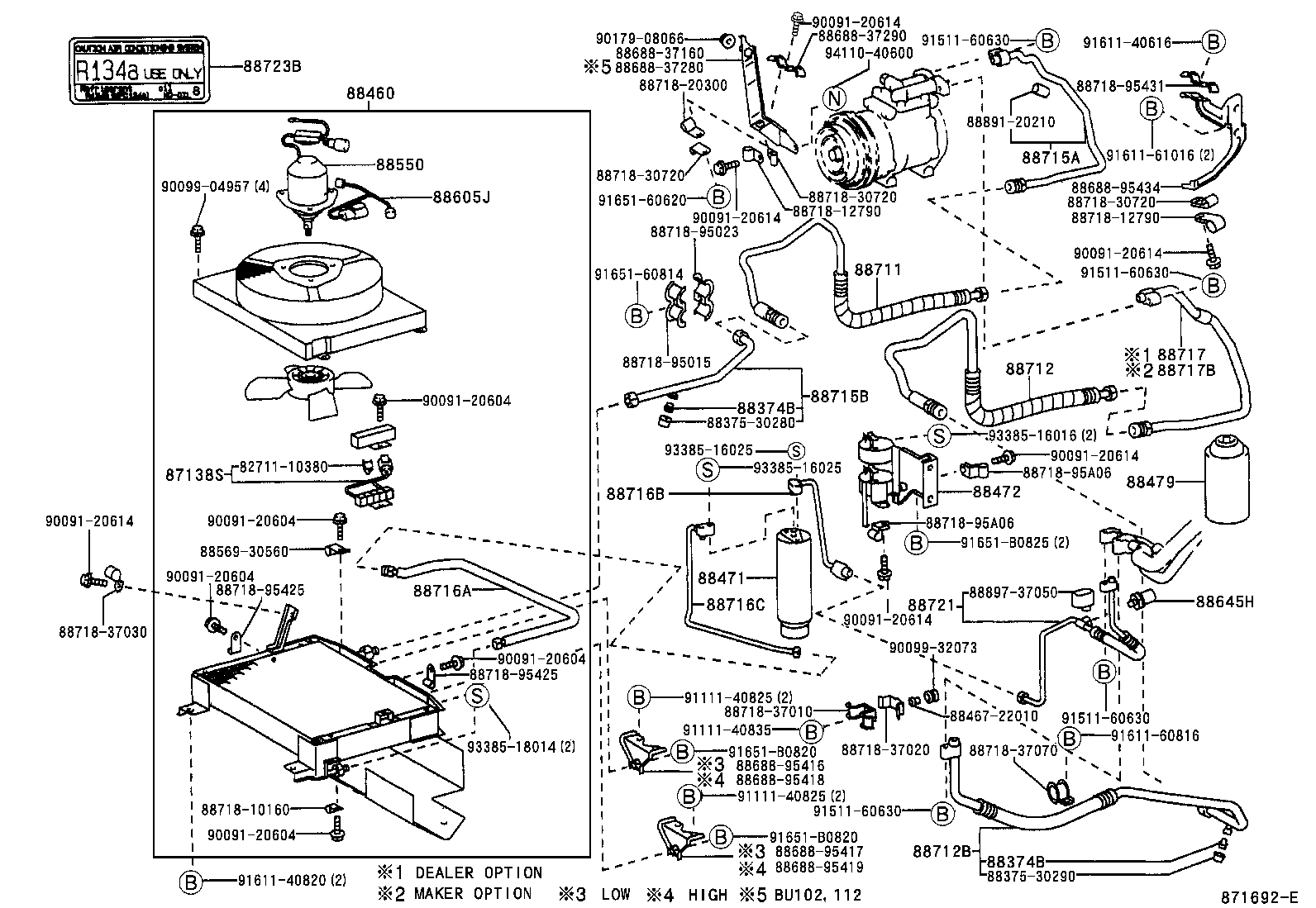

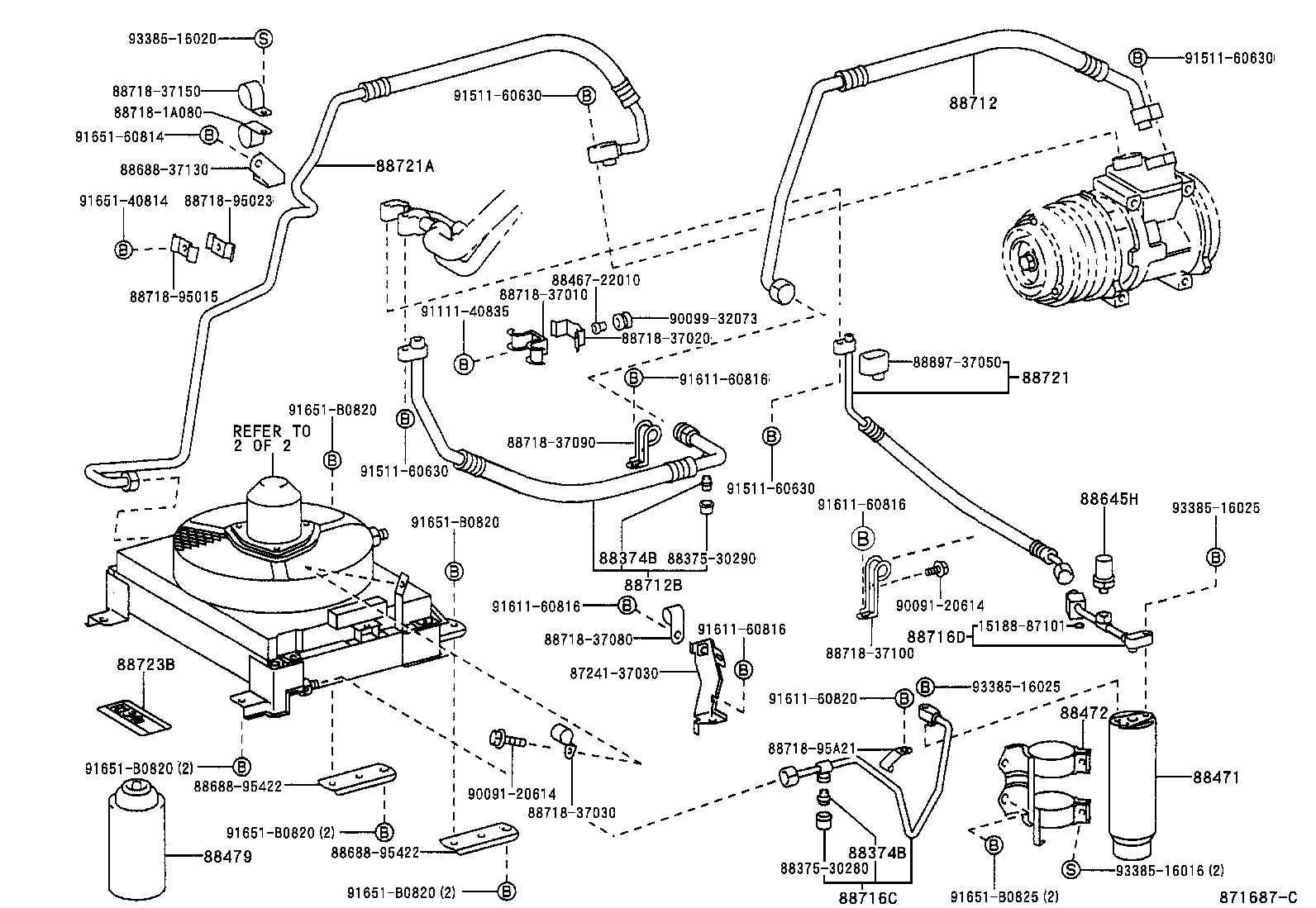

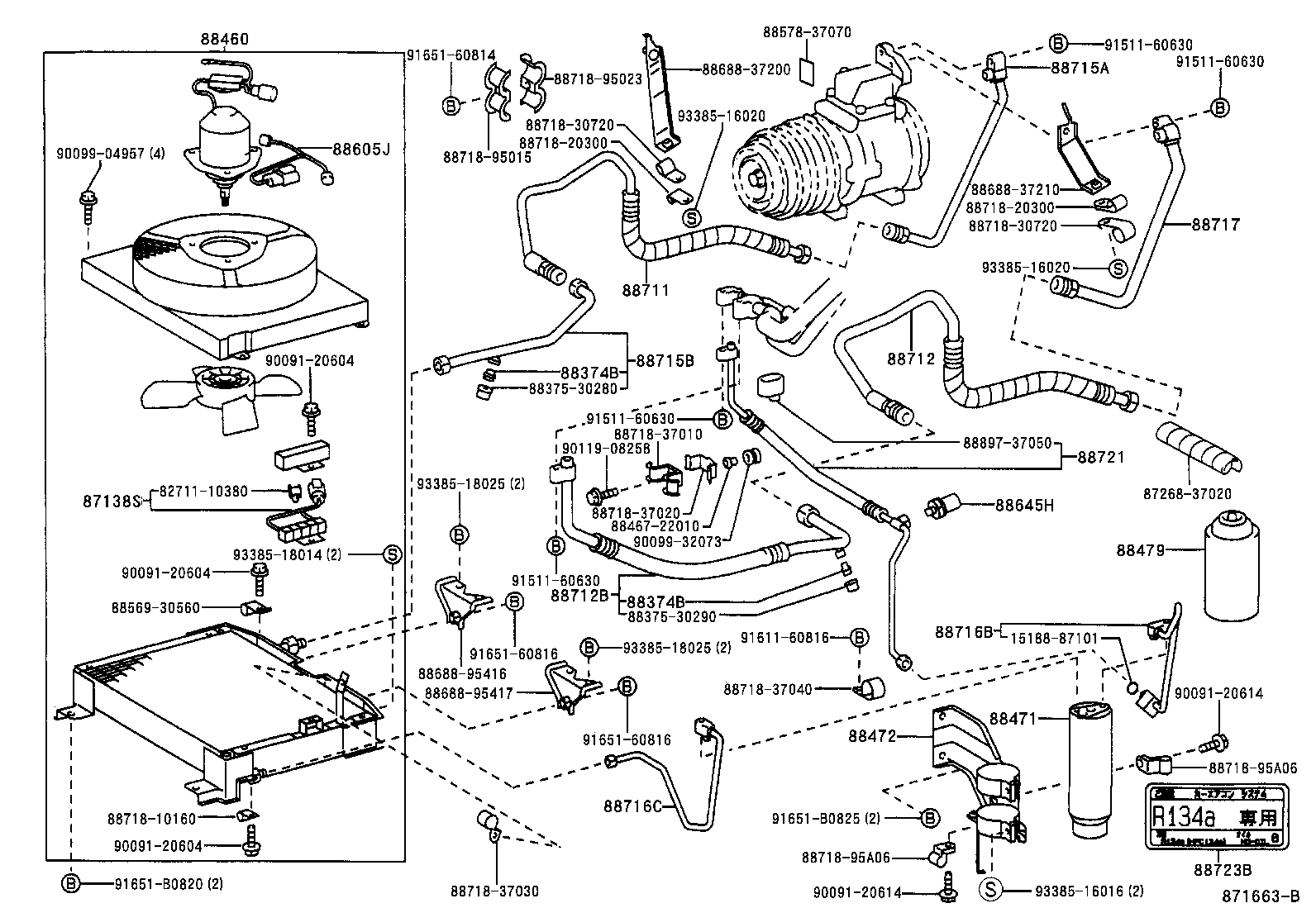

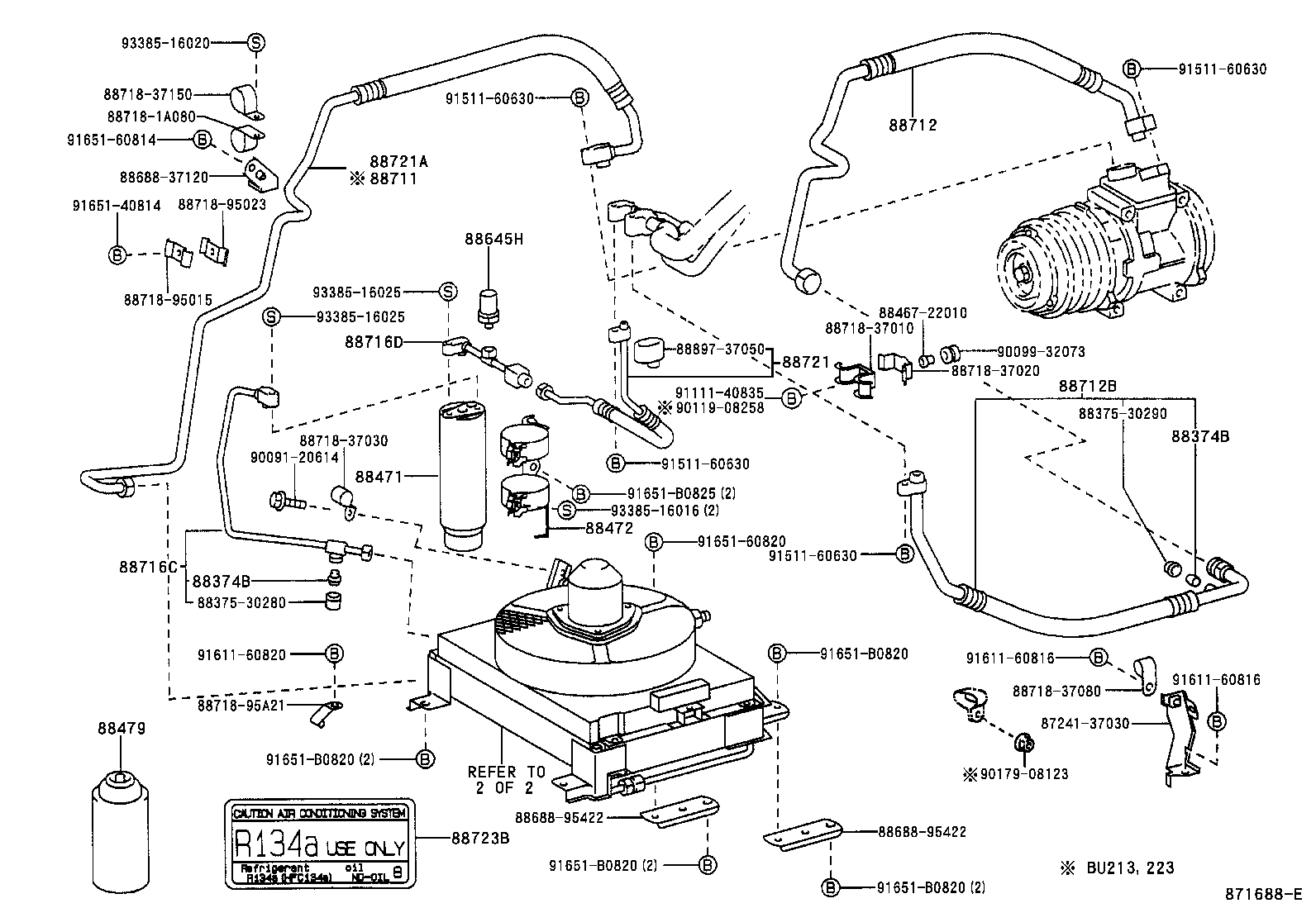

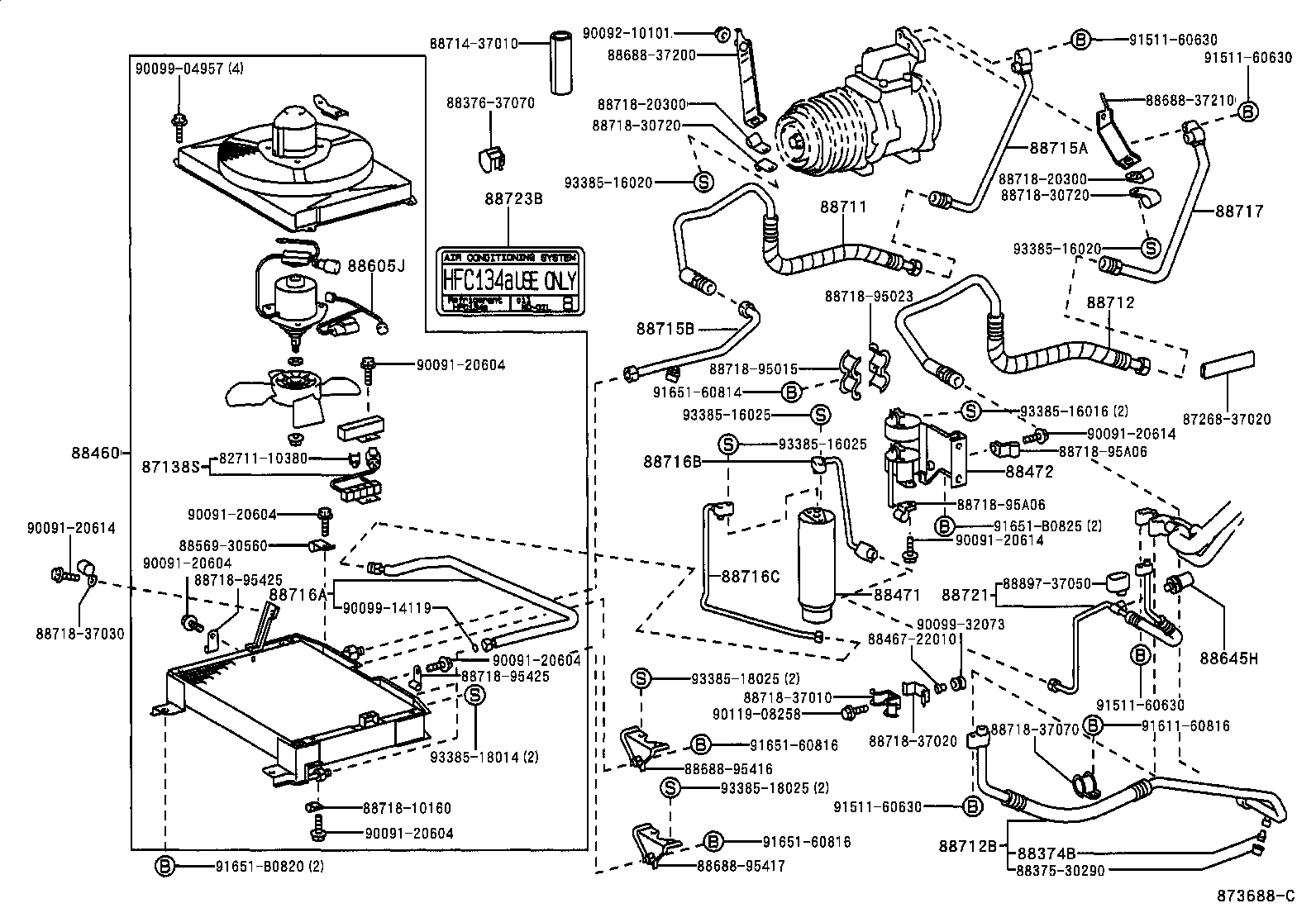

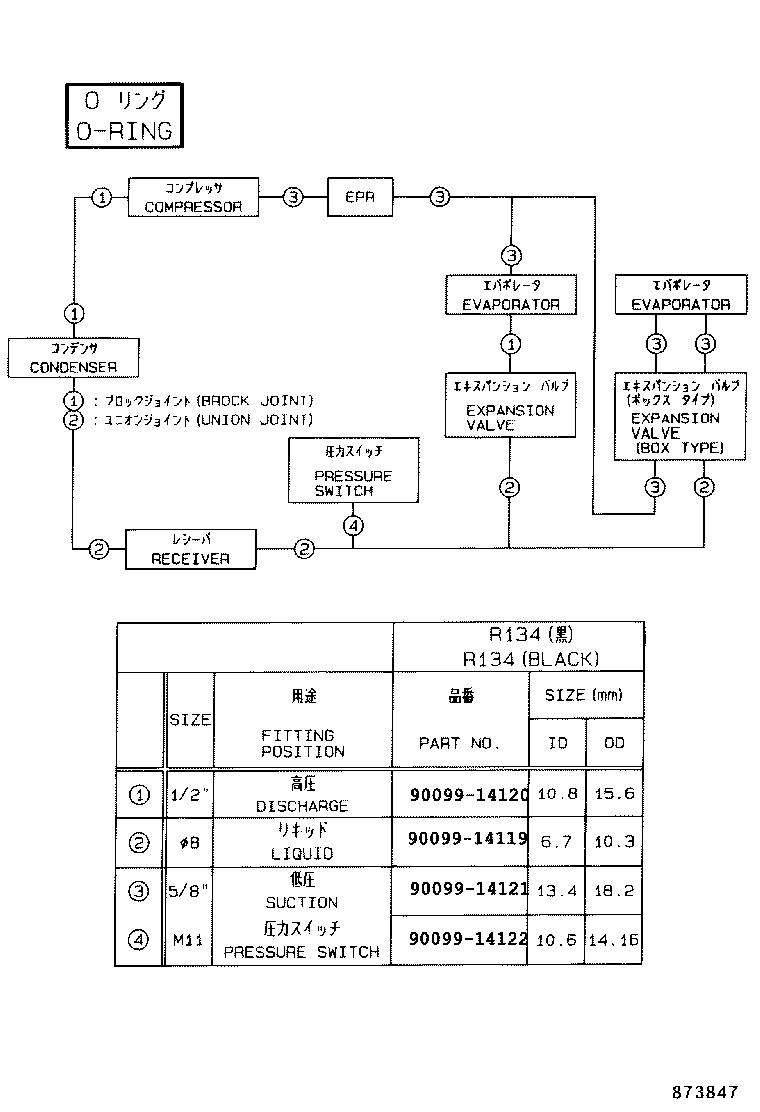

Figure 872048D 872048D 1995-05 → — Figure 871692E 871692E 1995-05 → — Figure 871687C 871687C 1995-05 → — Figure 871688E 871688E 1995-05 → — Figure 871663B 871663B 1997-03 → — Figure 873688C 873688C 1999-08 → — Figure 871689B 871689B 1995-05 → — Figure 873847 873847 1995-05 → — Figure 873847 873847 1995-05 → —

Part groups

PNCDescription

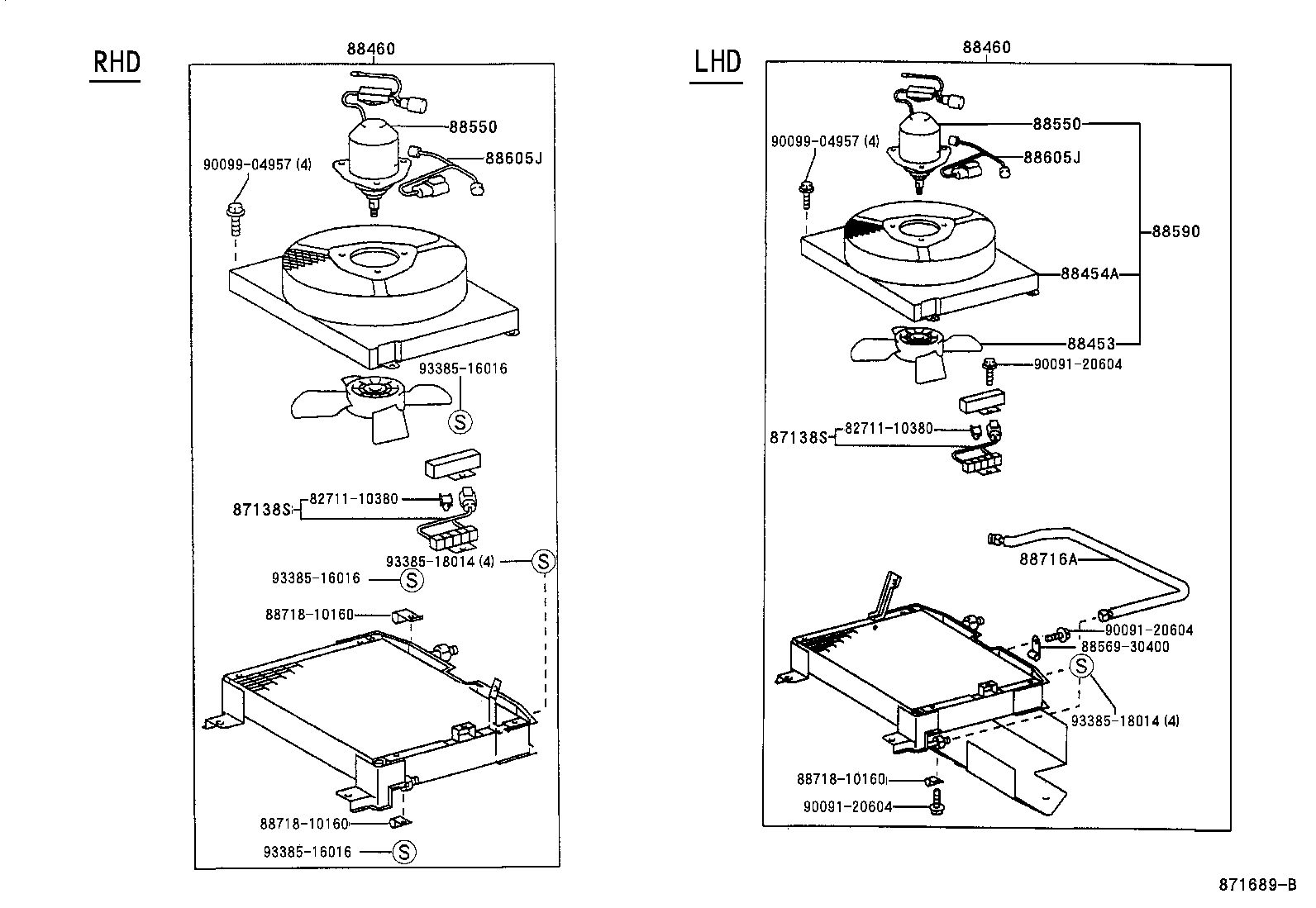

87138S Resistor, Blower
88374B Valve, Service, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717B Pipe, Cooler Refrigerant Suction, B
88721 Pipe, Cooler Refrigerant Suction, NO.5
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
