Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

25 part groups · 2 illustrations

Illustrations

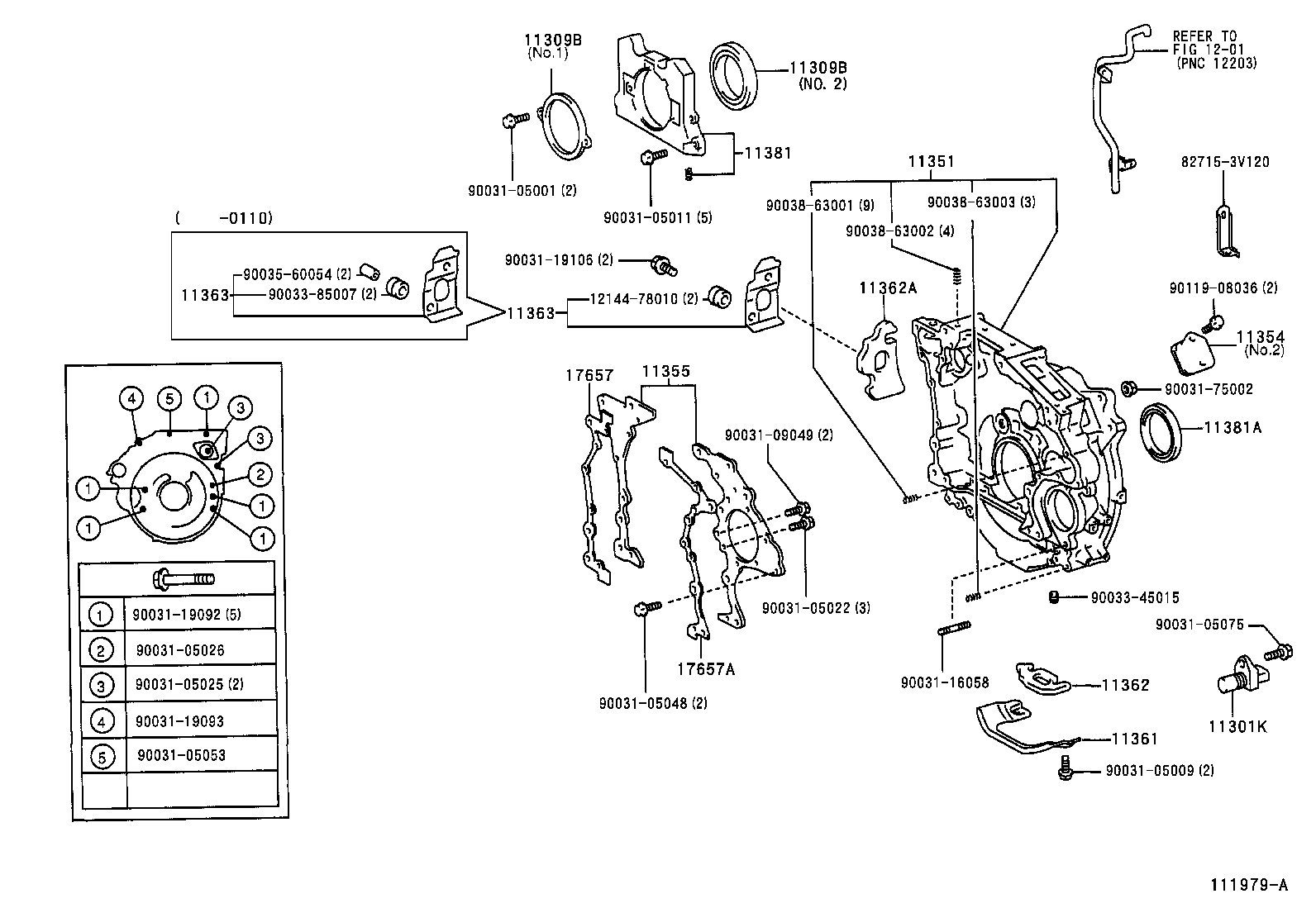

Figure 111630A 111630A 1999-07 → — Figure 111979A 111979A 2000-10 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11309B Seal(FOR OIL SEAL RETAINER)
11312 Gasket, Front End Plate
11320A Cover Assy, Timing Gear, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11351 Housing, Flywheel
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11362 Insulator, Flywheel Housing(FOR UNDER COVER)
11362A Insulator, Flywheel Housing(FOR SIDE COVER)
11363 Cover, Flywheel Side
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11494C Plate, Oil Hole Cover
11496A Gasket, Oil Hole Cover
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
17657 Gasket, Rear Plate
17657A Gasket, Rear Plate, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
