Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 2 illustrations

Illustrations

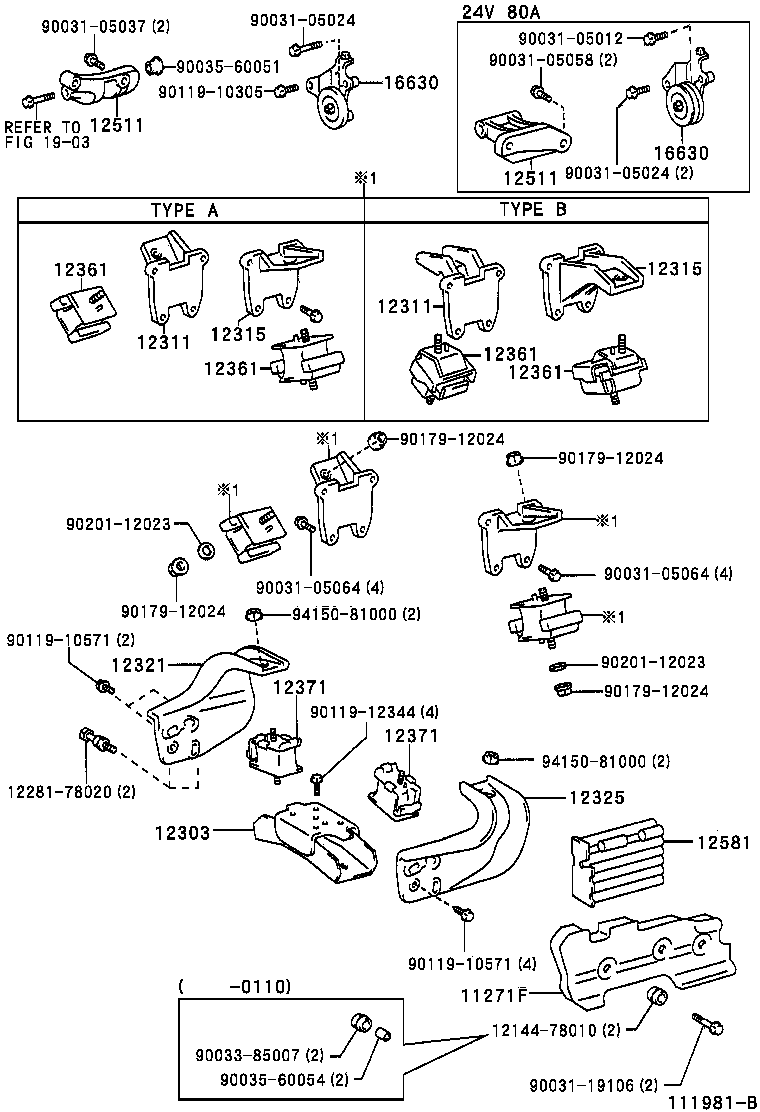

Figure 112468 112468 1999-07 → — Figure 111981B 111981B 2000-10 → —

Part groups

PNCDescription
11271F Cover, Cylinder Block Side
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12511 Bracket, Alternator, NO.1
12581 Insulator, Cylinder Block, NO.1
16603C Pulley Sub-assy, Idler
16630 Pulley Assy, Idler
16636C Shaft, Idler Pulley, NO.1
16639A Spacer, Idler Pulley
16649A Plate, Idler Pulley Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
