Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

38 part groups · 3 illustrations

Illustrations

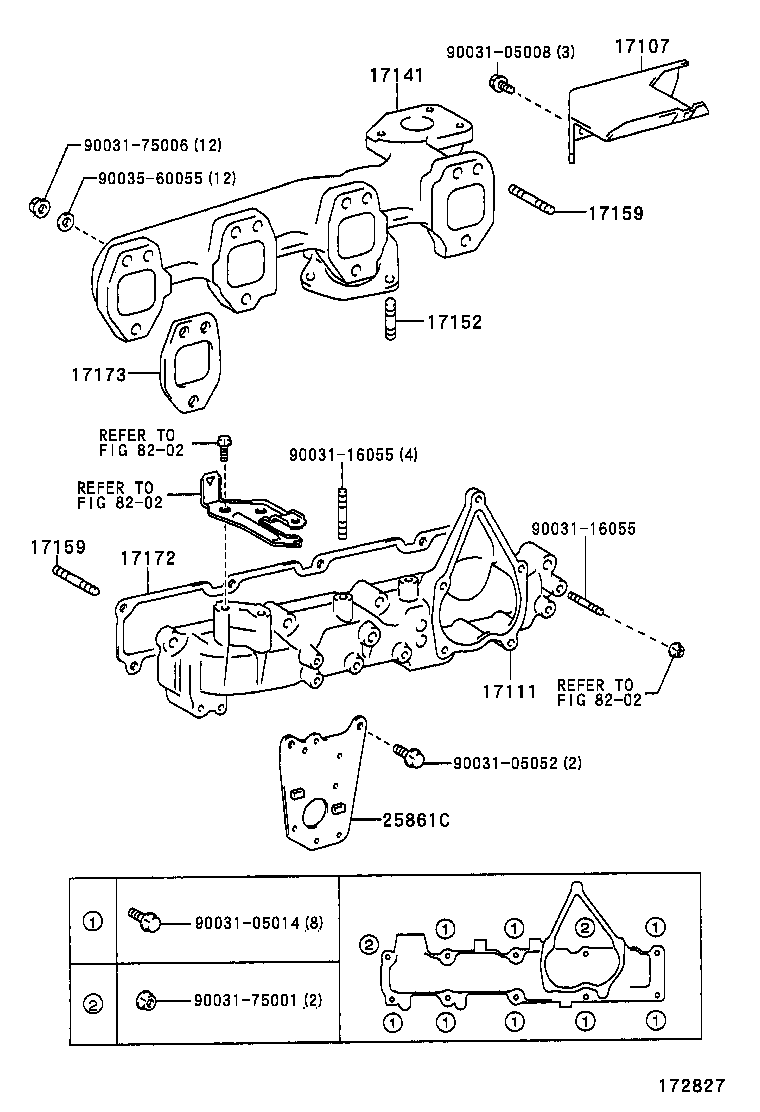

Figure 173362A 173362A 1999-07 → — Figure 172245 172245 1999-07 → — Figure 172827 172827 2000-10 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15473 Gasket, Turbo Oil Outlet, NO.2
15474 Pipe, Turbo Oil Outlet
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17024 Housing Sub-assy, Compressor
17107 Insulator Sub-assy, Exhaust Manifold Heat
17111 Manifold, Intake
17118 Stay, Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17169 Insulator, Exhaust Manifold Heat, NO.3
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17201 Turbocharger Sub-assy
17229 Band, V
17230 Actuator Assy, W/Bracket
17246 Plate, Compressor Housing Clamp
17274 Elbow, Compressor Inlet
17275 Elbow, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17376C Gasket, Air Tube
17377B Gasket, Air Tube, NO.2
17849A Gasket, Intake Air Connector
17861F Connector, Intake Air
25861C Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
