Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08

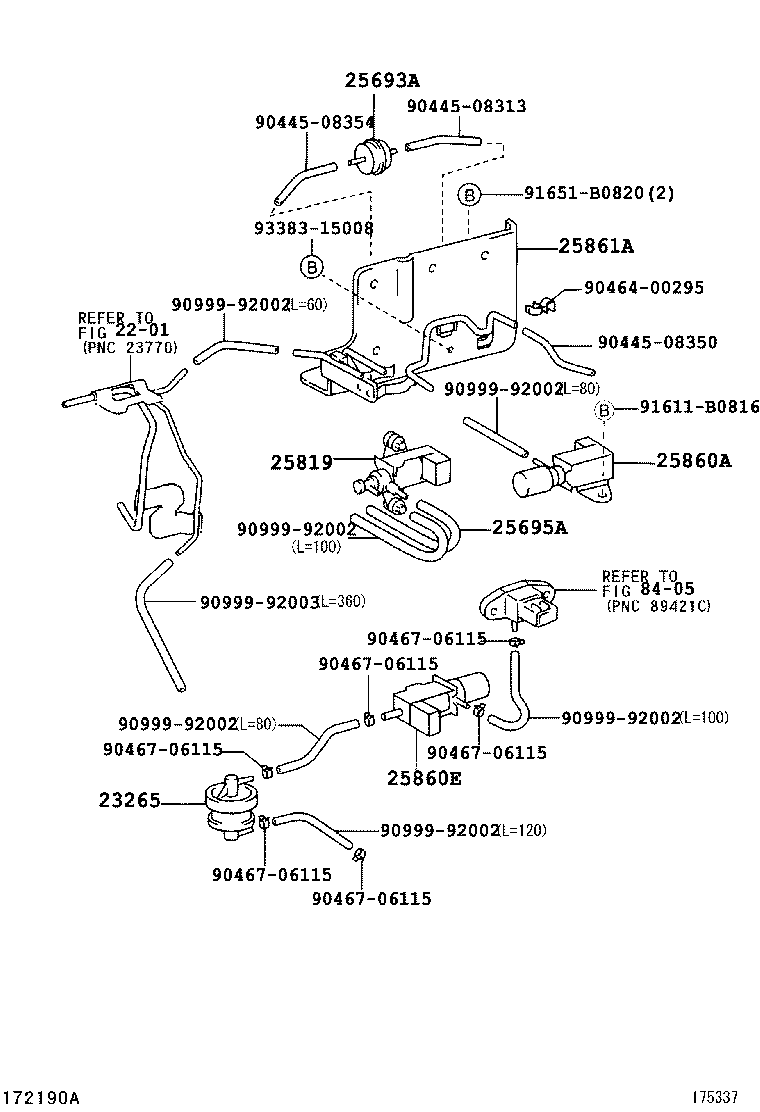

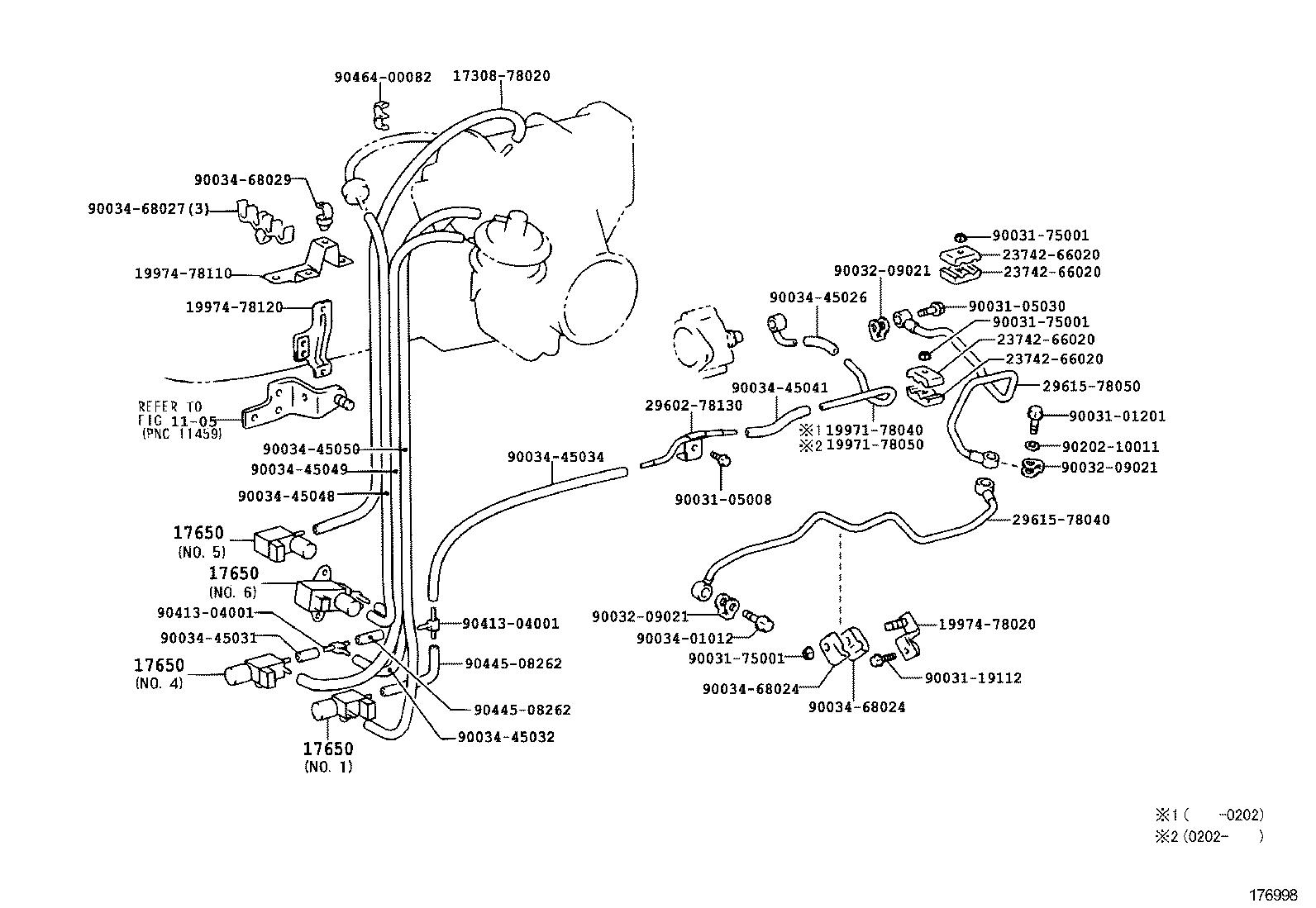

Vacuum Piping
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 25693A | Damper, Egr Vacuum Modulator |
| 25695A | Hose, Egr Vacuum Modulator |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 25860E | Valve, Vacuum Switching, NO.2 |
| 25861A | Bracket, Vacuum Switching Valve, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
