Factory parts data · Europe

Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

10 part groups · 2 illustrations

Illustrations

Figure 191058B

191058B 1999-07 → —

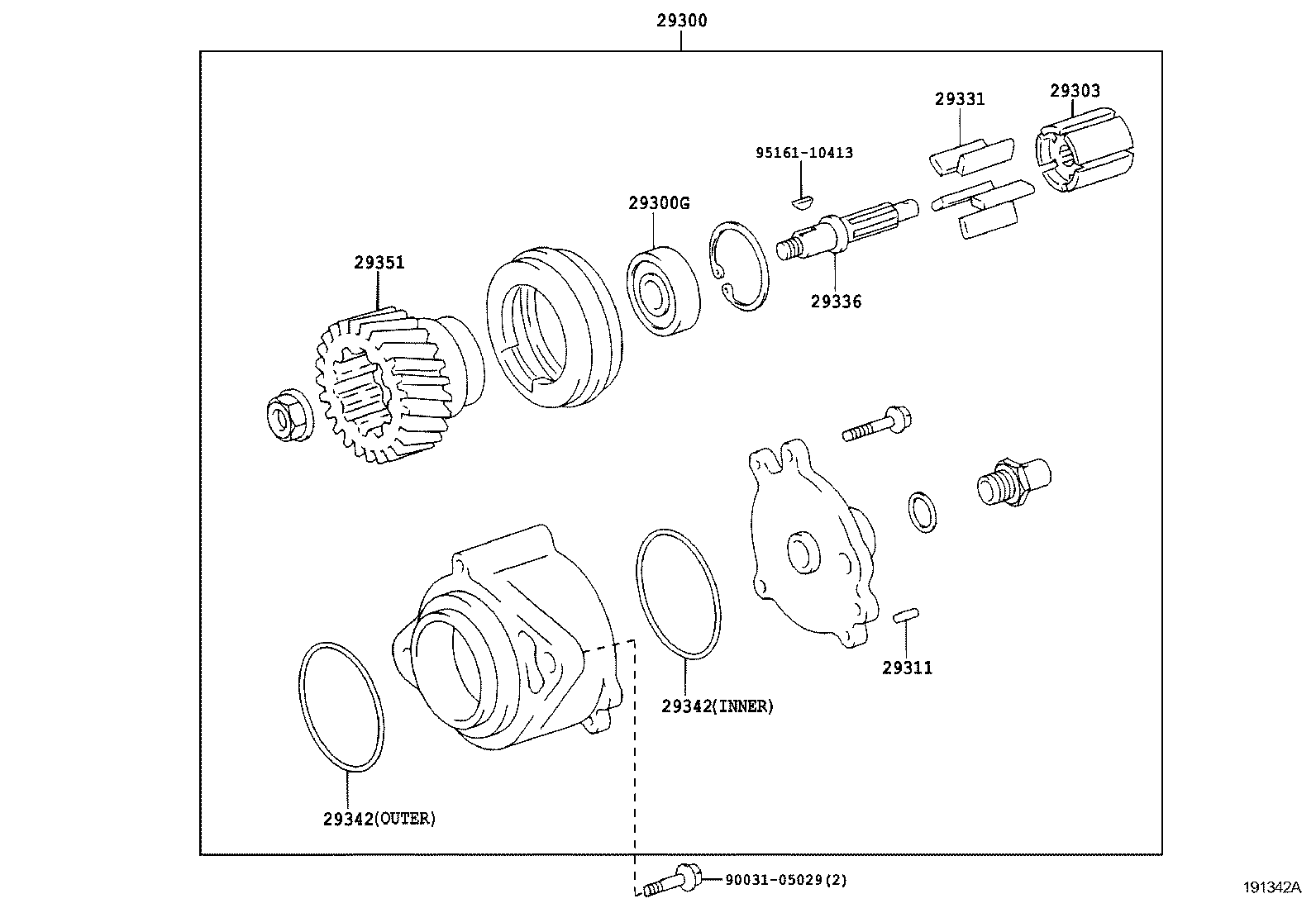

Figure 191342A

191342A 2000-10 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29300G	Bearing, Ball
29303	Rotor Sub-assy, Vacuum Pump
29311	Pin, Vacuum Pump Dowel, NO.1
29331	Blade, Vacuum Pump, A
29336	Shaft, Vacuum Pump
29342	Packing, Vacuum Pump
29351	Gear, Vacuum Pump
29364	Washer, Vacuum Pump
29369	Valve Sub-assy, Check

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
