Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08

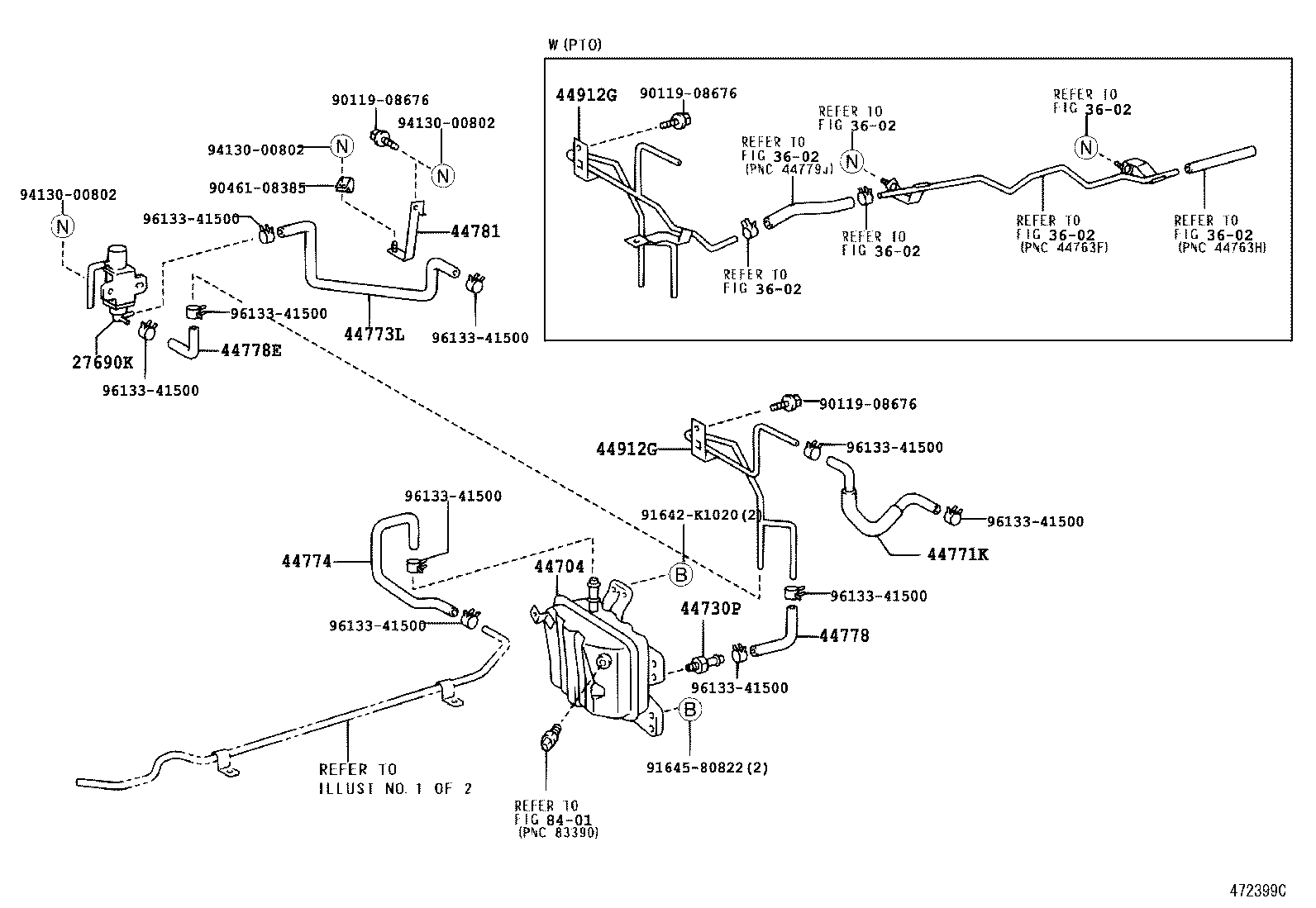

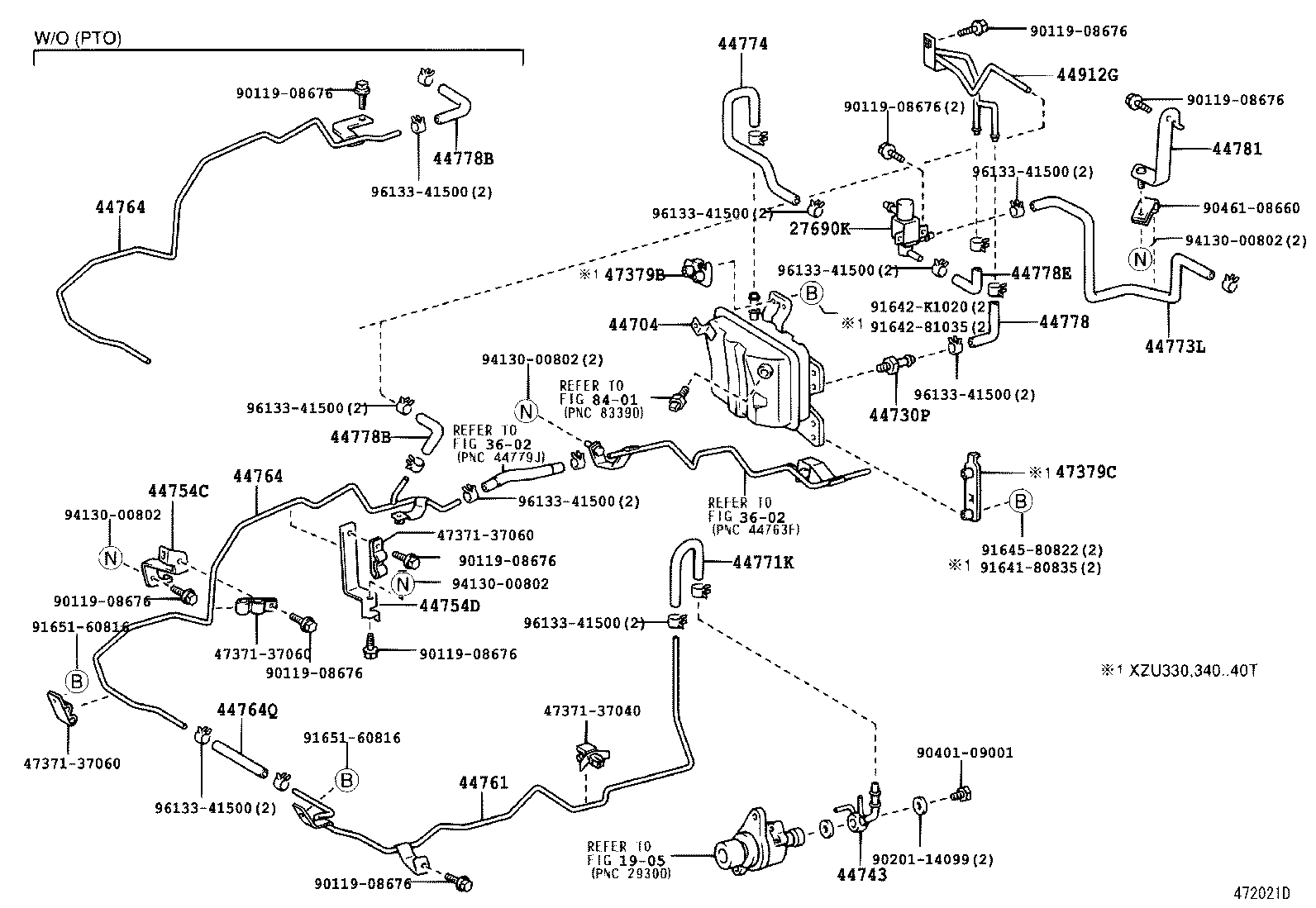

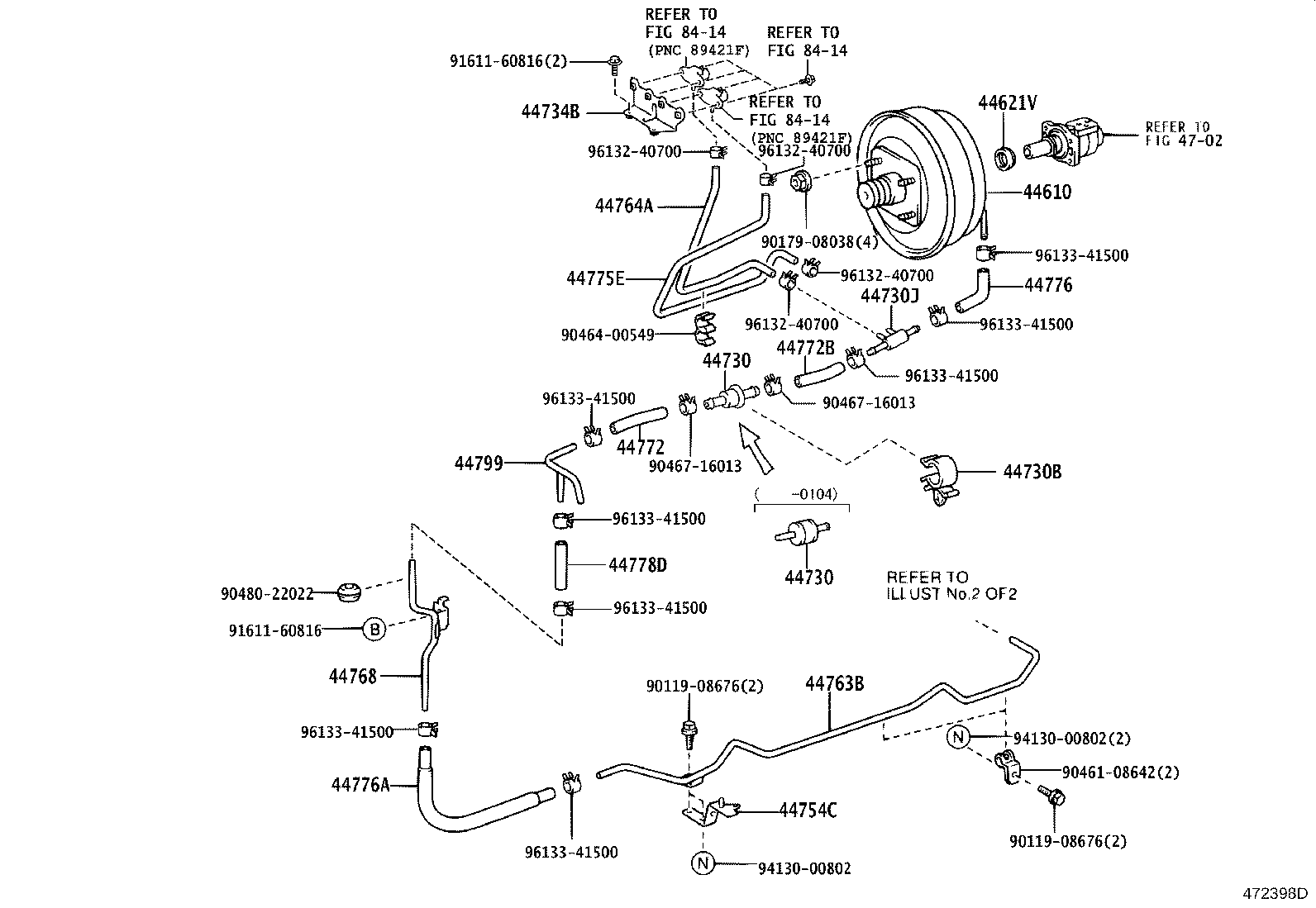

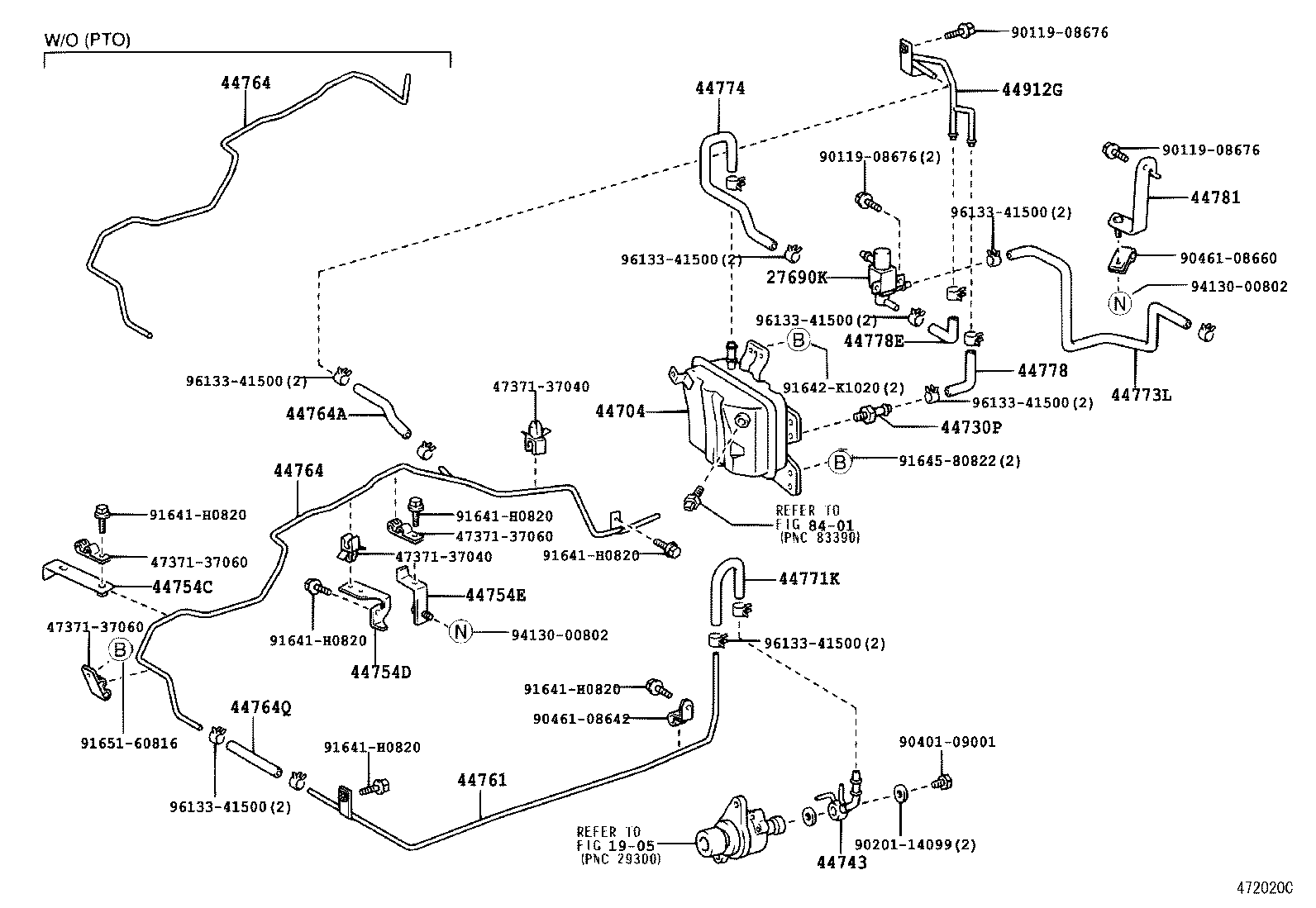

Brake Booster & Vacuum Tube
37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 27690K | Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE) |
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730B | Clamp, Vacuum Hose |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44734B | Bracket, Booster Support |
| 44743 | Union(FOR VACUUM PUMP) |
| 44754C | Bracket, Vacuum Tube, NO.1 |
| 44754D | Bracket, Vacuum Tube, NO.2 |
| 44754E | Bracket, Vacuum Tube, NO.3 |
| 44754G | Bracket, Vacuum Tube, NO.5 |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44763B | Tube, Tube Connector TO Tube Connector |
| 44764 | Tube, Booster Vacuum |
| 44764A | Hose, Booster Vacuum |
| 44764Q | Hose(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) |
| 44768 | Tube, Booster Vacuum |
| 44771K | Hose, Vacuum Tube TO Vacuum Pump |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44773L | Hose, Solenoid TO Exhaust Retarder |
| 44774 | Hose, Union TO Connector Tube |
| 44775E | Hose, Way TO Connector |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44778 | Hose, Connector TO Check Valve |
| 44778B | Hose, Way TO Check Valve |
| 44778D | Hose, Vacuum Tube TO Connector Tube |
| 44778E | Hose, Connector Tube TO Solenoid |
| 44781 | Bracket, Hose |
| 44799 | Way, Brake Vacuum Hose |
| 44912G | Tube, 3 Way TO Magnetic Valve |
| 47379B | Spacer, Brake Tube, NO.1 |
| 47379C | Spacer, Brake Tube, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
