Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08

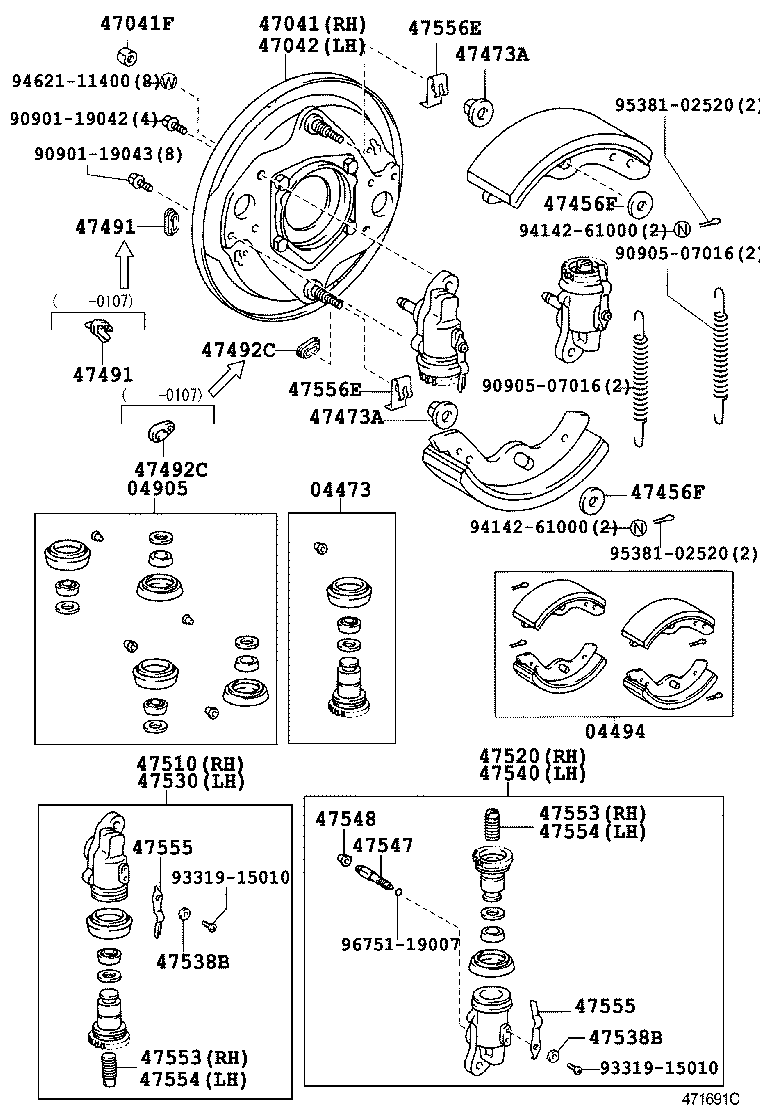

Front Drum Brake Wheel Cylinder & Backing Plate
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04473 | Cylinder Kit, Front Wheel |
| 04494 | Shoe Kit, Front Brake |
| 04905 | Cup Kit, Front Wheel Cylinder |
| 47041 | Plate Sub-assy, Brake Backing, Front RH |
| 47041D | Bolt(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) |
| 47041F | Nut(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) |
| 47042 | Plate Sub-assy, Brake Backing, Front LH |
| 47410C | Spring(FOR FRONT BRAKE SHOE HOLD DOWN) |
| 47410D | Spring, Tension(FOR FRONT BRAKE SHOE RETURN) |
| 47419 | Plug, Hole(FOR FRONT BRAKE) |
| 47447 | Pin, Shoe Hold Down Spring(FOR FRONT BRAKE) |
| 47449 | Cup, Shoe Hold Down Spring(FOR FRONT BRAKE) |
| 47456F | Plate, Front Brake Shoe Guide |
| 47473A | Nut, Front Brake Shoe Adjusting |
| 47491 | Plug, Hole(FOR FRONT BRAKE) |
| 47492C | Plug, Hole(FOR FRONT BRAKE) |
| 47510 | Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER) |
| 47510D | Bolt(FOR FRONT WHEEL CYLINDER) |
| 47510P | Washer(FOR FRONT WHEEL CYLINDER) |
| 47520 | Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER) |
| 47530 | Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER) |
| 47538B | Plate, Wheel Cylinder Ajuster Spring, FR |
| 47540 | Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER) |
| 47547 | Plug, Bleeder(FOR FRONT DRUM BRAKE) |
| 47548 | Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT) |
| 47553 | Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) |
| 47554 | Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) |
| 47555 | Spring, Adjuster Lock(FOR FRONT BRAKE) |
| 47556E | Spring, Adjuster Lock(FOR FRONT BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
