Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08

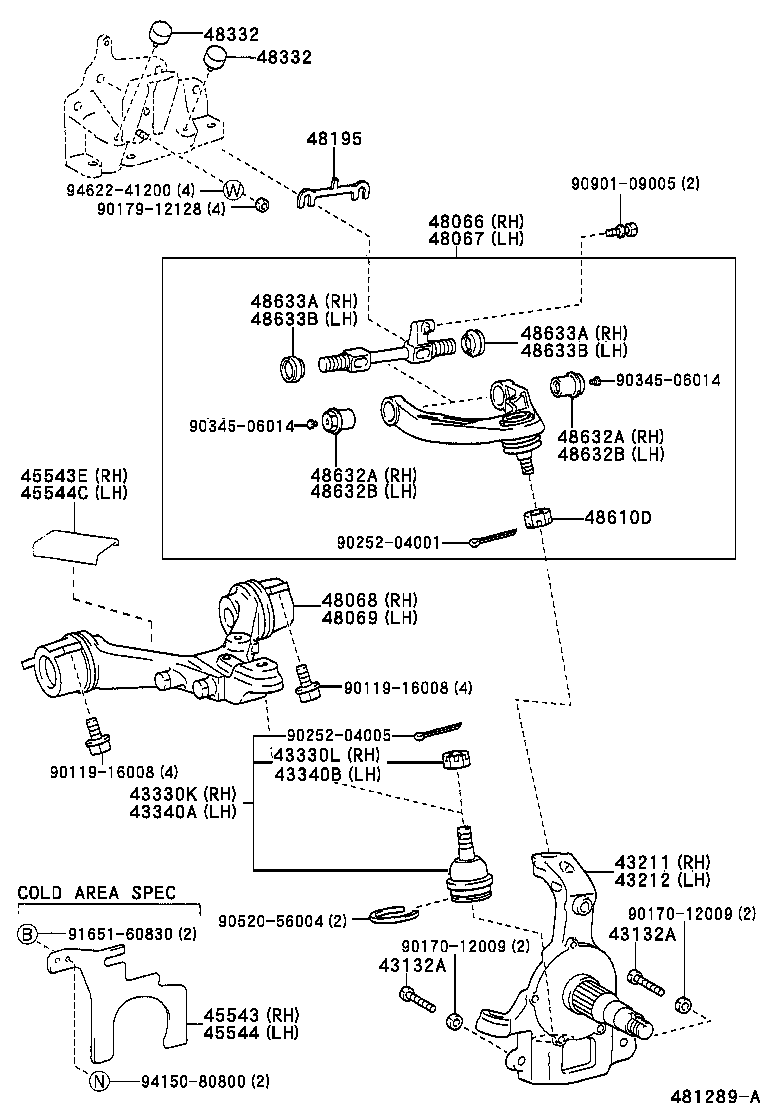

Front Axle Arm & Steering Knuckle
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04431 | Pin Kit, Steering Knuckle King |
| 43111 | I Beam, Front Axle |
| 43112 | Pin, King Pin Lock |
| 43132A | Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT) |
| 43211 | Knuckle, Steering, RH |
| 43211D | Plug (FOR STEERING KNUCKLE) |
| 43212 | Knuckle, Steering, LH |
| 43231A | Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH) |
| 43231B | Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN) |
| 43231C | Bearing (FOR STEERING KNUCKLE KING PIN) |
| 43231D | Shim (FOR KING PIN) |
| 43330K | Joint Assy, Lower Ball, Front RH |
| 43330L | Nut, Castle (FOR FRONT LOWER BALL JOINT RH) |
| 43340A | Joint Assy, Lower Ball, Front LH |
| 43340B | Nut, Castle (FOR FRONT LOWER BALL JOINT LH) |
| 45543 | Protector, Steering Rack Boot, RH |
| 45543E | Protector, Steering Rack Boot,RH NO.2 |
| 45544 | Protector, Steering Rack Boot, LH |
| 45544C | Protector, Steering Rack Boot, LH NO.2 |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48195 | Shim, Camber Adjust |
| 48332 | Bumper, Front Spring, NO.2 |
| 48610D | Nut(FOR SUSPENSION UPPER ARM) |
| 48632A | Bush, Front Suspension Upper Arm, RH |
| 48632B | Bush, Front Suspension Upper Arm, LH |
| 48633A | Seal, Front Suspension Upper Arm Pivot Dust, RH |
| 48633B | Seal, Front Suspension Upper Arm Pivot Dust, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
