Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

62 part groups · 8 illustrations

Illustrations

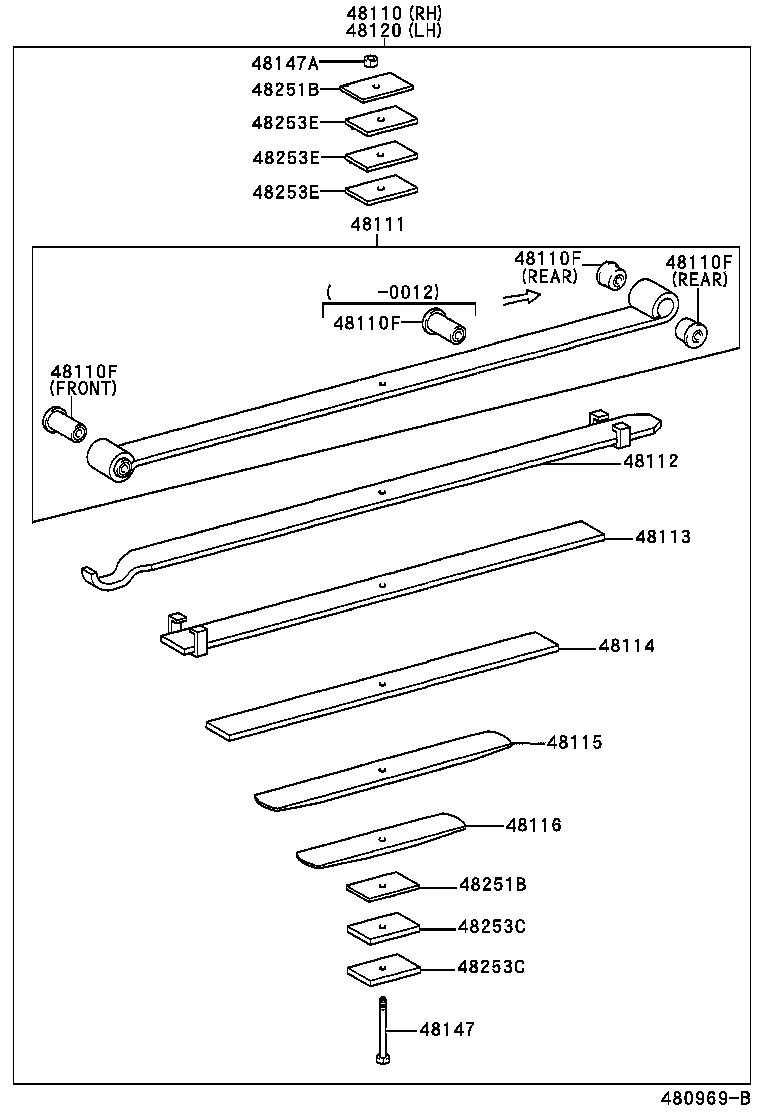

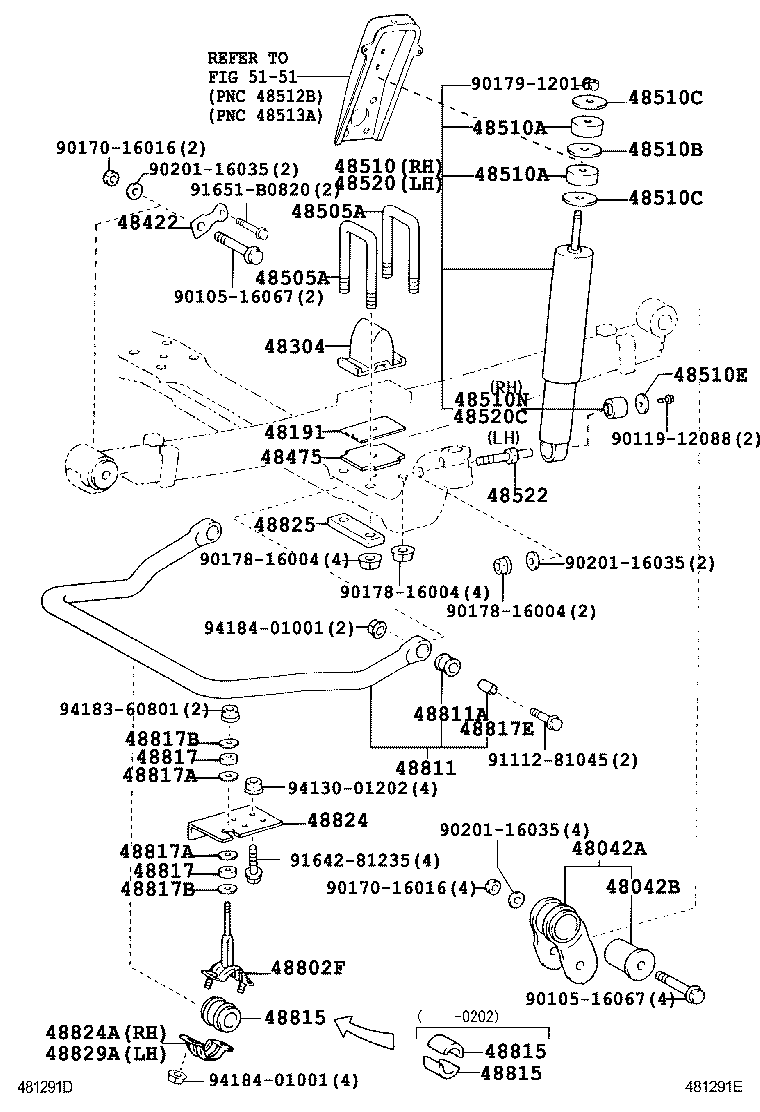

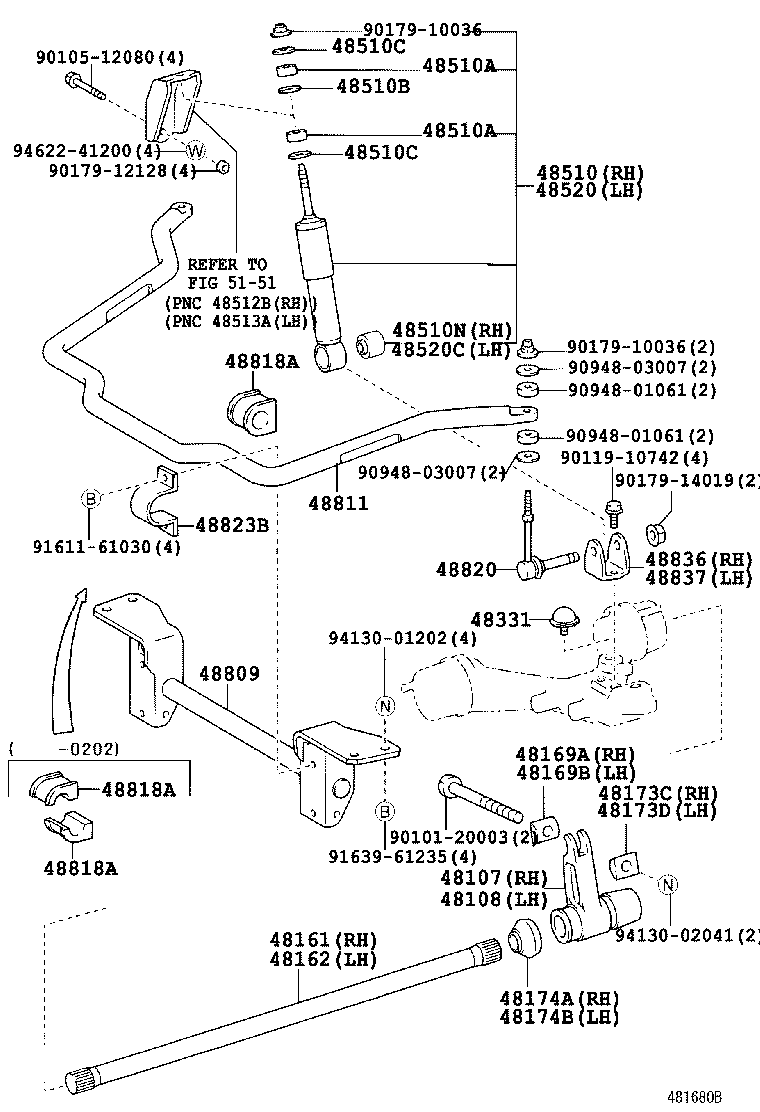

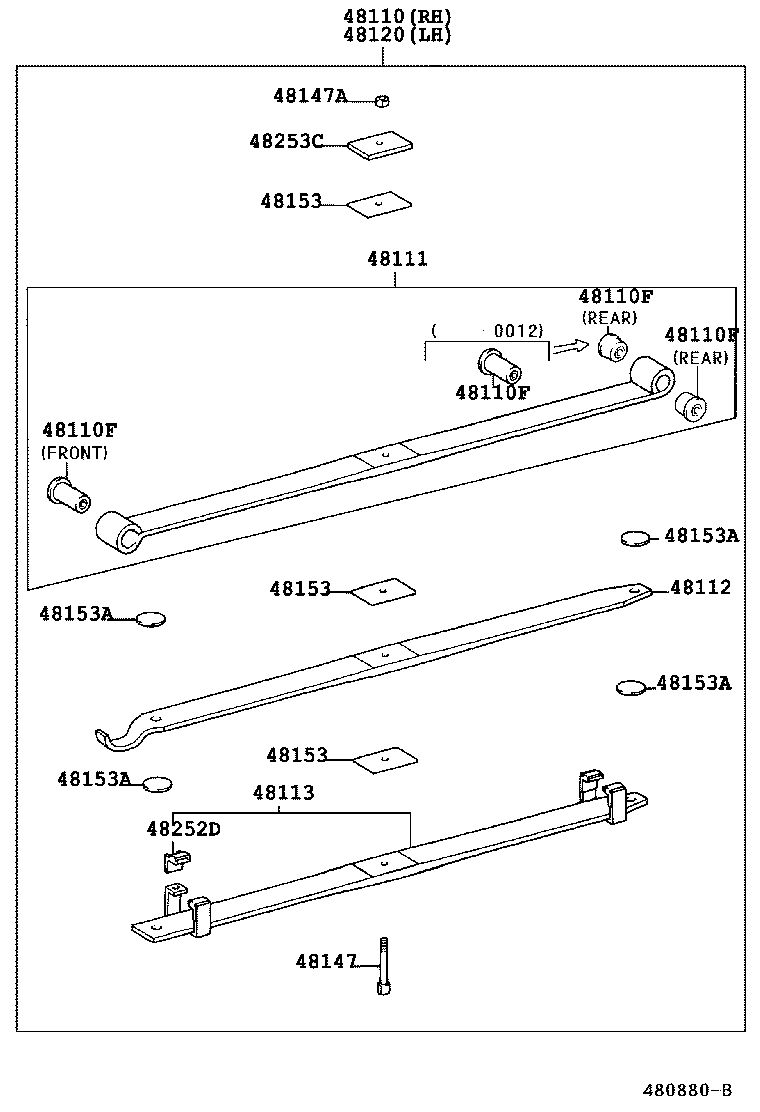

Figure 480970A 480970A 1999-07 → 2002-12 Figure 481291E 481291E 2000-10 → 2002-12 Figure 481680B 481680B 2000-10 → — Figure 480881A 480881A 2000-10 → — Figure 480880B 480880B 2000-10 → — Figure 480968A 480968A 1999-07 → — Figure 480969B 480969B 1999-07 → — Figure 481373 481373 1999-07 → —

Part groups

PNCDescription
48042A Shackle Sub-assy, Front Spring, NO.2
48042B Bush, Front Spring NO.2 Shackle
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48110 Spring Assy, Front, RH
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48147A Nut, Front Spring Center Bolt
48153 Spacer, Front Leaf Spring, NO.1
48153A Silencer, Front Spring, NO.1
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48251B Spacer(FOR FRONT SPRING)
48252D Silencer
48253C Spacer, Front Leaf Spring, NO.2
48253E Spacer, Front Spring, NO.3
48304 Bumper Sub-assy, Front Spring, NO.1
48331 Bumper, Front Spring, NO.1
48422 Support, Front Spring Pin
48475 Plate, Distance(FOR FRONT)
48505A Bolt, U(FOR FRONT SPRING)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510E Washer, Front Shock Absorber Cushion, NO.2
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48522 Pin, Front Shock Absorber Lower Pivot
48802F Link Sub-assy, Front Stabilizer
48809 Bracket Sub-assy, Stabilizer
48811 Bar, Stabilizer, Front
48811A Bush(FOR FRONT STABILIZER BAR)
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817E Spacer(FOR STABILIZER BAR)
48818A Bush, Stabilizer, Front
48820 Link Assy, Front Stabilizer
48823B Cover, Front Stabilizer Bracket
48824 Bracket, Stabilizer, Front
48824A Bracket, Front Stabilizer, NO.1 RH
48825 Bracket, Stabilizer, NO.2
48829A Bracket, Front Stabilizer, NO.1 LH
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
