Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

58 part groups · 12 illustrations

Illustrations

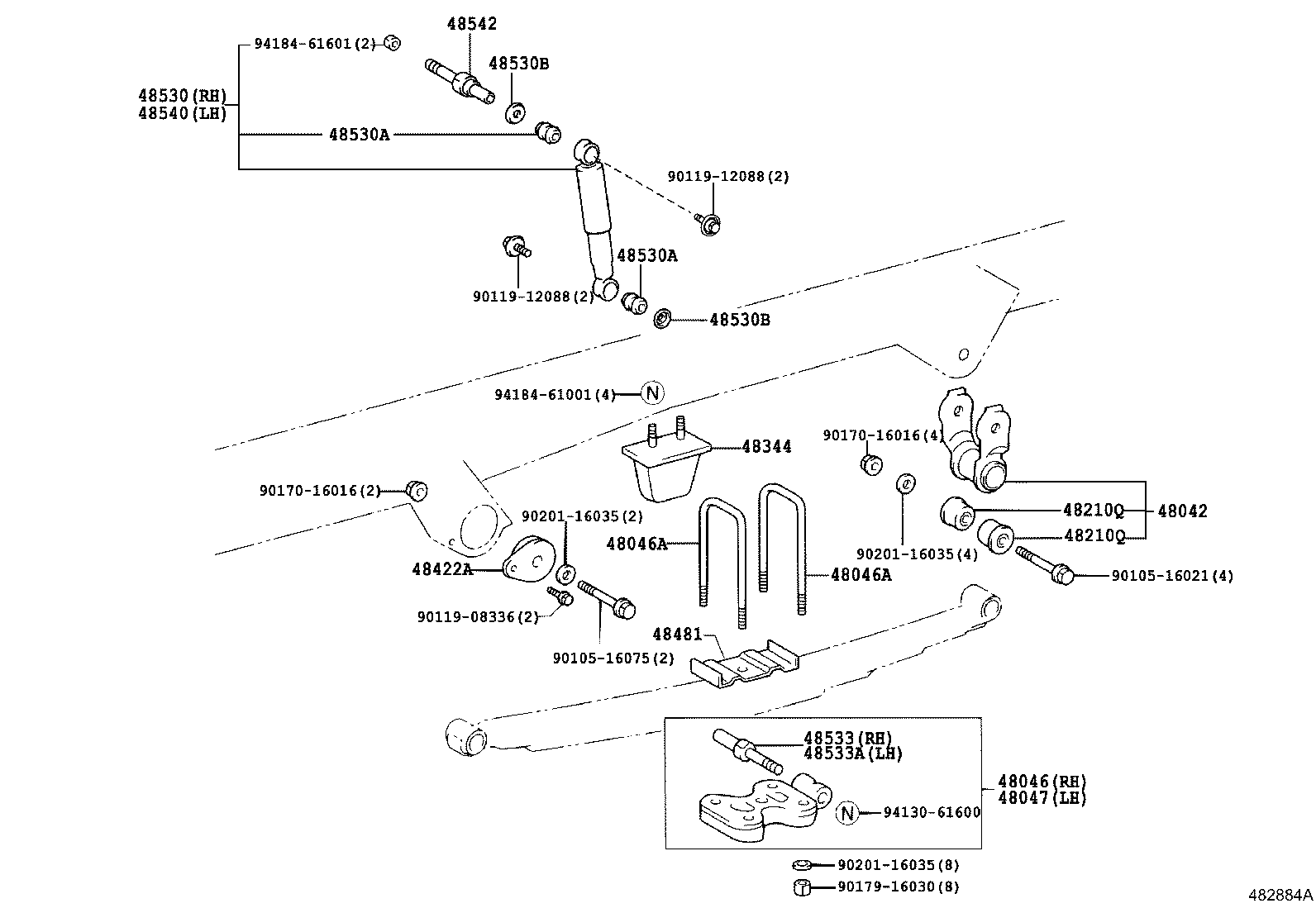

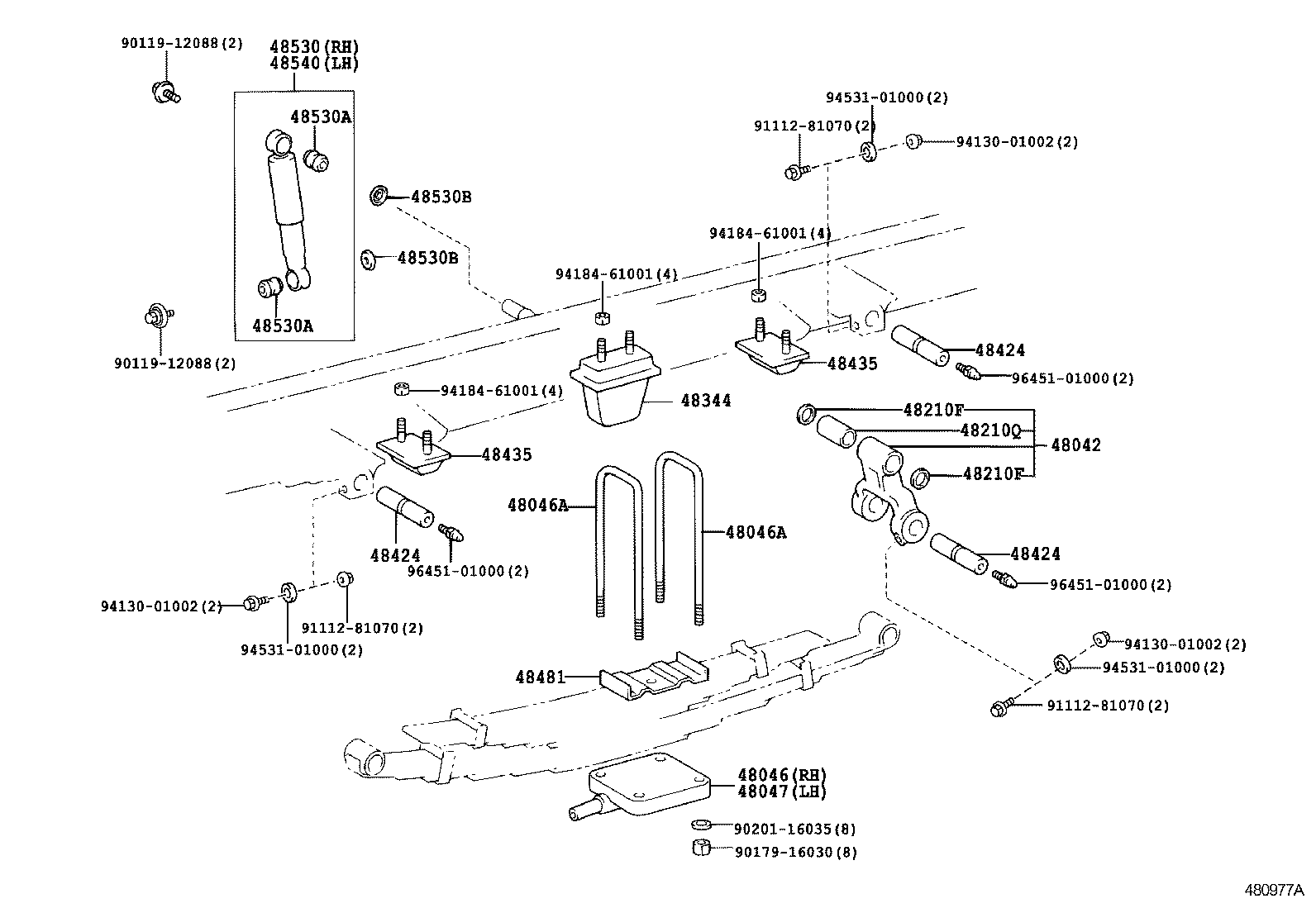

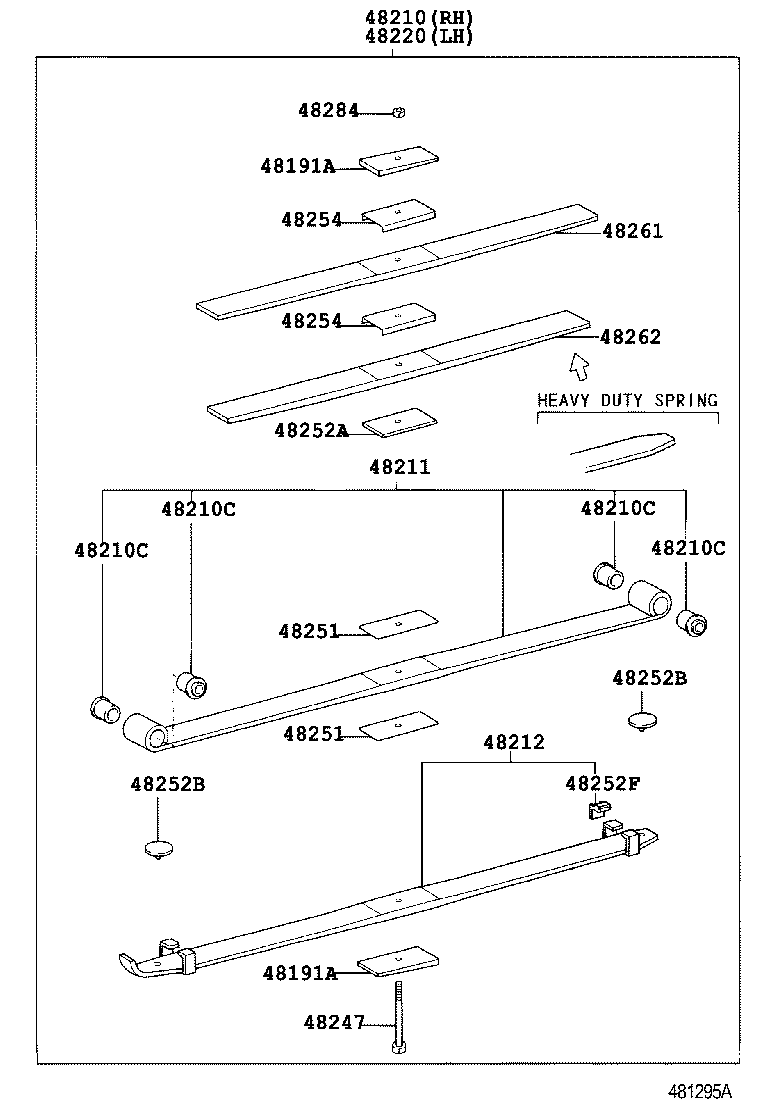

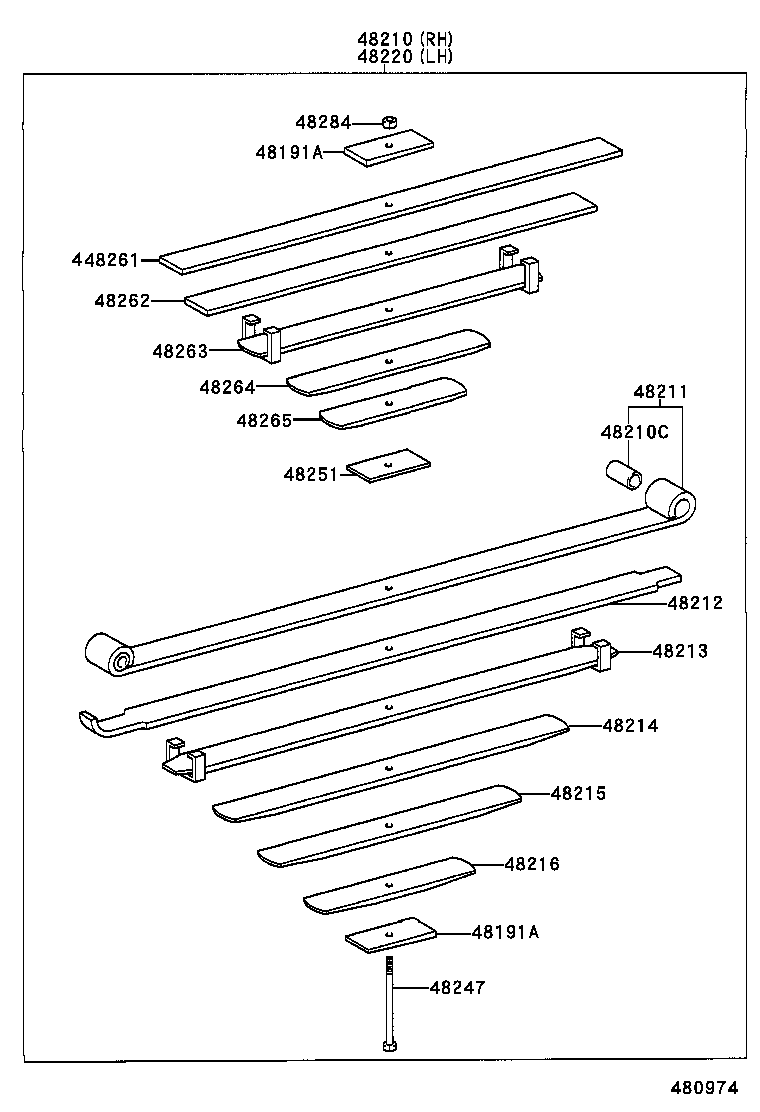

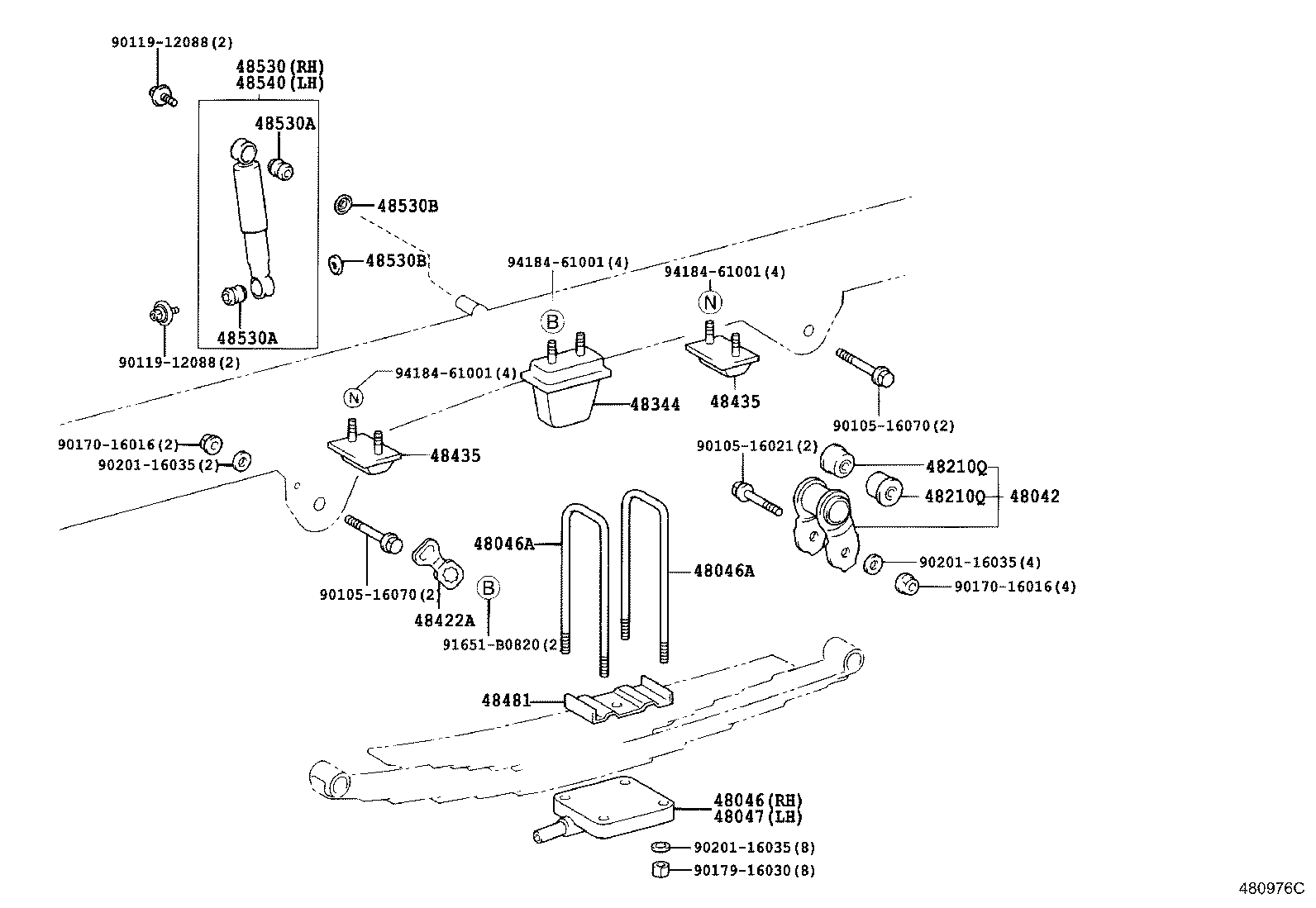

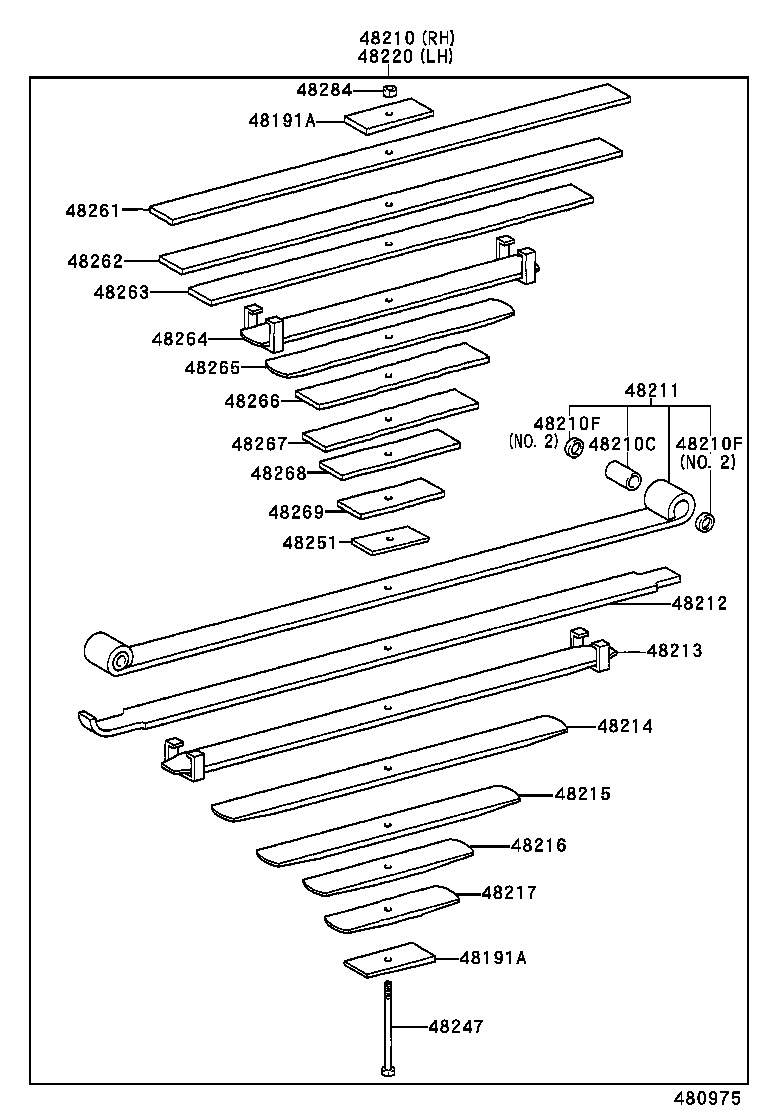

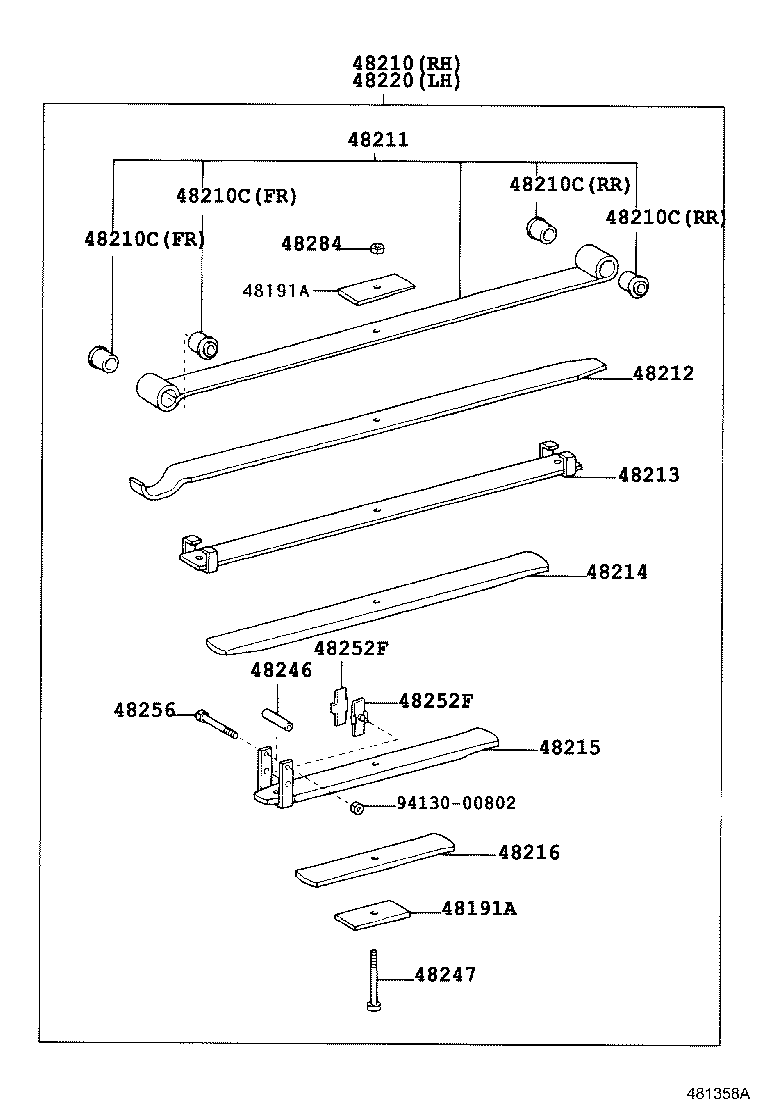

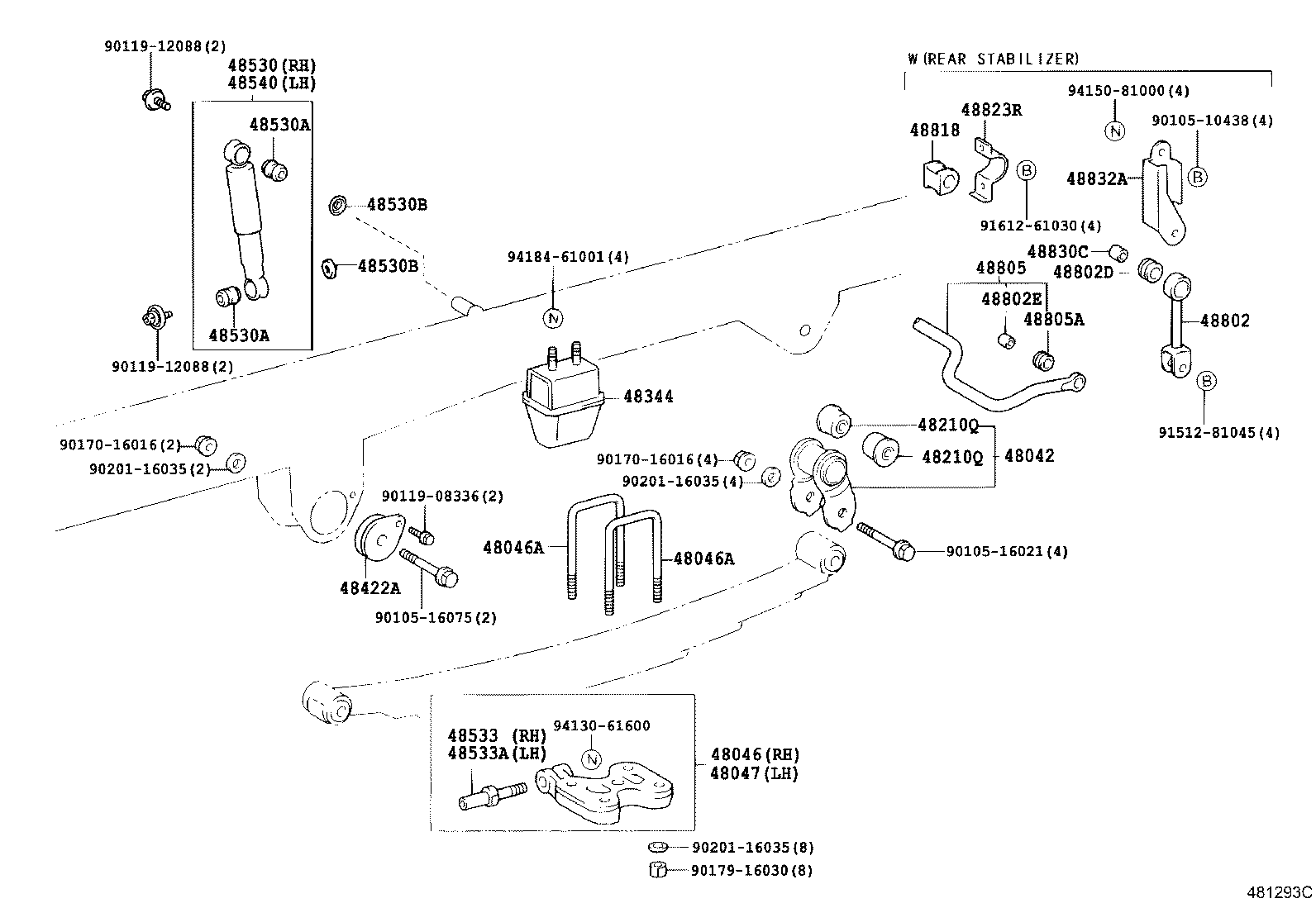

Figure 482885A 482885A 1999-07 → — Figure 480976C 480976C 1999-07 → — Figure 480977A 480977A 1999-07 → — Figure 482884A 482884A 2000-10 → — Figure 481293C 481293C 2000-10 → — Figure 481294C 481294C 2000-10 → — Figure 481358A 481358A 2000-10 → — Figure 481295A 481295A 2000-10 → — Figure 480973 480973 1999-07 → — Figure 480972 480972 1999-07 → — Figure 480974 480974 1999-07 → — Figure 480975 480975 1999-07 → —

Part groups

PNCDescription
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210F Seal, Dust(FOR REAR SPRING PIN)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48252F Silencer, Rear Spring, NO.3
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48269 Leaf, Rear Helper Spring, NO.9
48284 Nut, Rear Spring Center Bolt
48344 Stopper, Bumper, Rear
48422A Support, Rear Spring Pin
48424 Pin, Spring Bracket, NO.2
48435 Attachment, Helper Spring Bracket, NO.1
48481 Seat, Rear Spring, Upper
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48533 Pin, Rear Shock Absorber Lower Pivot, RH
48533A Pin, Rear Shock Absorber Lower Pivot, LH
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48805A Bush(FOR REAR STABILIZER BAR)
48818 Bush, Stabilizer, Rear
48823R Cover, Stabilizer Link(FOR REAR)
48830C Spacer(FOR REAR STABILIZER LINK)
48832A Bracket, Rear Stabilizer Bar, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
