Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

17 part groups · 6 illustrations

Illustrations

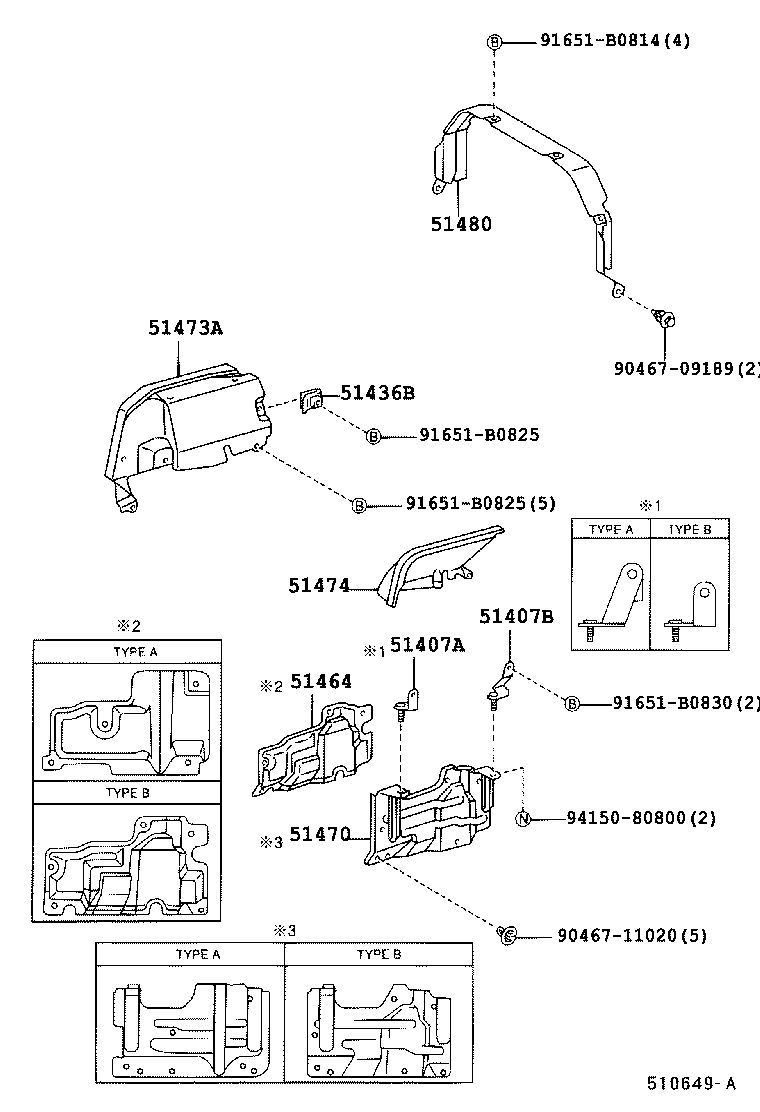

Figure 510508C 510508C 1999-07 → 2002-06 Figure 511293 511293 1999-07 → 2002-06 Figure 510649A 510649A 2000-10 → 2002-06 Figure 510811C 510811C 2002-06 → — Figure 510795D 510795D 2002-06 → — Figure 510507E 510507E 1999-07 → —

Part groups

PNCDescription
51407A Cover Sub-assy, Engine Under, NO.3
51407B Bracket Sub-assy, Engine Under Cover
51407D Bracket Sub-assy, Engine Under Cover
51436B Bracket, Engine Side Cover, NO.1 RH
51464 Silencer, Transmission Under, LH
51464F Silencer, Transmission Under
51464G Silencer, Transmission Under
51470 Cover Assy, Transmission Under
51470A Cover Assy, Transmission Under, LH
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51480 Shutter Assy, Engine Rear Side, RH
51961C Hook, Front
51962 Hook, NO.2
51963B Hook, Transport, Front RH
51963E Stopper, Front Hook Wire
51964B Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
