Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

6 part groups · 6 illustrations

Illustrations

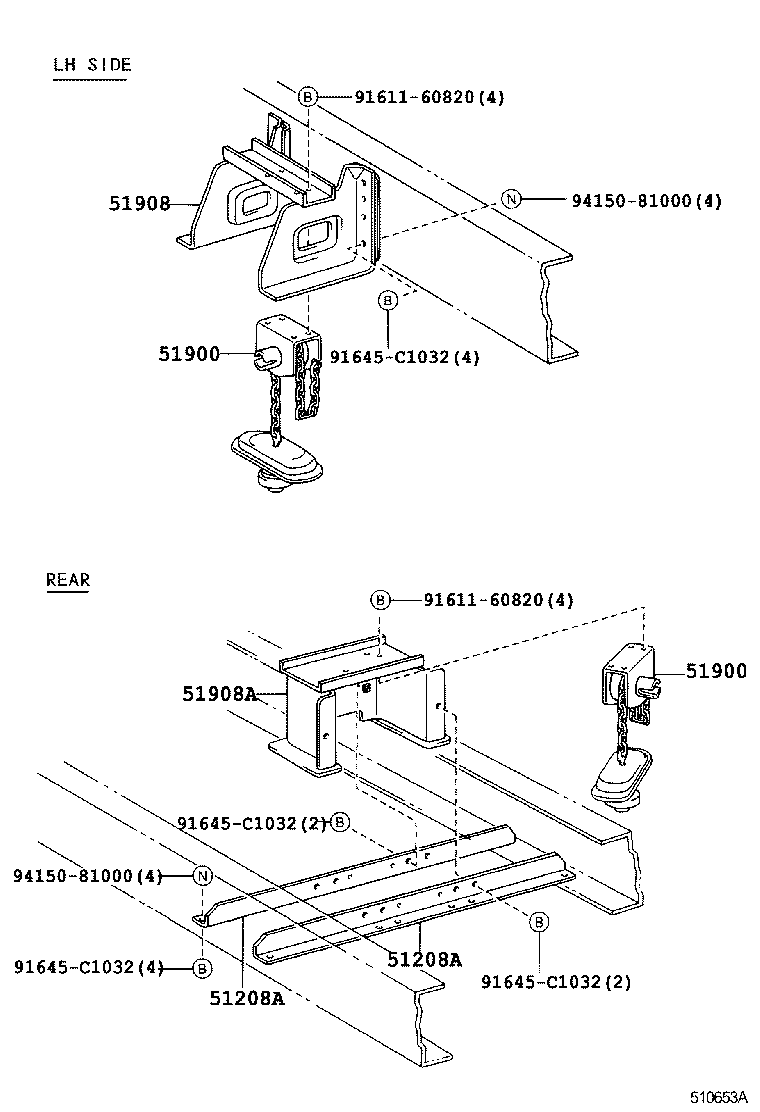

Figure 510506B 510506B 1999-07 → — Figure 510650 510650 2000-10 → — Figure 510651 510651 2000-10 → — Figure 510652 510652 2000-10 → — Figure 510653A 510653A 2000-10 → — Figure 510654 510654 2000-10 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51908A Bracket Sub-assy, Spare Wheel Mounting
51933A Stopper, Spare Wheel, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
