Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

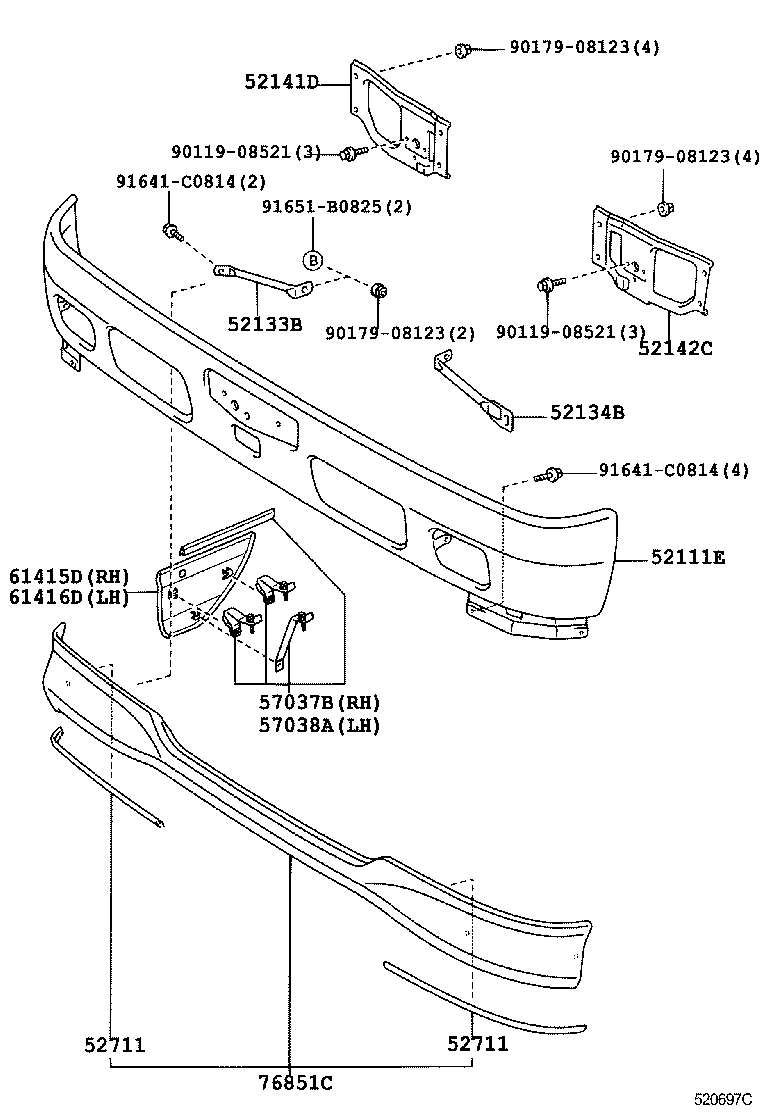

Figure 520533B 520533B 1999-07 → — Figure 520697C 520697C 2000-10 → —

Part groups

PNCDescription
52111E Bar, Front Bumper
52133B Bracket, Front Bumper Extension Mounting, RH
52134B Bracket, Front Bumper Extension Mounting, LH
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52711 Moulding, Front Bumper
57037B Stay Sub-assy, Front Step, RH
57038A Stay Sub-assy, Front Step, LH
61415D Panel, Front Step Under, RH
61416D Panel, Front Step Under, LH
76851C Front Spoiler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
