Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08
Floor Mat & Silencer Pad

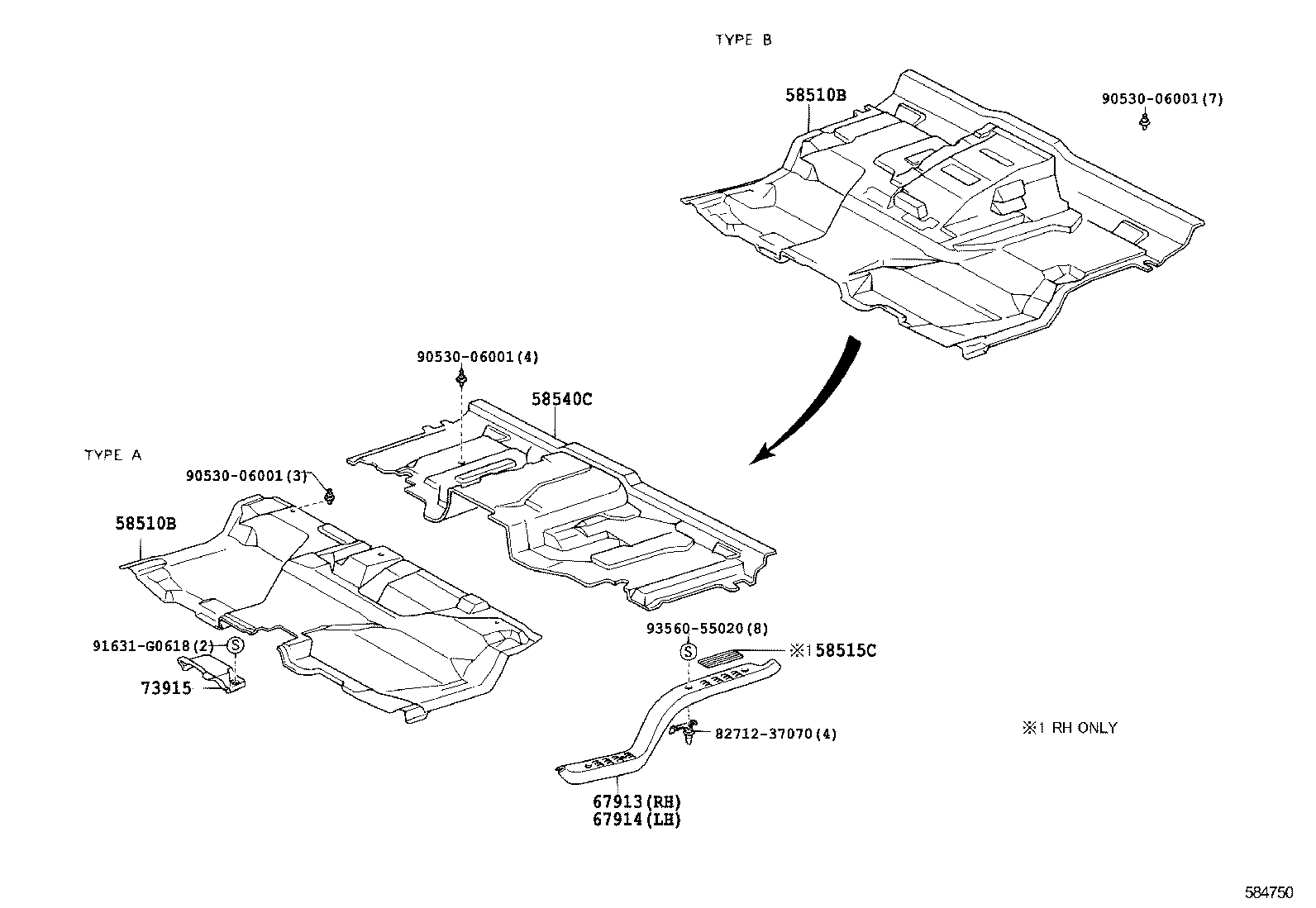

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510B | Mat, Front Floor, Front |
| 58513C | Mat, Floor, Front Center |
| 58515C | Mat, Front Floor, Rear NO.1 |
| 58540C | Mat Assy, Floor, Rear |
| 58540E | Mat Assy, Floor, Rear RH |
| 58550B | Mat Assy, Floor, Rear LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 73915 | Cover, Seat Airbag NO.1, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
