Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08

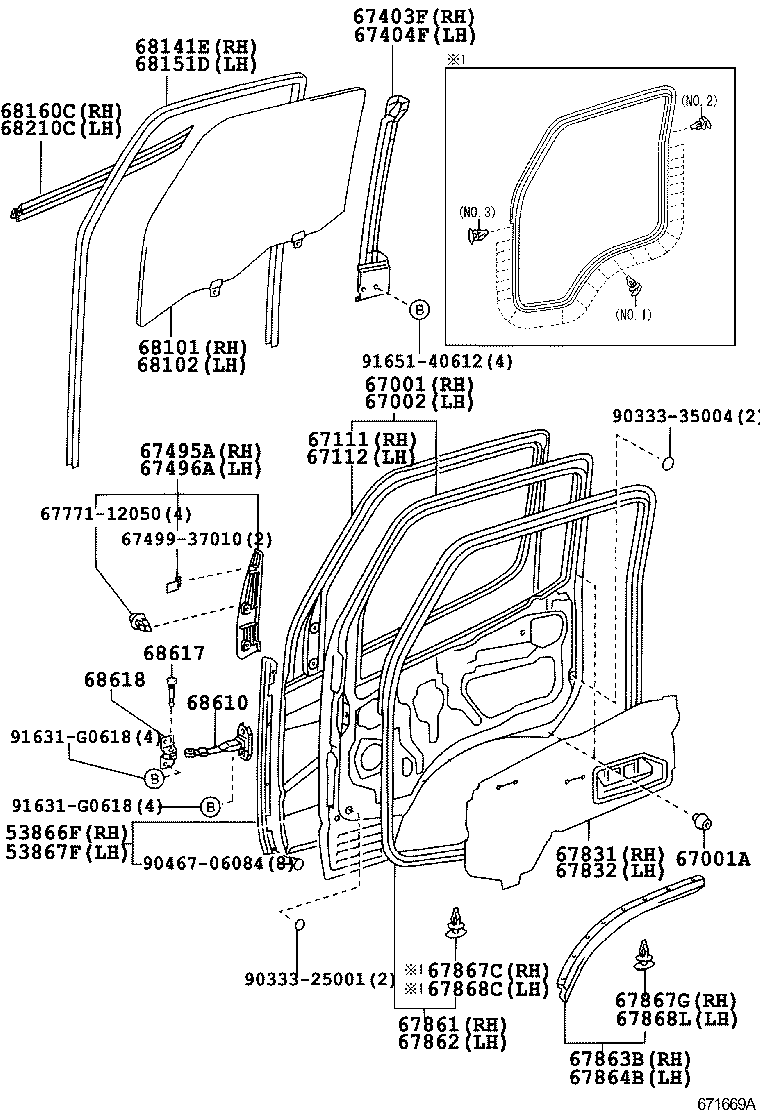

Front Door Panel & Glass

39 part groups · 3 illustrations

PNC	Description
53866F	Seal, Front Fender TO Cowl Side, RH
53867F	Seal, FR Fender TO Cowl Side, LH
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67495A	Cover, Front Door Front Lower Frame, Upper RH
67496A	Cover, Front Door Front Lower Frame, Upper LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67601M	Retainer, Door Trim, NO.2
67602	Board Sub-assy, Front Door Trim, LH
67625A	Bracket, Front Door Trim, NO.1
67651B	Grille, Speaker Door, RH
67652B	Grille, Speaker Door, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67864B	Weatherstrip, Front Door, NO.2 LH
67867C	Retainer, Front Door Weatherstrip, RH
67867G	Retainer, Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67868L	Retainer, Door Weatherstrip, LH
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141E	Run, Front Door Glass, RH
68151D	Run, Front Door Glass, LH
68160C	Weatherstrip Assy, Front Door Glass, Outer RH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68210C	Weatherstrip Assy, Front Door Glass, Outer LH
68610	Check Assy, Front Door
68617	Pin, Front Door Check
68618	Bracket, Front Door Check Arm, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
