Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

9 part groups · 2 illustrations

Illustrations

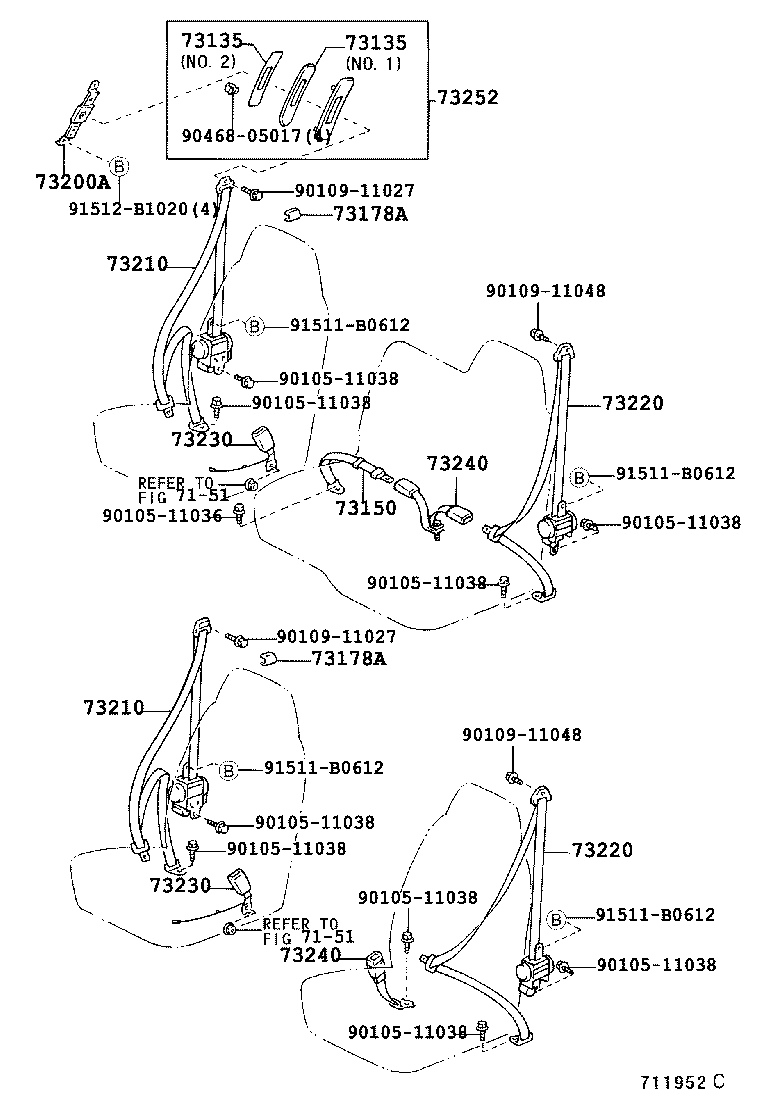

Figure 711414B 711414B 1999-07 → 2002-12 Figure 711952C 711952C 2000-10 → 2002-06

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252 Cover, Shoulder Belt Anchor Adjust, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
