Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08

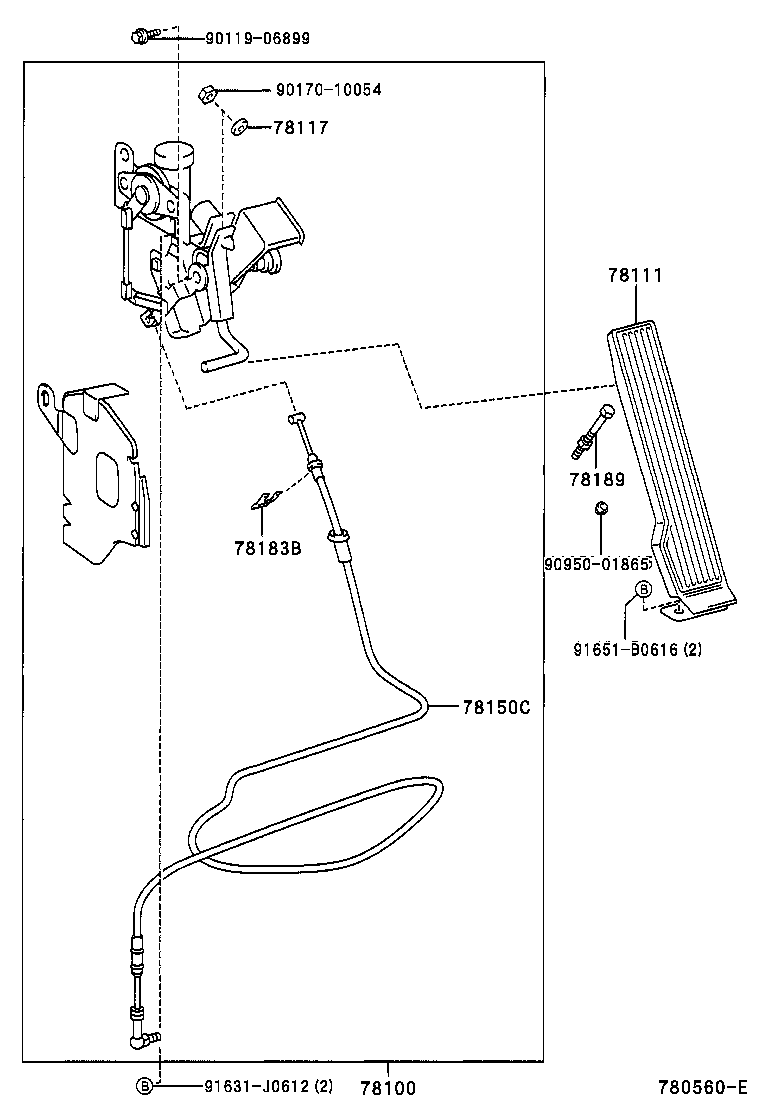

Accelerator Link
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010A | Bush (FOR ACCELERATOR LINK) |
| 78100 | Link Assy, Accelerator |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78116 | Cover, Accelerator Pedal Rod |
| 78117 | Cushion (FOR ACCELERATOR ROD) |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78130 | Bellcrank Assy, Accelerator |
| 78150C | Wire Assy, Accelerator Flexible |
| 78162 | Bracket, Control Bellcrank |
| 78183B | Clamp, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78199B | Pin, Accelerator Control Rod Joint |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
