Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 9 illustrations

Illustrations

Figure 823431A 823431A 1999-07 → — Figure 822509C 822509C 2000-10 → — Figure 821853 821853 1999-07 → — Figure 822510 822510 2000-10 → — Figure 821854 821854 1999-07 → — Figure 822511B 822511B 2000-10 → — Figure 821855E 821855E 1999-07 → — Figure 821856G 821856G 1999-07 → — Figure 822047G 822047G 1999-07 → —

Part groups

PNCDescription

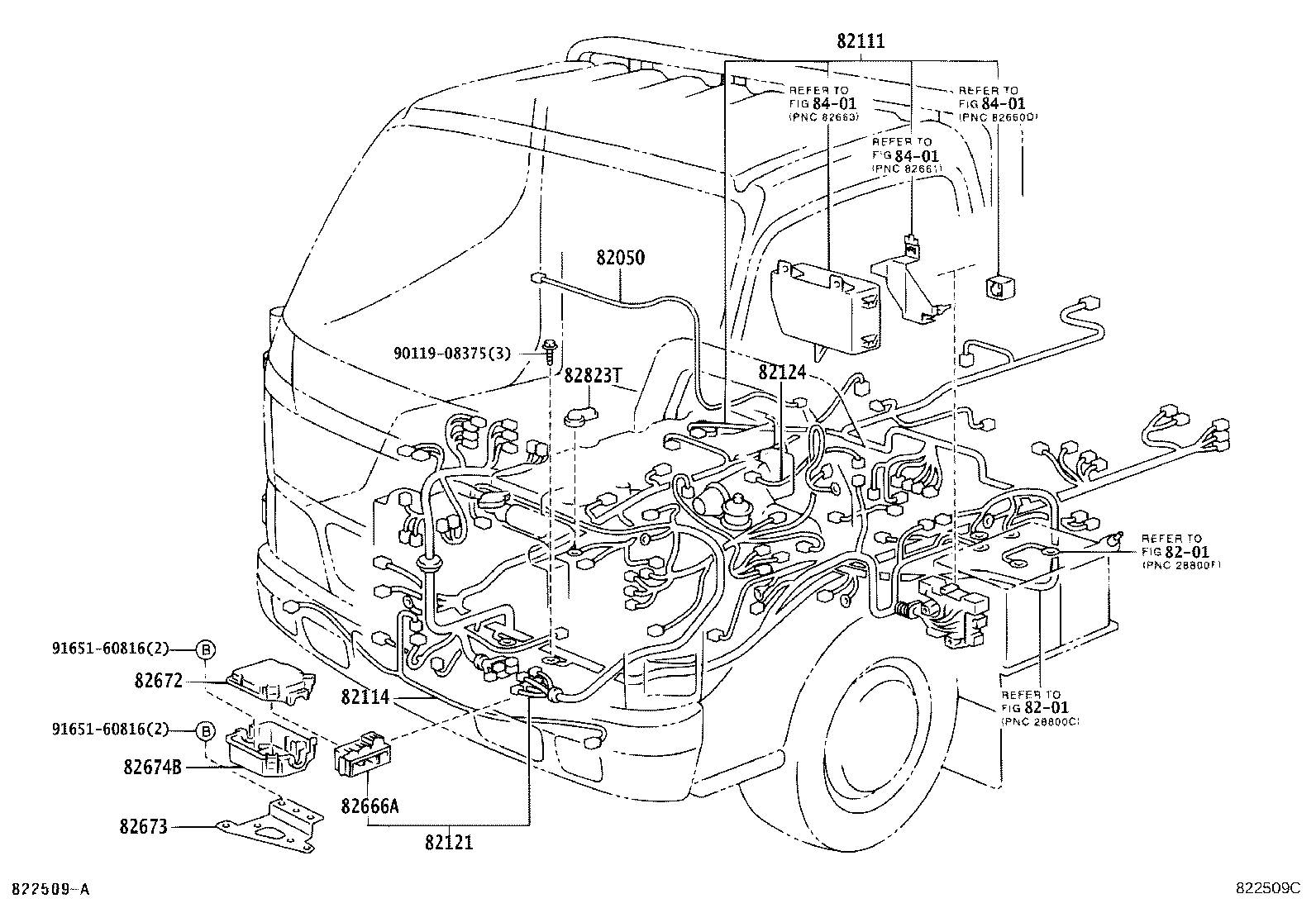

82050 Wire Assy, Engine

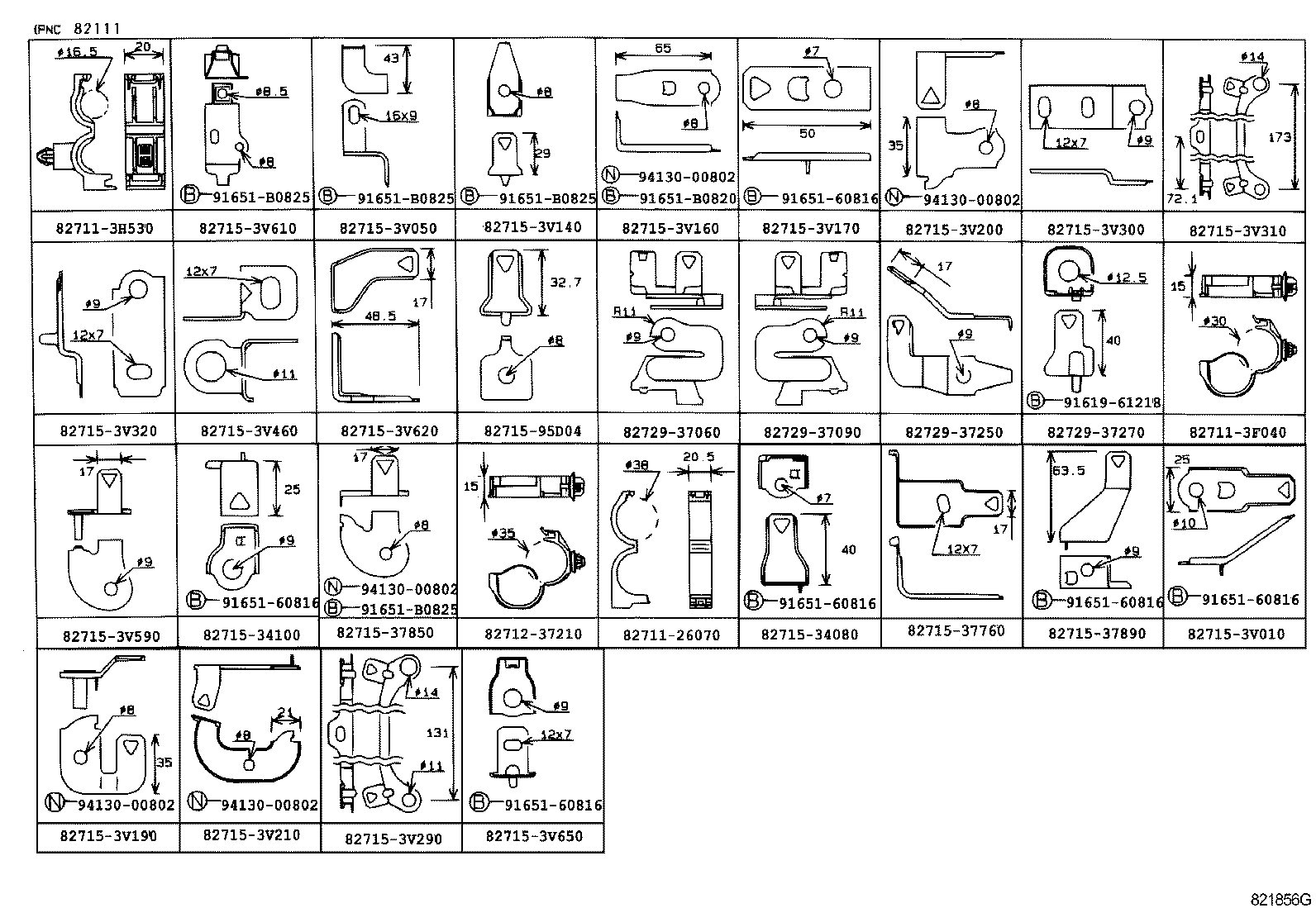

82111 Wire, Engine Room Main

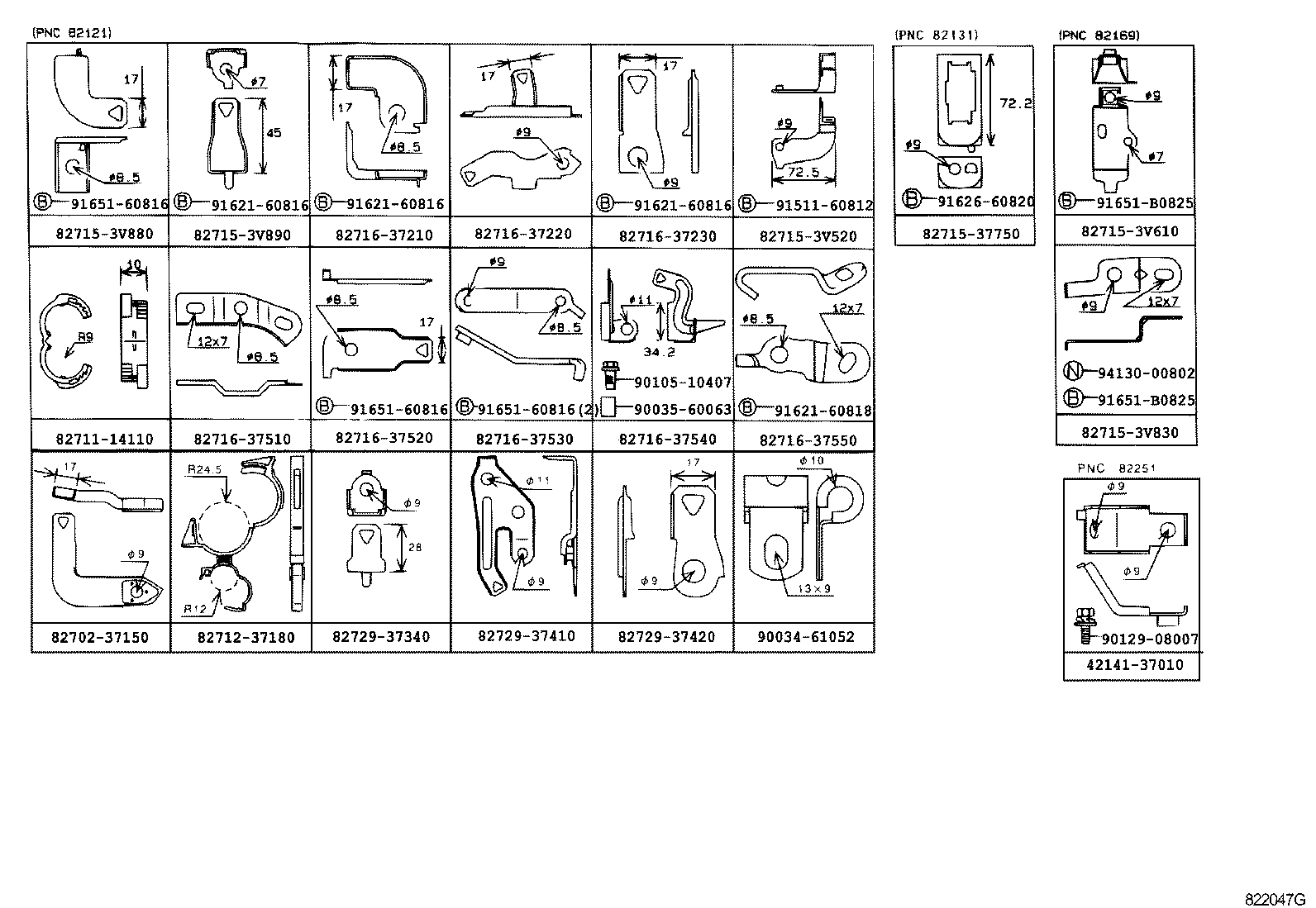

82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82124 Wire, Engine, NO.4

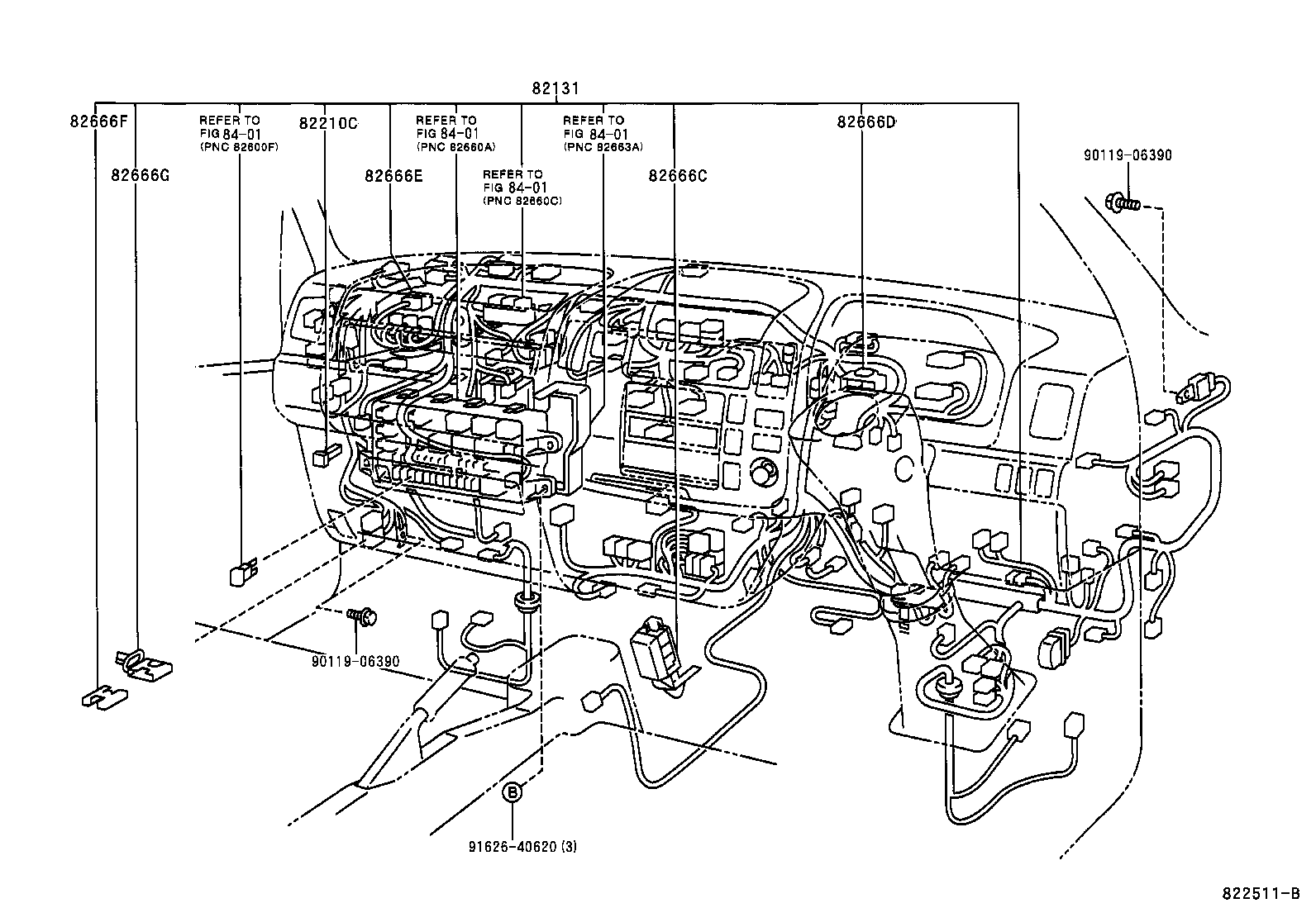

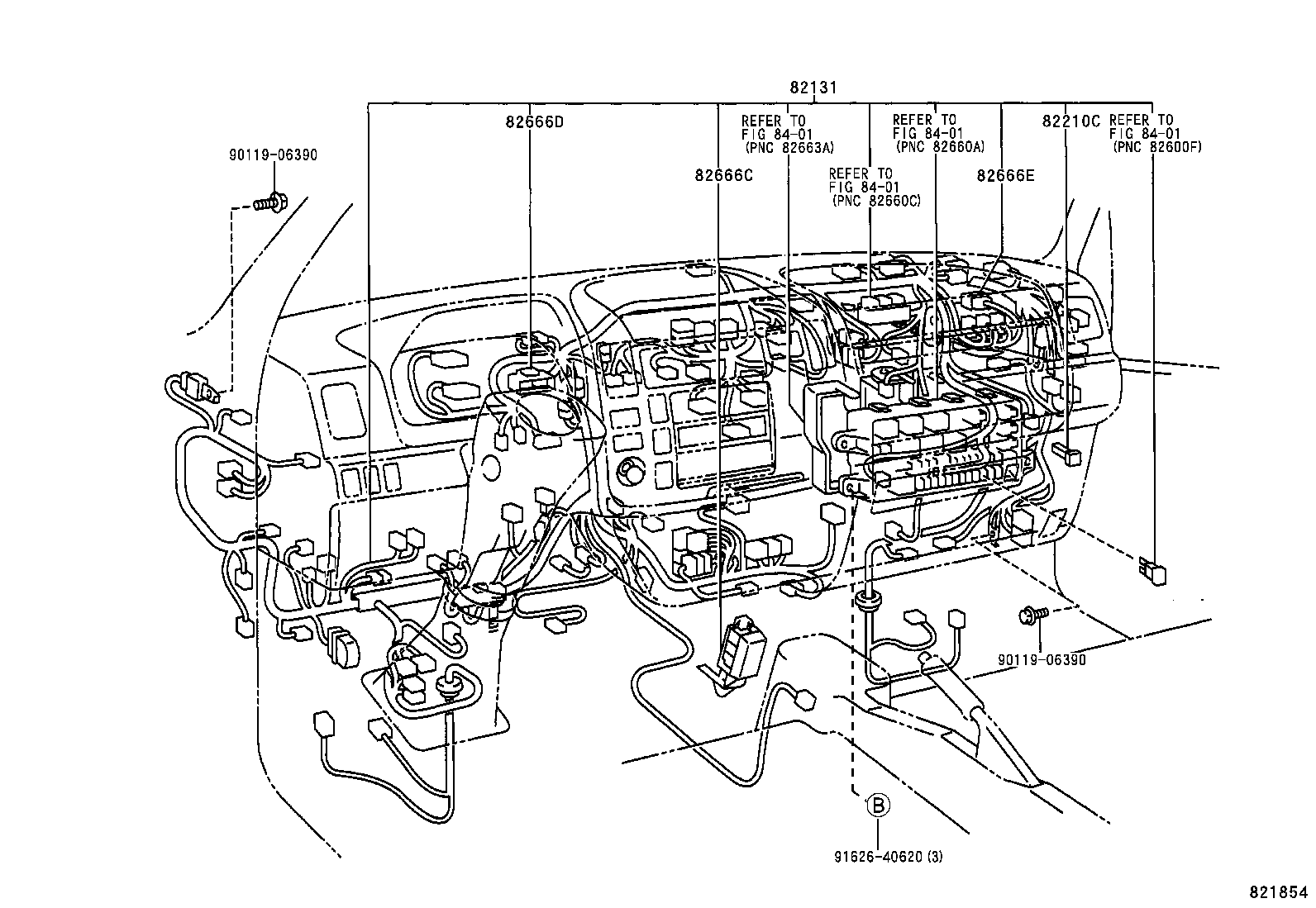

82131 Wire, Cowl

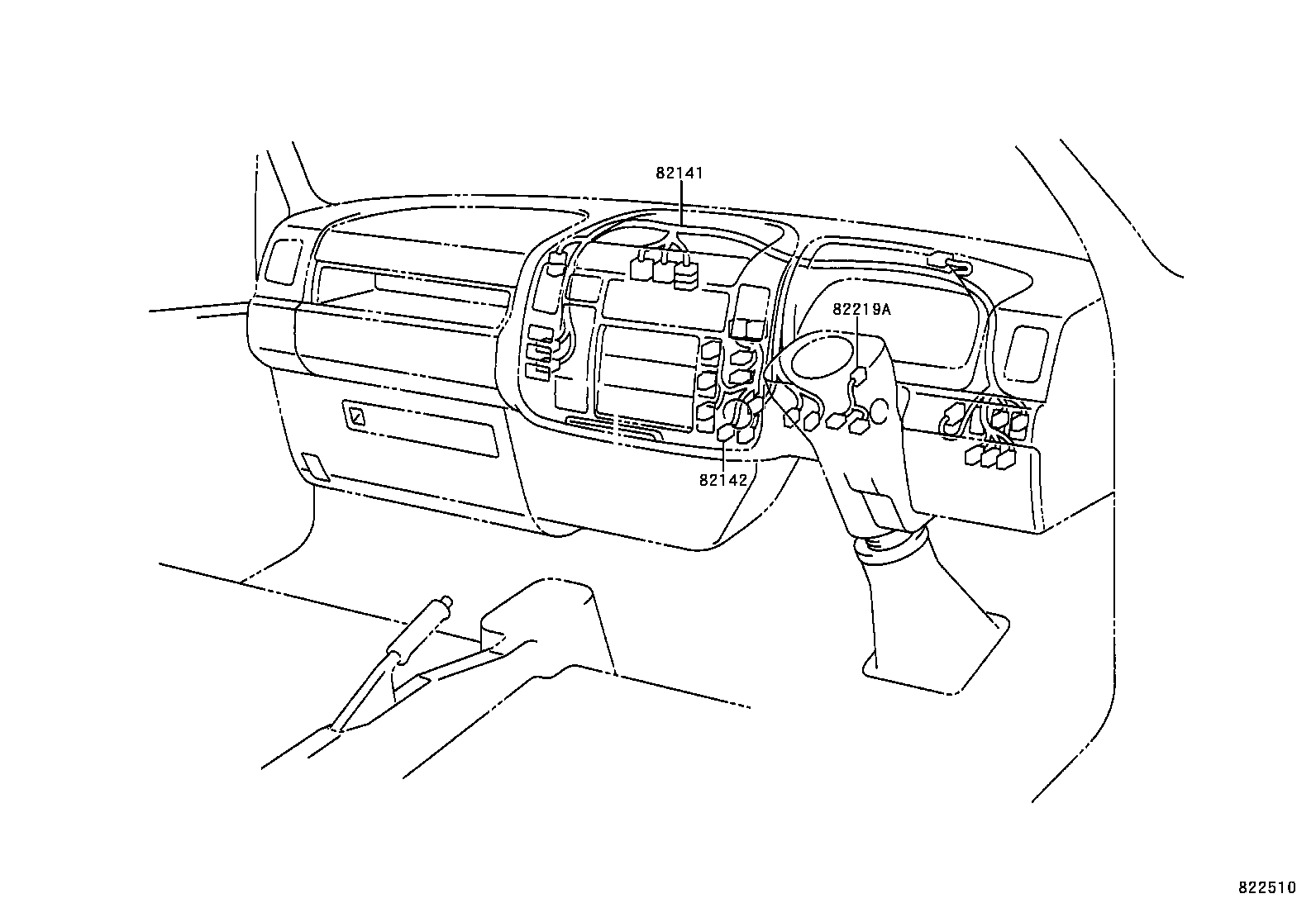

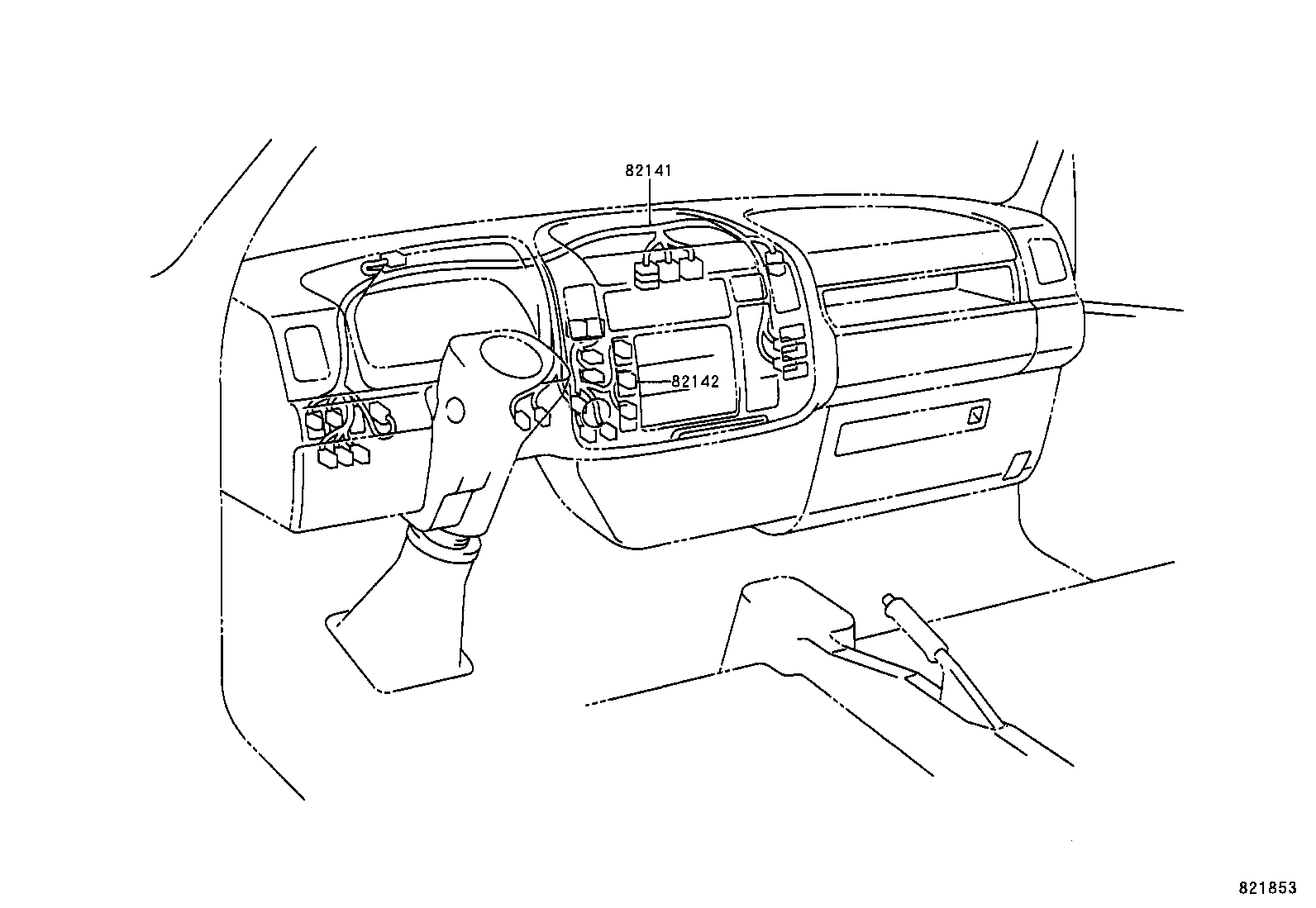

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

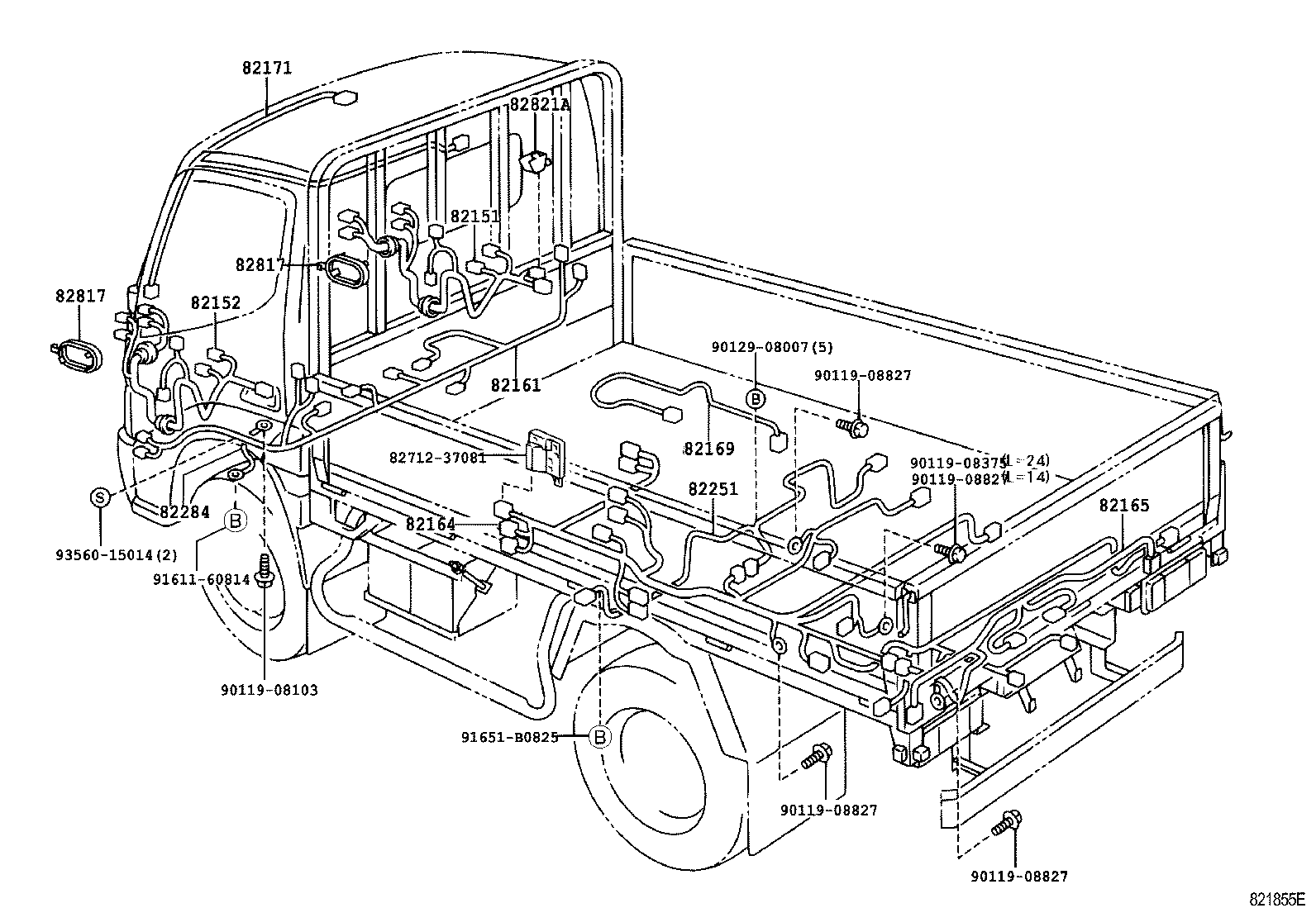

82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82251 Wire, Speed Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82674B Cover, Junction Block, Lower
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
