Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08
Meter
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82824Q | Connector, Wiring Harness, NO.1(FOR SPEEDOMETER) |
| 82824R | Connector, Wiring Harness, NO.2(FOR SPEEDOMETER) |

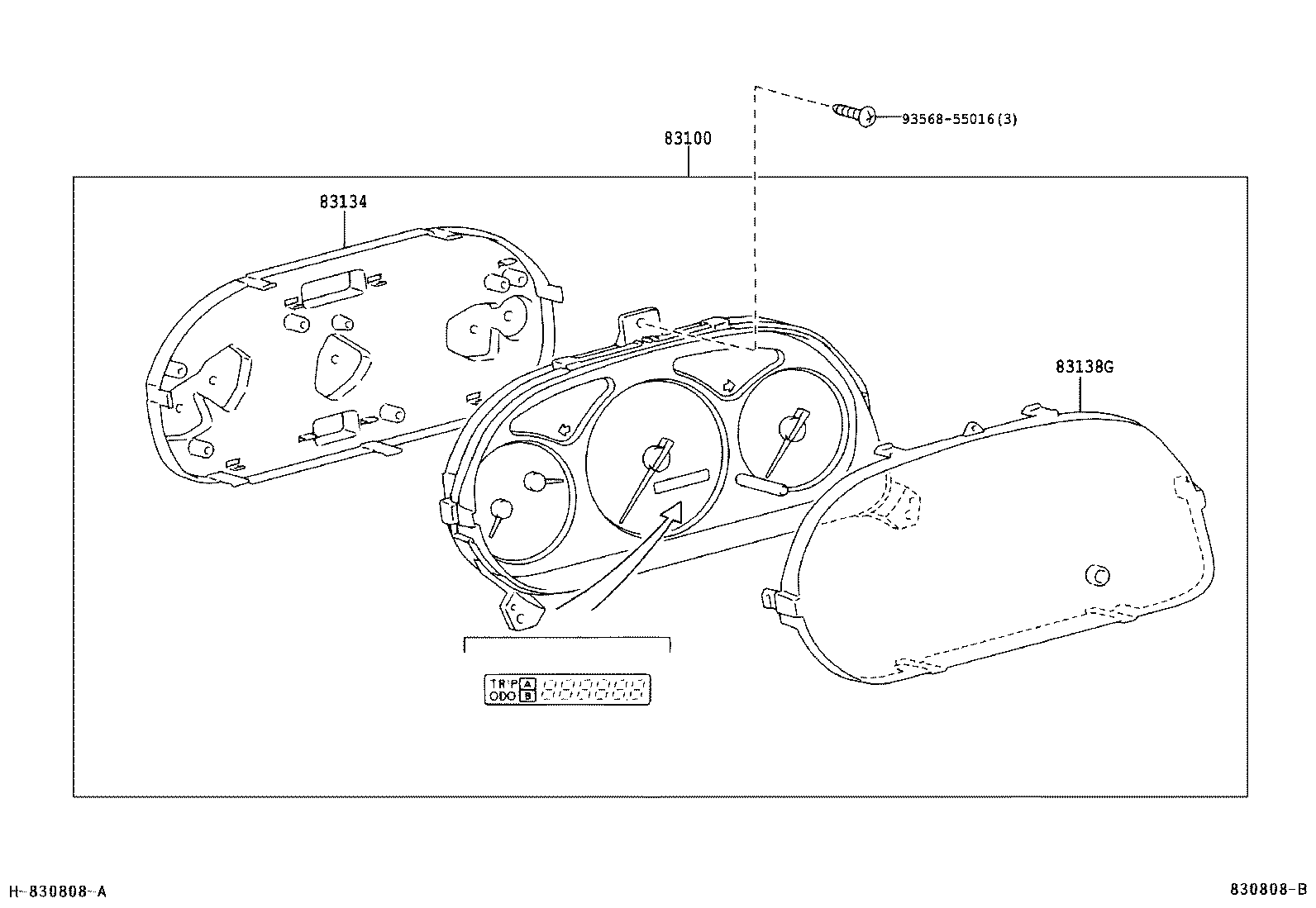

| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |

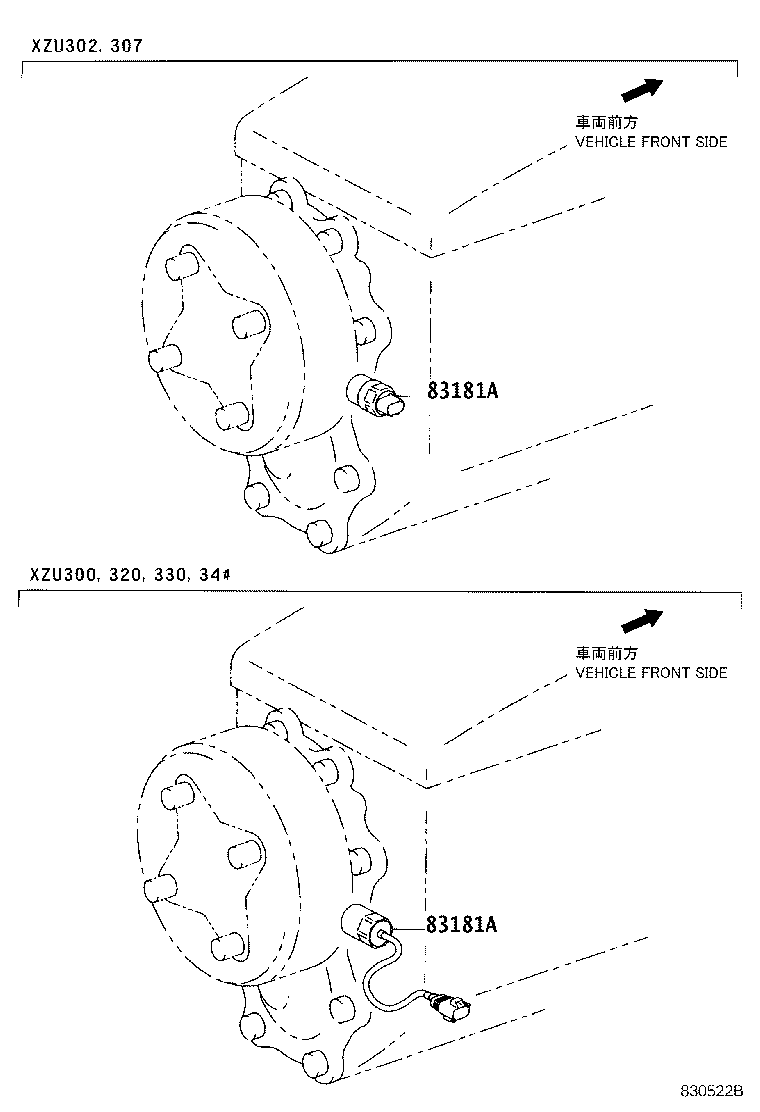

| 83181A | Sensor, Speedometer |

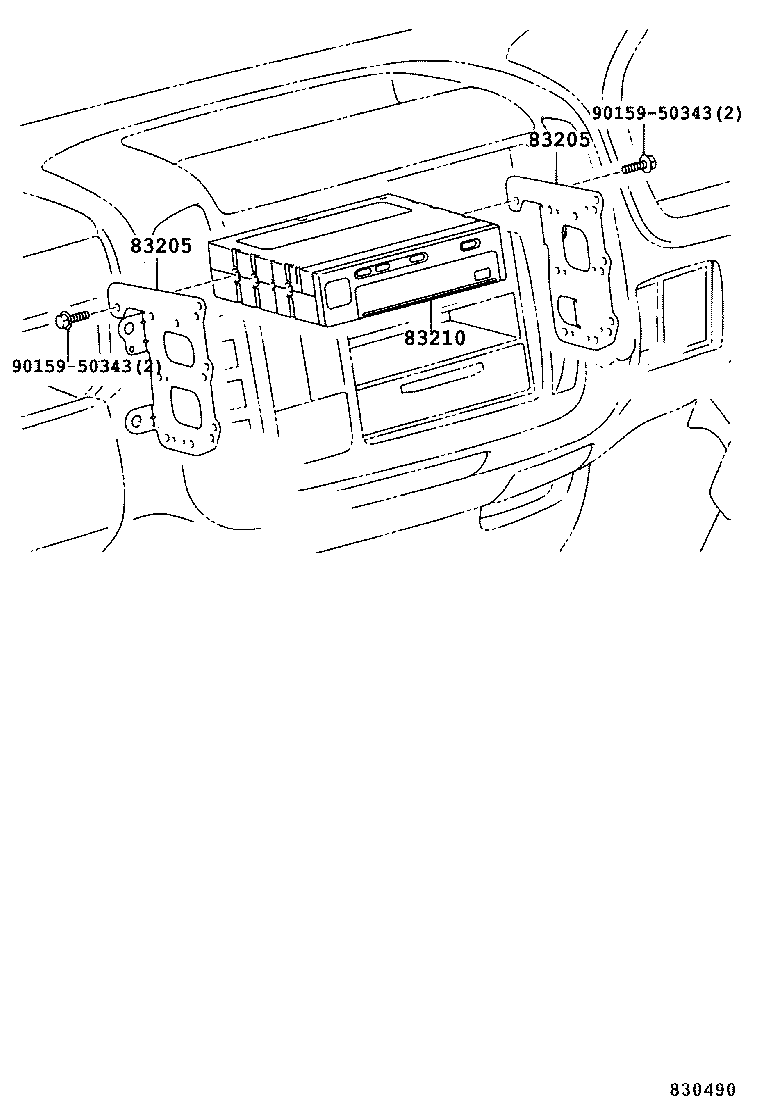

| 83205 | Bracket, Sub-assy, Tachograph |
| 83210 | Tachograph Assy |
| 83242 | Tachometer Assy, Engine |
| 83293 | Computer, Total Counter Module |
| 83310 | Gage Assy, Fuel Receiver |
| 83878 | Resistor, Combination Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
