Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

16 part groups · 2 illustrations

Illustrations

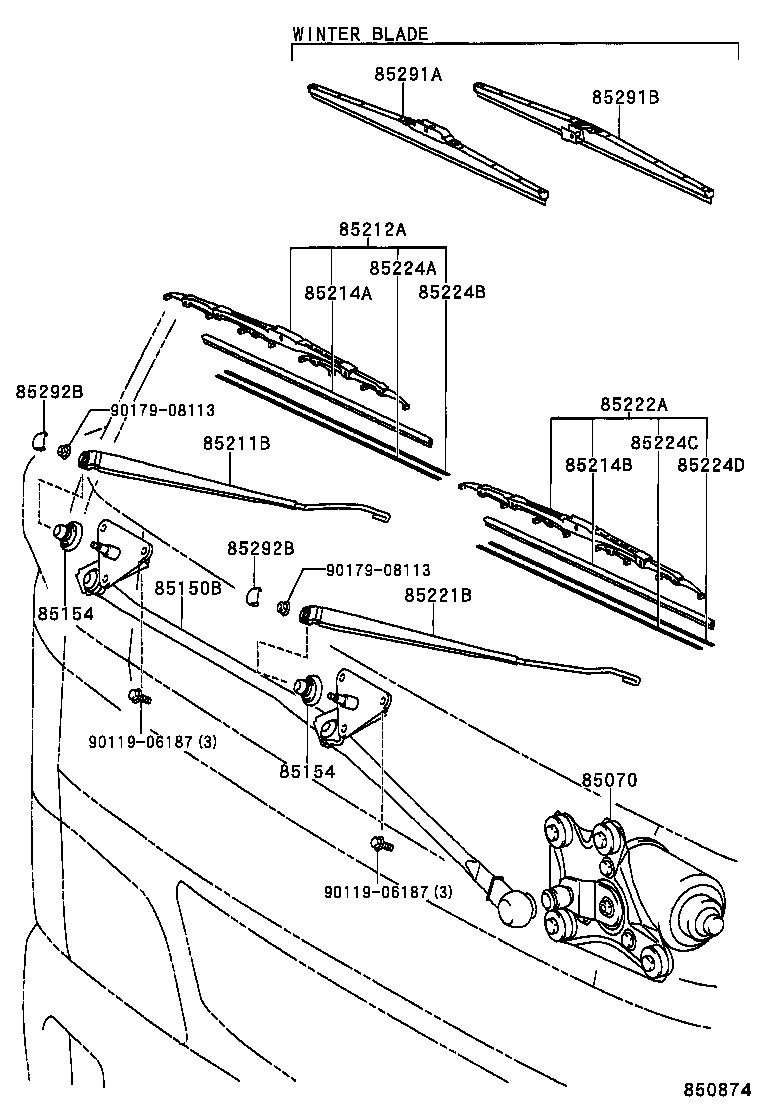

Figure 850633 850633 1999-07 → — Figure 850874 850874 2000-10 → —

Part groups

PNCDescription
85070 Motor & Bracket Assy, Front Wiper
85150B Link Assy, Wiper
85154 Packing, Front Wiper Shaft
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
85291A Blade, Front Wiper, Winter, RH
85291B Blade, Front Wiper, Winter, LH
85292B Cap, Front Wiper Arm Head
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
