Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08

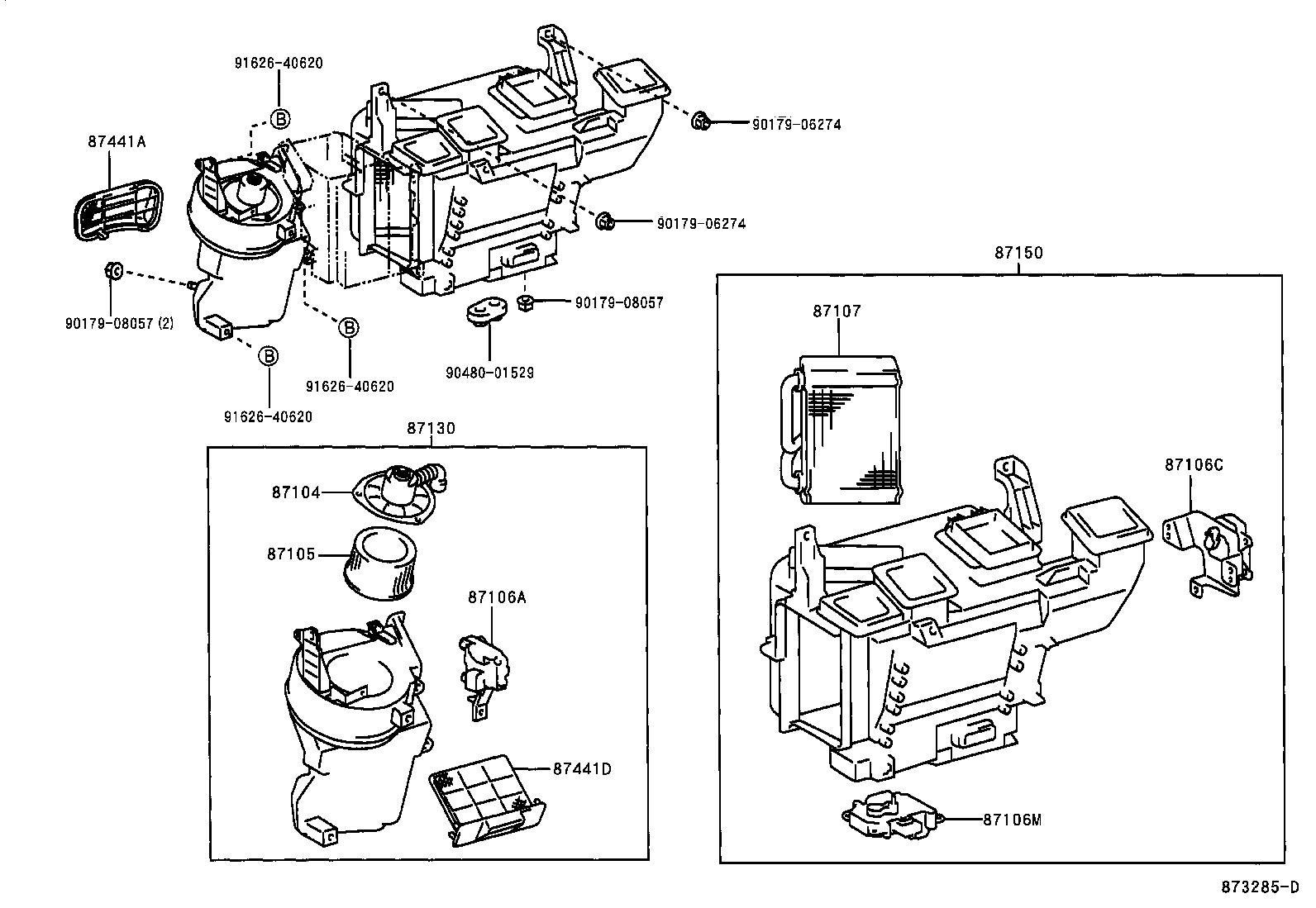

Heating & Air Conditioning - Heater Unit & Blower
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87106C | Servo Sub-assy, Damper(FOR BLOWER) |
| 87106M | Servo Sub-assy, Damper, NO.2 |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87150 | Radiator Assy, Heater |
| 87441A | Filter, Heater Air |
| 87441D | Filter, Heater Air, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
