Toyota Dyna
1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe
Discontinued model
Data version 2003-08
Heating & Air Conditioning - Cooler Unit
11 part groups · 4 illustrations

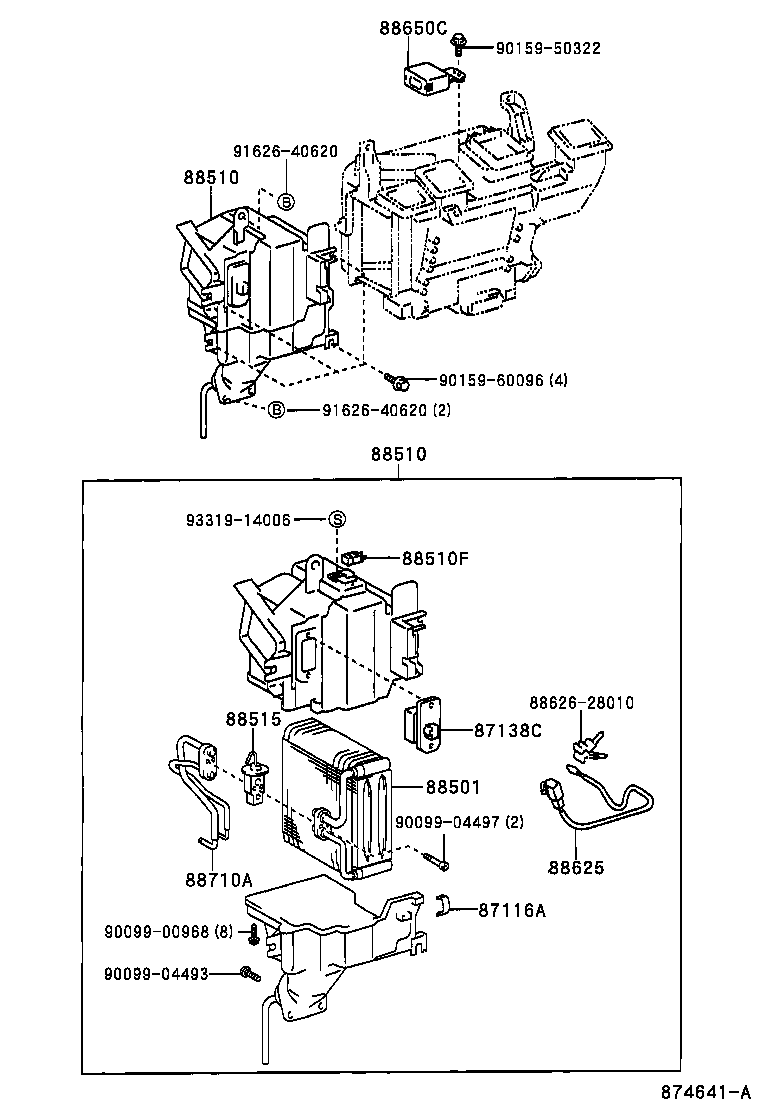

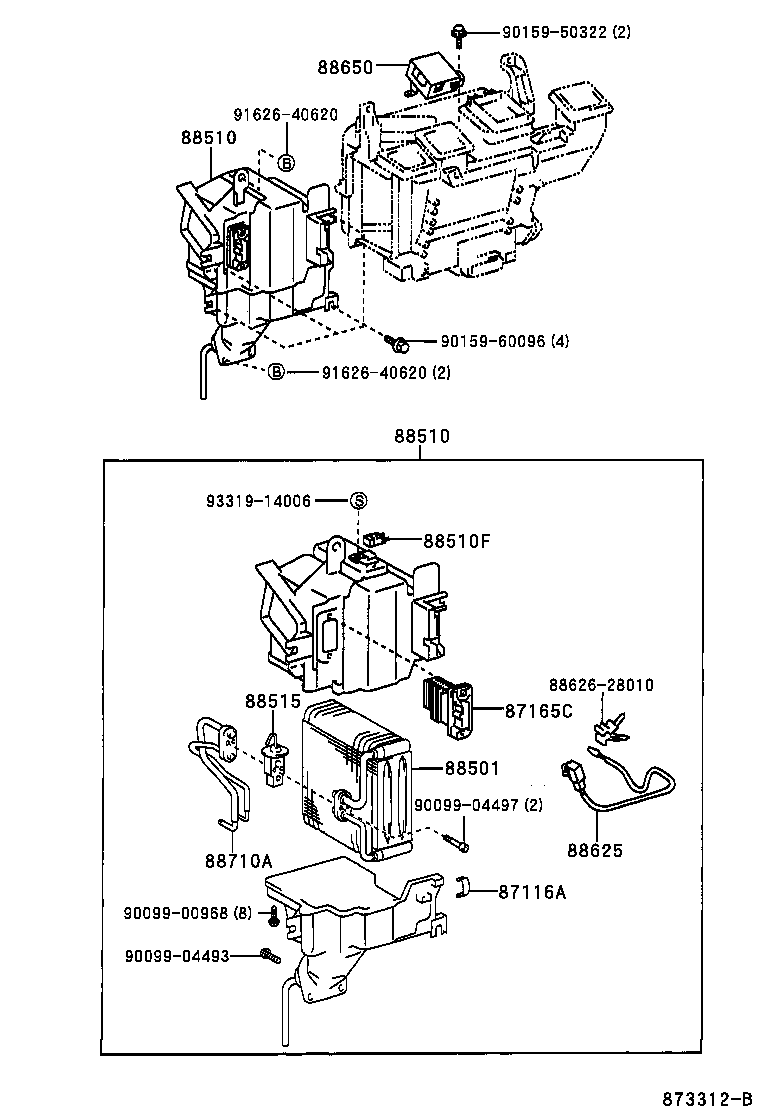

Part groups
| PNC | Description |
|---|---|
| 87116A | Spring, Holding (FOR COOLER UNIT CASE) |
| 87138C | Resistor, Blower |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88510F | Holder, Fuse |
| 88515 | Valve, Cooler Expansion |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88650C | Amplifier Sub-assy, Airconditioner |
| 88710A | Tube Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
