Toyota Dyna

1999-07 → 2002-12 · chassis XZU30#,320,330,34# · catalogue 751270 · Europe

Discontinued model Data version 2003-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 2 illustrations

Illustrations

Figure 873566E

873566E 1999-07 → —

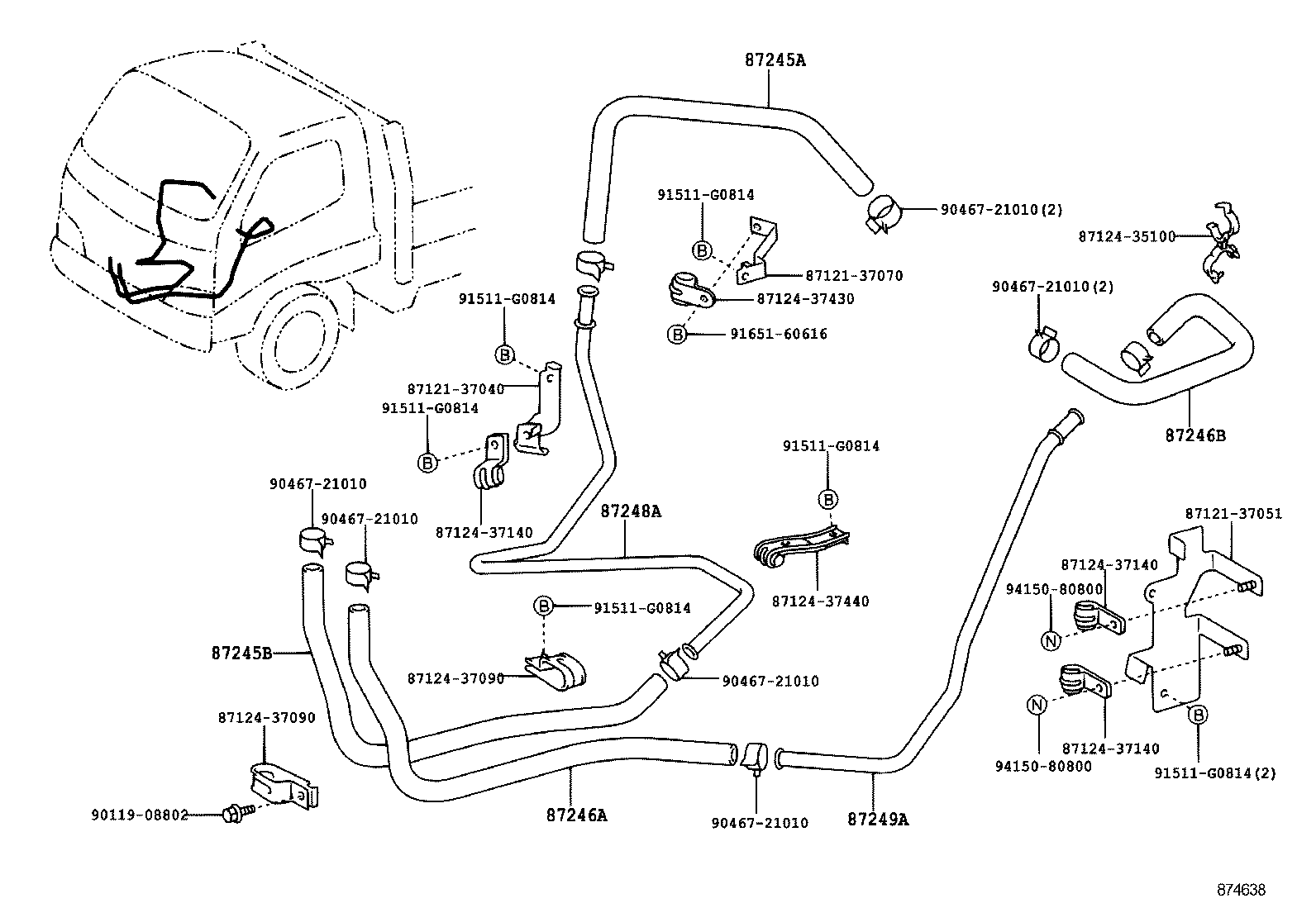

Figure 874638A

874638A 2000-10 → —

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A
87251E	Joint, Water, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
