Toyota Dyna
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe
Discontinued model
Data version 1988-08

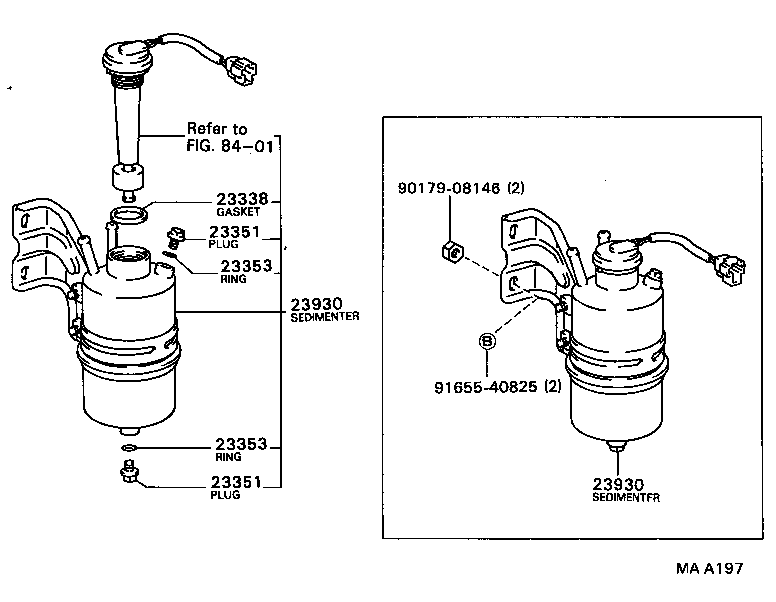

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23338 — Gasket(FOR WARNING SWITCH) | ||||
| 23338-54010 |
Gasket(FOR WARNING SWITCH)
1987-08 → 1988-08
ended
|
B,13B BU75,85 | — | |
| 23351 — Plug, Air Vent | ||||
| 23351-56010 |
Plug, Air Vent
1987-08 → 1988-08
ended
|
B,13B BU75,85 | — | |
| 23353 — Ring, O(FOR AIR VENT PLUG) | ||||
| 23353-54010 |
Ring, O(FOR AIR VENT PLUG)
1987-08 → 1988-08
ended
|
B,13B BU75,85 | — | |
| 23930 — Sedimenter Assy, Fuel | ||||
| 23930-58042 |
Sedimenter Assy, Fuel
1987-08 → 1988-08
ended
|
B,13B BU75,85 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
