Toyota Dyna
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe
Discontinued model
Data version 1988-08

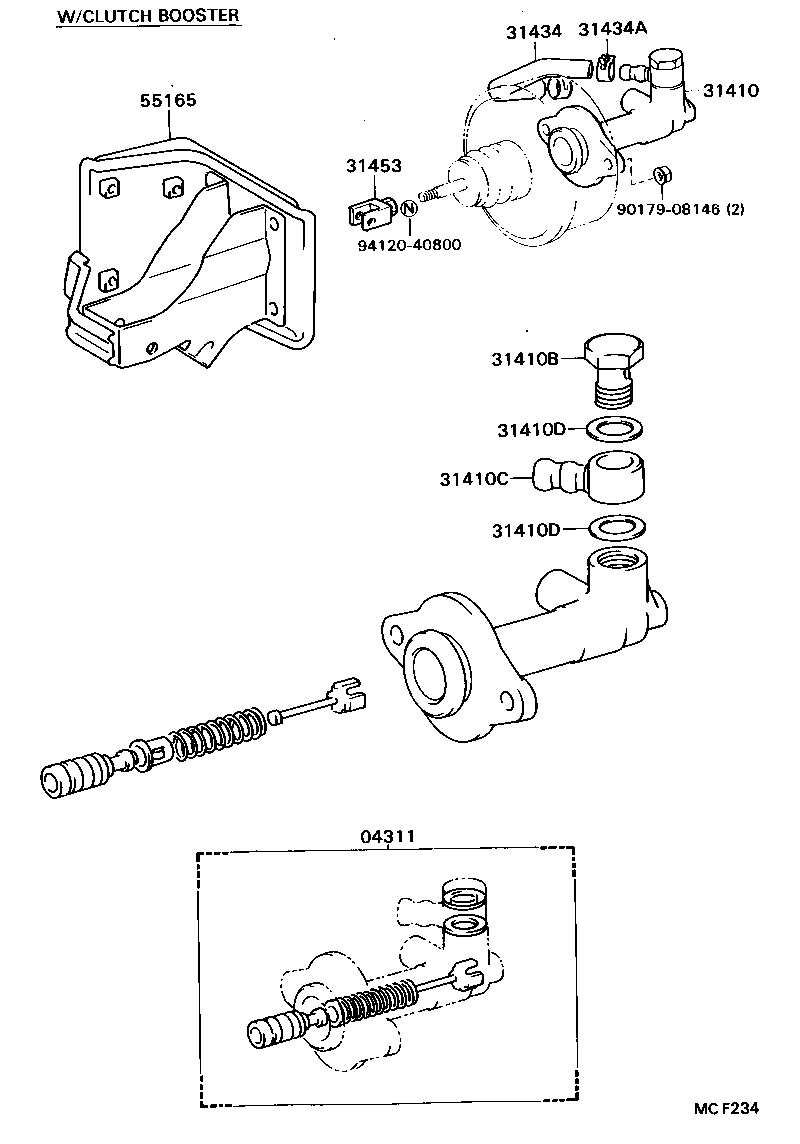

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04311 — Cylinder Kit, Clutch Master | ||||
| 04311-36080 |
Cylinder Kit, Clutch Master
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 04311-36090 note |
Cylinder Kit, Clutch Master
1987-08 → 1987-10
ended
|
BU75,85 | — | |
| 04311-36100 note |
Cylinder Kit, Clutch Master
1987-10 → 1988-08
ended
|
BU75,85 | — | |
| 31410 — Cylinder Assy, Clutch Master | ||||
| 31401-36012 note |
Cylinder Assy, Clutch Master
1987-08 → 1987-10
ended
|
BU75,85 | — | |
| 31401-36013 note |
Cylinder Assy, Clutch Master
1987-10 → 1988-08
ended
|
BU75,85 | — | |
| 31420-36130 |
Cylinder Assy, Clutch Master
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31410B — Bolt, Union(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE) | ||||
| 90401-16078 |
Bolt, Union(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31410C — Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) | ||||
| 90405-10125 |
Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31410D — Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) | ||||
| 90430-16242 |
Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31434 — Tube, Clutch Reservoir | ||||
| 31434-36150 note |
Tube, Clutch Reservoir
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31434-36220 |
Tube, Clutch Reservoir
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31434A — Clip(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
Clip(FOR CLUTCH RESERVOIR TUBE)
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 31453 — Clevis, Clutch Master Cylinder Push Rod | ||||
| 31404-36020 |
Clevis, Clutch Master Cylinder Push Rod
1987-08 → —
|
BU75,85 | — | |
| 31404-36030 note |
Clevis, Clutch Master Cylinder Push Rod
1987-08 → —
|
BU75,85 | — | |
| 55165 — Support, Clutch Master Cylinder | ||||
| 55105-95410 note |
Support, Clutch Master Cylinder
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 55105-95411 note |
Support, Clutch Master Cylinder
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 55165-95401 |
Support, Clutch Master Cylinder
1987-08 → 1988-08
ended
|
BU75,85 | — | |
| 55165-95402 note |
Support, Clutch Master Cylinder
1987-08 → 1988-08
ended
|
BU75,85 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
