Toyota Dyna

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe

Discontinued model Data version 1988-08

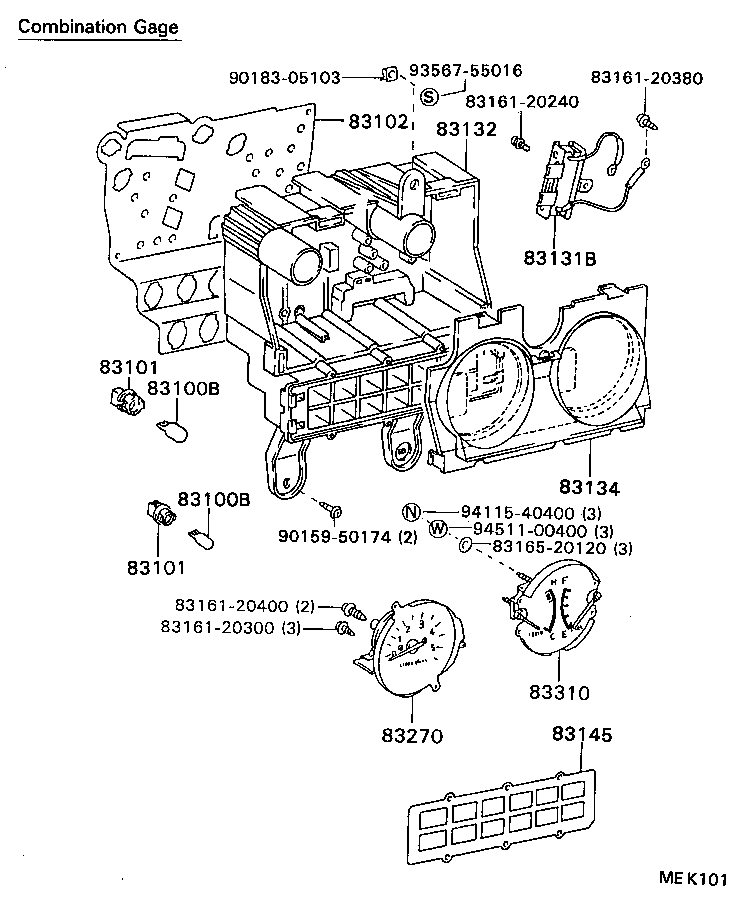

Exploded illustration MEK101 9356755016 — not listed in this catalogue 9018305103 — not listed in this catalogue 8316120380 — not listed in this catalogue 8316120240 — not listed in this catalogue 83102 — PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 (2 parts) 83132 — CASE, COMBINATION METER (2 parts) 83131B — DROPER, METER (1 parts) 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (3 parts) 83100B — BULB, COMBINATION METER, NO.1 (4 parts) 83134 — COVER, COMBINATION METER, NO.1 (2 parts) 83100B — BULB, COMBINATION METER, NO.1 (4 parts) 9411540400 — not listed in this catalogue 9451100400 — not listed in this catalogue 9015950174 — not listed in this catalogue 8316520120 — not listed in this catalogue 83101 — SOCKET SUB-ASSY, COMBINATION METER BULB (3 parts) 8316120400 — not listed in this catalogue 8316120300 — not listed in this catalogue 83310 — GAGE ASSY, FUEL RECEIVER (1 parts) 83145 — LENS, METER, NO.1 (2 parts) 83270 — TACHOMETER ASSY, ENGINE (1 parts)
MEK101 · 11 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
83100B — Bulb, Combination Meter, NO.1
90981-11022 note Bulb, Combination Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
99134-12030 note Bulb, Combination Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
99134-12030 note Bulb, Combination Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
99134-12030 note Bulb, Combination Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83101 — Socket Sub-assy, Combination Meter Bulb
83101-89101 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1988-08 ended
BU75,85 —
83101-89101 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1988-08 ended
BU75,85 —
83101-95020 note Socket Sub-assy, Combination Meter Bulb
1987-08 → 1988-08 ended
BU75,85 —
83102 — Plate Sub-assy, Combination Meter Circuit, NO.1
83247-95419 Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83247-95420 note Plate Sub-assy, Combination Meter Circuit, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83131B — Droper, Meter
83131-95401 Droper, Meter
1987-08 → 1988-08 ended
BU75,85 —
83132 — Case, Combination Meter
83132-95404 note Case, Combination Meter
1987-08 → 1988-08 ended
BU75,85 —
83132-95B00 note Case, Combination Meter
1987-08 → 1988-08 ended
BU75,85 —
83134 — Cover, Combination Meter, NO.1
83134-95408 note Cover, Combination Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83134-95B00 note Cover, Combination Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83145 — Lens, Meter, NO.1
83145-95B21 note Lens, Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83145-95B22 Lens, Meter, NO.1
1987-08 → 1988-08 ended
BU75,85 —
83270 — Tachometer Assy, Engine
83242-95B00 Tachometer Assy, Engine
1987-08 → 1988-08 ended
BU75,85 —
83310 — Gage Assy, Fuel Receiver
83243-95B03 Gage Assy, Fuel Receiver
1987-08 → 1988-08 ended
BU75,85 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
