Toyota Dyna

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

7 part groups · 2 illustrations

Illustrations

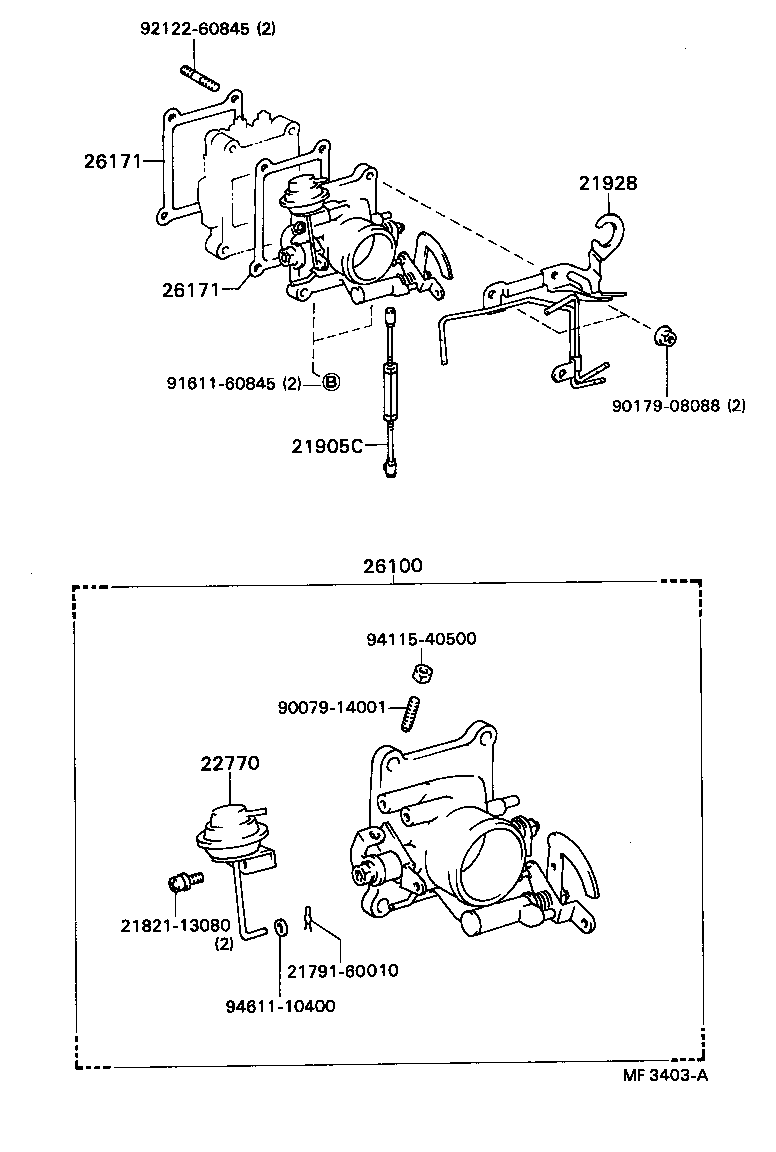

Figure MF3441B MF3441B 1987-08 → — Figure MF3403A MF3403A 1987-08 → —

Part groups

PNCDescription
21905C Rod, Accelerator Connecting(FOR VENTURI)
21928 Support, Throttle Wire
22770 Actuator, Idel UP
26100 Venturi Assy
26100C Hose, Vaccum, NO.1(VENTURI TO GOVERNOR)
26100D Hose, Vaccum, NO.2(VENTURI TO GOVERNOR)
26171 Gasket, Venturi
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
