Toyota Dyna

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

12 part groups · 2 illustrations

Illustrations

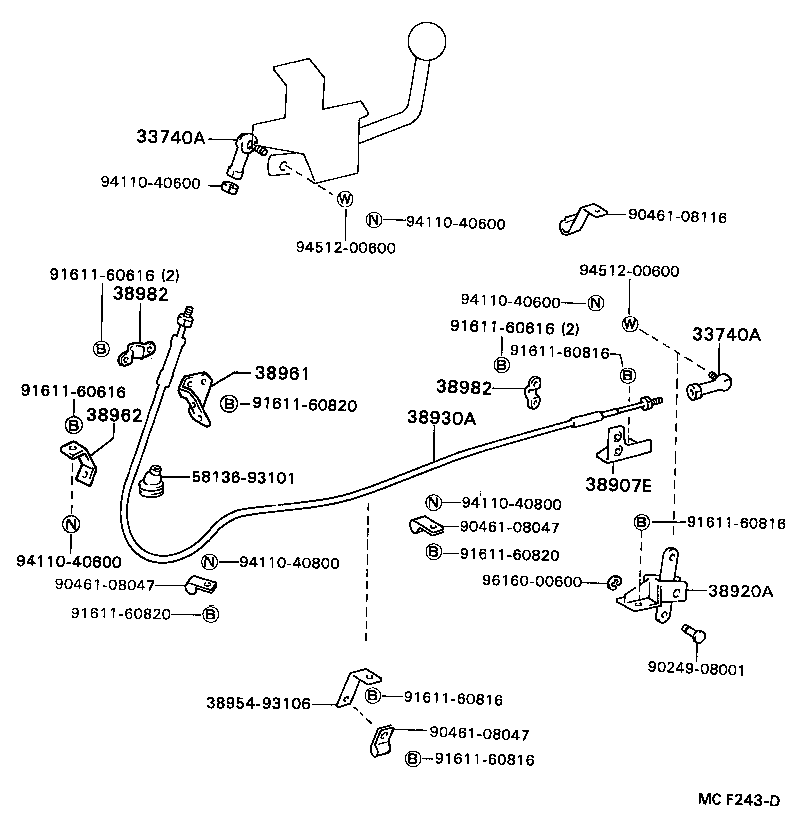

Figure MCE756 MCE756 1987-08 → — Figure MCF243D MCF243D 1987-08 → —

Part groups

PNCDescription
33740A End Assy, Push-pull Control Cable
38901D Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38907E Stay Sub-assy, Power Teke-off Control
38908A Knob Sub-assy, Control Lever
38920A Lever Assy, Power Take-off Control, NO.1
38930A Cable Assy, Push Pull
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38974 Shaft, Power Take-off Control Arm
38982 Clamp, Push Pull Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
