Toyota Dyna
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe
Discontinued model
Data version 1988-08

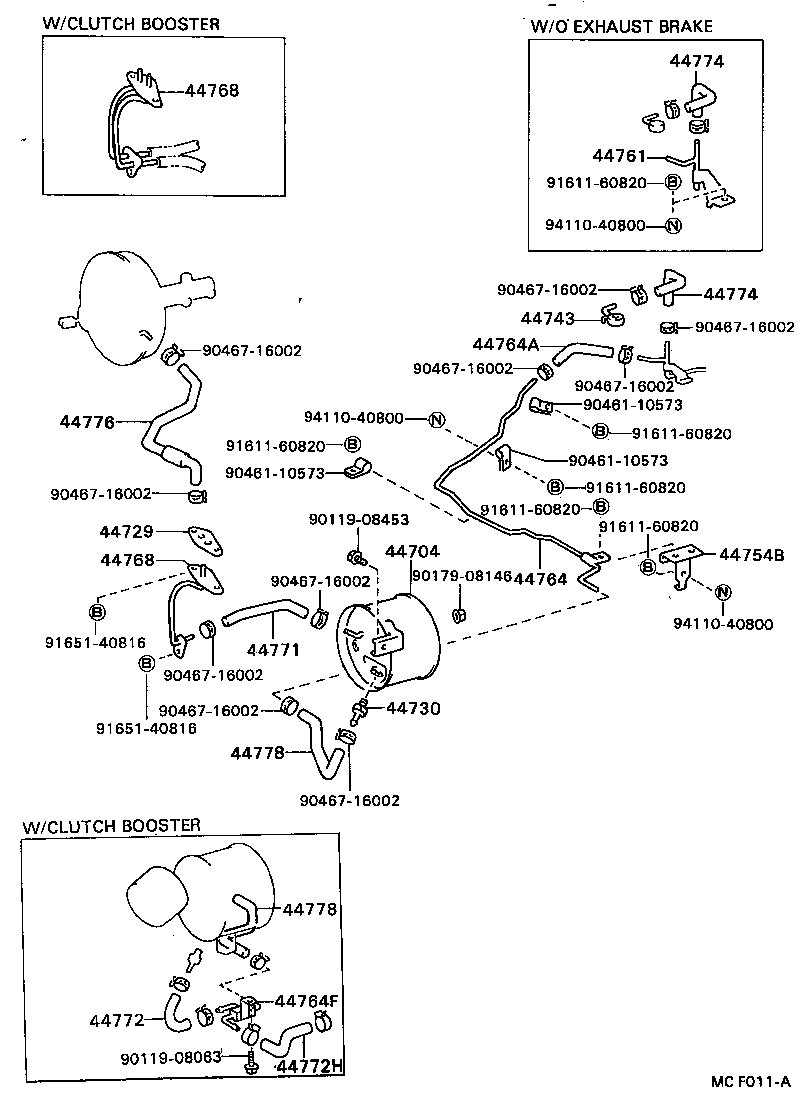

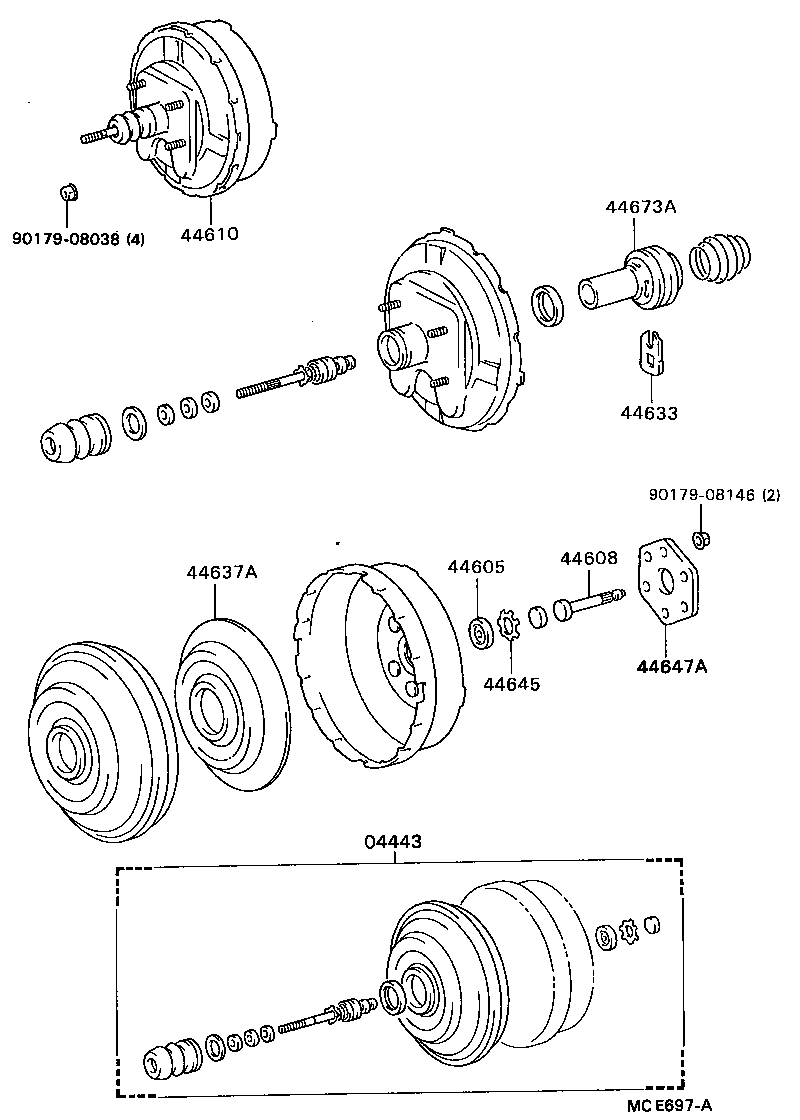

Brake Booster & Vacuum Tube
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44605 | Plate & Seal Sub-assy, Booster |
| 44606E | Rod Sub-assy, Brake Booster Piston |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44629 | Ring, Circular Internal |
| 44633 | Key, Booster Valve Plunger |
| 44635B | Key, Valve Stopper |
| 44637A | Plate, Booster Diaphragm |
| 44642 | Piston, Brake Booster |
| 44645 | Retainer, Booster Push Rod Seal |
| 44647A | Rod, Booster Piston |
| 44673A | Body, Booster Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44729 | Gasket, Vacuum Tube |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44743 | Union(FOR VACUUM PUMP) |
| 44754B | Bracket, Vacuum Tube |
| 44761 | Tube, Intake Manifold OR Vacuum Pump TO Connector |
| 44764 | Tube, Booster Vacuum |
| 44764A | Hose, Booster Vacuum |
| 44764F | Way(FOR BOOSTER VACUUM TUBE) |
| 44768 | Tube, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772H | Hose, Check Valve TO 3 Way |
| 44774 | Hose, Union TO Connector Tube |
| 44776 | Hose, Brake Booster |
| 44778 | Hose, Connector TO Check Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
