Toyota Dyna
1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe
Discontinued model
Data version 1988-08
Brake Tube & Clamp
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 47311 | Tube, Front Brake, NO.1 |

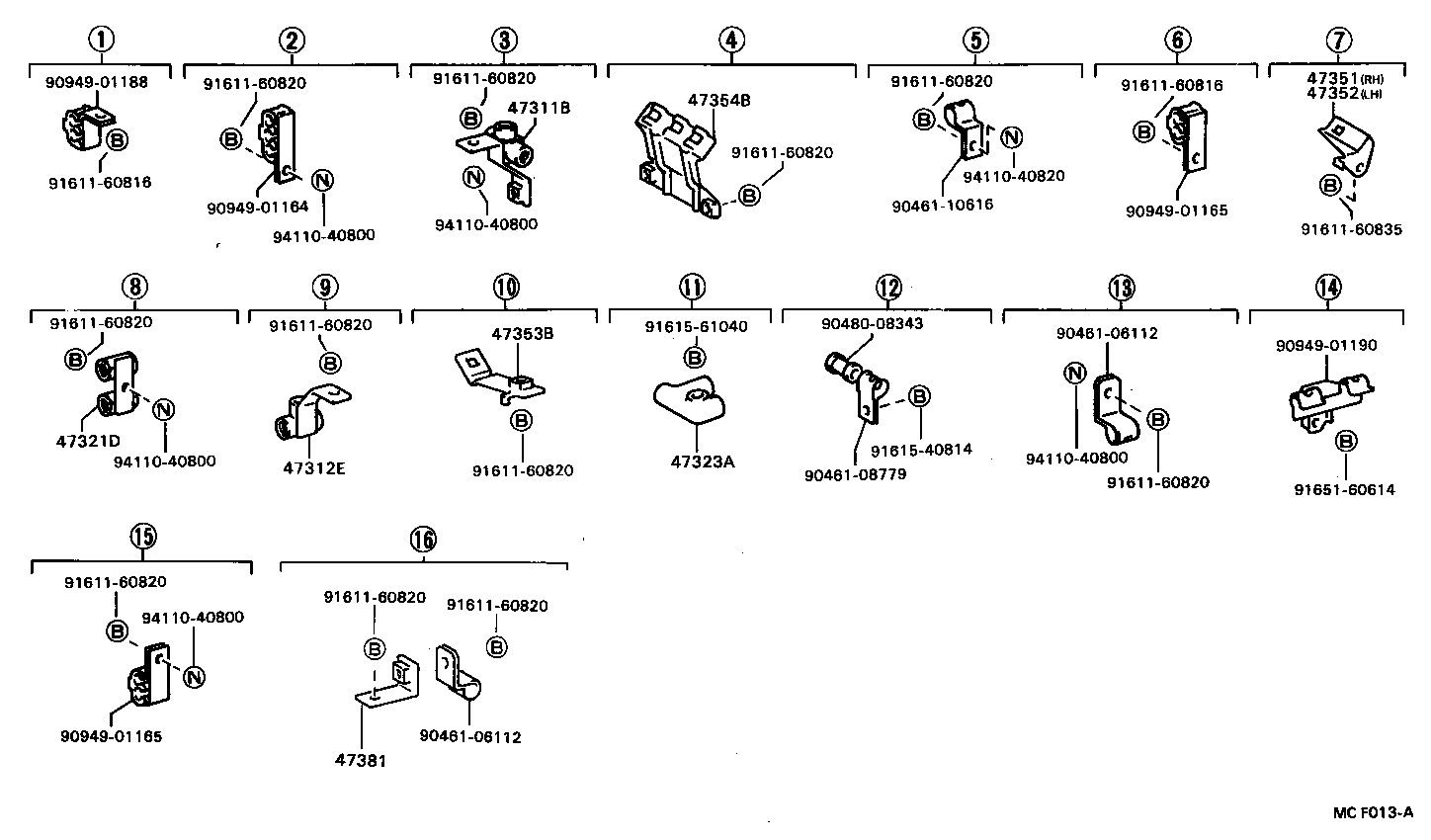

| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47311G | Hose, Flexible(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313H | Way, NO.3(FOR FRONT BRAKE TUBE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47318 | Tube, Front Brake, NO.8 |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323A | Way, NO.3(FOR REAR BRAKE TUBE) |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47341B | Tube, Wheel Cylinder, Front RH NO.1 |
| 47342 | Tube, Wheel Cylinder, Front RH NO.2 |
| 47343A | Tube, Wheel Cylinder, Front LH NO.1 |
| 47344 | Tube, Wheel Cylinder, Front LH NO.2 |
| 47345 | Tube, Wheel Cylinder, Rear RH |
| 47346 | Tube, Wheel Cylinder, Rear LH |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47381 | Bracket, Brake Tube Clamp NO.1 |

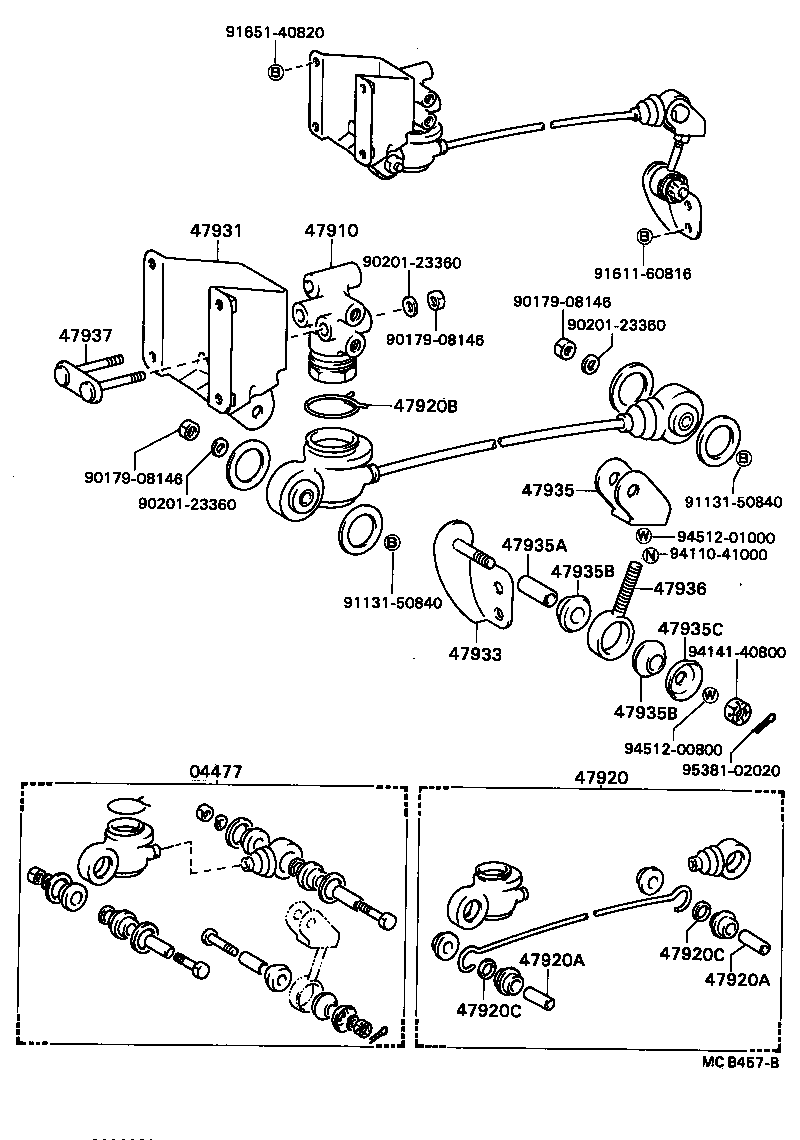

| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920 | Spring Assy, Load Sensing |
| 47920A | Collar(FOR LOAD SENSING SPRING) |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47920C | Washer(FOR LOAD SENSING SPRING) |
| 47931 | Bracket, Load Sensing Valve |
| 47933 | Bracket, Load Sensing Shackle, NO.1 |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47935A | Collar(FOR LOAD SENSING SPRING SHACKLE) |
| 47935B | Bush(FOR LOAD SENSING SPRING SHACKLE) |
| 47935C | Retainer(FOR LOAD SENSING SPRING SHACKLE) |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
