Toyota Dyna

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

9 part groups · 2 illustrations

Illustrations

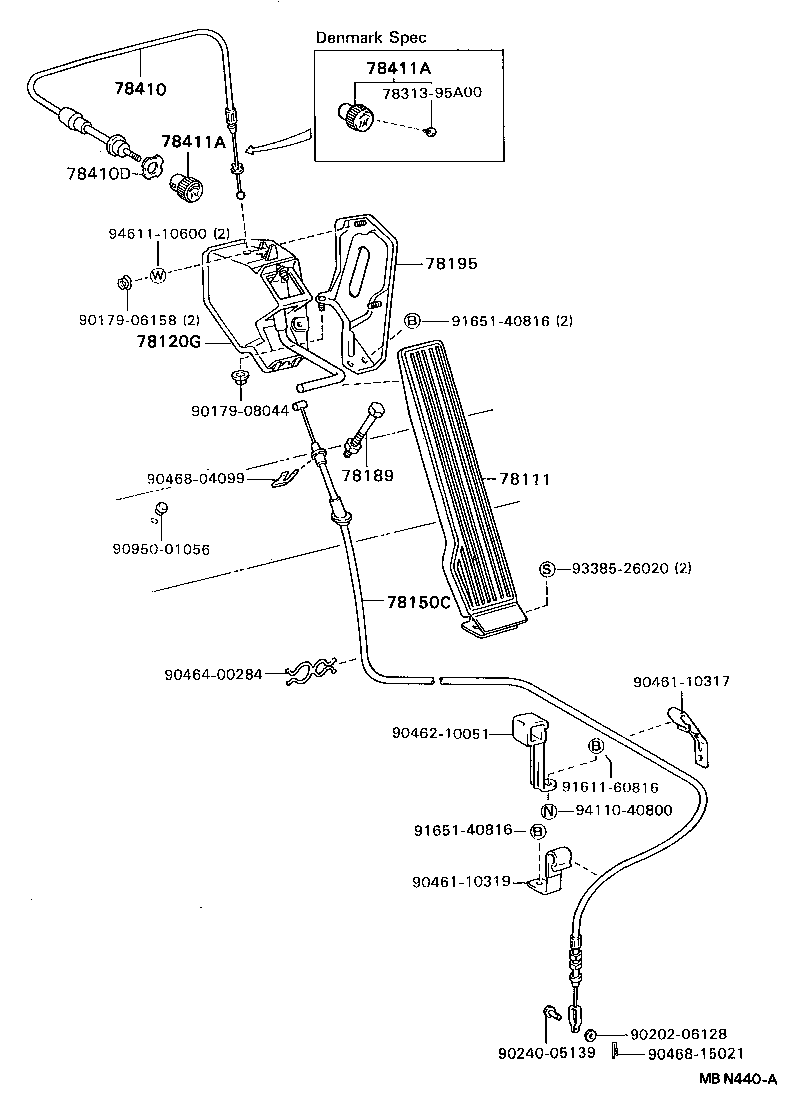

Figure MBN437A MBN437A 1987-08 → — Figure MBN440A MBN440A 1987-08 → —

Part groups

PNCDescription
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78150C Wire Assy, Accelerator Flexible
78189 Bolt, Accelerator Pedal Stopper
78195 Bracket, Accelerator Link
78310B Clamp, Choke Cable
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
