Toyota Dyna

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe

Discontinued model Data version 1988-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

8 part groups · 5 illustrations

Illustrations

Figure MEK098

MEK098 1987-08 → —

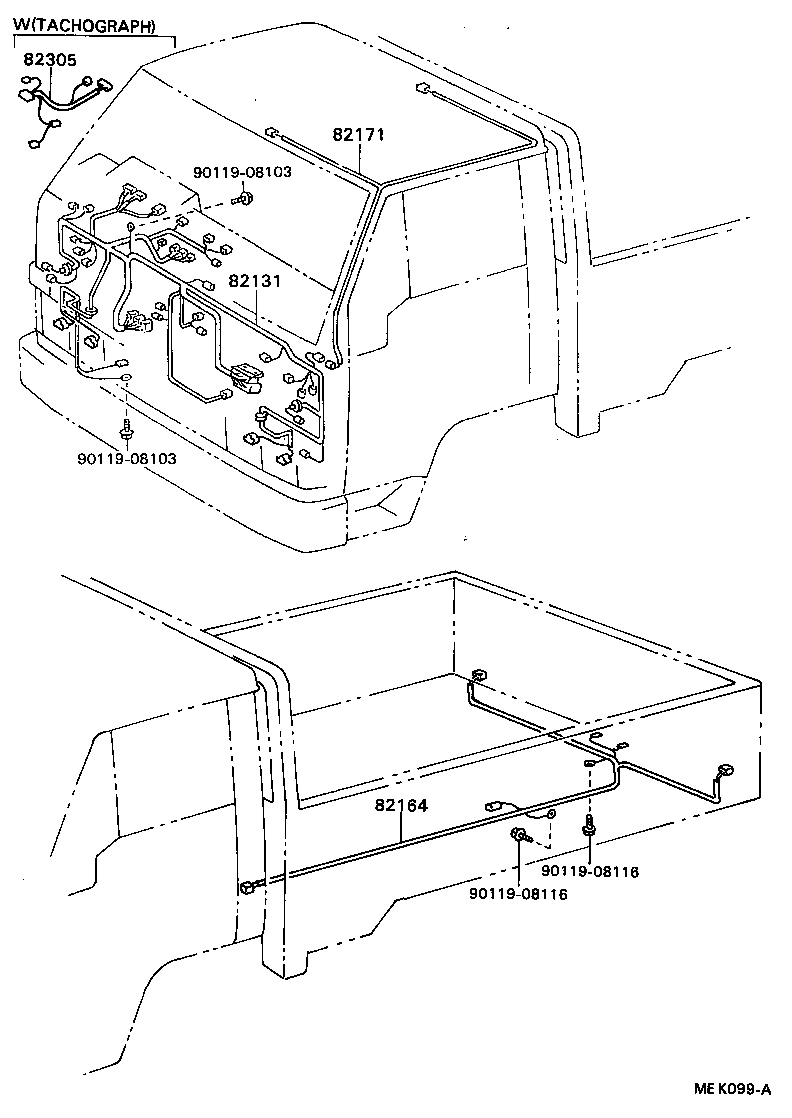

Figure MEK099A

MEK099A 1987-08 → —

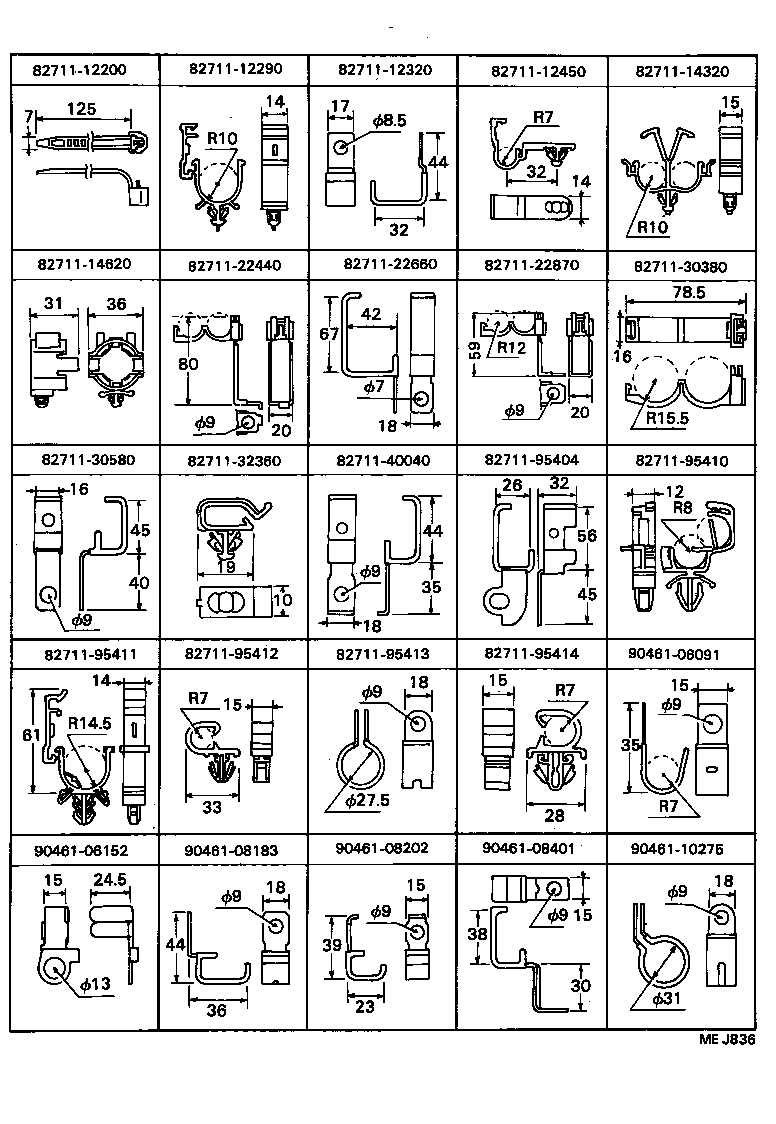

Figure MEJ836

MEJ836 1987-08 → —

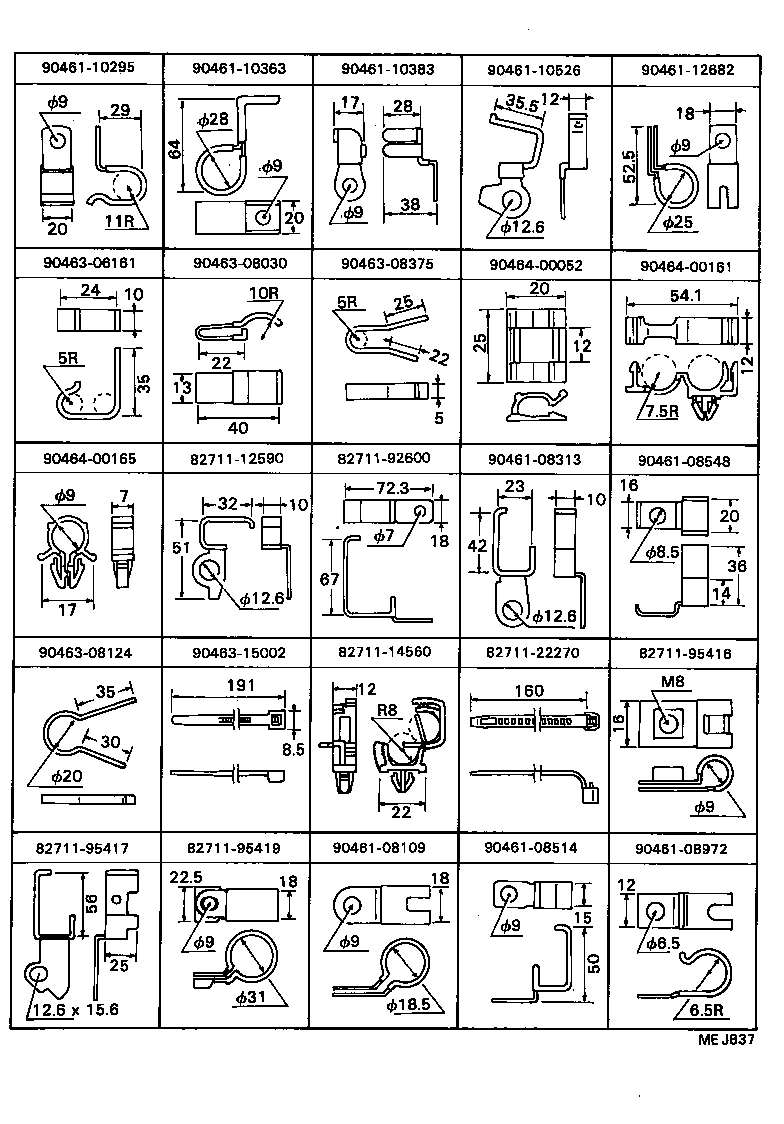

Figure MEJ837

MEJ837 1987-08 → —

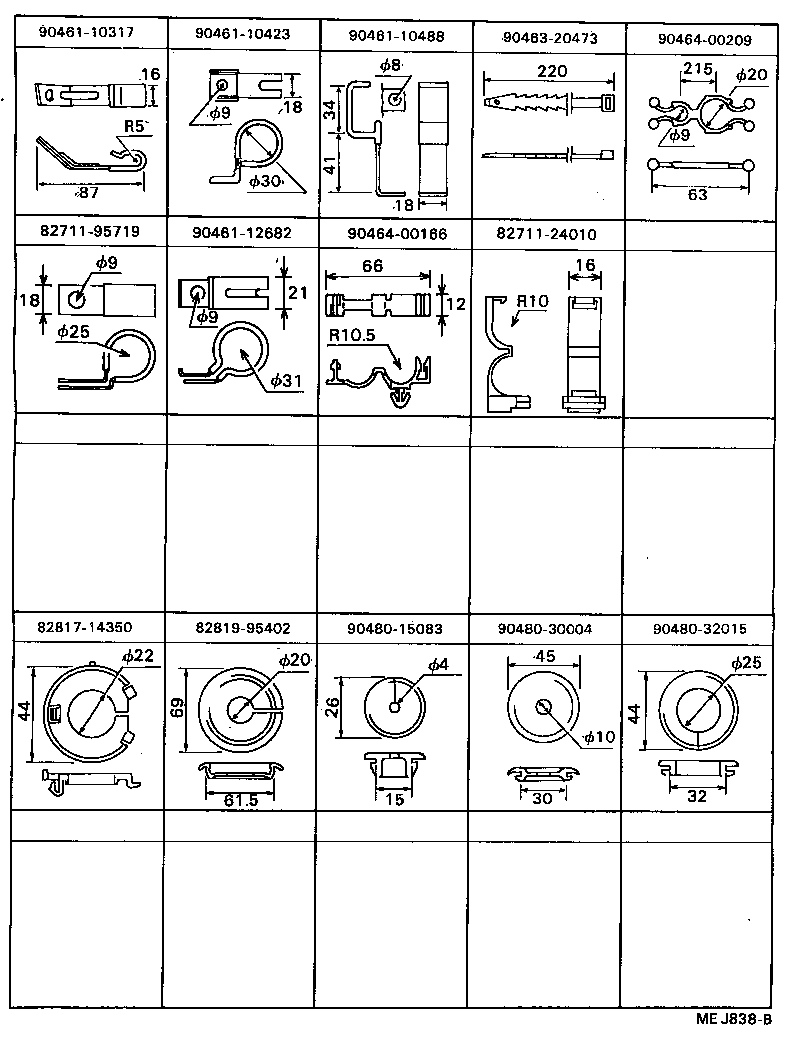

Figure MEJ838B

MEJ838B 1987-08 → —

Part groups

PNC	Description
82121	Wire, Engine
82131	Wire, Cowl
82164	Wire, Frame
82171	Wire, Roof, NO.1
82210C	Fusible Link
82305	Wire Sub-assy, TO Tachograph
82671	Block, Junction
82672	Cover, Junktion Block

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
