Toyota Dyna

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751540 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 2 illustrations

Illustrations

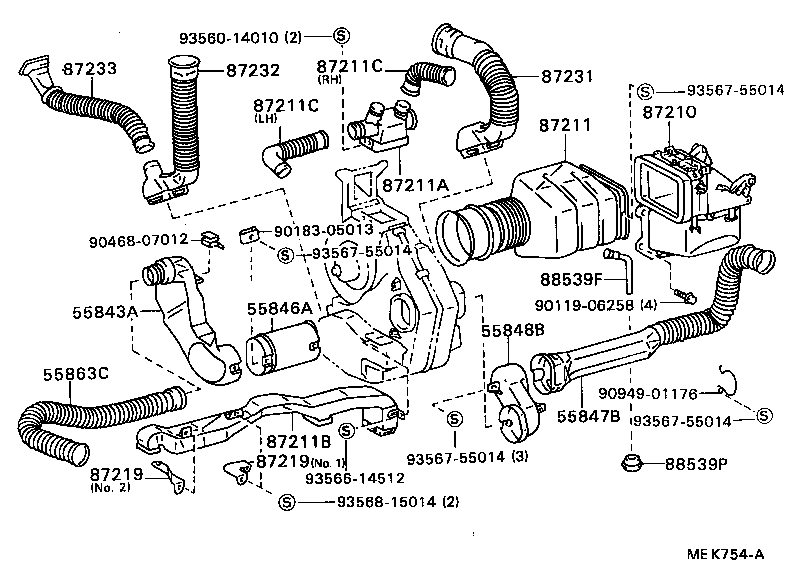

Figure MEK121A MEK121A 1987-08 → — Figure MEK754A MEK754A 1987-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55848B Duct, Heater TO Register, NO.6
55863C Boot, Side Ventilator Duct
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87219 Bracket, Front Air Duct
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87233 Hose, Heater Defroster, Center
88539F Hose, Drain
88539P Grommet(FOR DRAIN HOSE)
