Toyota DYNA200
1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe
Discontinued model
Data version 1995-11

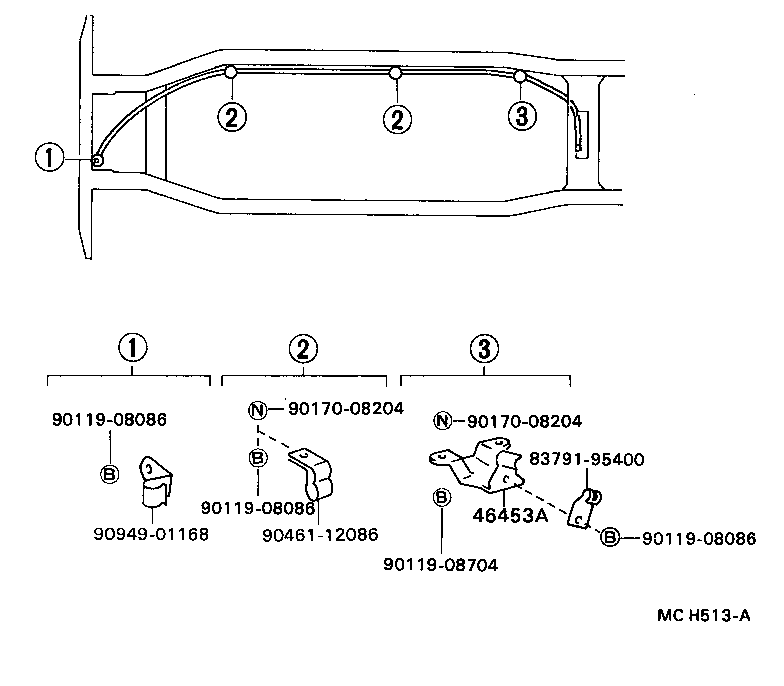

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46453A — Bracket, Cable Support, NO.3 | ||||
| 46453-36030 |
Bracket, Cable Support, NO.3
1988-08 → 1995-05
ended
|
BU7#,88,9# | — | |
| 46453-36040 |
Bracket, Cable Support, NO.3
1988-08 → 1995-05
ended
|
BU84,89 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
