Toyota DYNA200

1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 10 illustrations

Illustrations

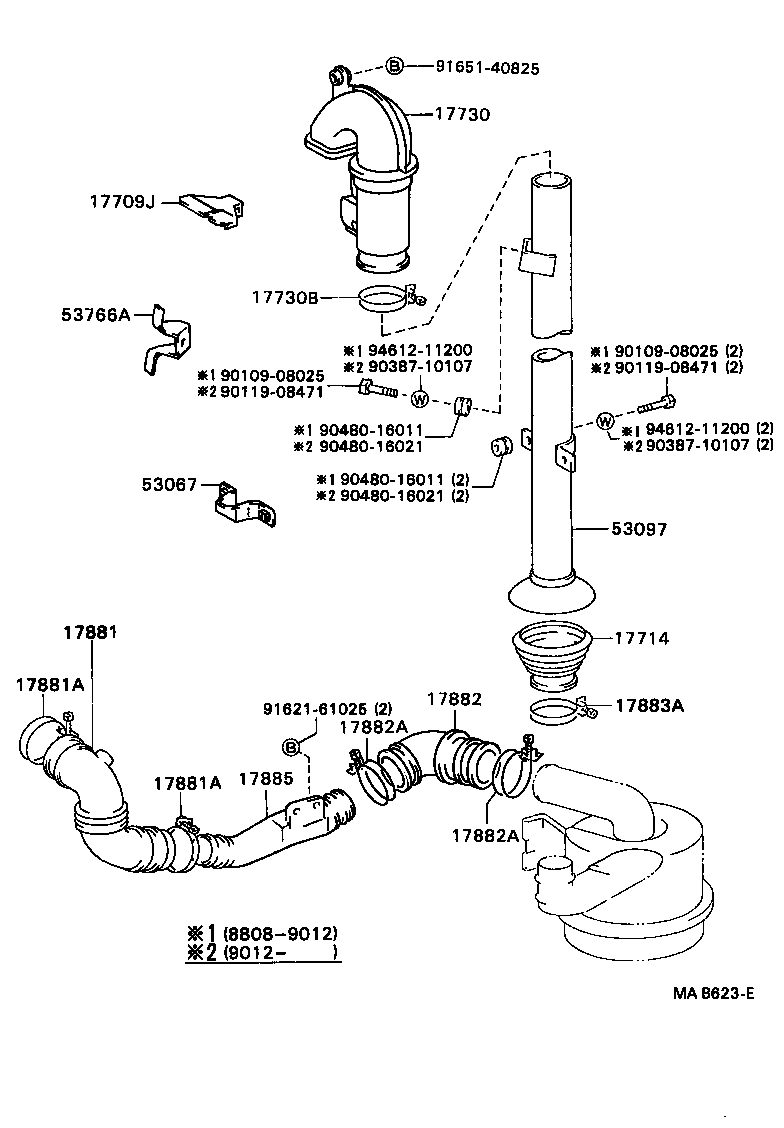

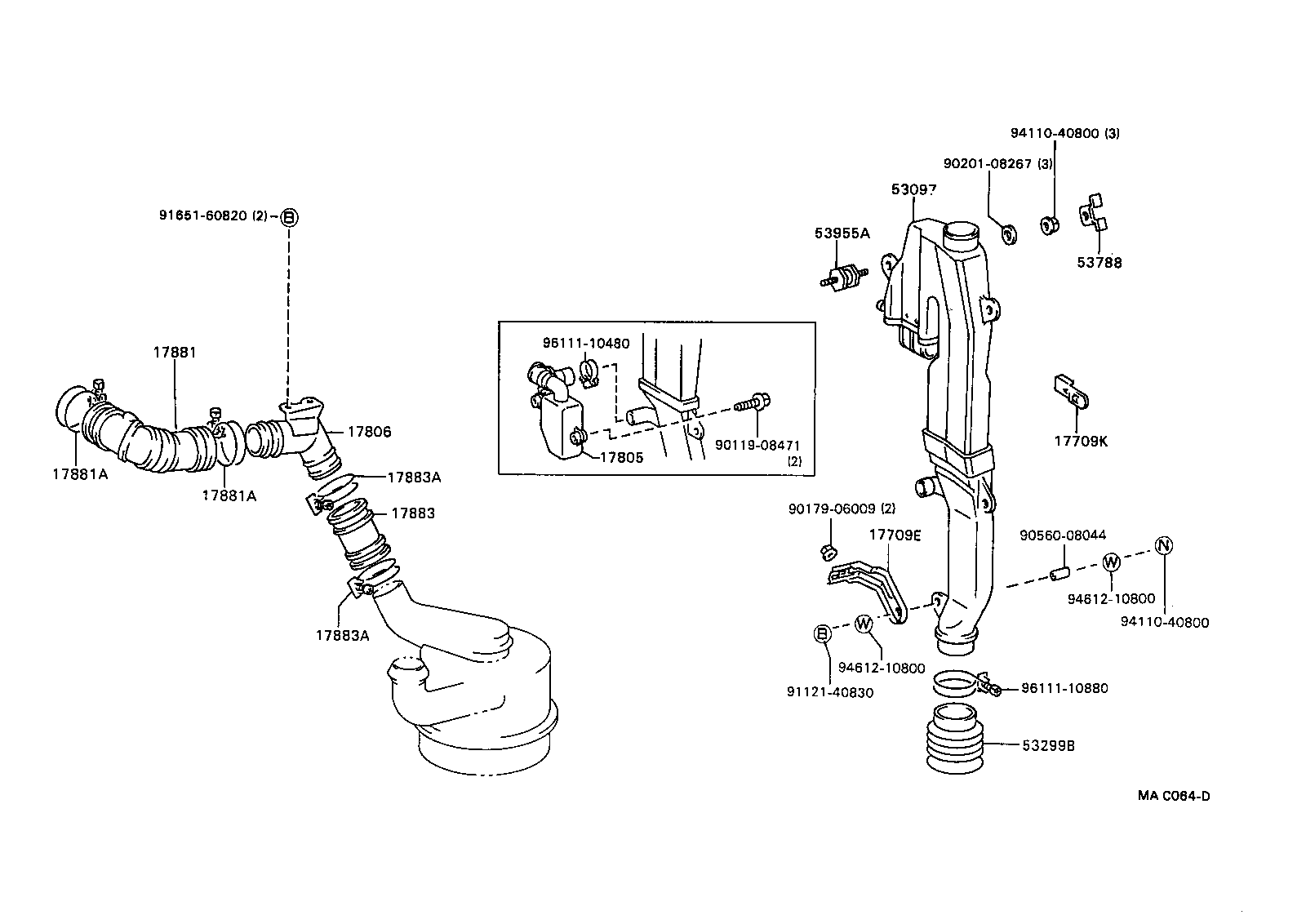

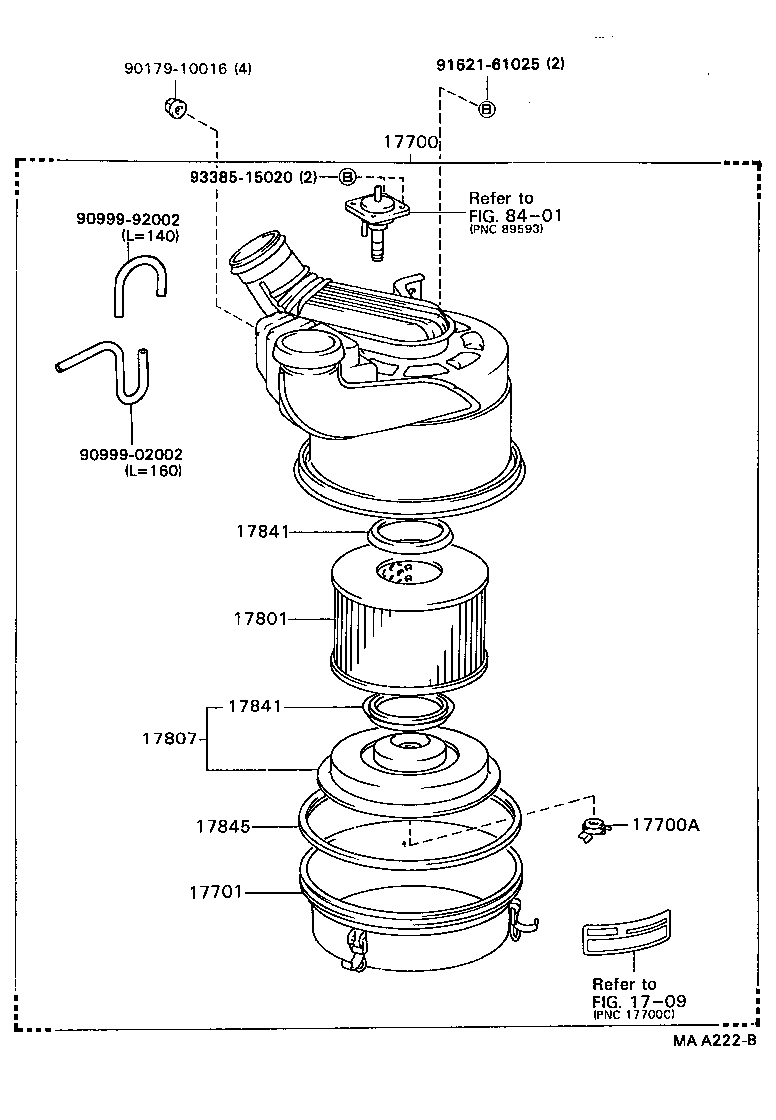

Figure MA7677D MA7677D 1988-08 → 1992-10 Figure MA7677D MA7677D 1992-10 → — Figure MAB623E MAB623E 1988-08 → 1992-10 Figure MAB623E MAB623E 1992-10 → — Figure MAA222B MAA222B 1988-08 → 1992-10 Figure MAA222B MAA222B 1988-08 → — Figure MAA222B MAA222B 1992-10 → — Figure MAC064D MAC064D 1988-08 → 1992-10 Figure MAC064D MAC064D 1988-08 → — Figure MAC064D MAC064D 1992-10 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17714 Rubber Seal, Air Intake
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
53067 Bracket Sub-assy, Air Cleaner Inlet
53097 Inlet Sub-assy
53299B Duct, Cool Air Intake
53766A Bracket, Air Cleaner Inlet Pipe
53788 Bracket, Air Cleaner Inlet, NO.6
53955A Cushion, Air Cleaner Inlet NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
