Toyota DYNA200

1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 3 illustrations

Illustrations

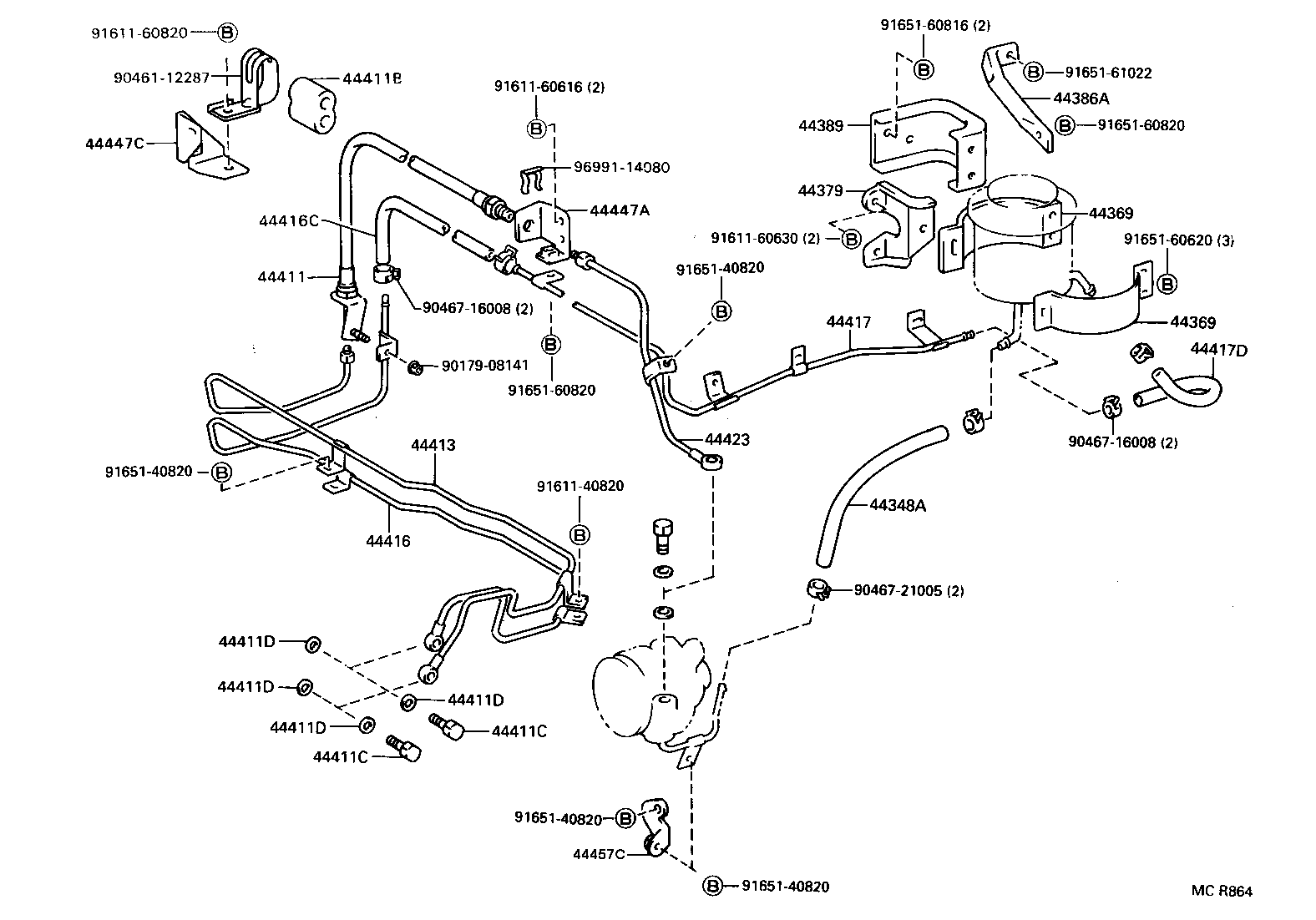

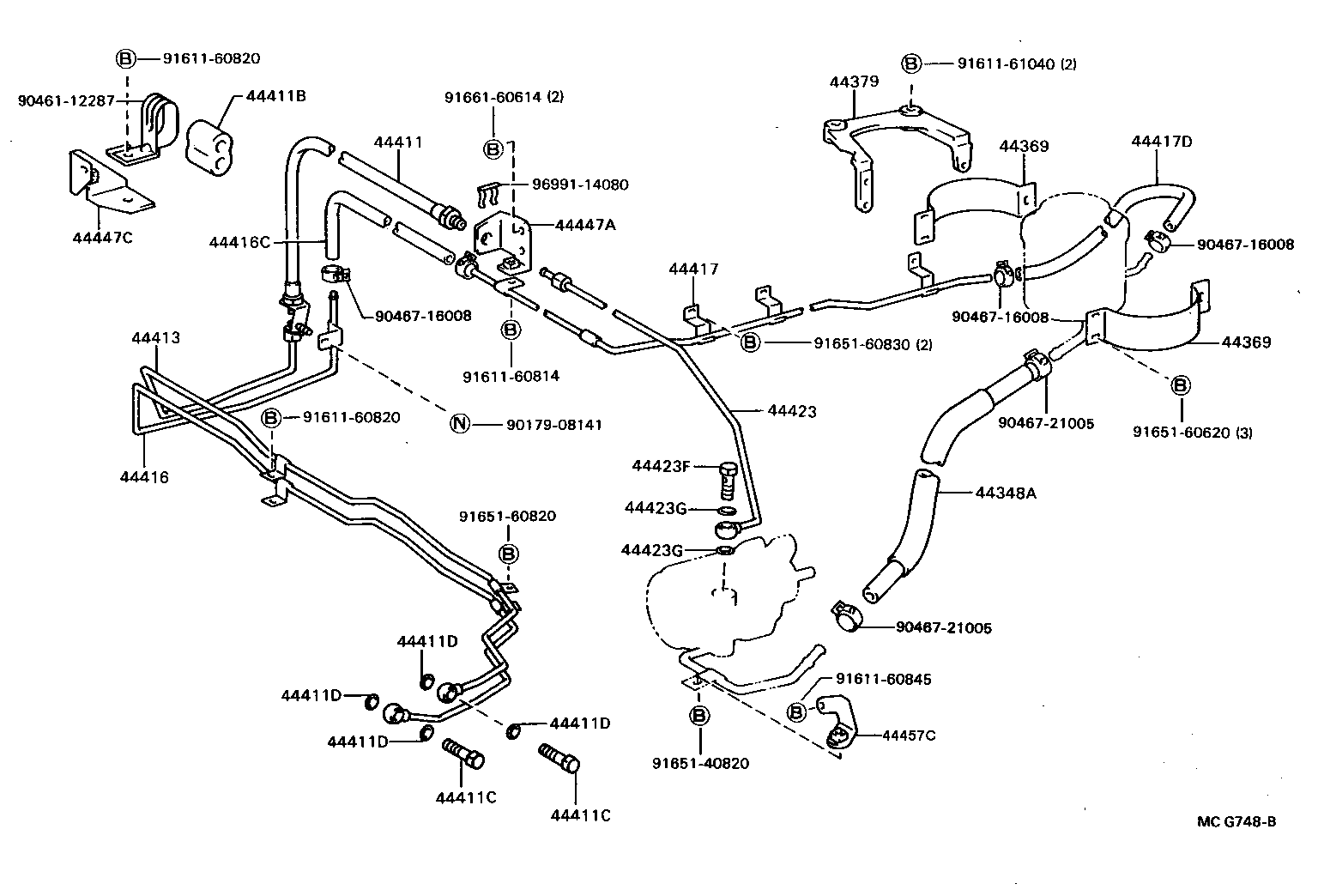

Figure MCG789A MCG789A 1988-08 → 1989-04 Figure MCG748B MCG748B 1988-08 → 1989-04 Figure MCR864 MCR864 1992-10 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44369 Bracket, Oil Reservoir, NO.1
44379 Bracket, Oil Reservoir, NO.2
44386A Support, Oil Reservoir
44389 Bracket, Oil Reservoir, NO.3
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411B Cushion(FOR PRESSURE FEED HOSE)
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44417 Tube, Return, NO.2
44417D Hose(FOR RETURN TUBE TO RESERVOIR)
44423 Tube, Oil Pump TO Gear Box
44423F Bolt, Union
44423G Gasket, Union Bolt
44447A Bracket, Hose Support, NO.1
44447C Bracket, Hose Support NO.2
44457C Bracket, Power Steering Tube Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
