Toyota DYNA200

1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 3 illustrations

Illustrations

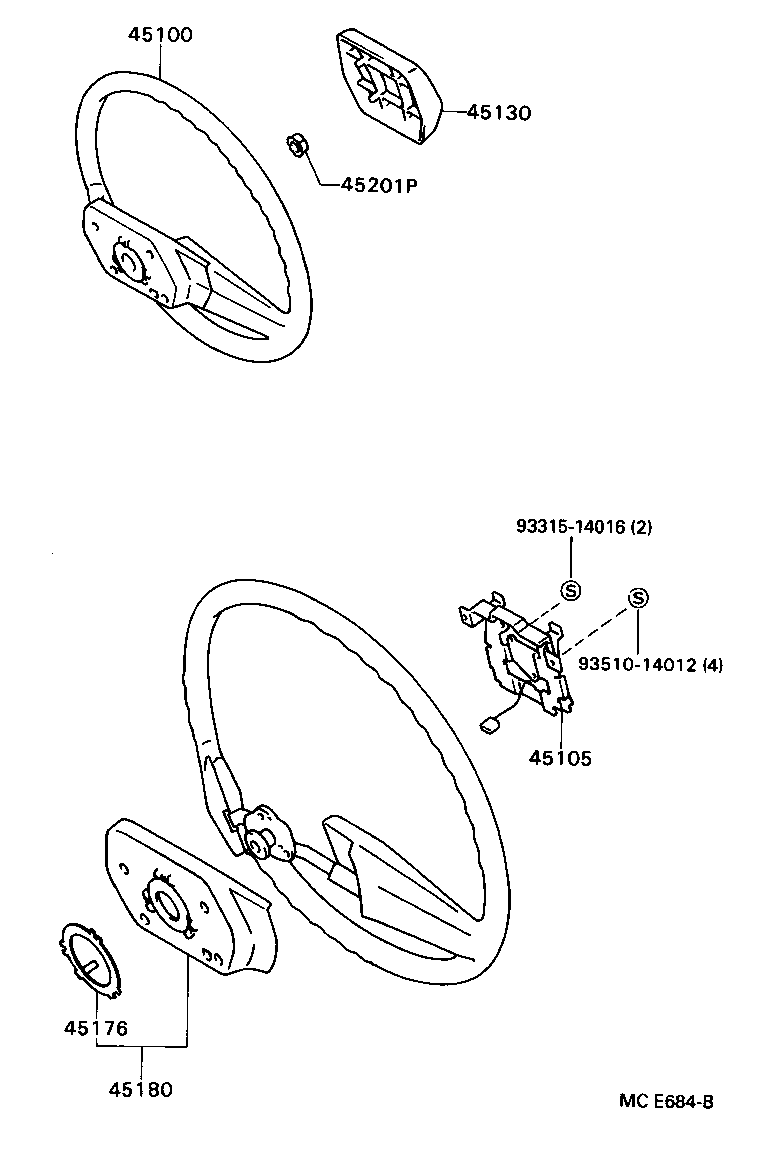

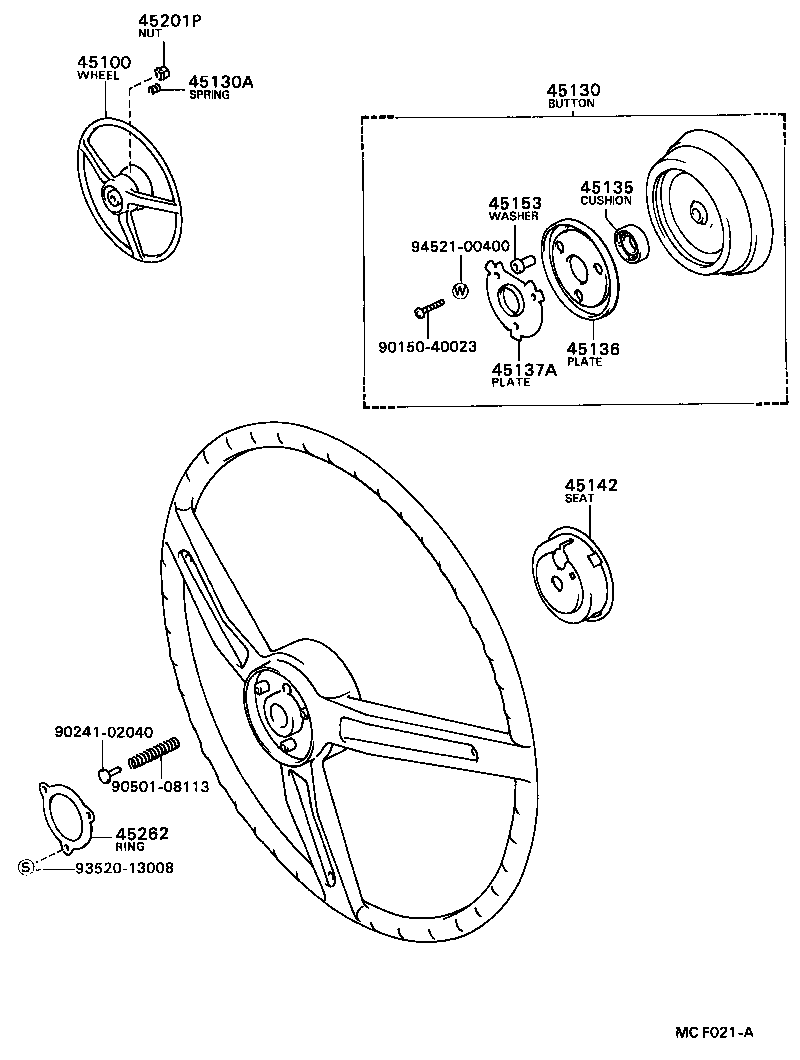

Figure MCE683 MCE683 1988-08 → — Figure MCE684B MCE684B 1988-08 → — Figure MCF021A MCF021A 1988-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45135 Cushion, Horn Button
45136 Plate, Horn Button Contact
45137A Plate, Horn Button Contact, NO.2
45142 Seat, Horn Button Contact, NO.1
45153 Washer, Horn Button Set
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
45262 Ring, Horn Contact Brush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
