Toyota DYNA200
1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe
Discontinued model
Data version 1995-11

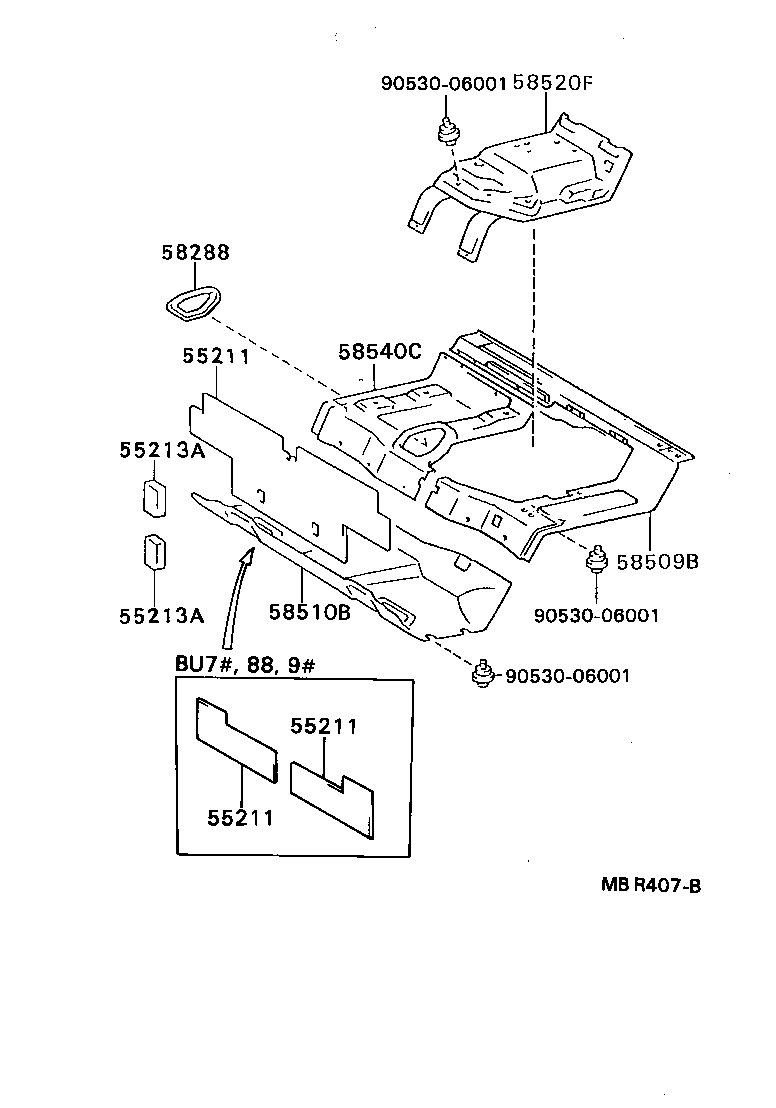

Floor Mat & Silencer Pad
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55211 | Silencer, Front Panel |
| 55213A | Pad, Dash Panel Silencer |
| 58288 | Seal, Shift Lever Boot |
| 58509B | Mat Sub-assy, Seat Floor |
| 58510B | Mat, Front Floor, Front |
| 58520F | Mat Assy, Engine Cover |
| 58540C | Mat Assy, Floor, Rear |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
