Toyota DYNA200
1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe
Discontinued model
Data version 1995-11

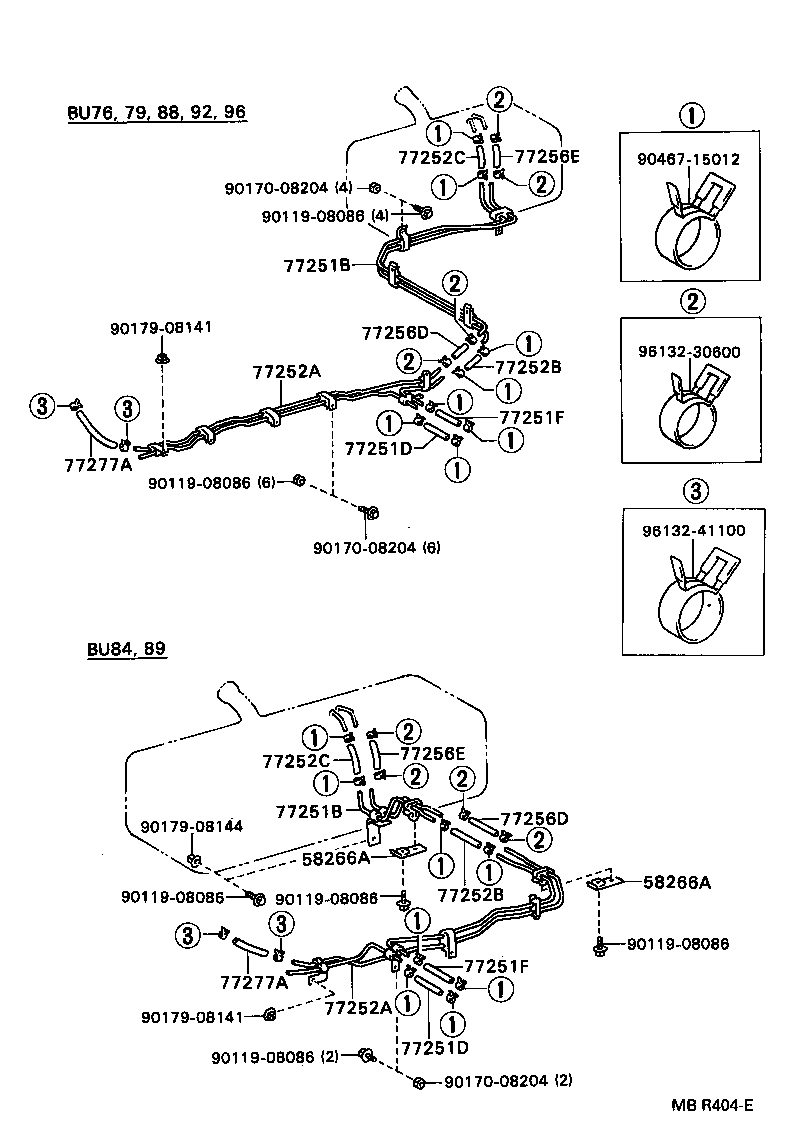

Fuel Tank & Tube
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58266A | Bracket, Fuel Tube Clamp |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77243C | Filter, Fuel Tank Breather |
| 77251B | Tube, Fuel Main |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77251F | Hose, Fuel |
| 77252A | Tube, Fuel Main, NO.2 |
| 77252B | Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE) |
| 77252C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE) |
| 77256D | Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE) |
| 77256E | Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE) |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77633 | Stay, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
