Toyota DYNA200

1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

11 part groups · 2 illustrations

Illustrations

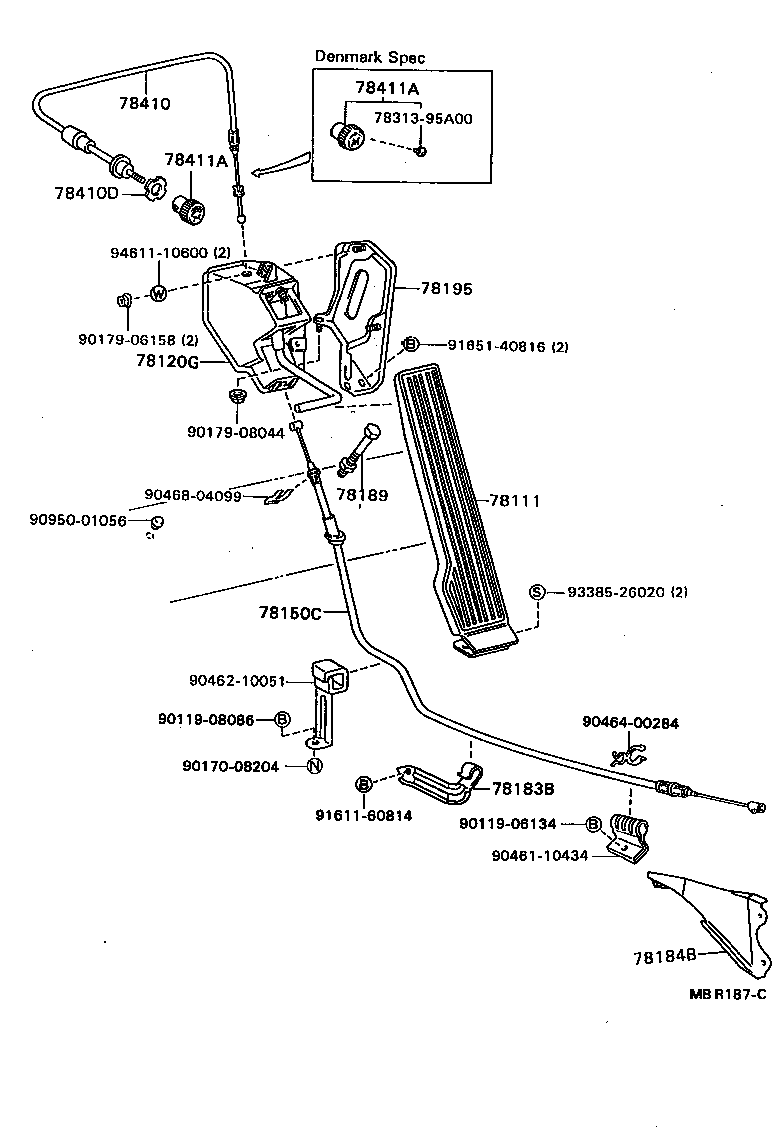

Figure MBR186A MBR186A 1988-08 → — Figure MBR187C MBR187C 1988-08 → —

Part groups

PNCDescription
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78189 Bolt, Accelerator Pedal Stopper
78195 Bracket, Accelerator Link
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
