Toyota DYNA200
1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe
Discontinued model
Data version 1995-11
Meter
25 part groups · 4 illustrations
Part groups

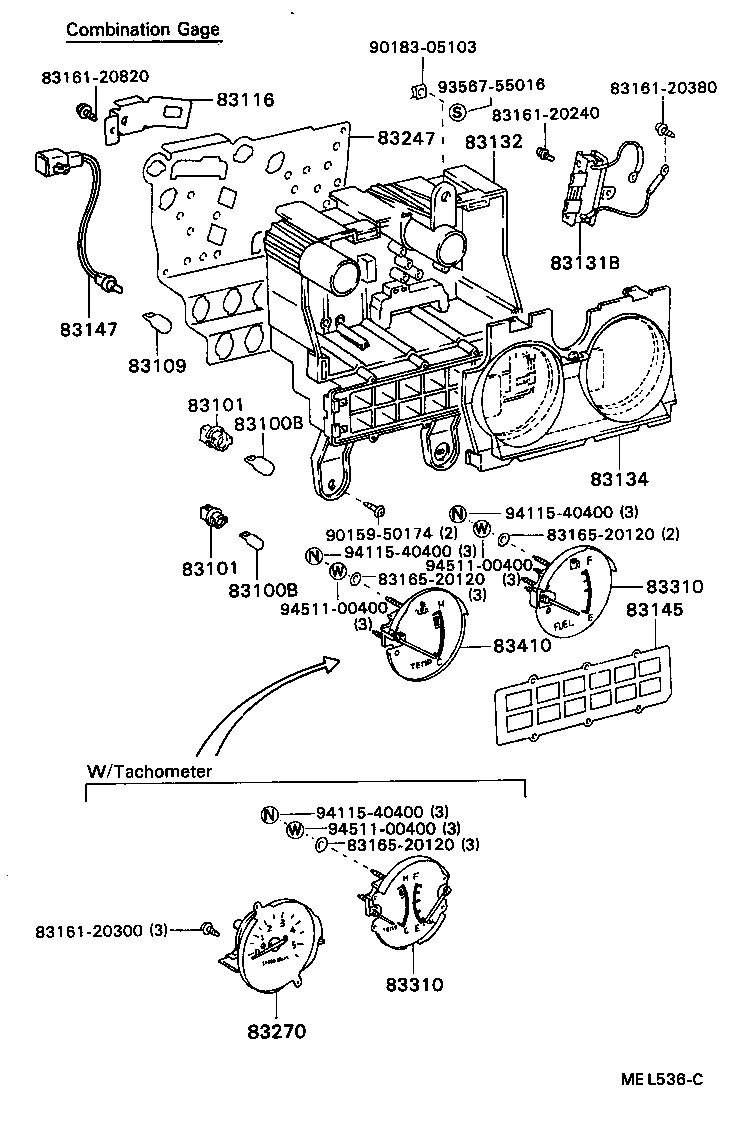

| PNC | Description |
|---|---|
| 55912A | Housing, Heater Control |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83109 | Bulb, Combination Meter, NO.2 |
| 83110 | Speedometer Assy |
| 83110B | Bulb, Speedometer |
| 83116 | Bracket, Speedometer |
| 83128 | Knob, Trip Counter |
| 83131B | Droper, Meter |
| 83132 | Case, Combination Meter |
| 83132A | Case, Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83145 | Lens, Meter, NO.1 |
| 83147 | Lamp, Meter NO.1 |
| 83180 | Detector Assy, Revolution |
| 83210 | Tachograph Assy |
| 83247 | Plate, Meter Circuit |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83739 | Protector, Speed Control Cable |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
