Toyota DYNA200
1988-08 → 1995-05 · chassis BU7#,8#,9# · catalogue 751550 · Europe
Discontinued model
Data version 1995-11

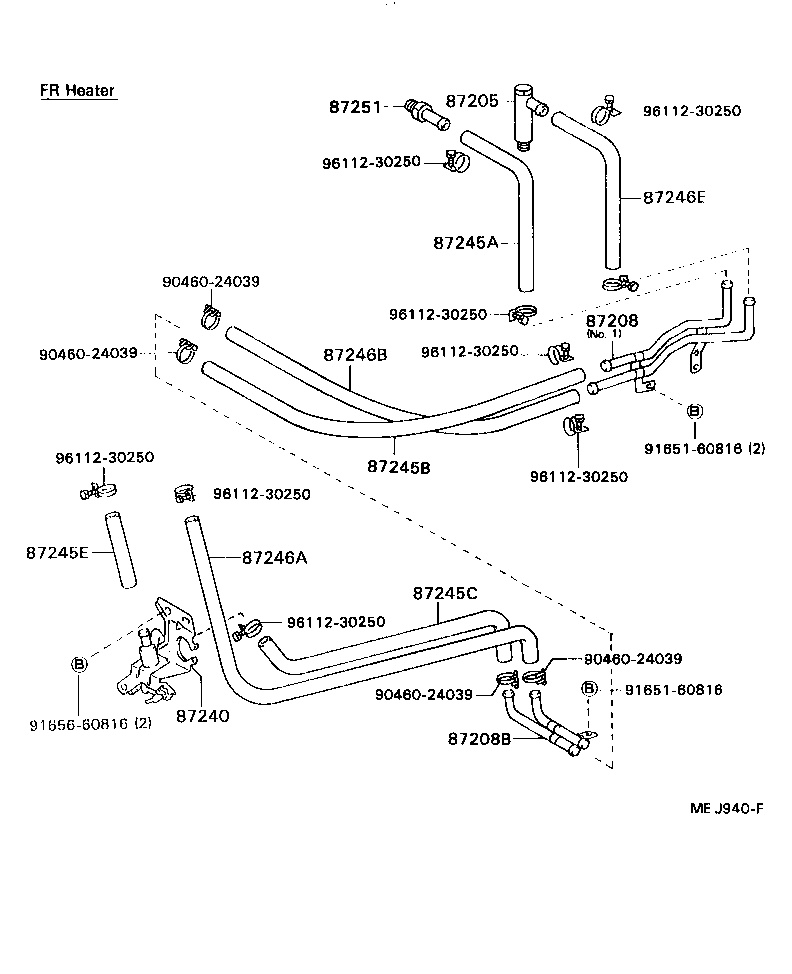

Heating & Air Conditioning - Water Piping
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87208 | Pipe Sub-assy, Heater Water |
| 87208B | Pipe Sub-assy, Heater Water, B |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245C | Hose, Heater Water ,Inlet C |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246B | Hose, Heater Water, Outlet B |
| 87246E | Hose, Heater Water, Outlet E |
| 87251 | Joint OR Union, Water Hose Through |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
