Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

22 part groups · 8 illustrations

Illustrations

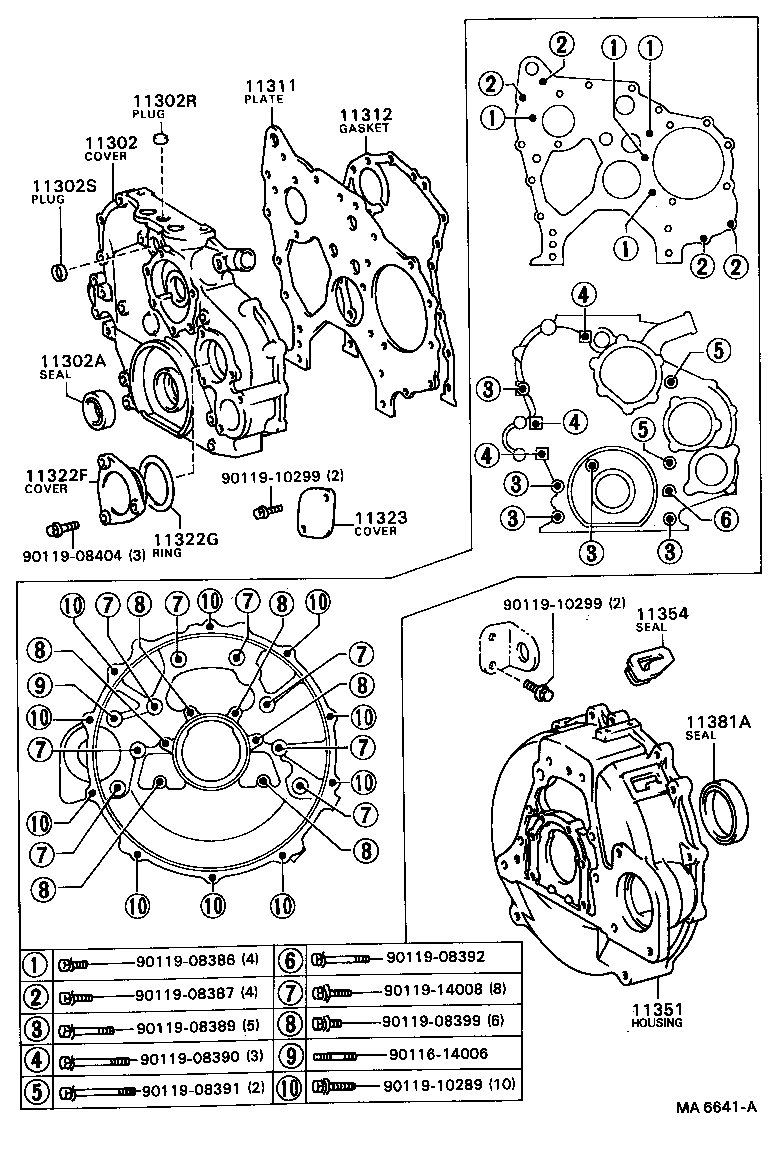

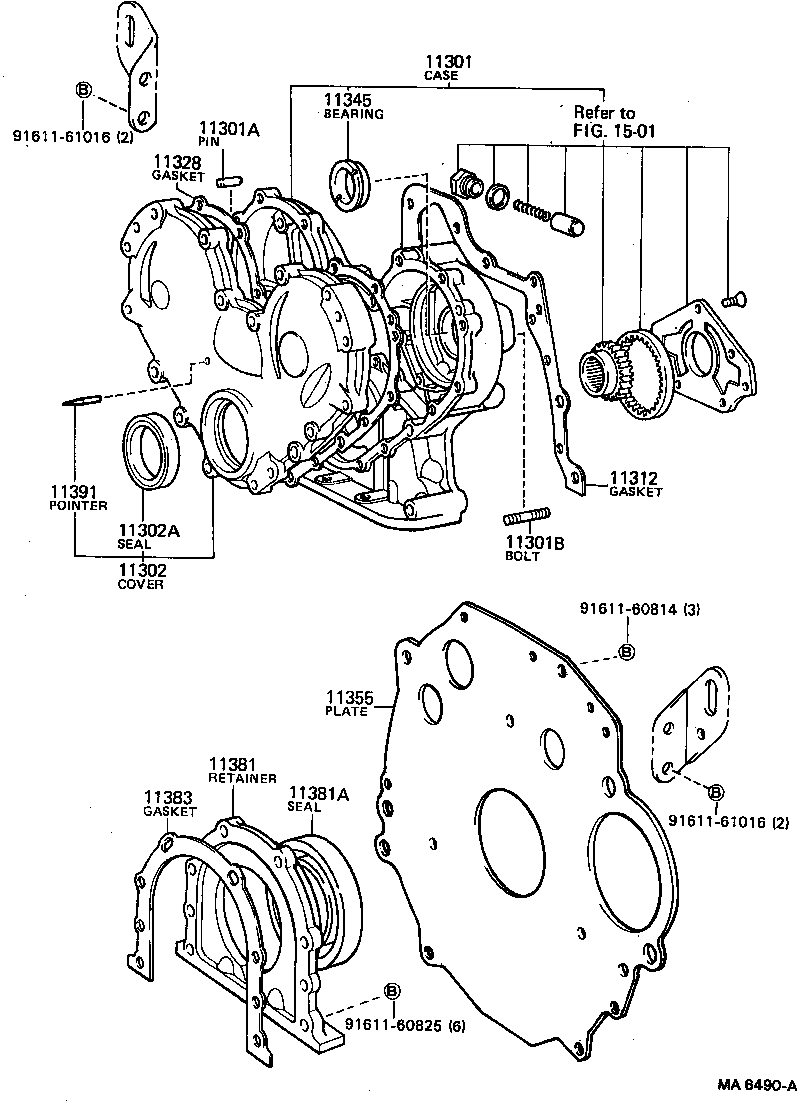

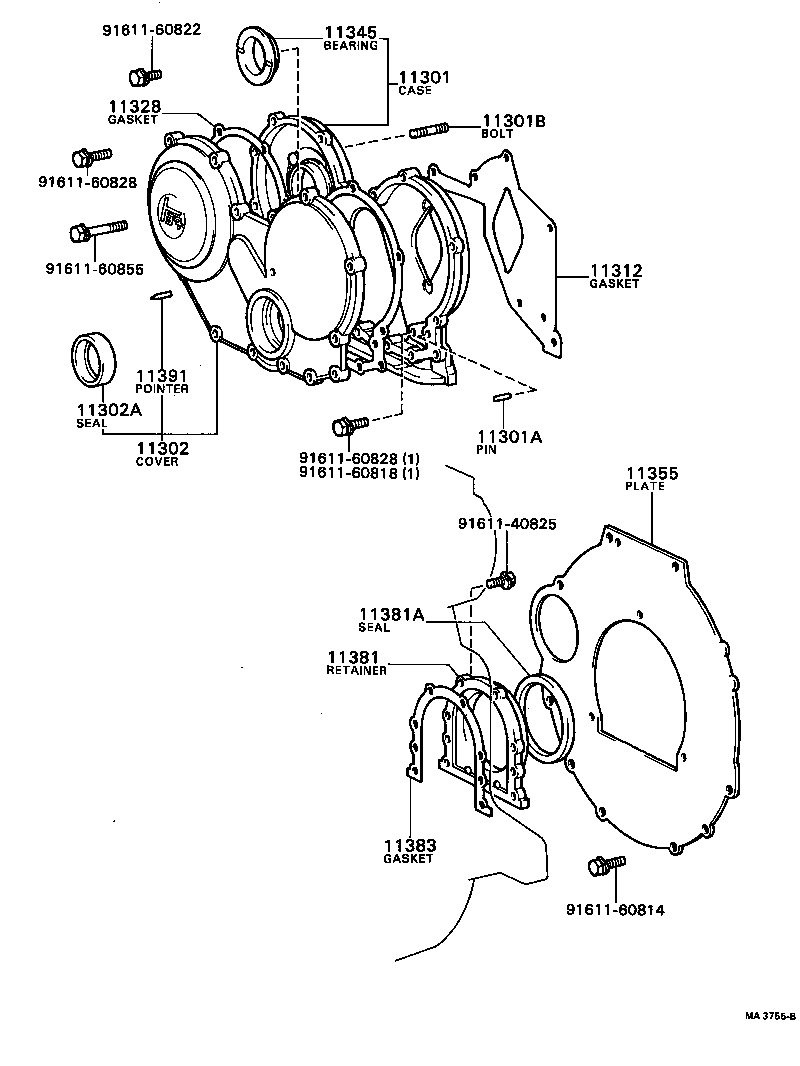

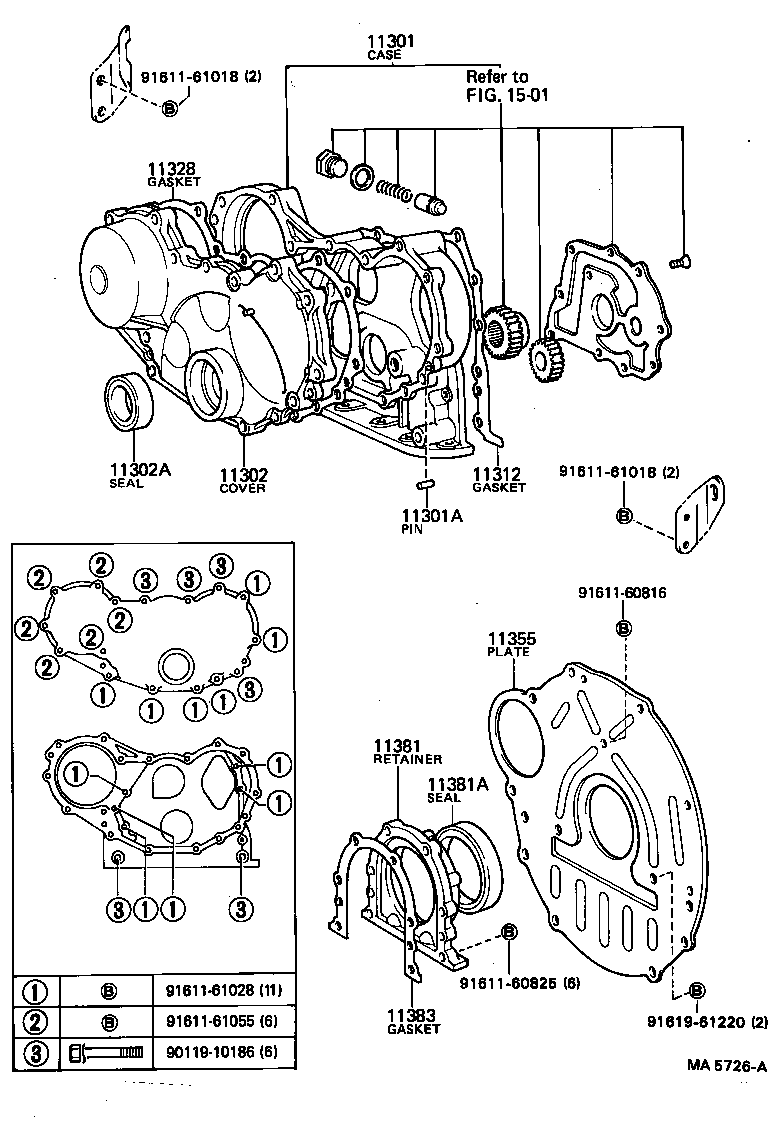

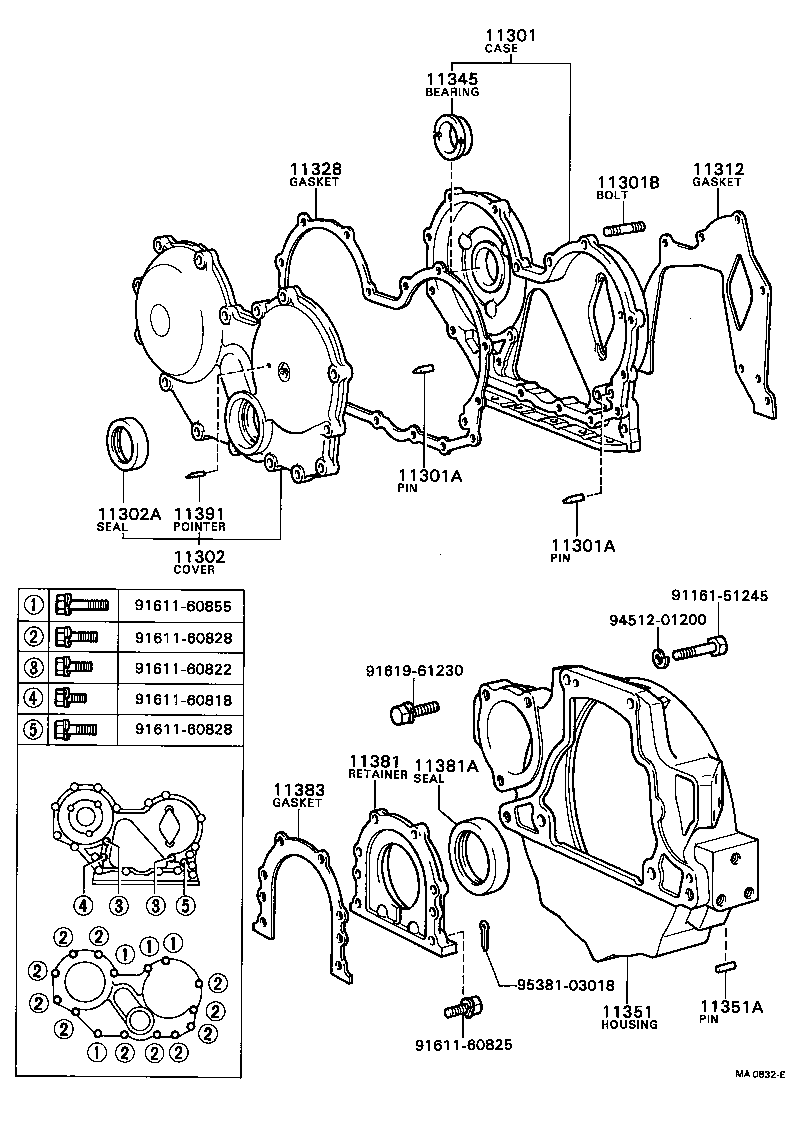

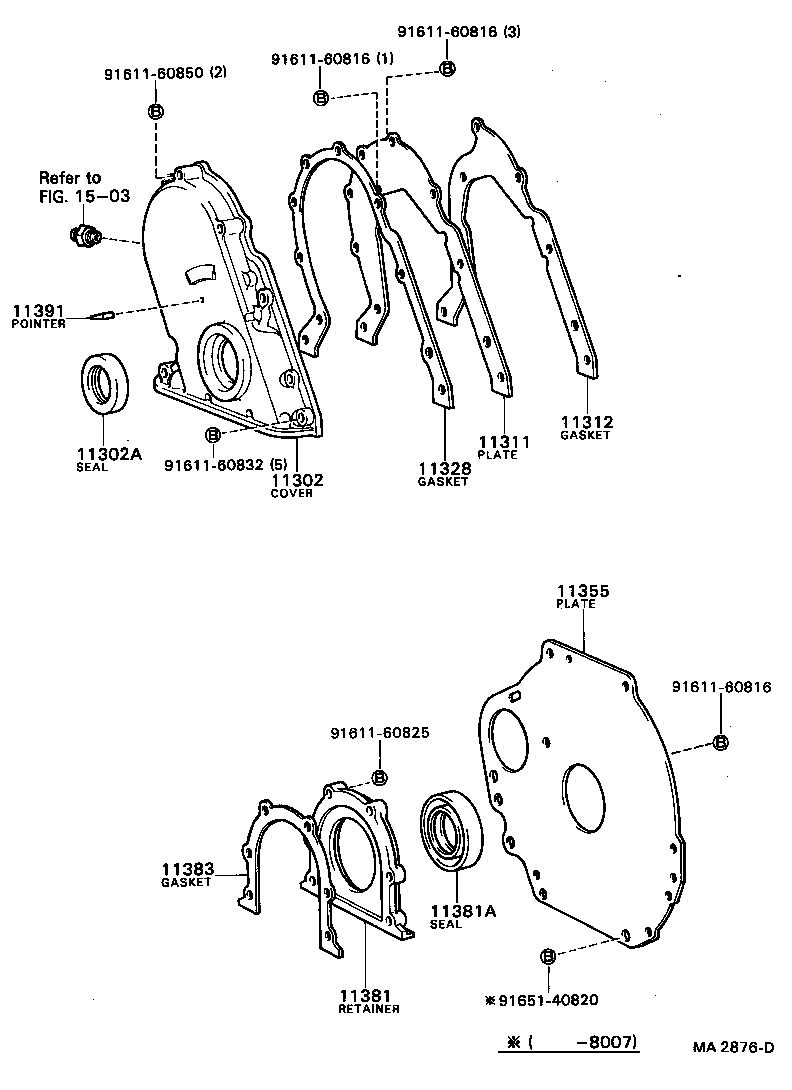

Figure MA2993D MA2993D 1977-08 → 1980-08 Figure MA6490A MA6490A 1980-08 → — Figure MA6198 MA6198 1980-08 → — Figure MA0832E MA0832E 1977-08 → 1981-04 Figure MA5726A MA5726A 1982-04 → 1984-08 Figure MA3755B MA3755B 1977-08 → 1979-04 Figure MA2876D MA2876D 1977-08 → 1984-08 Figure MA6641A MA6641A 1983-04 → 1984-08

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302R Plug, Tight, NO.1(FOR TIMING GEAR COVER)
11302S Plug, Tight, NO.2(FOR TIMING GEAR COVER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11322F Cover, Timing Gear, NO.2
11322G Ring, O(FOR TIMING GEAR COVER)
11323 Cover, Timing Gear, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11345 Bearing, Injection Pump Gear Thrust
11351 Housing, Flywheel
11351A Pin, Straight(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11391 Pointer, Timing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
