Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 7 illustrations

Illustrations

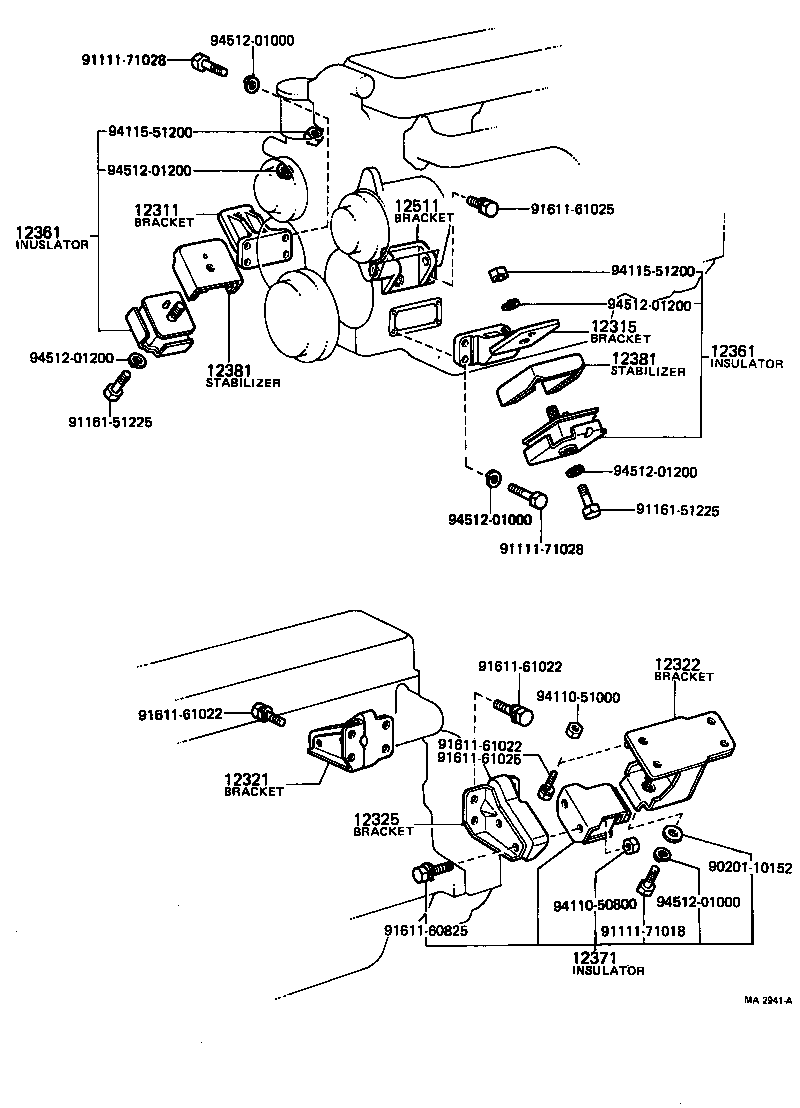

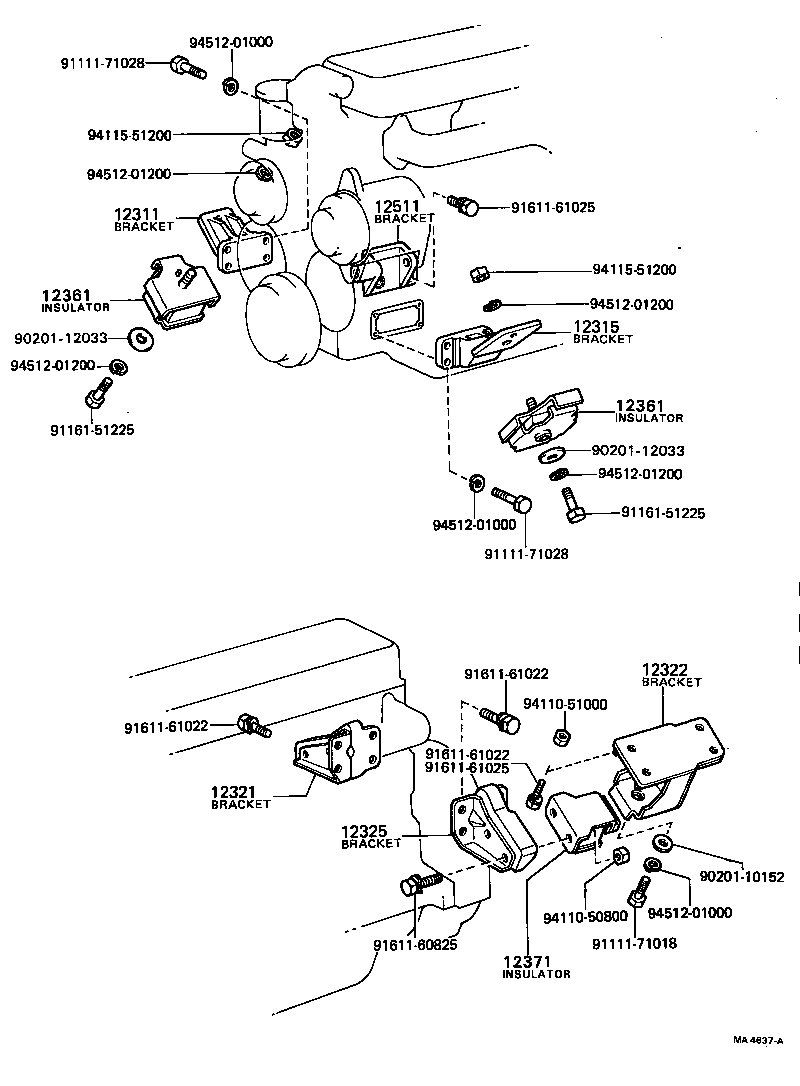

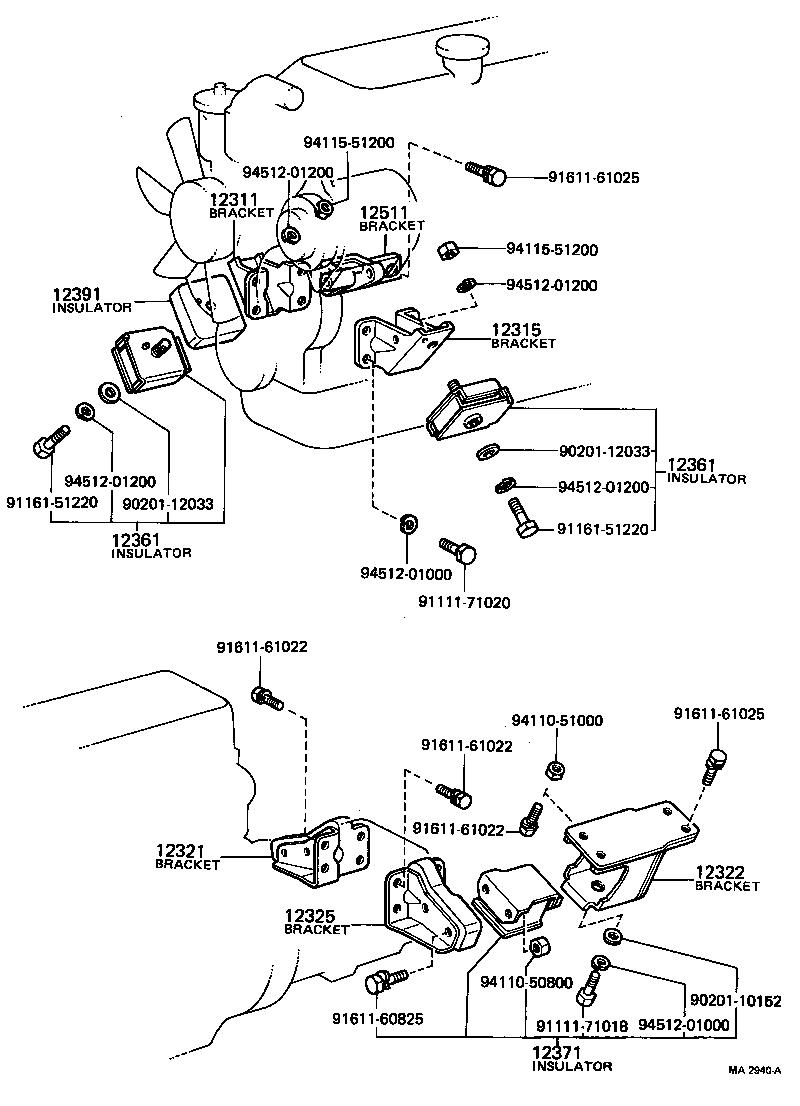

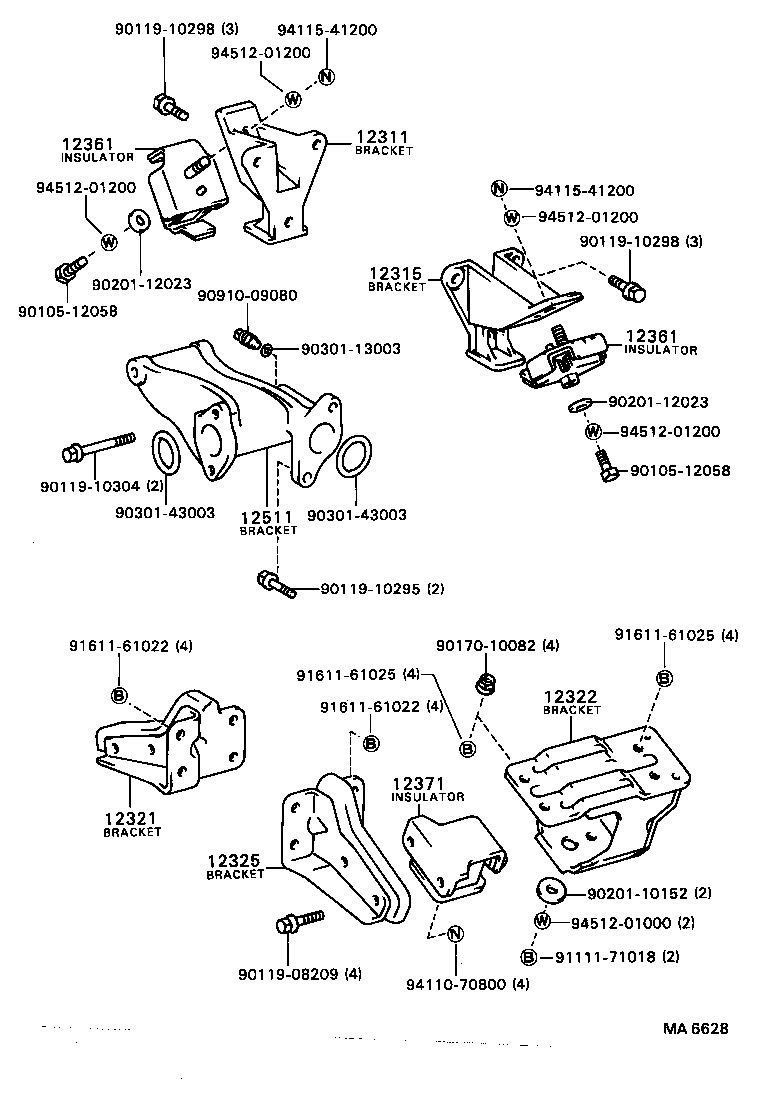

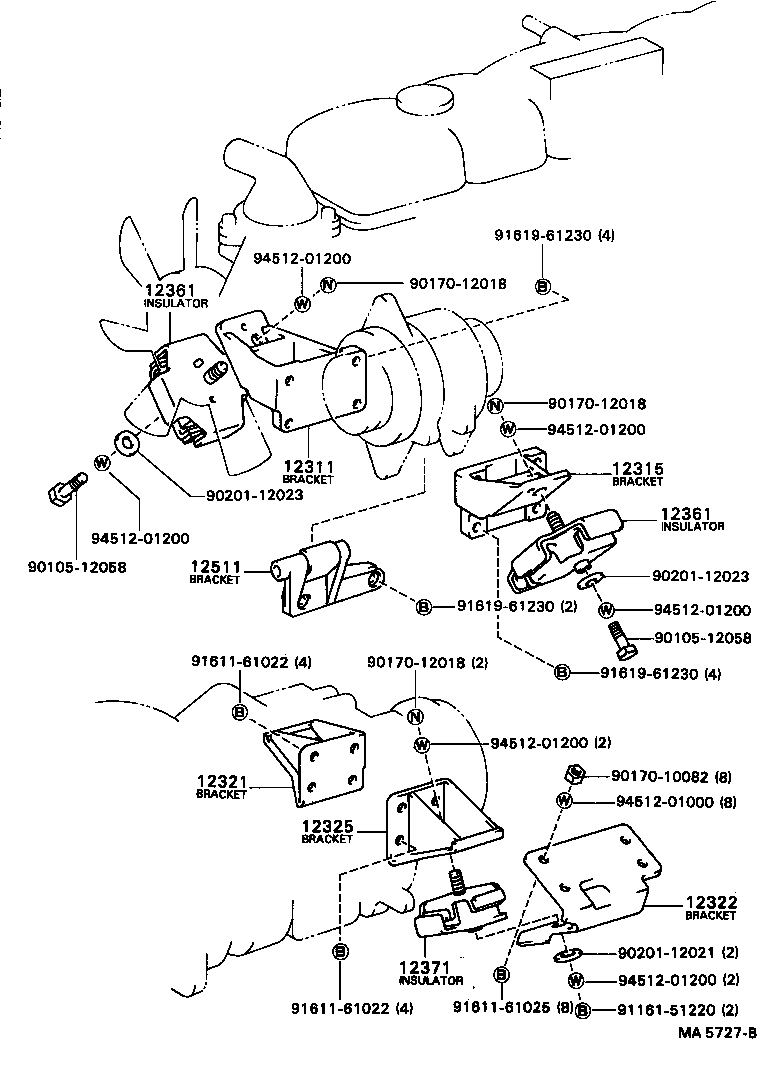

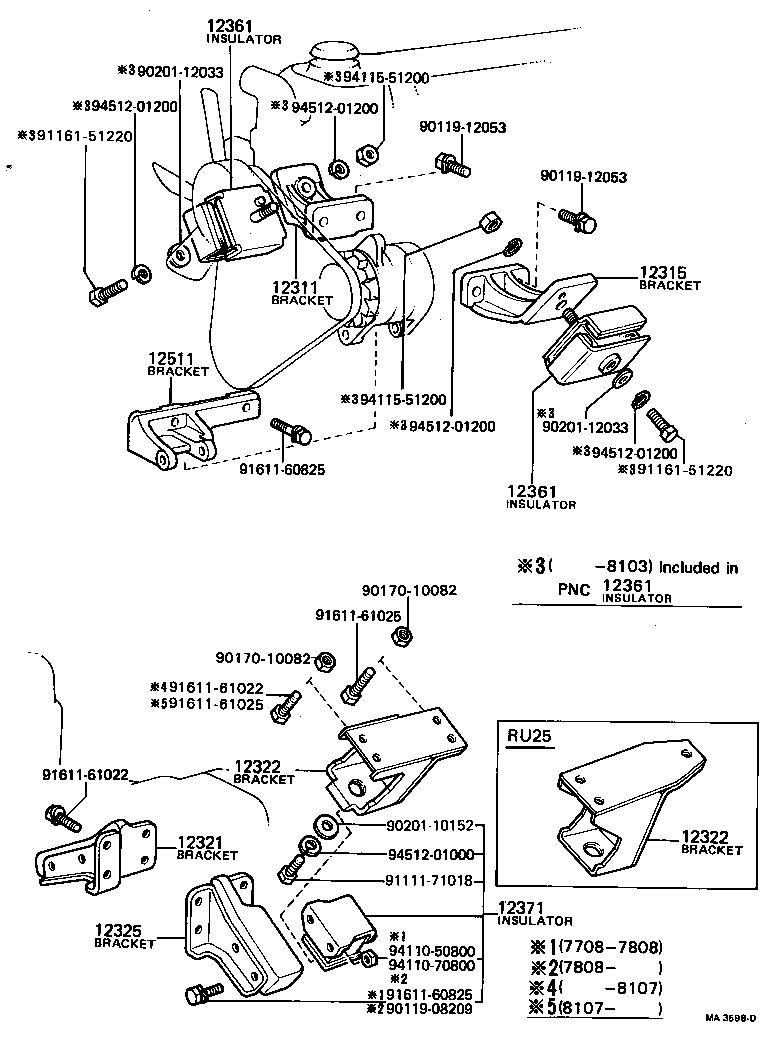

Figure MA3599G MA3599G 1977-08 → — Figure MA2941A MA2941A 1977-08 → 1980-03 Figure MA4637A MA4637A 1980-03 → 1981-04 Figure MA5727B MA5727B 1982-04 → 1984-08 Figure MA2940A MA2940A 1977-08 → 1979-04 Figure MA3598D MA3598D 1977-08 → 1984-08 Figure MA6628 MA6628 1983-04 → 1984-08

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
