Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

38 part groups · 12 illustrations

Illustrations

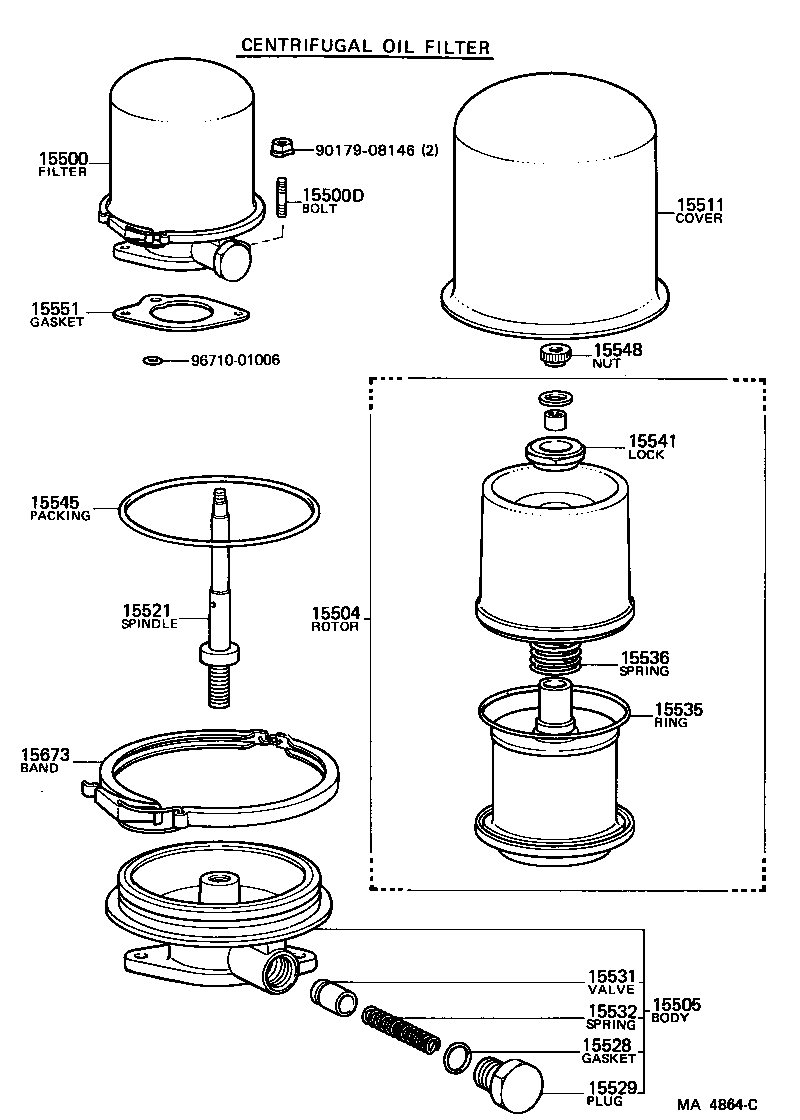

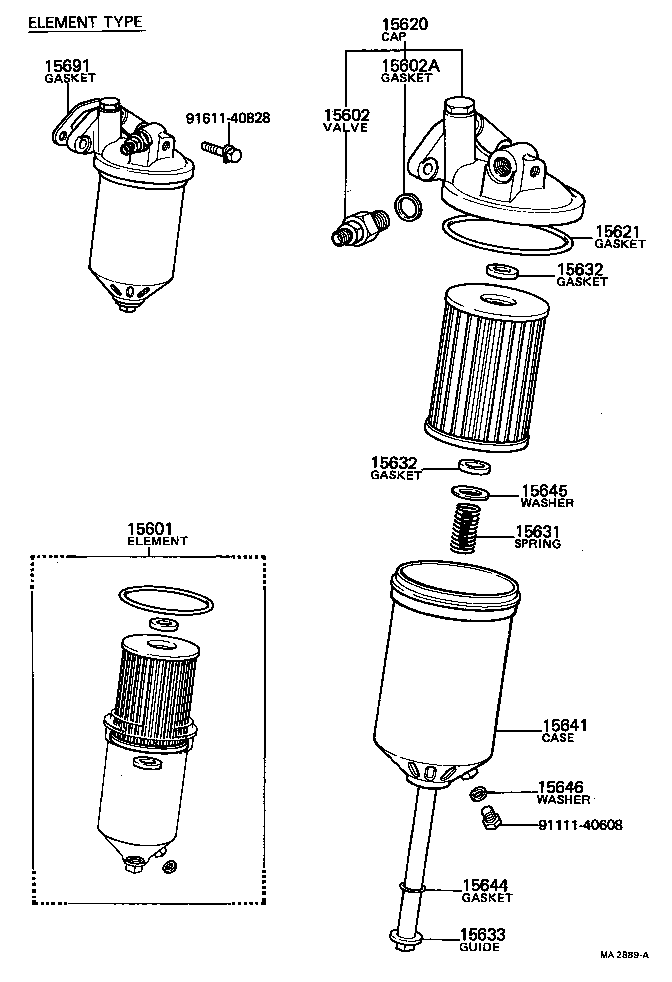

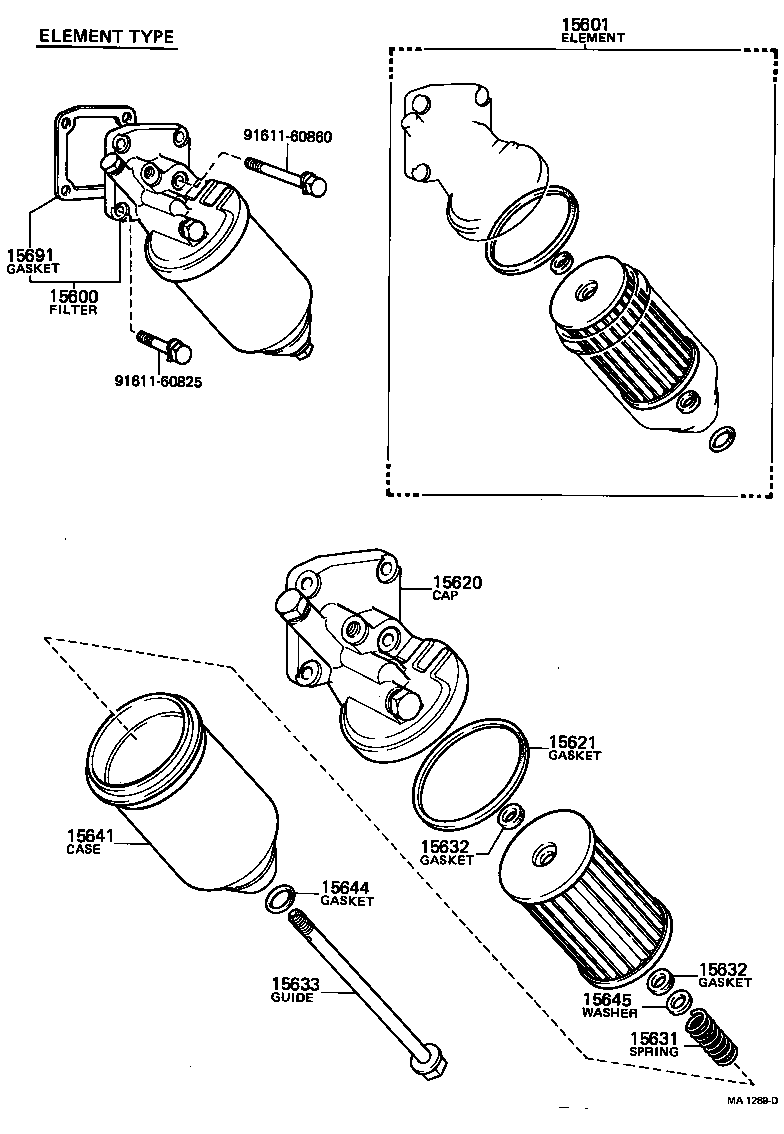

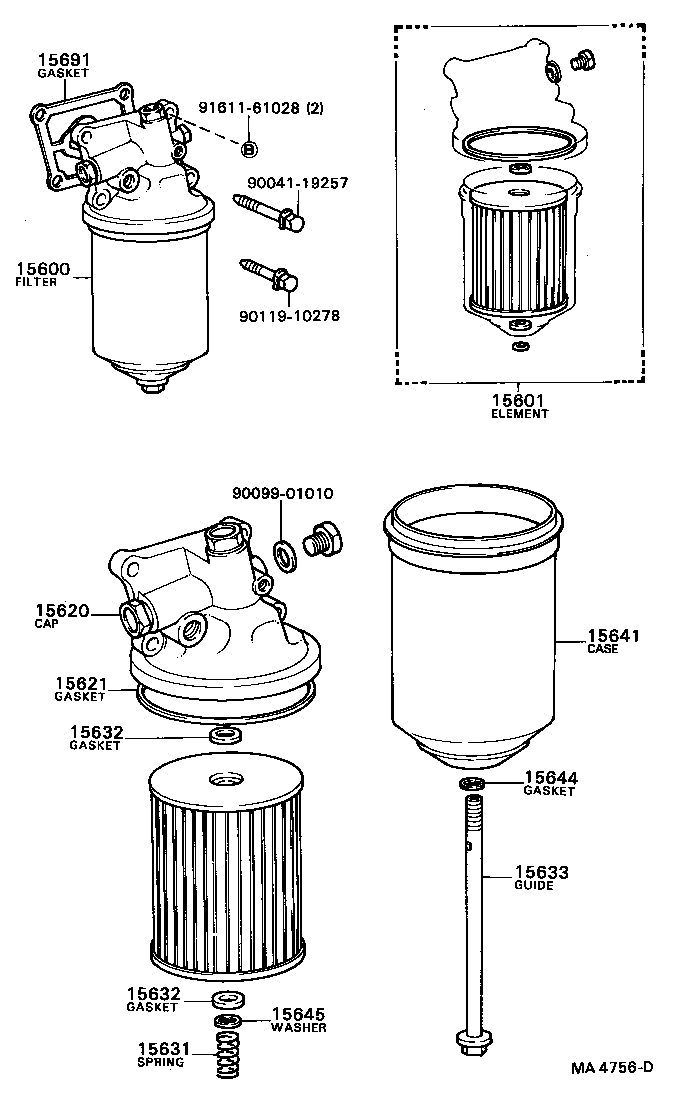

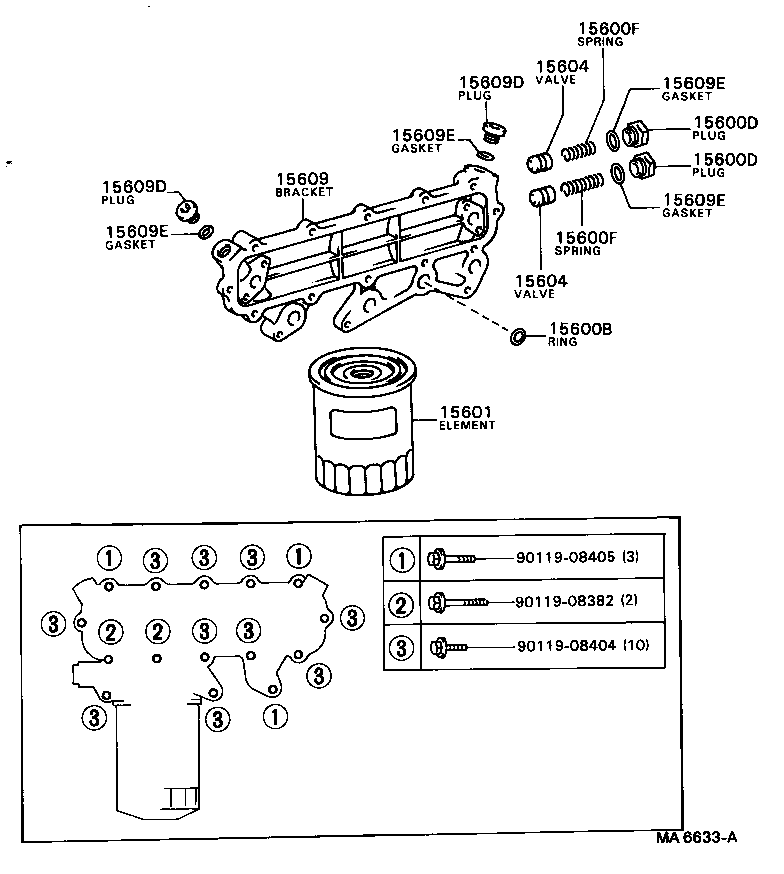

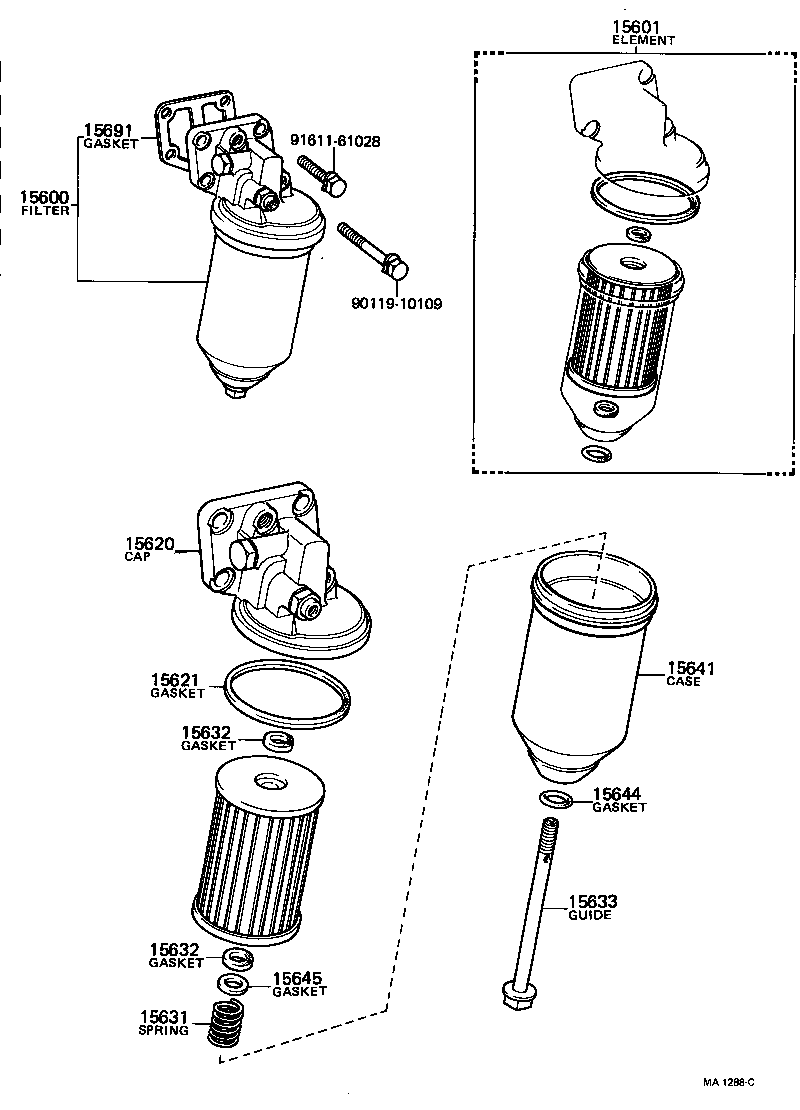

Figure MA1372C MA1372C 1977-08 → 1980-08 Figure MA4683D MA4683D 1980-08 → — Figure MA1288C MA1288C 1977-08 → 1980-08 Figure MA4756D MA4756D 1980-08 → 1982-04 Figure MA4756D MA4756D 1982-04 → — Figure MA1289D MA1289D 1977-08 → 1981-04 Figure MA5874A MA5874A 1982-04 → 1984-08 Figure MA4864C MA4864C 1982-04 → 1984-08 Figure MA1297D MA1297D 1977-08 → 1979-04 Figure MA2882B MA2882B 1977-08 → 1984-08 Figure MA2889A MA2889A 1977-08 → — Figure MA6633A MA6633A 1983-04 → 1984-08

Part groups

PNCDescription
15500 Filter Assy, Oil, Centrifugal
15500D Bolt, Stud(FOR CENTRIFUGAL OIL FILTER SETTING)
15504 Rotor Sub-assy, Centrifugal Oil Filter
15505 Body Sub-assy, Centrifugal Oil Filter
15511 Cover, Centrifugal Oil Filter
15521 Spindle, Centrifugal Oil Filter
15528 Gasket, Valve(FOR CENTRIFUGAL OIL FILTER)
15529 Plug(FOR CENTRIFUGAL OIL FILTER)
15531 Valve(FOR CENTRIFUGAL OIL FILTER)
15532 Spring, Valve(FOR CENTRIFUGAL OIL FILTER)
15535 Ring, NO.5 (FOR CENTRIFUGAL OIL FILTER)
15536 Spring(FOR CENTRIFUGAL OIL FILTER)
15541 Lock Nut(FOR CENTRIFUGAL OIL FILTER)
15545 Packing, Body(FOR CENTRIFUGAL OIL FILTER)
15548 Nut, Thrust(FOR CENTRIFUGAL OIL FILTER)
15551 Gasket, Centrifugal Oil Filter
15600 Filter Assy, Oil
15600B Ring, O, NO.1(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15602 Valve Sub-assy, Oil Pressure
15602A Gasket, Oil Pressure Valve
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15620 Cap Assy, Oil Filter
15621 Gasket, Oil Filter Body
15631 Spring, Oil Filter Element Support
15632 Gasket, Oil Filter Element
15633 Guide, Oil Filter Cartridge
15641 Case, Oil Filter
15644 Gasket, Oil Filter Cartridge Guide
15645 Washer, Oil Filter Cartridge Guide
15646 Washer OR Gasket, Oil Filter Drain Cock
15673 Band, Oil Filter Clamp
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
