Toyota Dyna
1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe
Discontinued model
Data version 1985-03

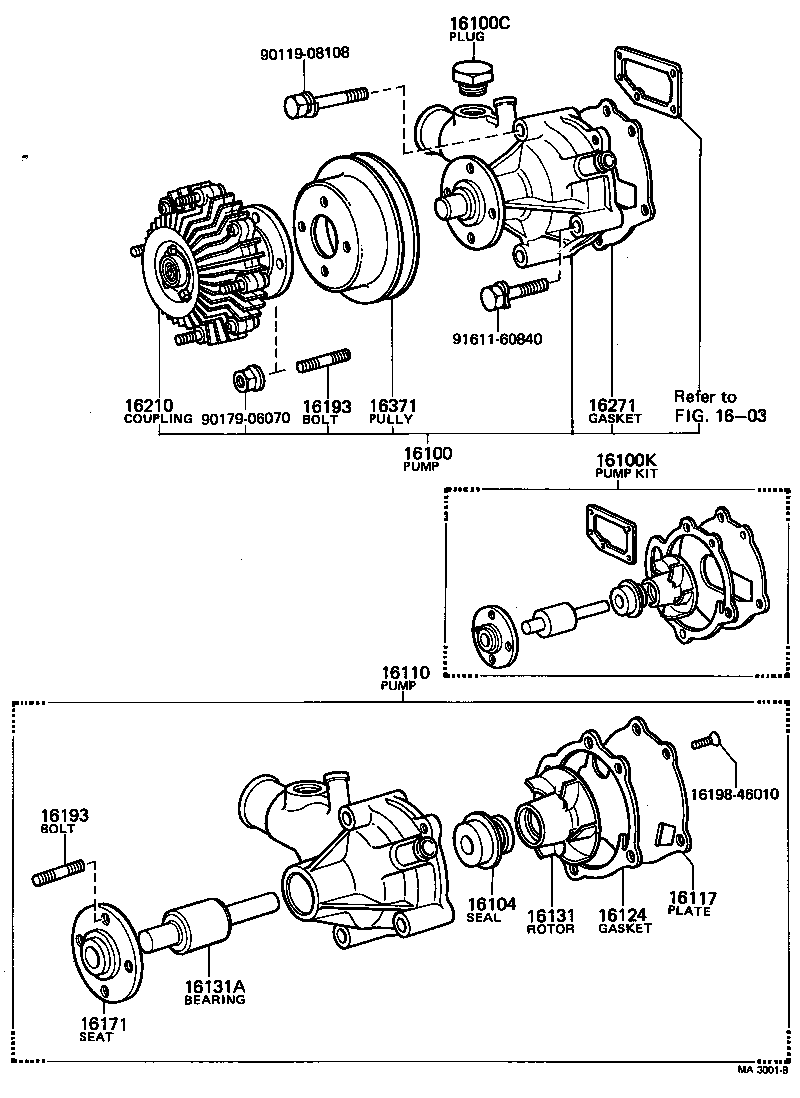

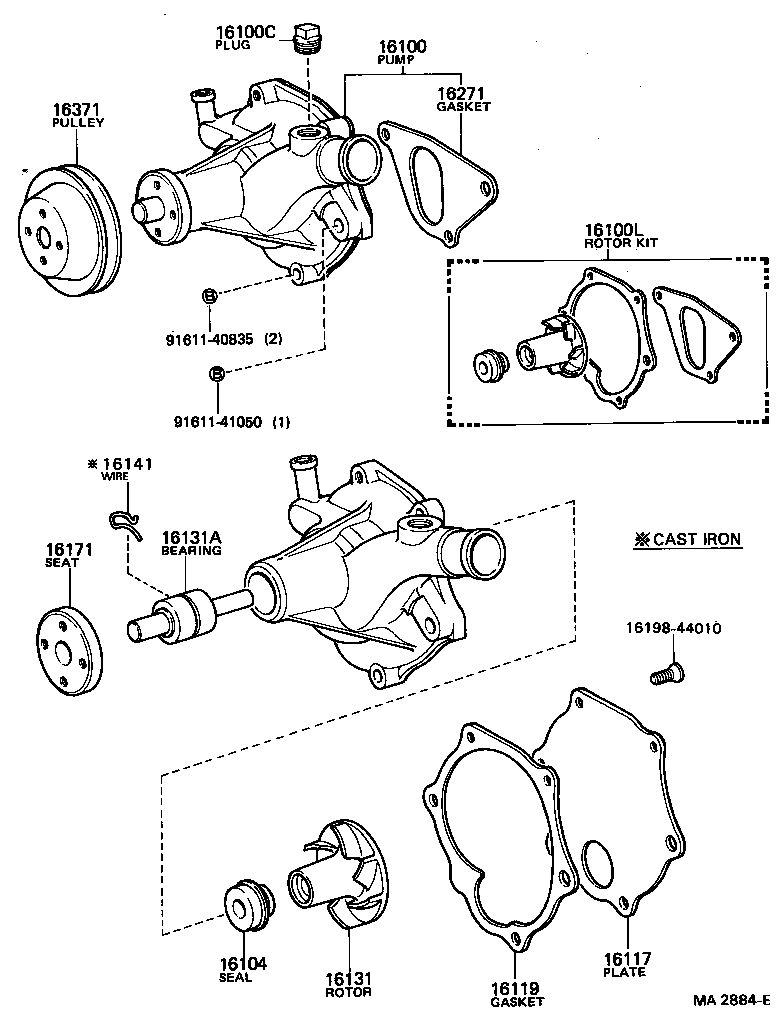

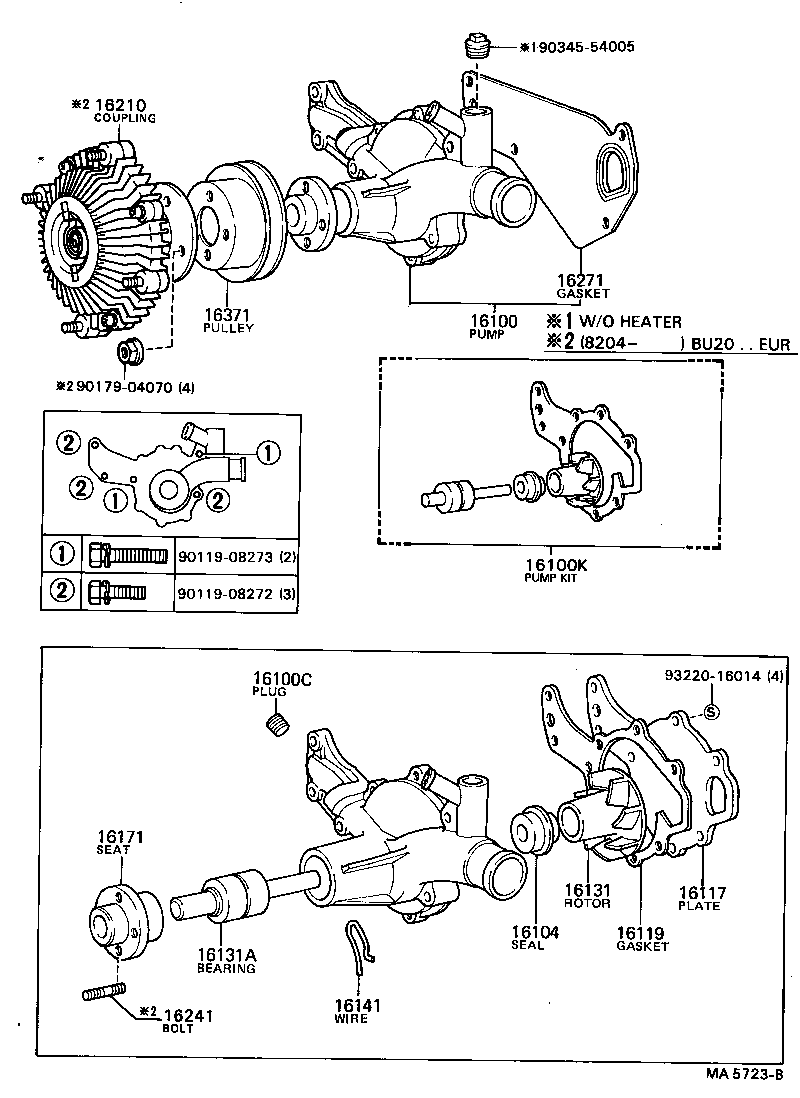

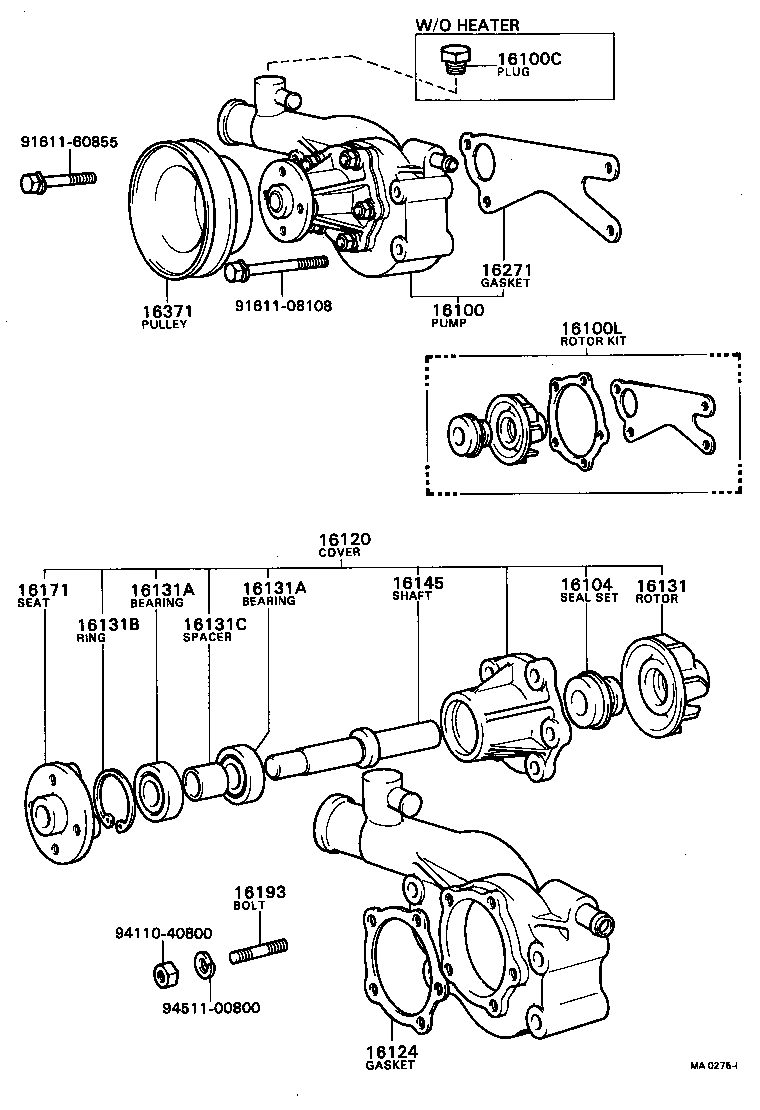

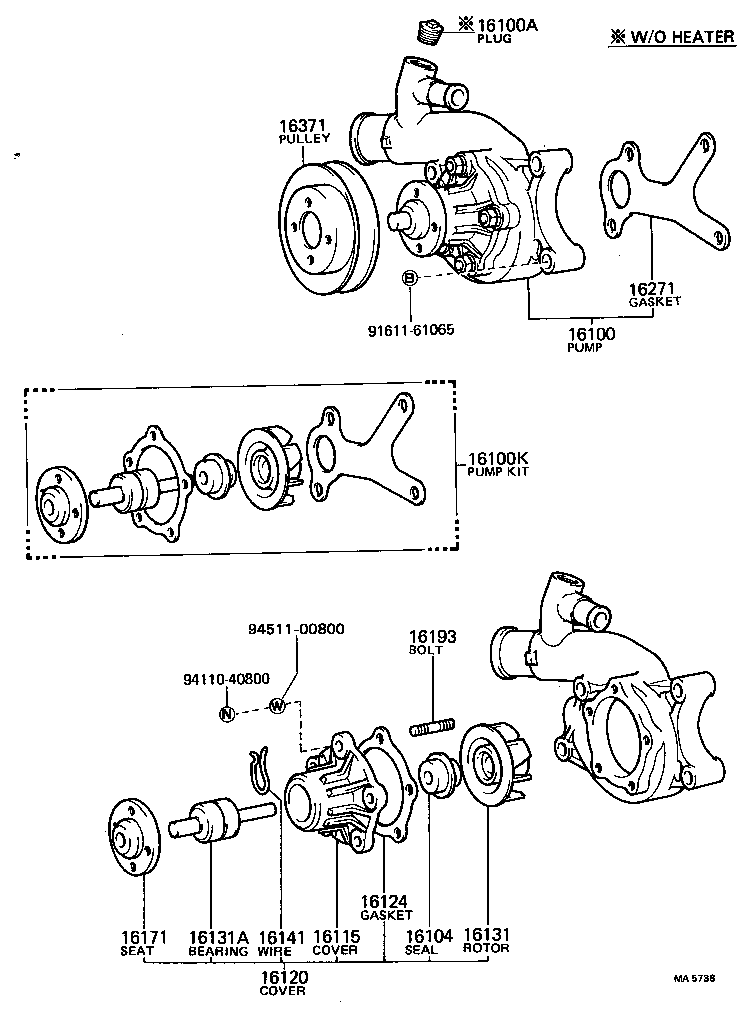

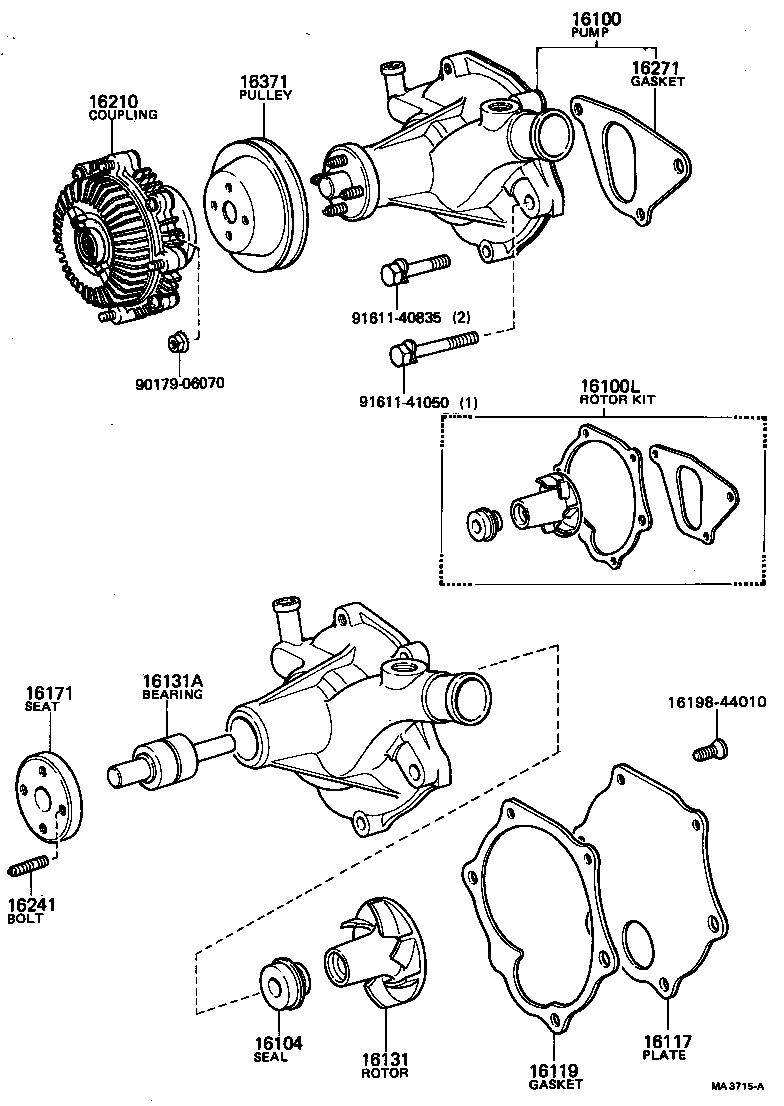

Water Pump
25 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100A | Plug, Water Pump |
| 16100C | Plug, W/Head Taper Screw |
| 16100K | Pump Kit, Water |
| 16100L | Rotor Kit, Water Pump |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16115 | Cover, Water Pump |
| 16117 | Plate, Water Pump |
| 16119 | Gasket, Water Pump Body |
| 16120 | Cover Assy, Water Pump |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16131A | Bearing, Water Pump |
| 16131B | Ring, Retainer(FOR WATER PUMP BEARING) |
| 16131C | Spacer(FOR WATER PUMP ROTOR) |
| 16141 | Wire, Water Pump Bearing Retaining |
| 16145 | Shaft, Water Pump |
| 16148 | Slinger, Water Pump |
| 16171 | Seat, Water Pump Pulley |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
