Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

51 part groups · 25 illustrations

Illustrations

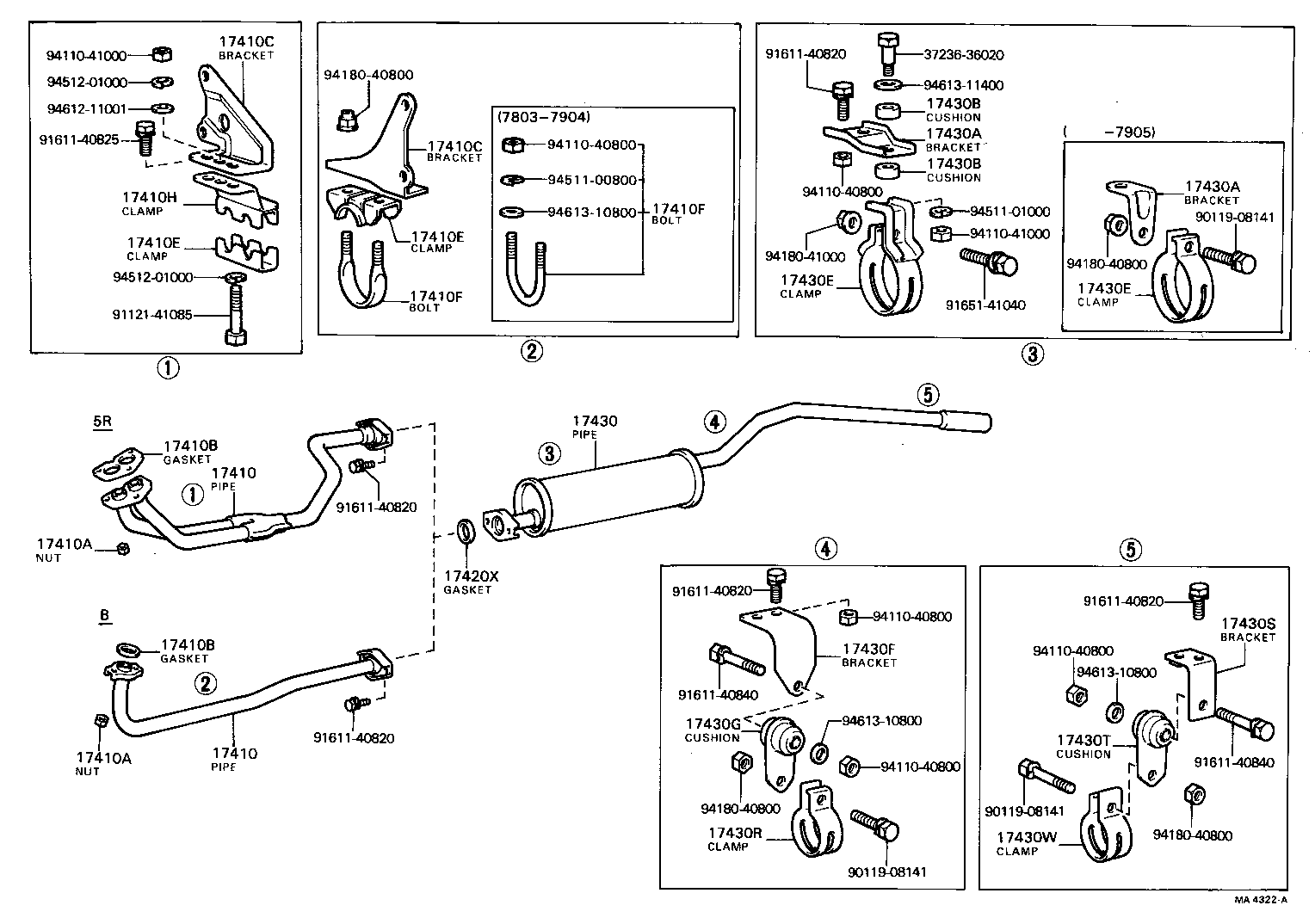

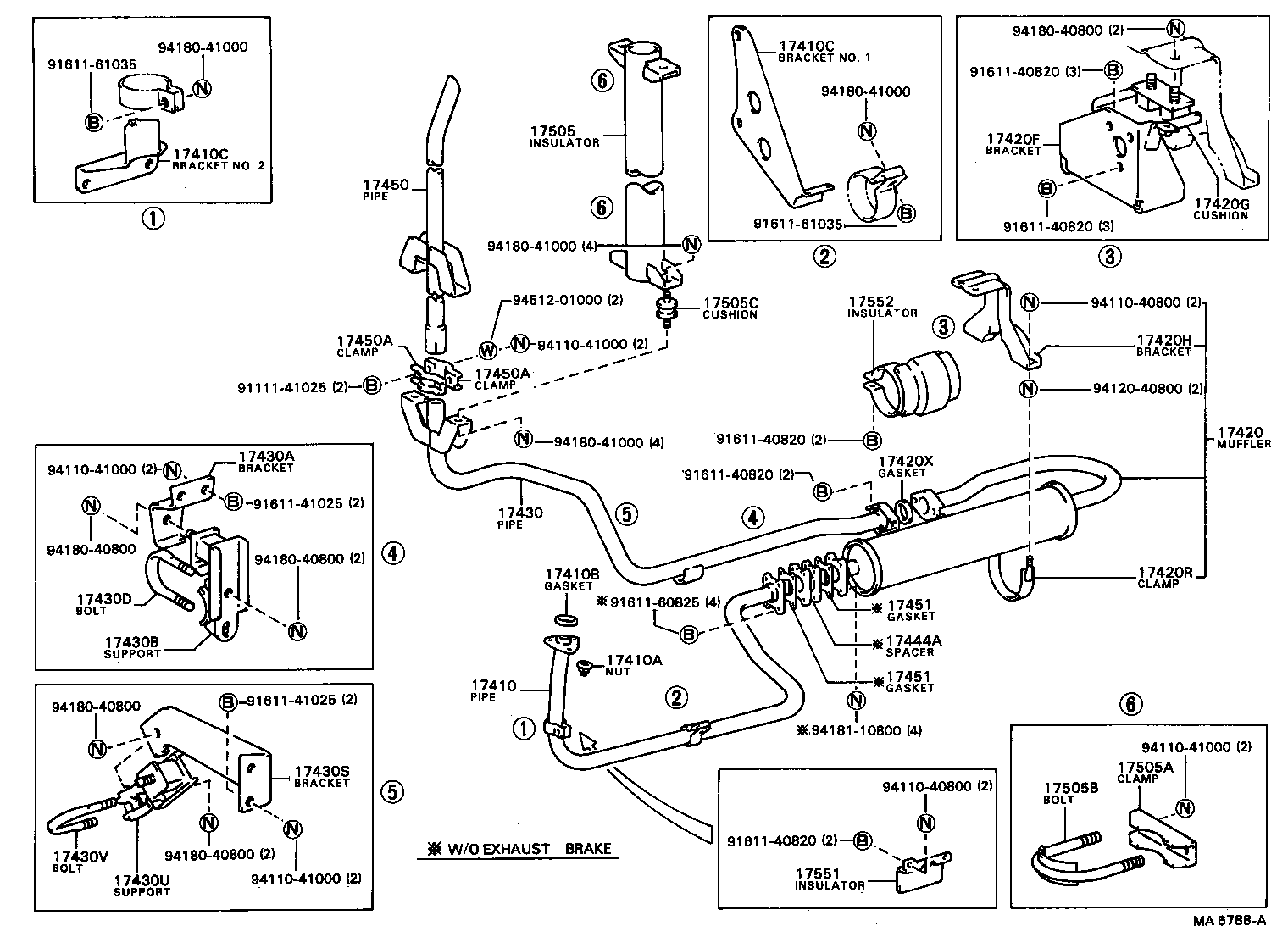

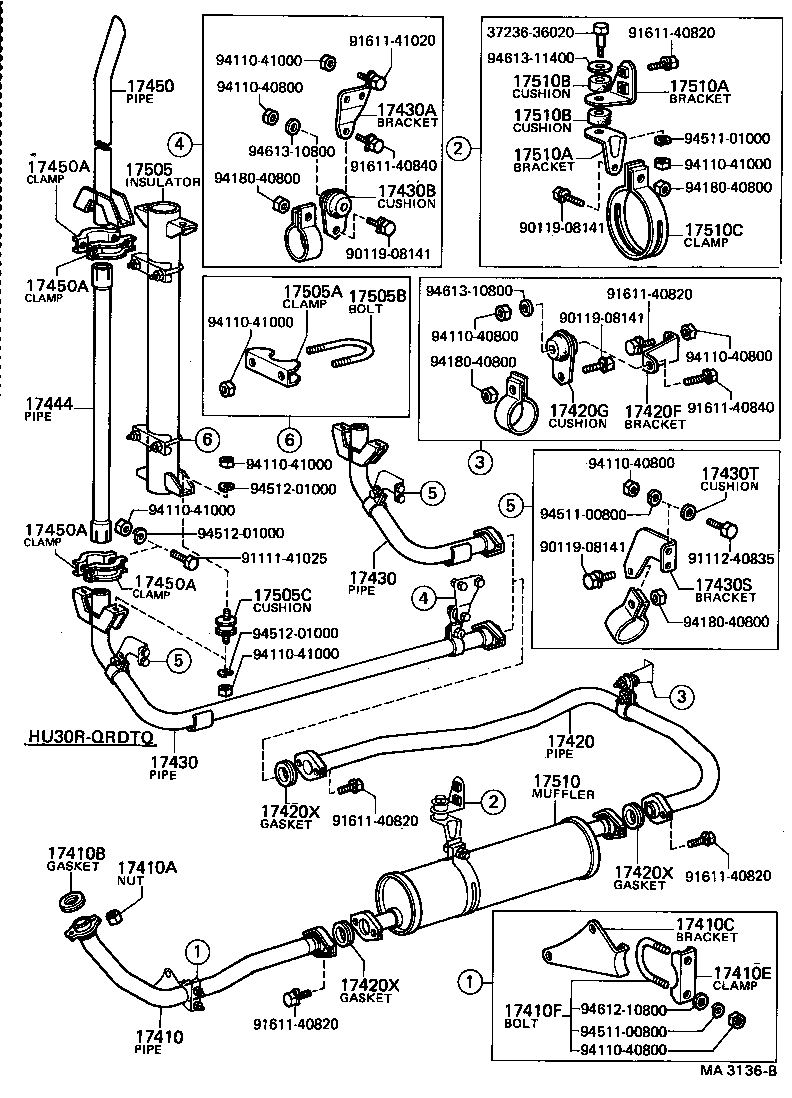

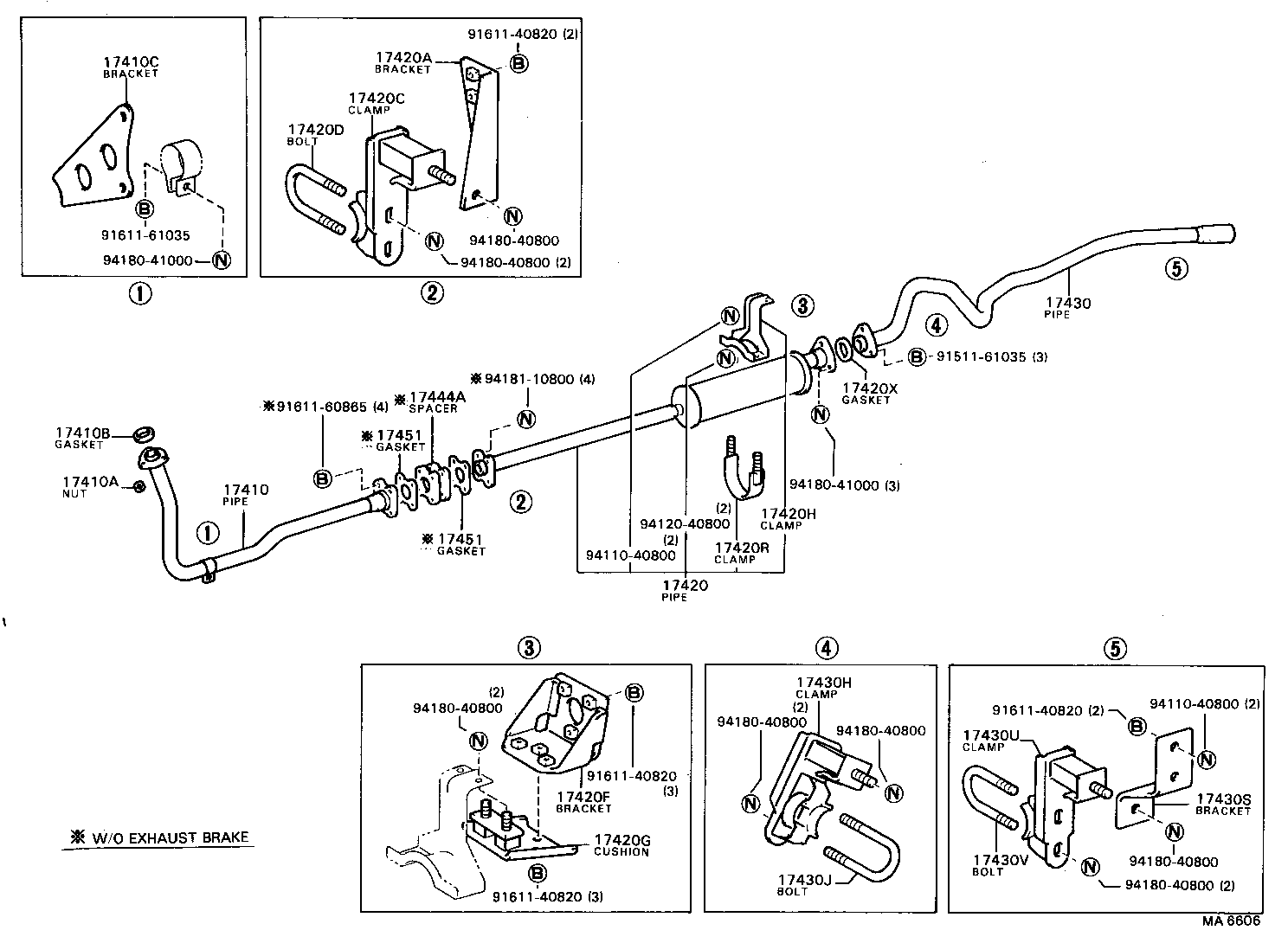

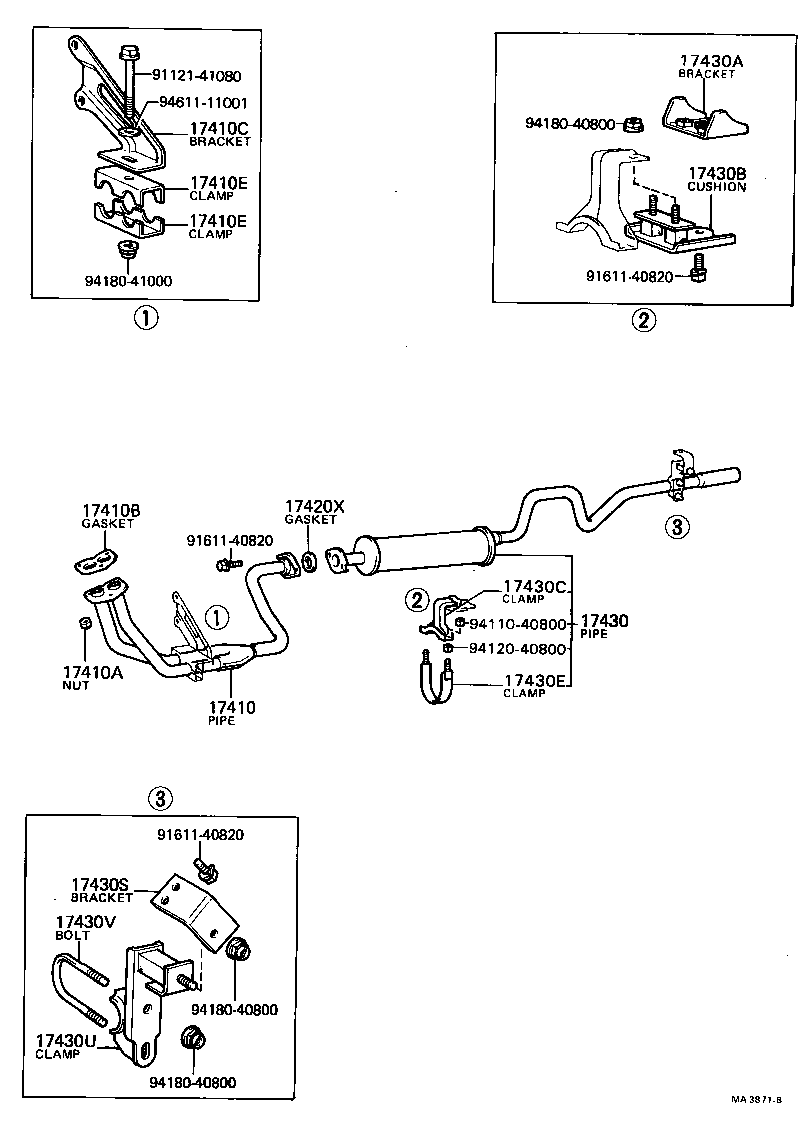

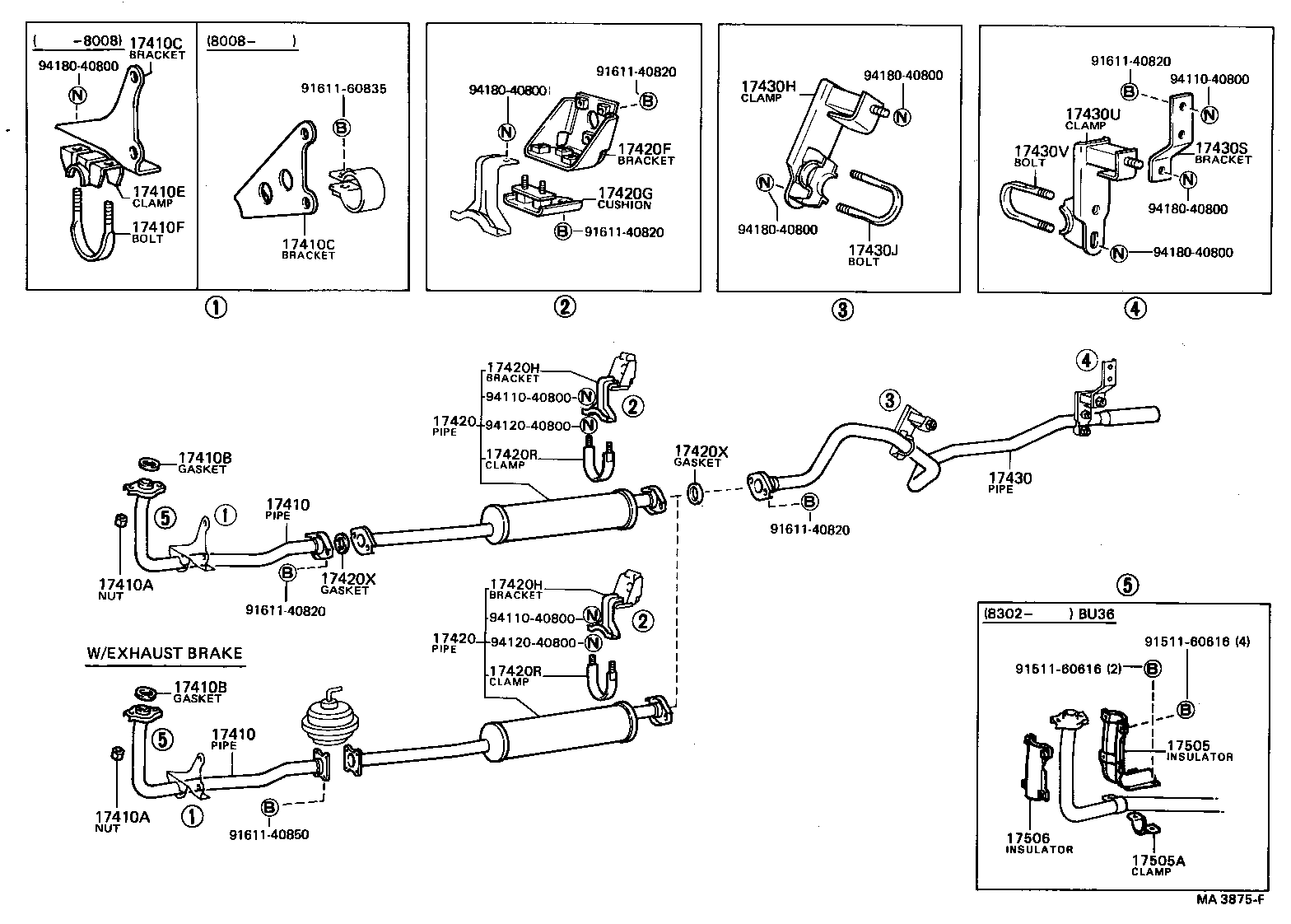

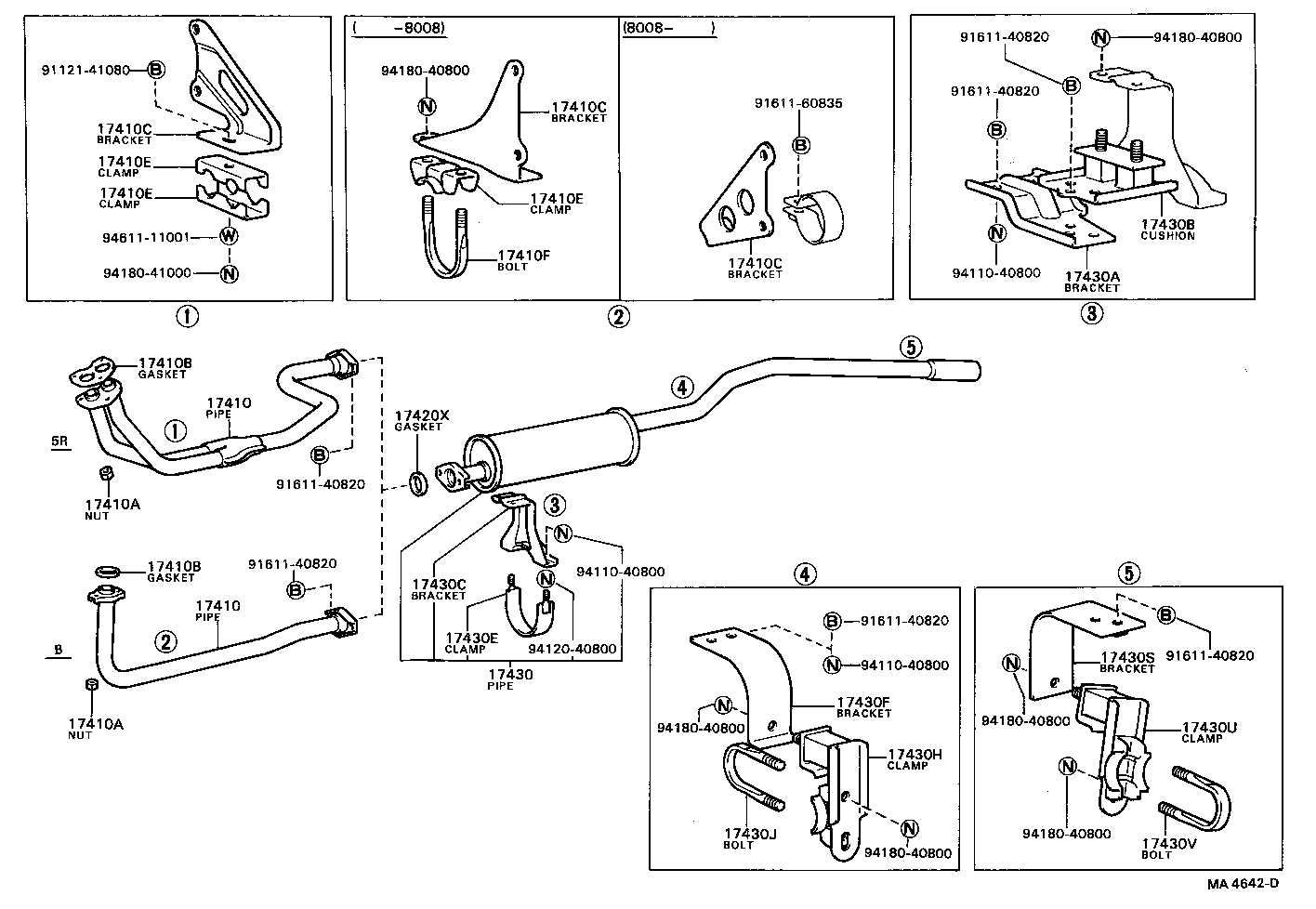

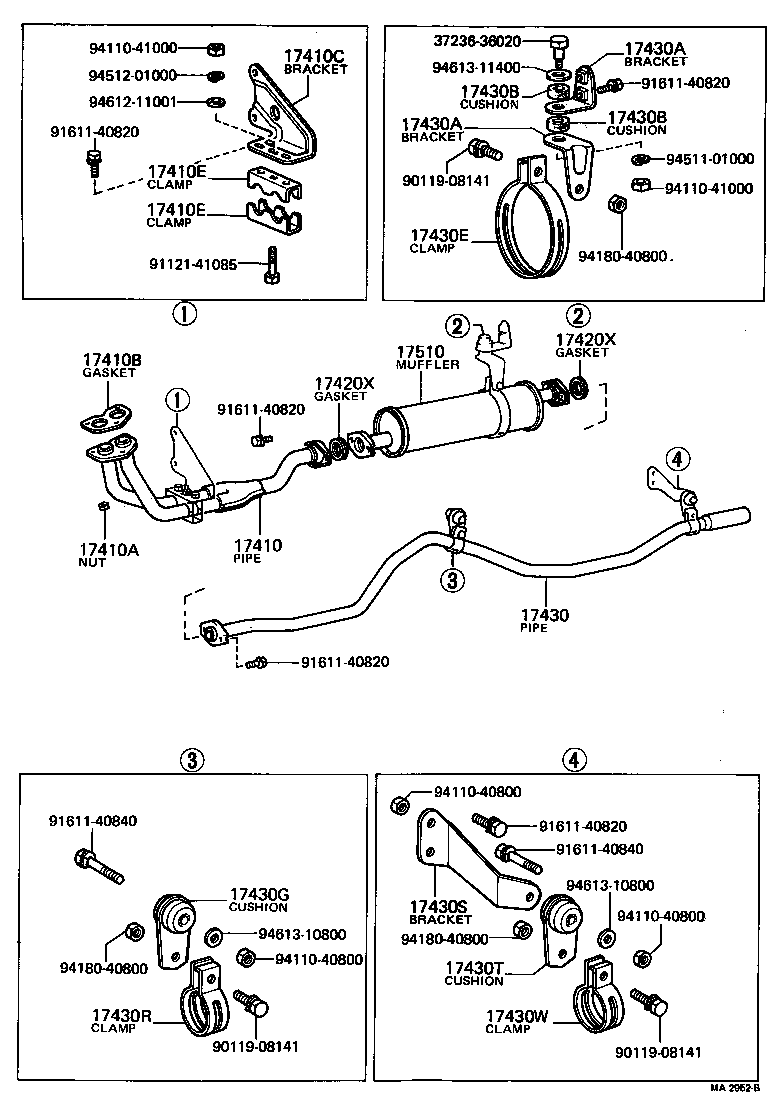

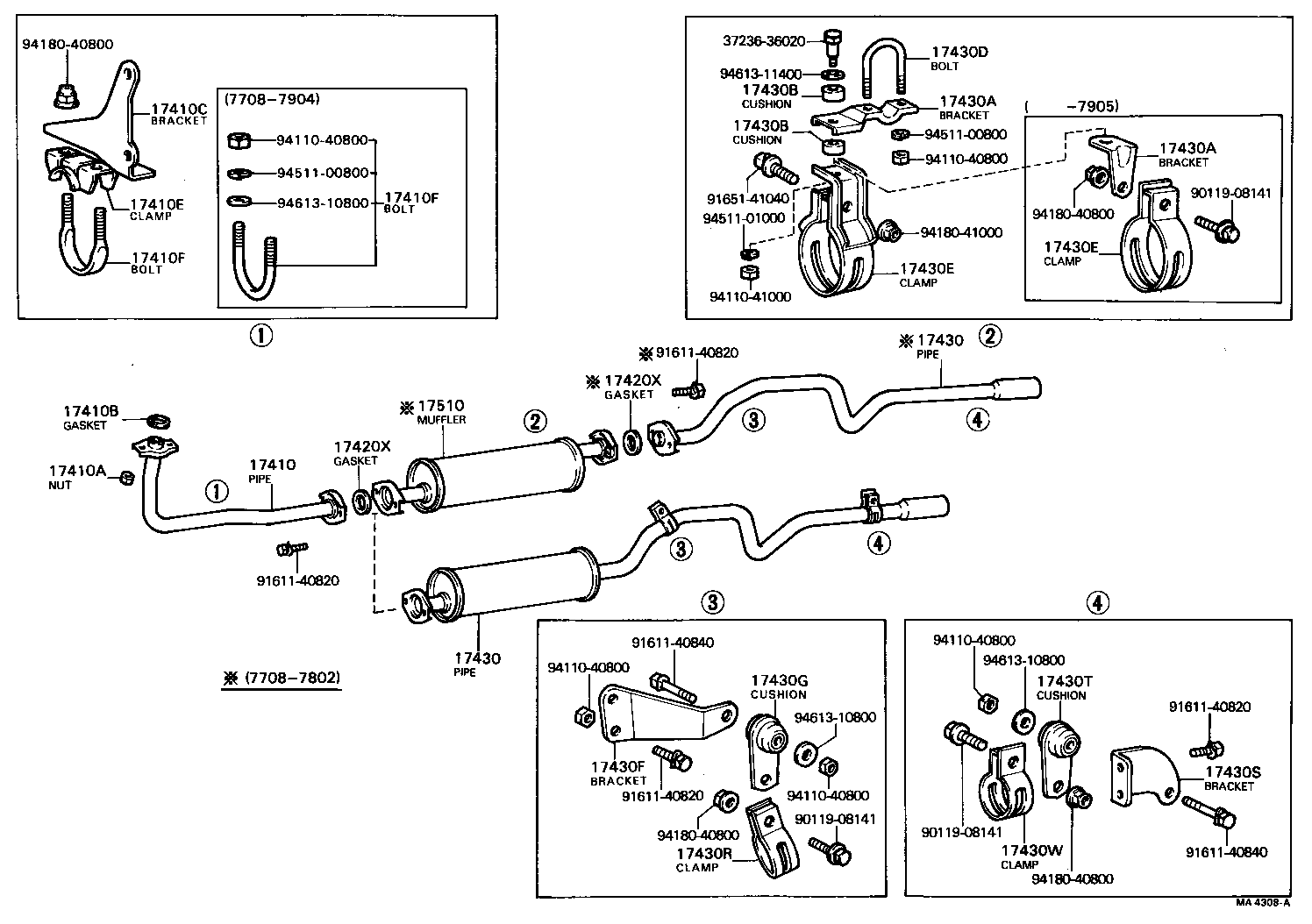

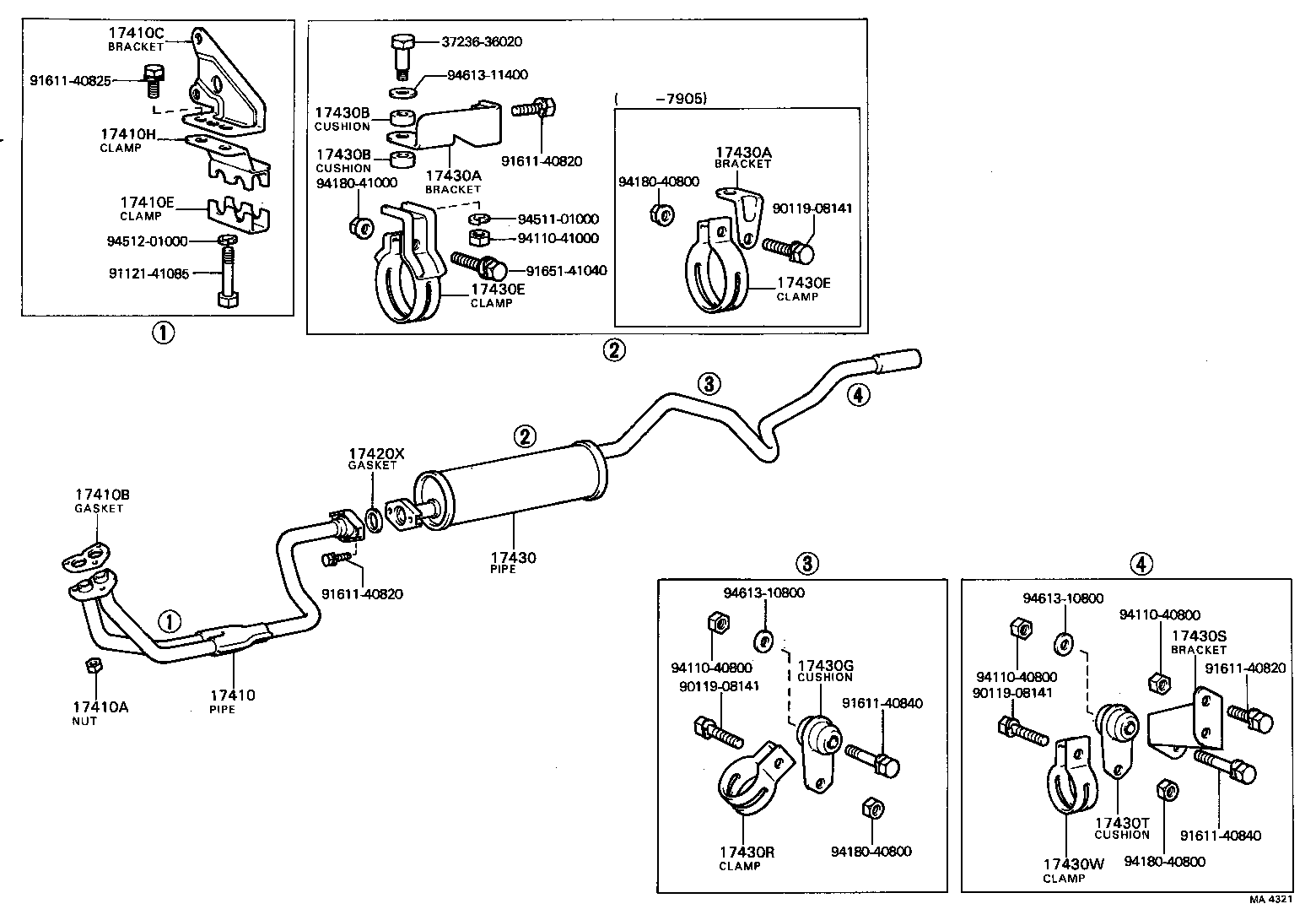

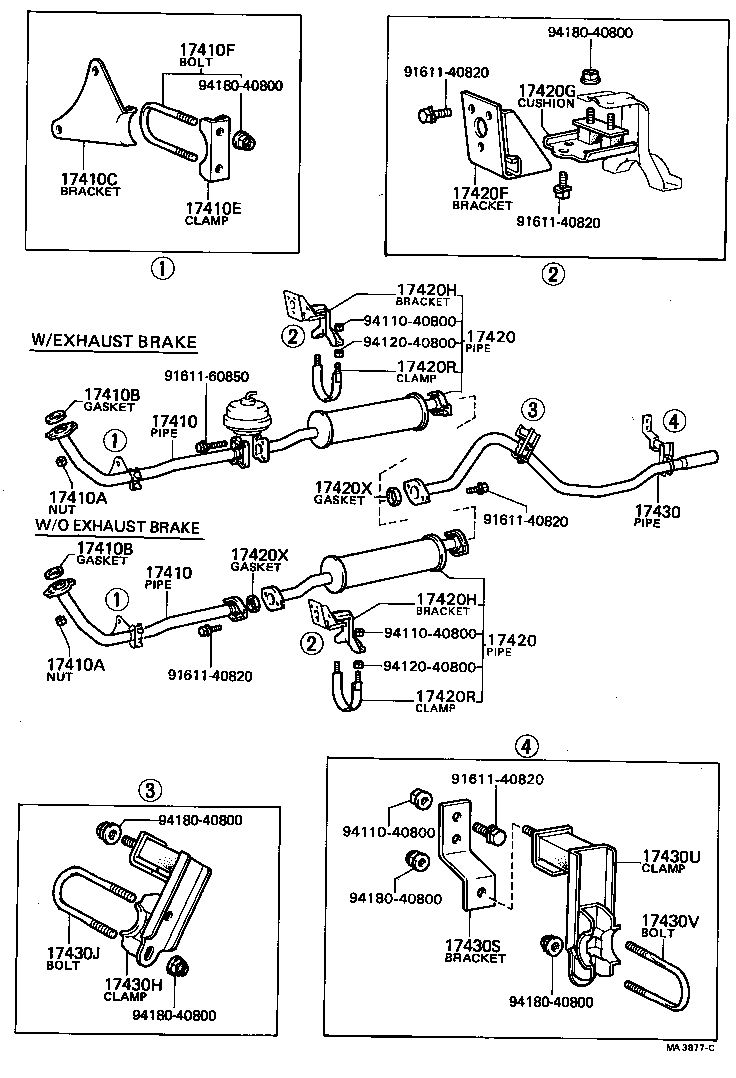

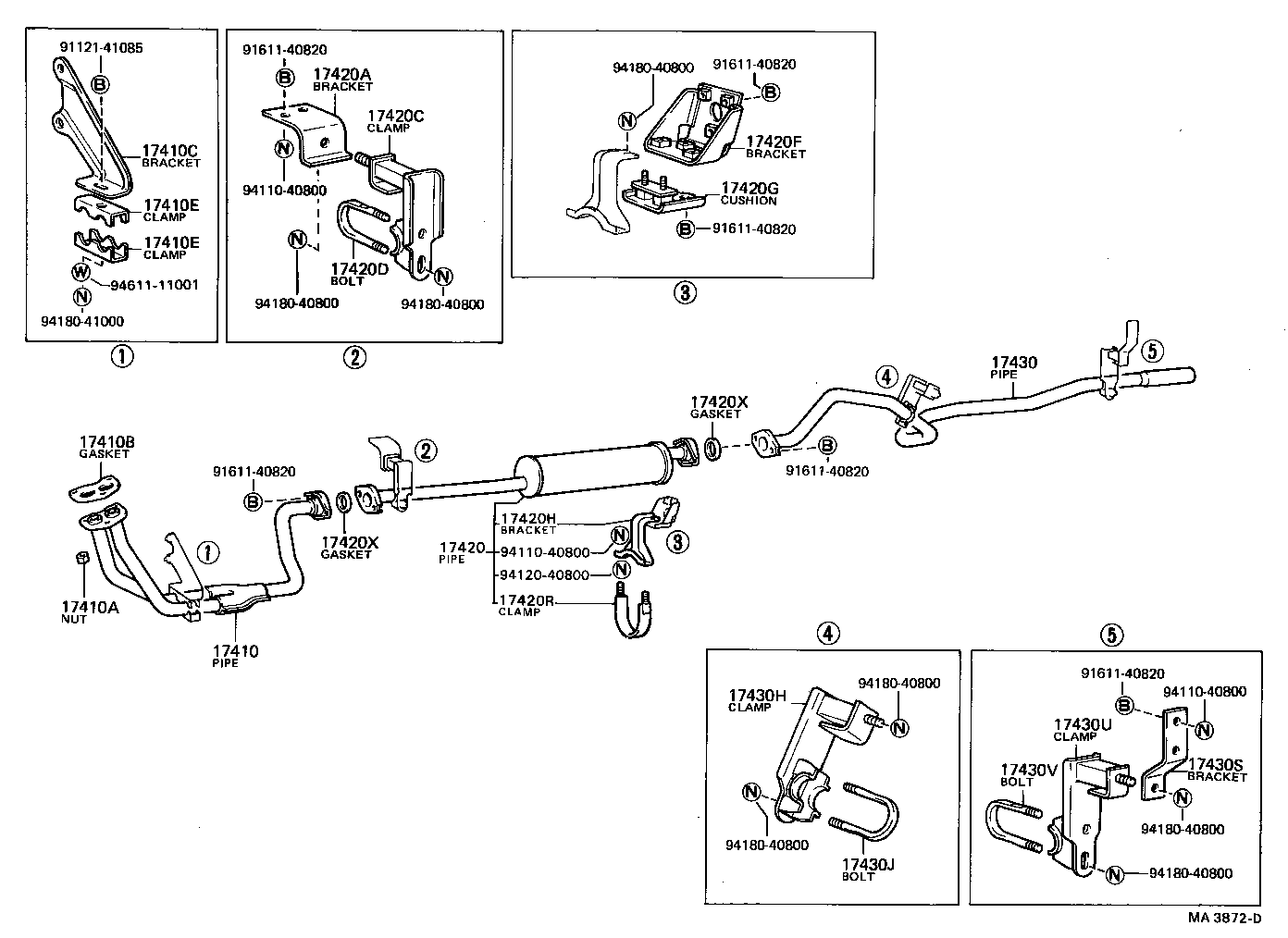

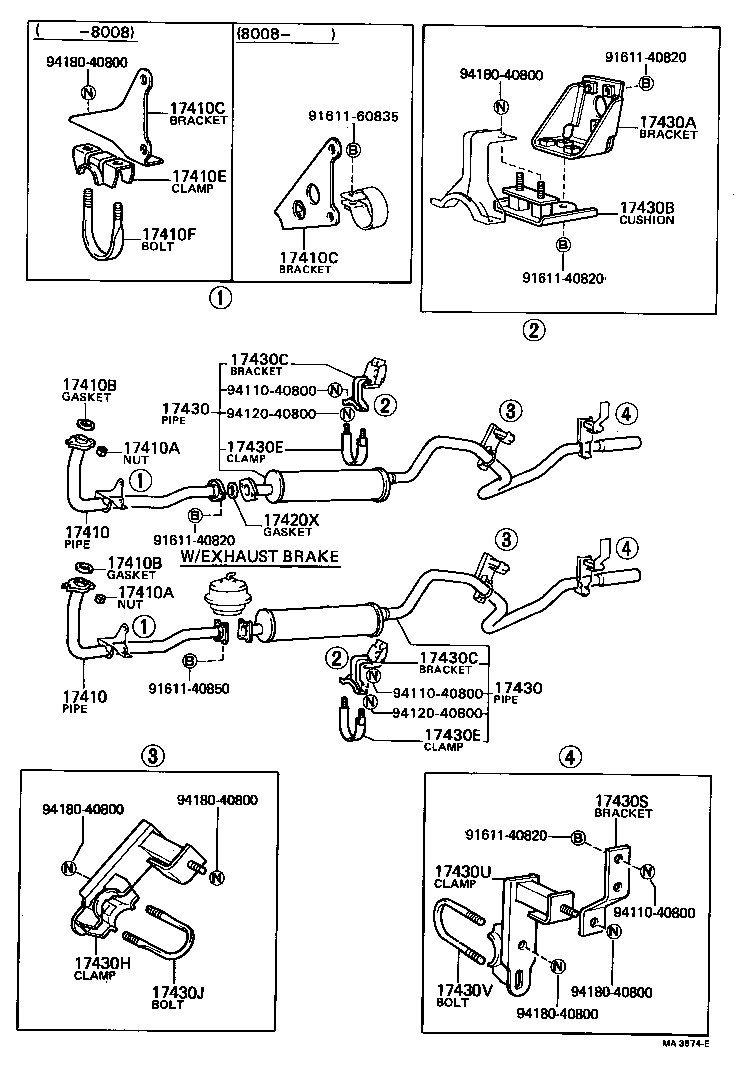

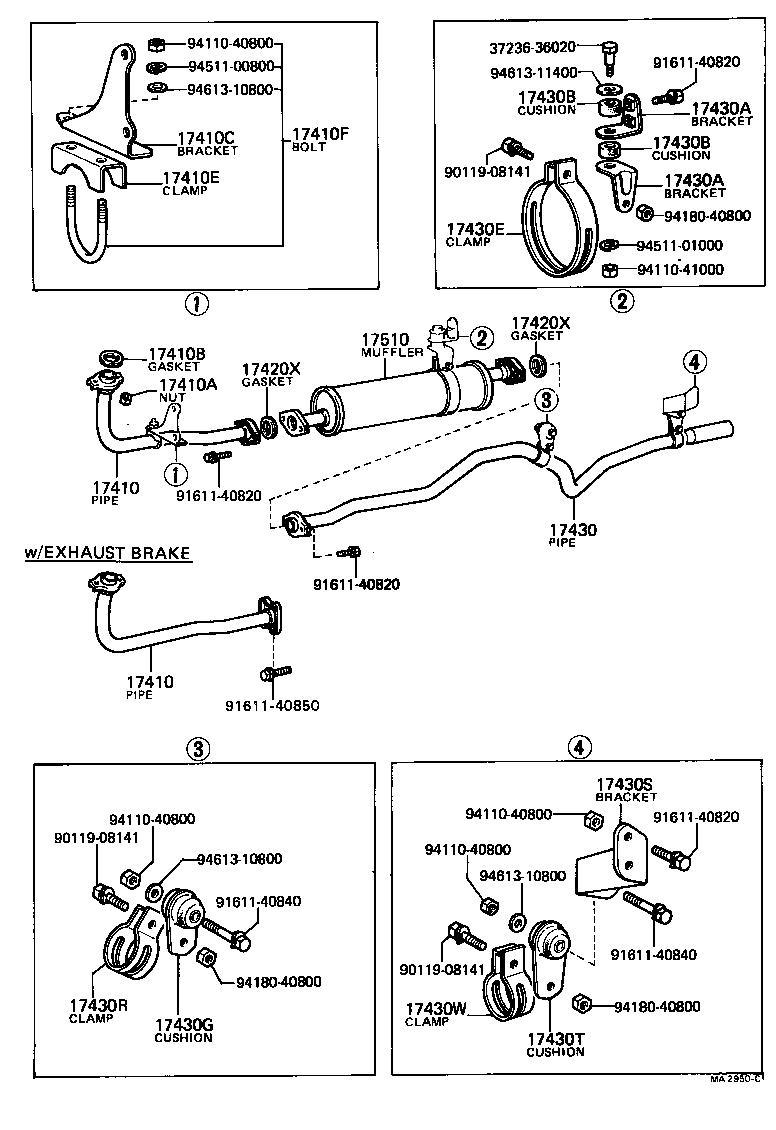

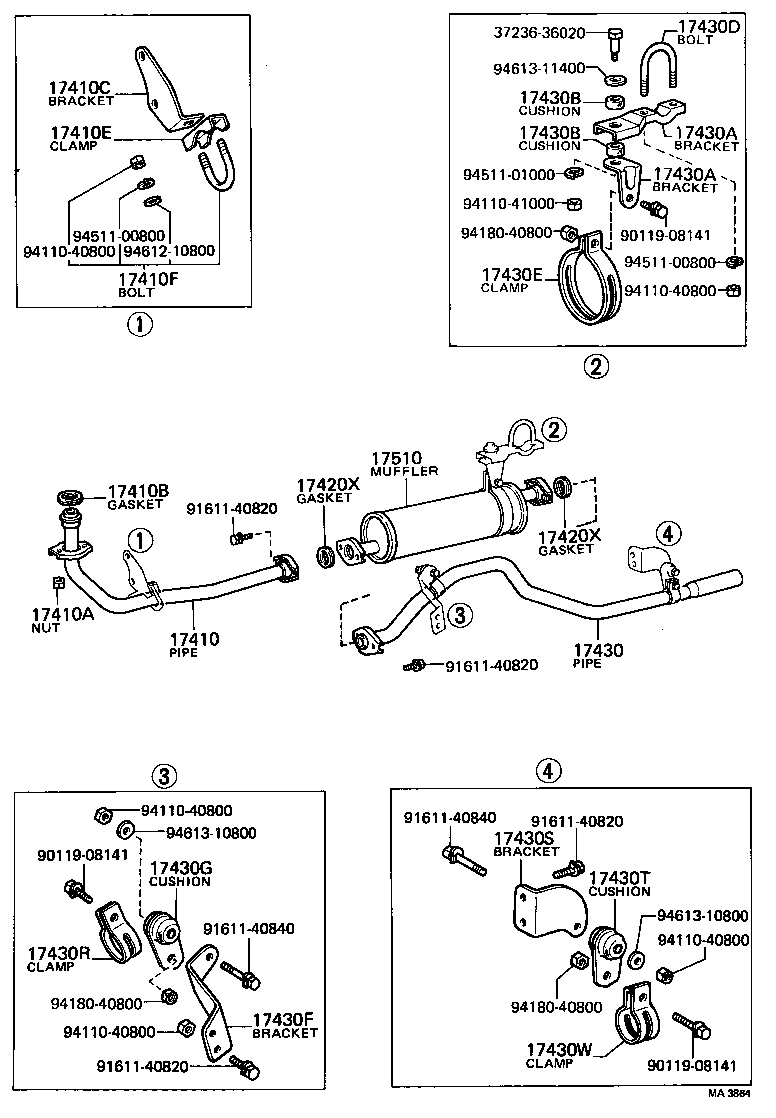

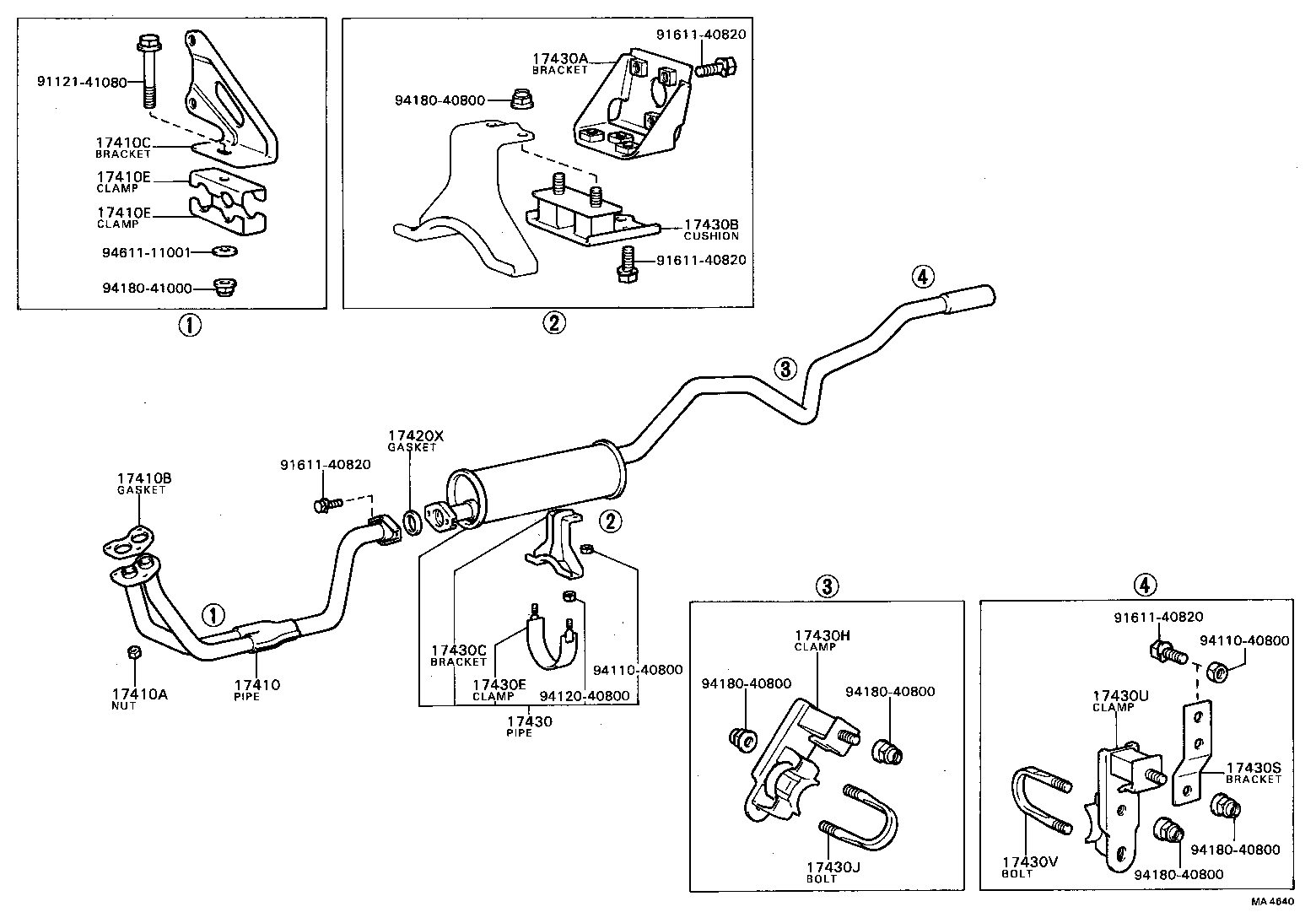

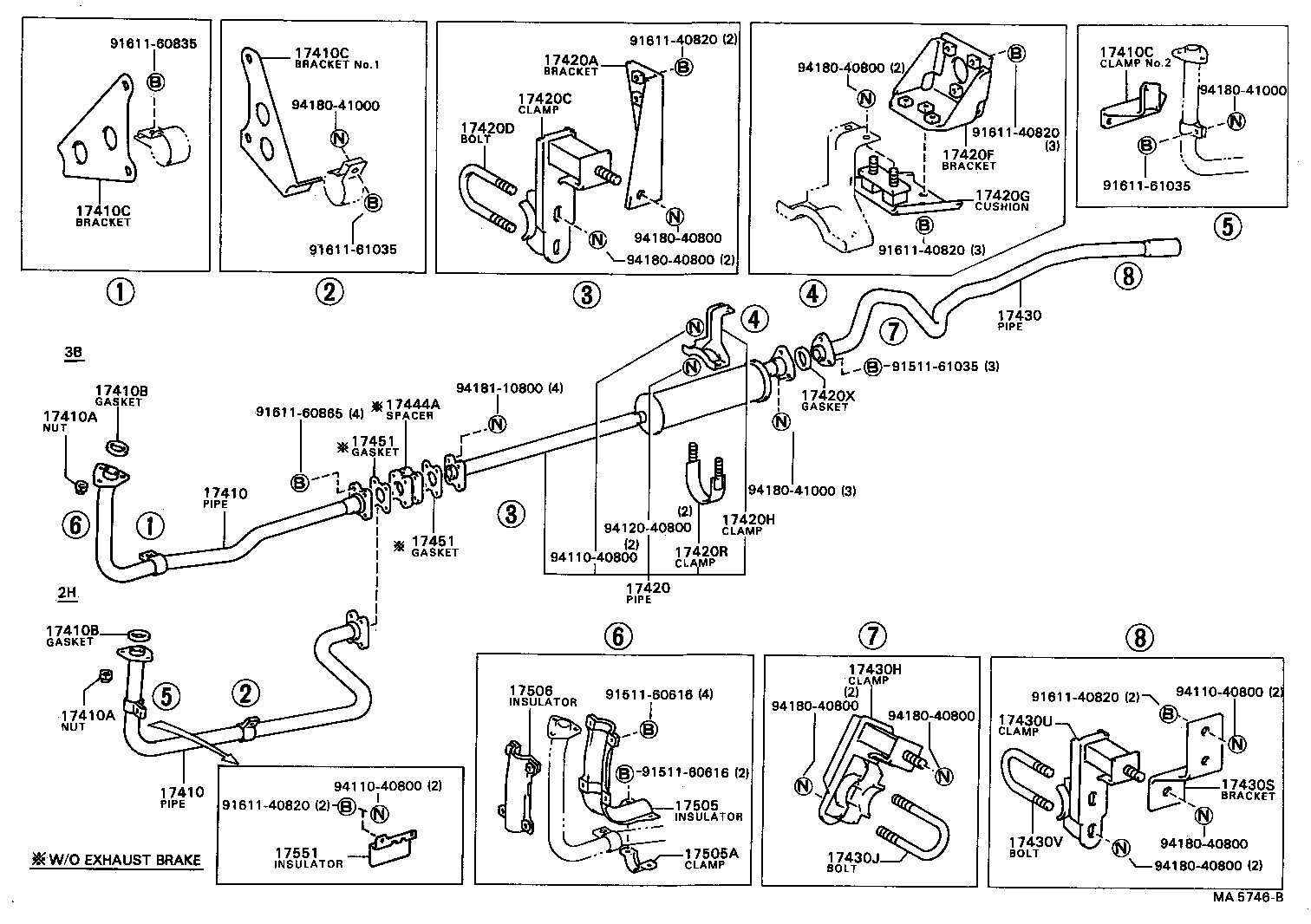

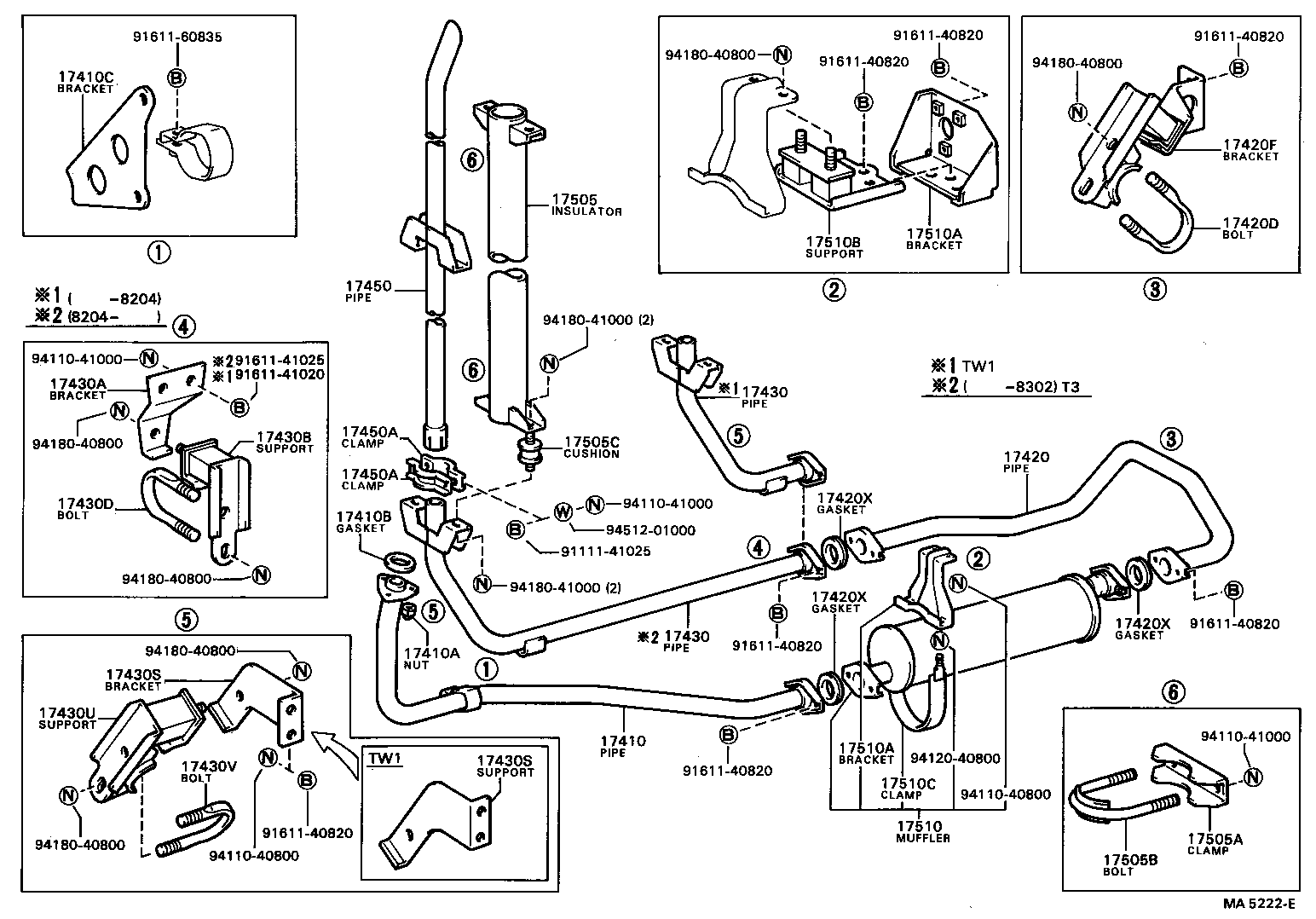

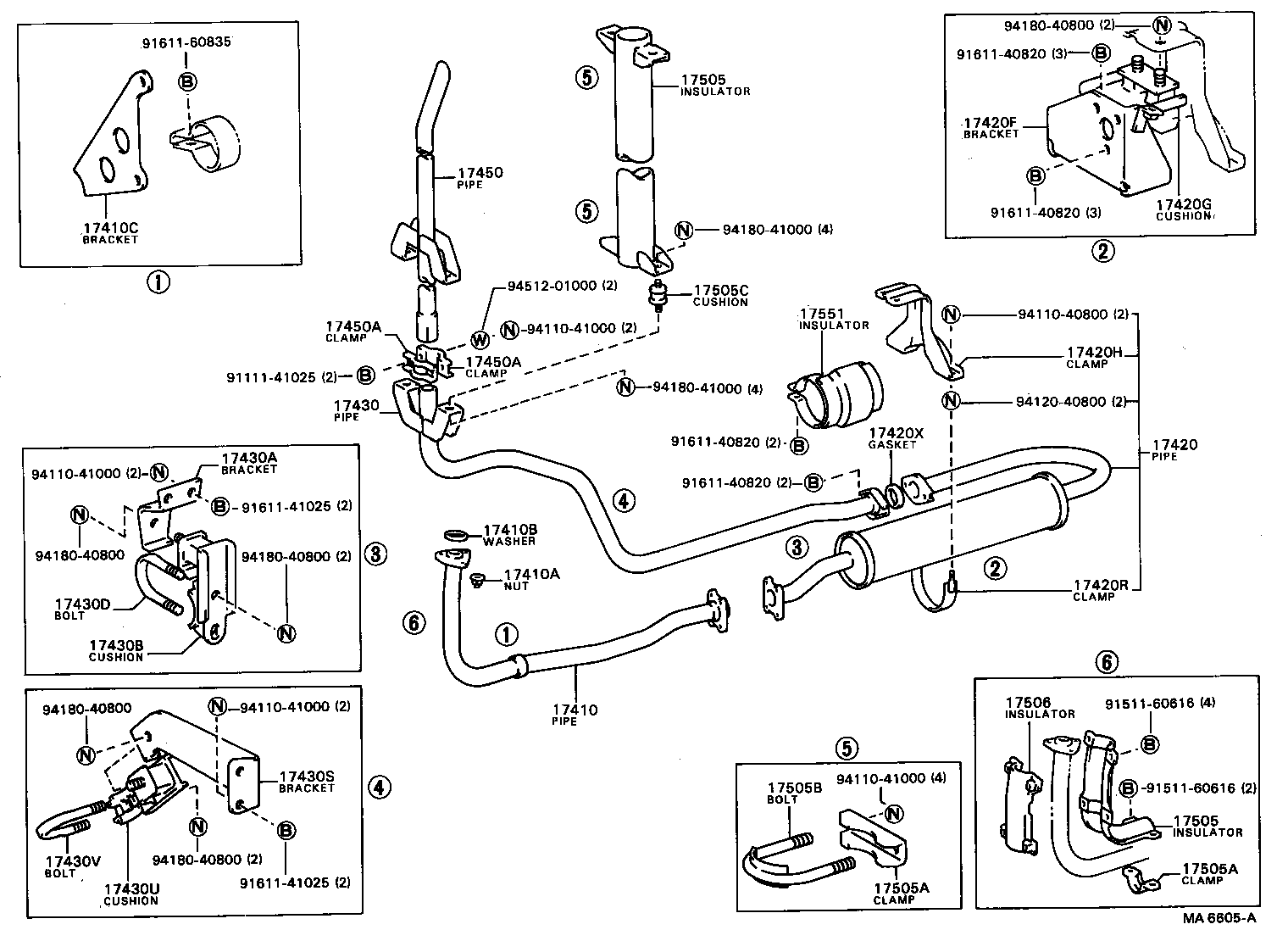

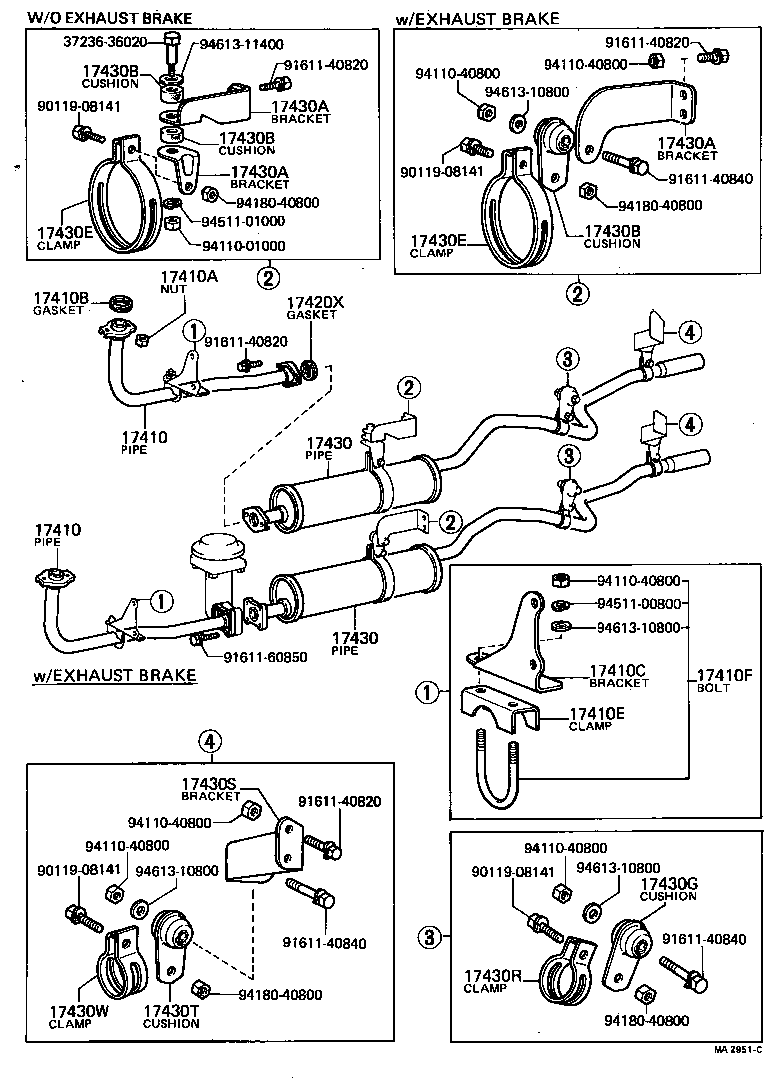

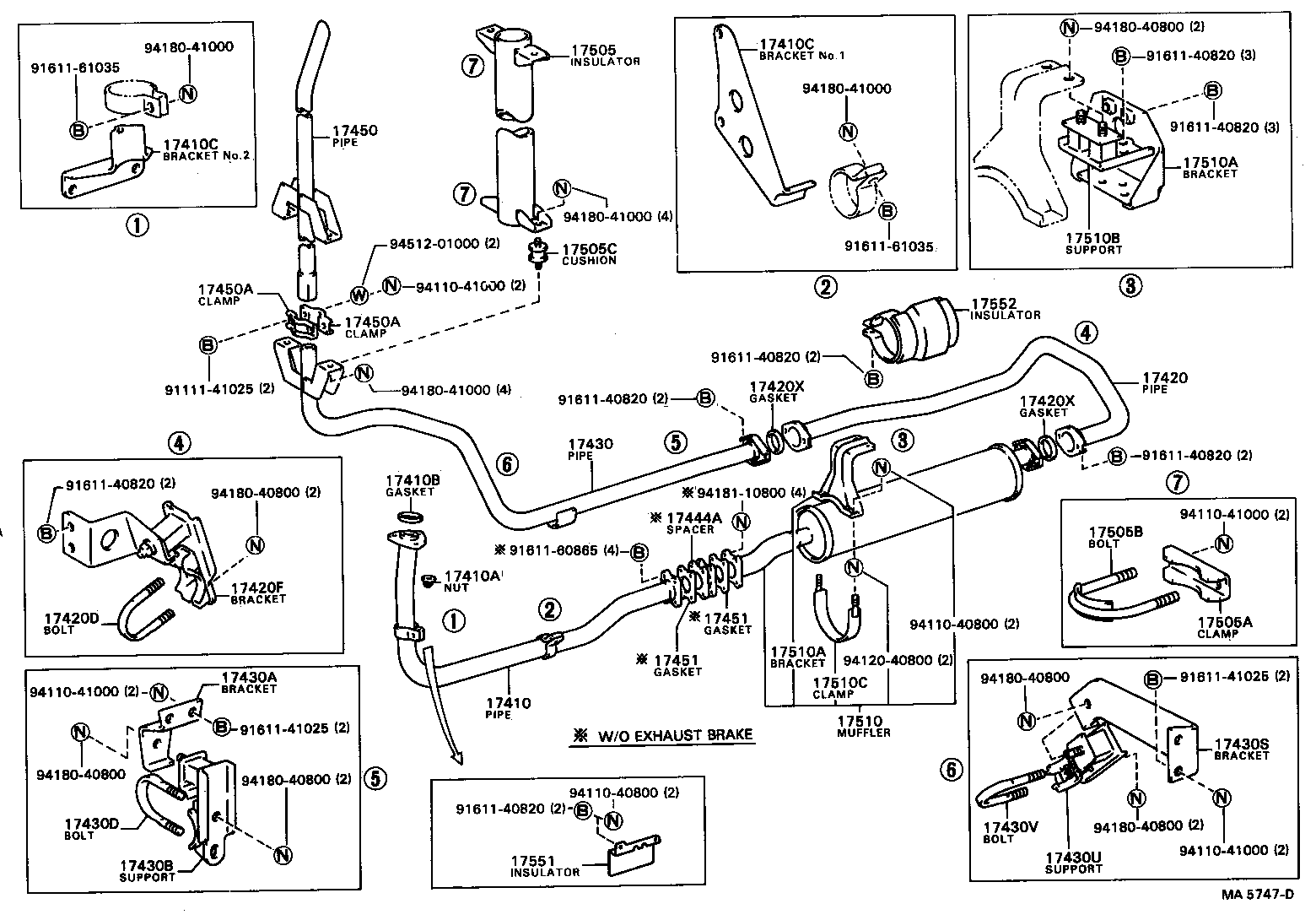

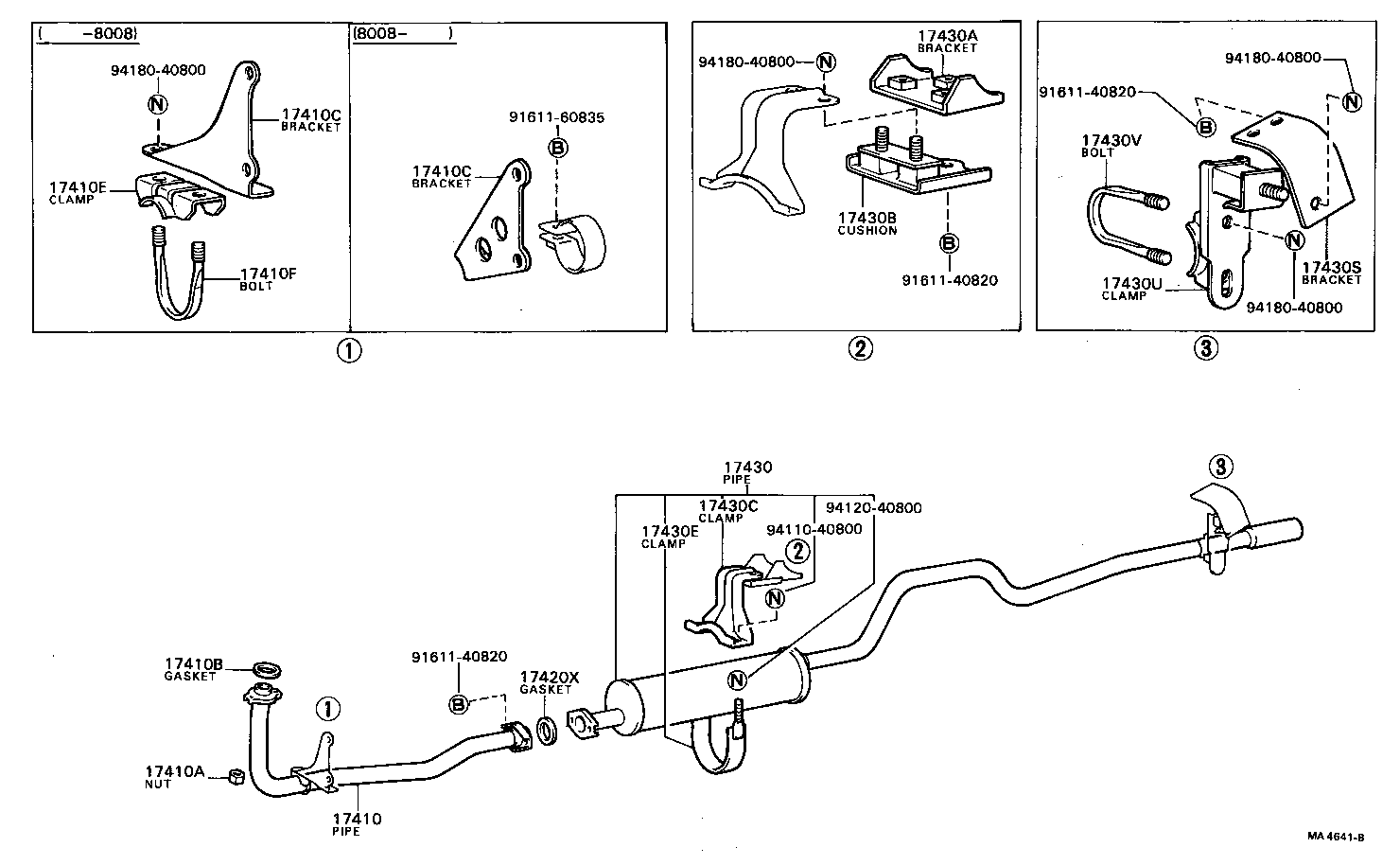

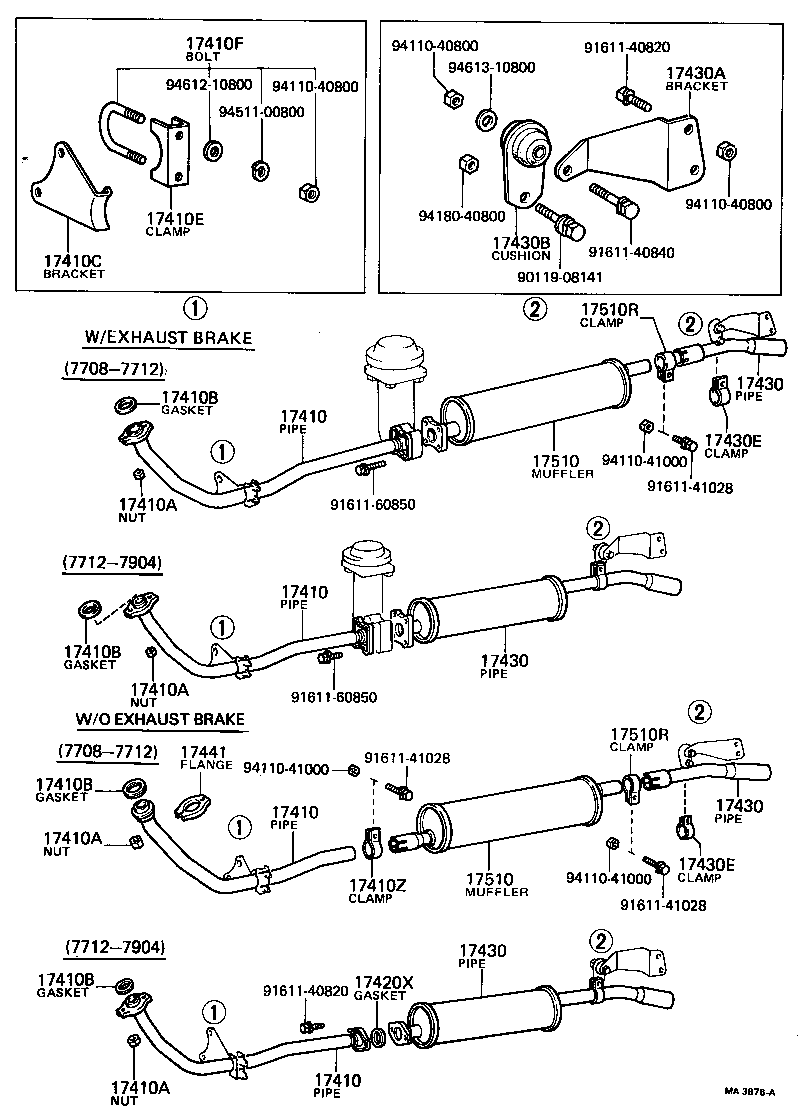

Figure MA3870A MA3870A 1977-08 → 1979-04 Figure MA3871B MA3871B 1979-04 → 1984-08 Figure MA4321 MA4321 1977-08 → 1980-01 Figure MA4640 MA4640 1980-01 → 1984-08 Figure MA2952B MA2952B 1977-08 → 1979-04 Figure MA3872D MA3872D 1979-04 → 1984-08 Figure MA3864 MA3864 1977-08 → 1979-04 Figure MA4308A MA4308A 1977-08 → 1979-06 Figure MA4641B MA4641B 1979-06 → — Figure MA2951C MA2951C 1977-08 → 1979-04 Figure MA3874E MA3874E 1979-04 → — Figure MA2950C MA2950C 1977-08 → 1979-04 Figure MA3875F MA3875F 1979-04 → — Figure MA4322A MA4322A 1978-03 → 1980-01 Figure MA4642D MA4642D 1980-01 → 1984-08 Figure MA5222E MA5222E 1981-04 → 1984-08 Figure MA6605A MA6605A 1983-04 → 1984-08 Figure MA5746B MA5746B 1982-04 → 1984-08 Figure MA3876A MA3876A 1977-08 → 1979-04 Figure MA3877C MA3877C 1979-04 → 1981-04 Figure MA3136B MA3136B 1977-08 → 1981-04 Figure MA5747D MA5747D 1982-04 → 1983-04 Figure MA5747D MA5747D 1983-04 → 1984-08 Figure MA6788A MA6788A 1983-04 → 1984-08 Figure MA6606 MA6606 1983-04 → 1984-08

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410H Bracket, Exhaust Pipe Front (FOR CENTER)
17410Z Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420C Clamp NO.1, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430C Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430H Clamp NO.1, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430R Clamp NO.2, Exhaust Tailpipe (FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17441 Flange, Exhaust Pipe
17444 Pipe, Exhaust, NO.4
17444A Spacer, Exhaust Front Pipe
17450 Pipe Assy, Exhaust, NO.5
17450A Clamp, Exhaust Pipe, NO.5
17451 Gasket, Exhaust Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505A Clamp, Exhaust Pipe(FOR HEAT INSULATOR)
17505B Bolt, U(FOR HEAT INSULATOR CLAMP)
17505C Cushion, Exhaust Pipe(FOR HEAT INSULATOR)
17506 Insulator Sub-assy, Exhaust Pipe Heat NO.2
17510 Muffler Assy
17510A Bracket, Muffler, Front
17510B Cushion, Muffler, Front
17510C Clamp NO.1, Muffler, Front
17510R Clamp NO.2, Muffler, Rear
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
