Toyota Dyna

1977-08 → 1984-11 · chassis RU2#,30,JU20,BU2#,3#,40,HU30,40,50,WU40 · catalogue 752220 · Europe

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

42 part groups · 29 illustrations

Illustrations

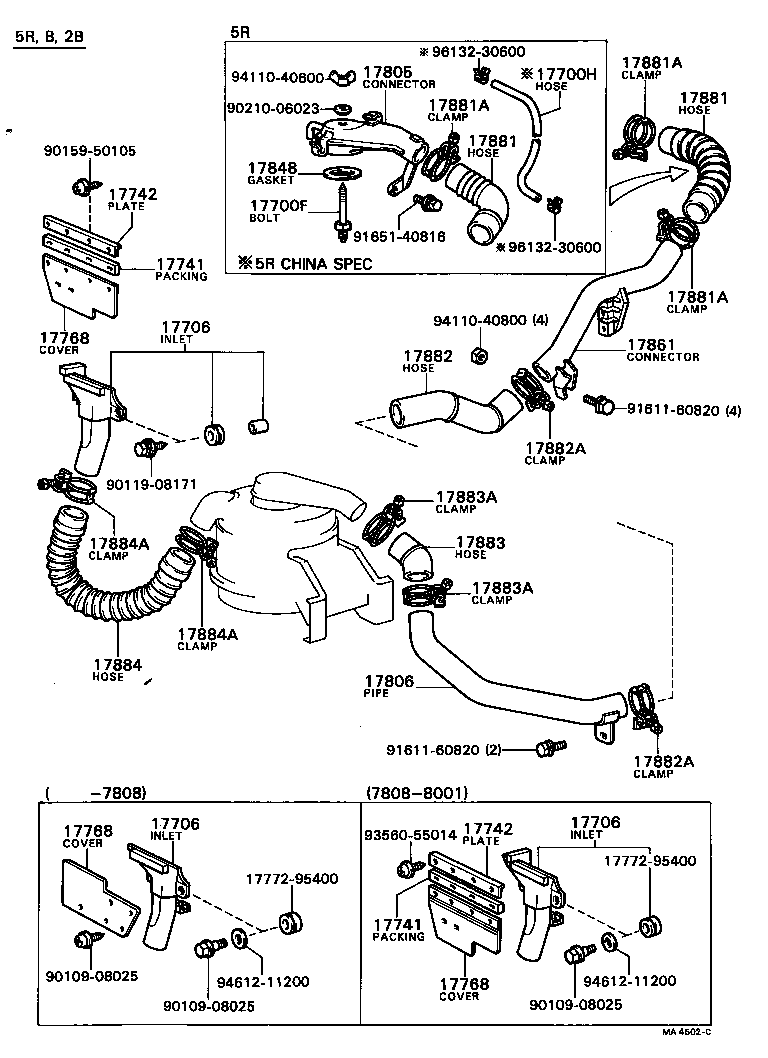

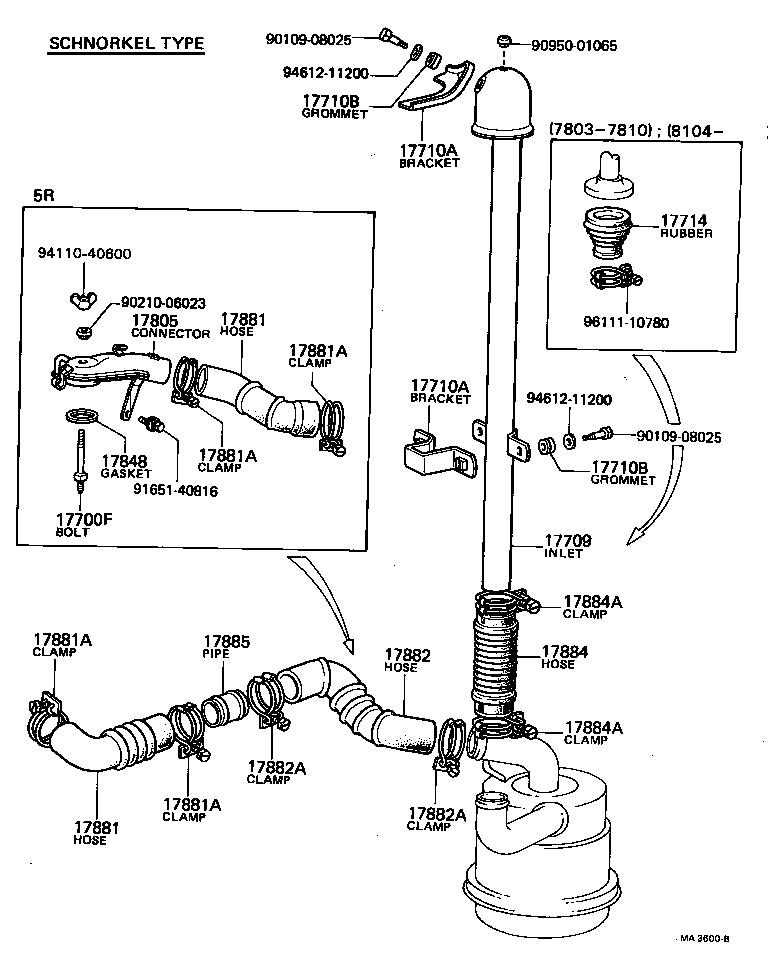

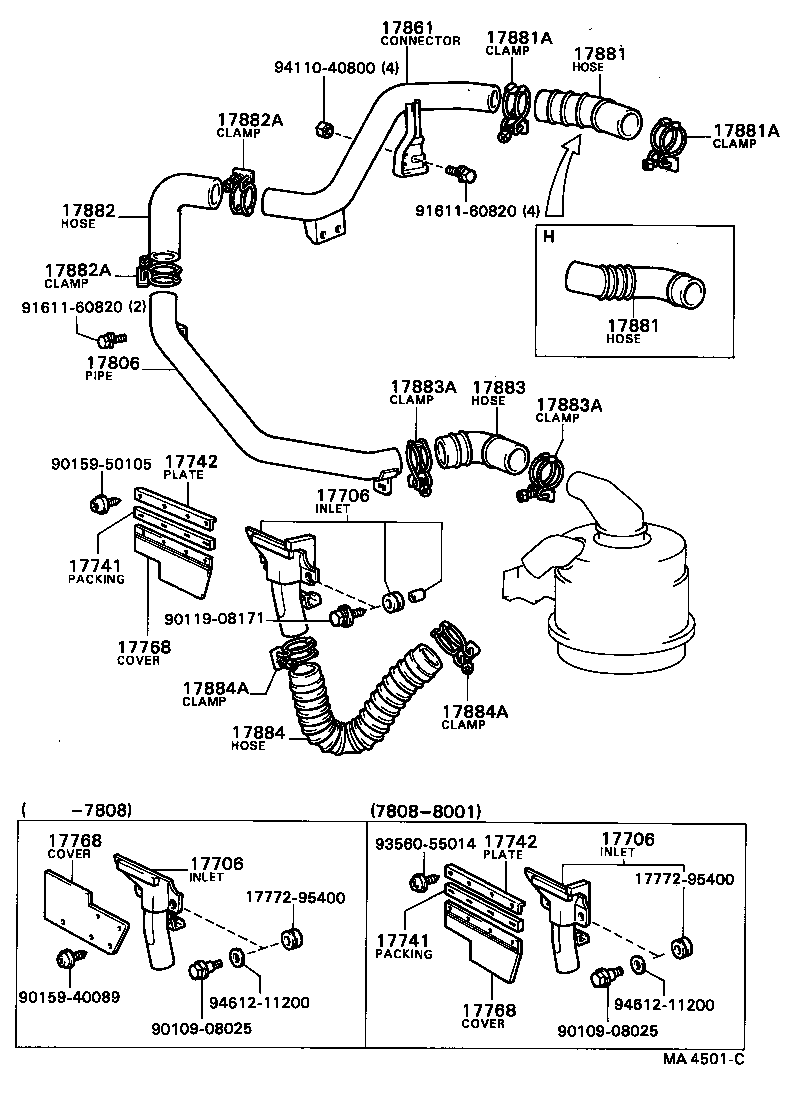

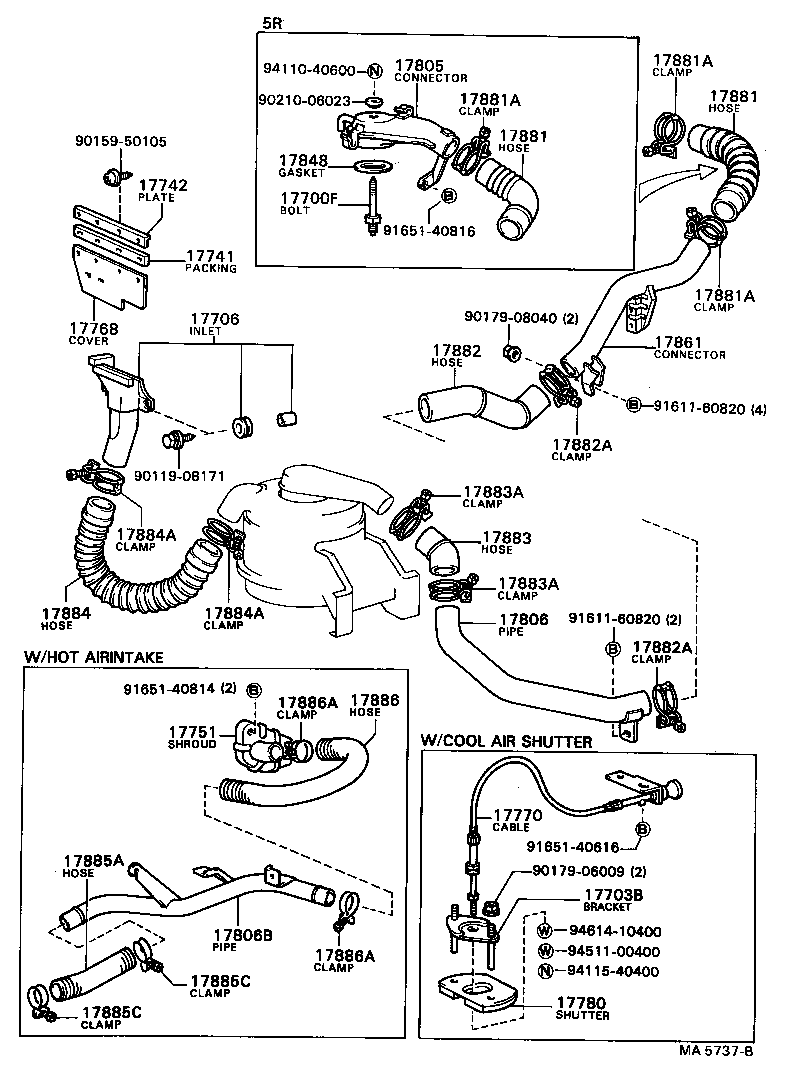

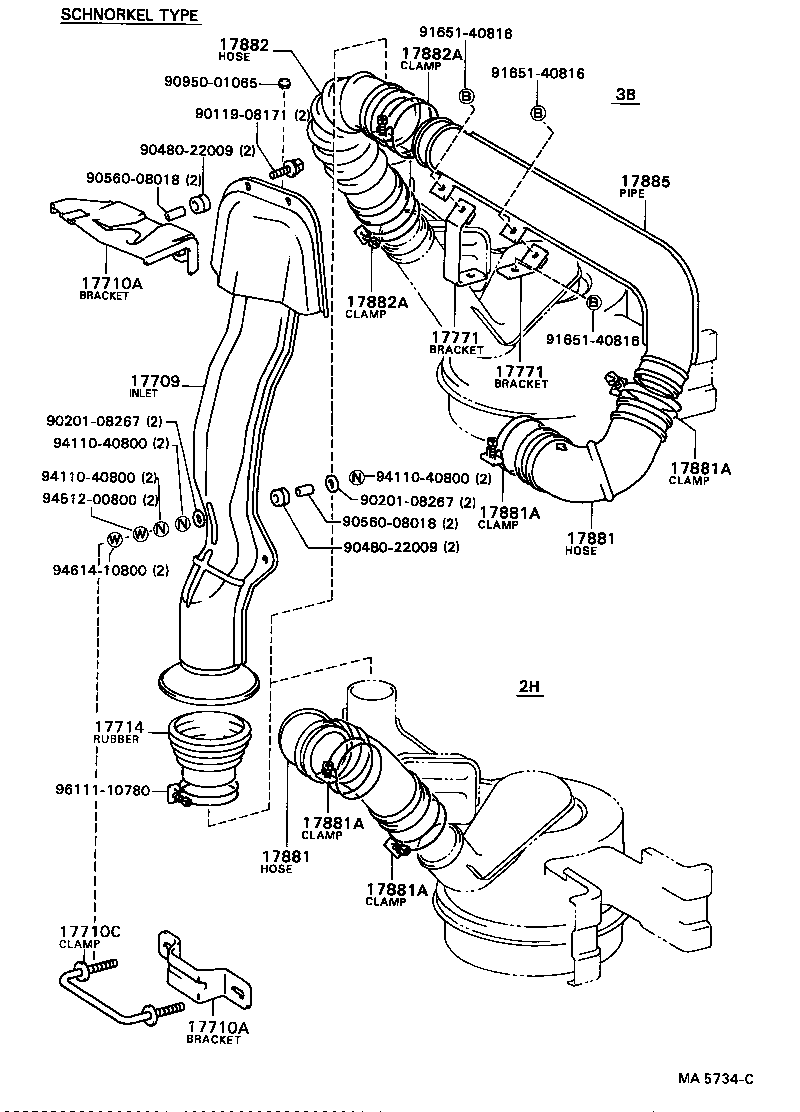

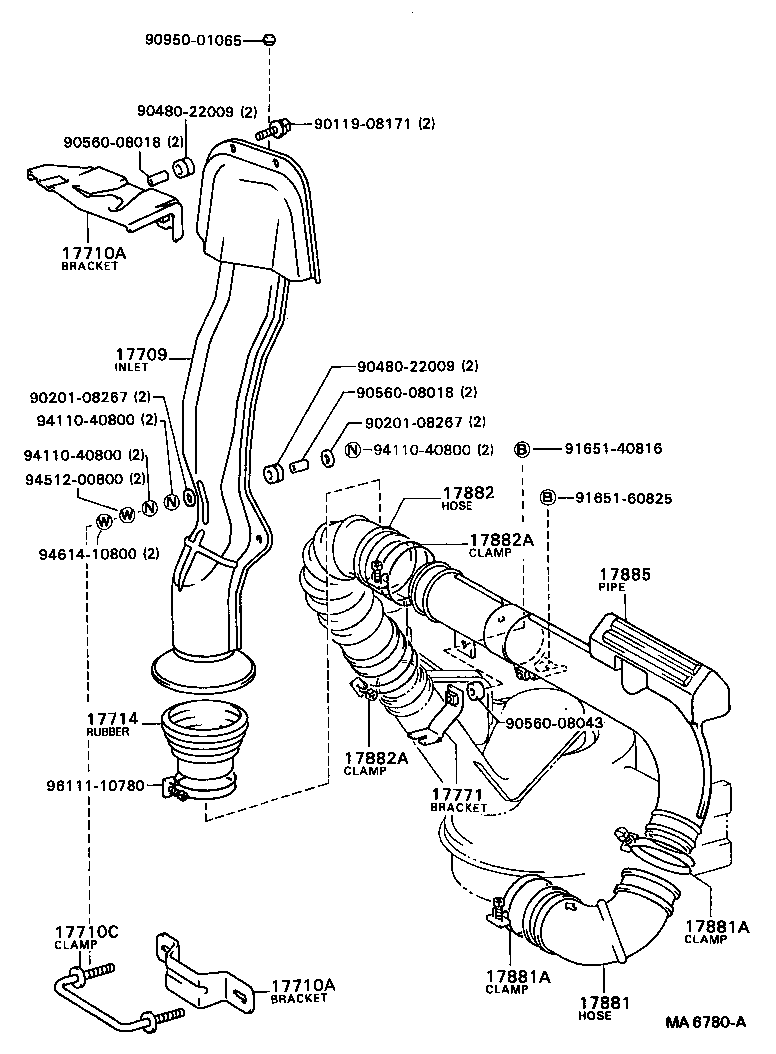

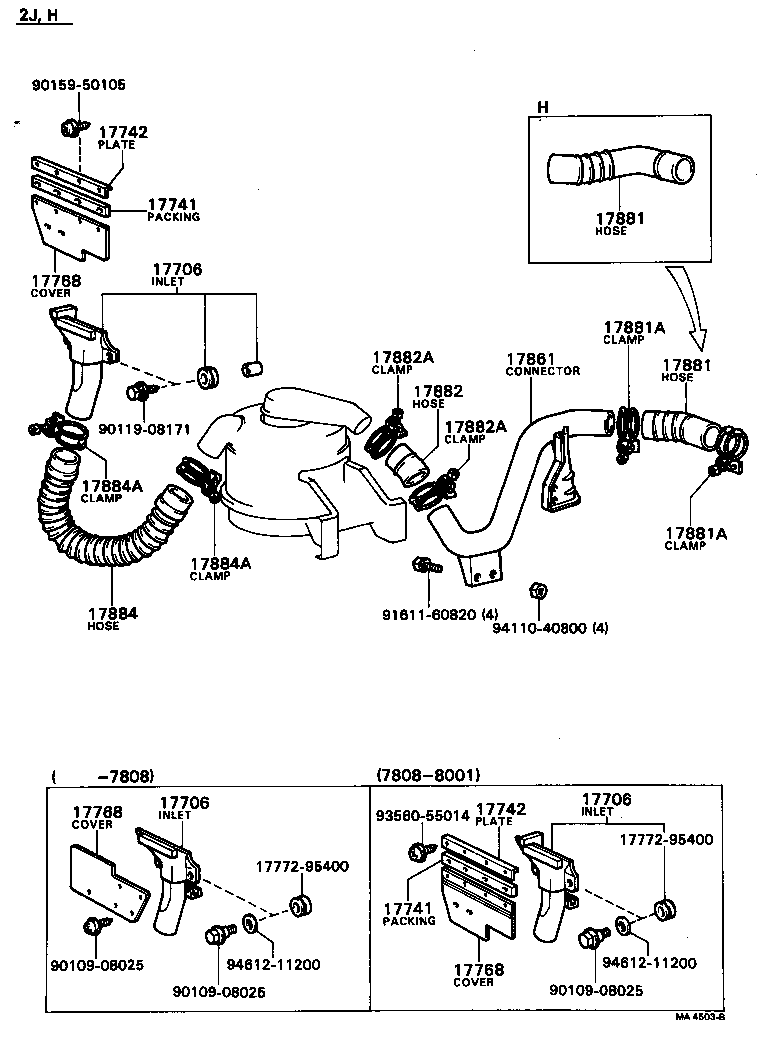

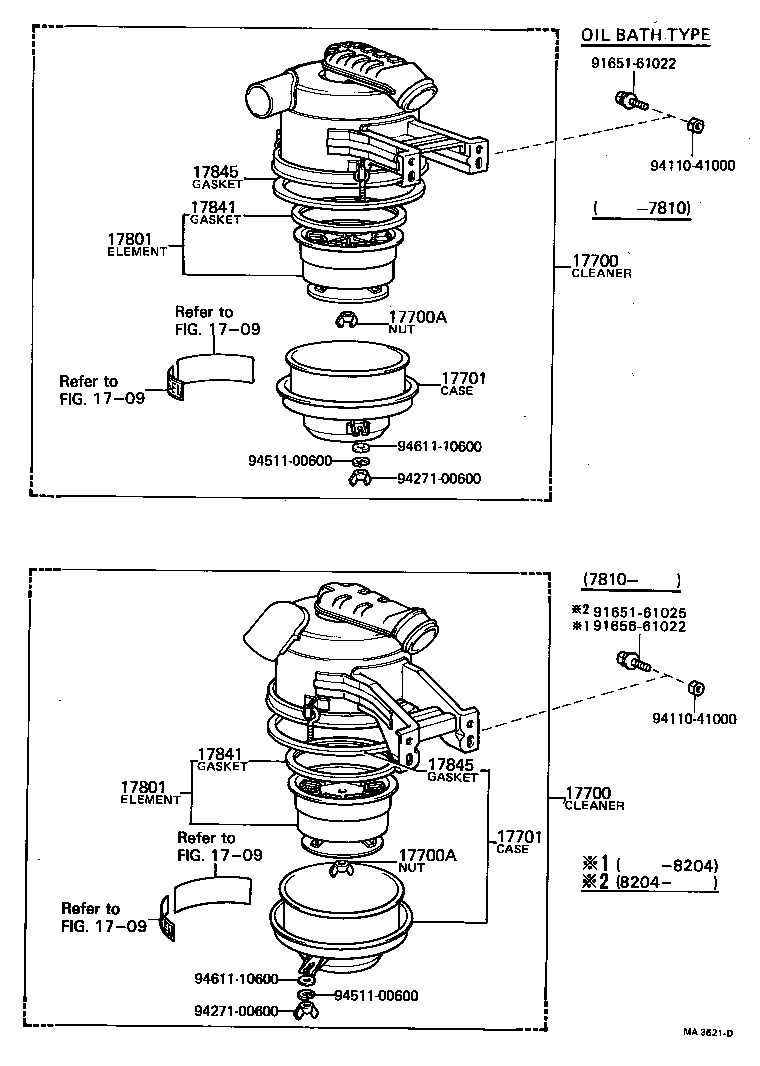

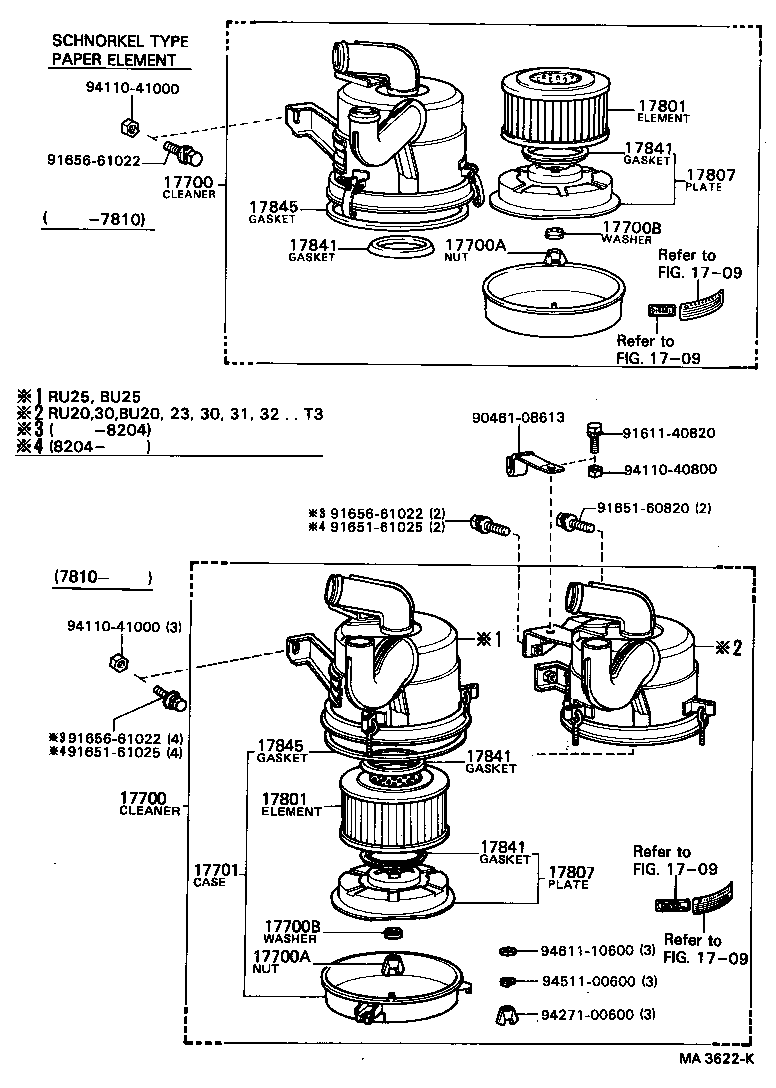

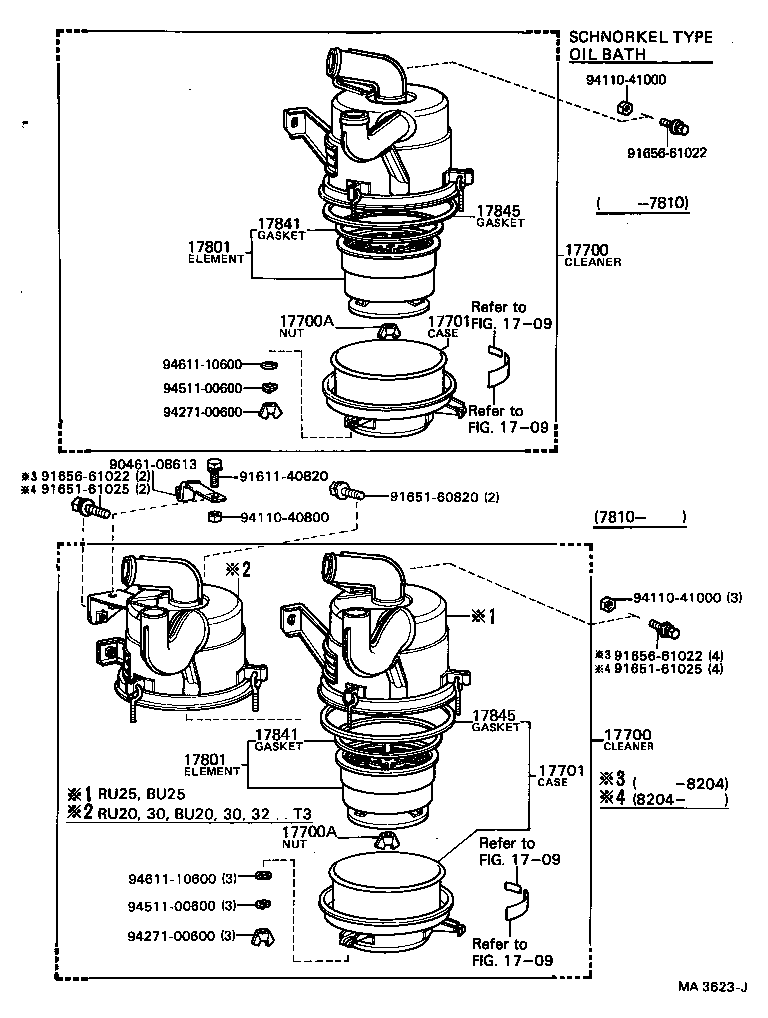

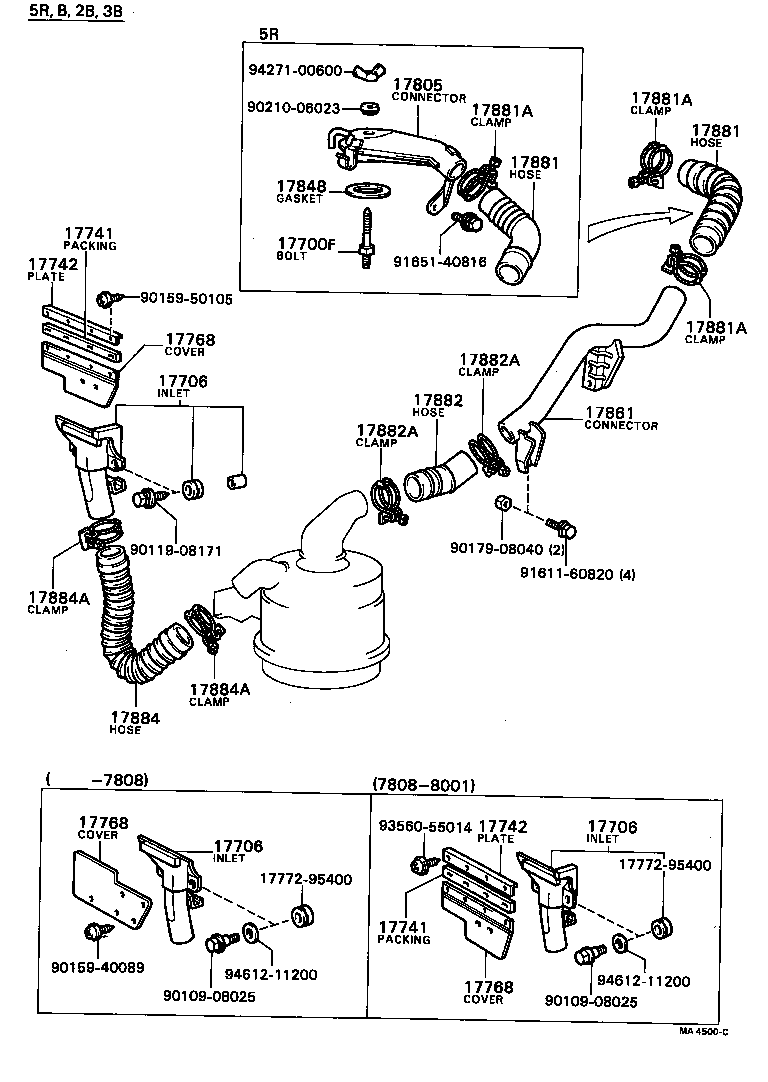

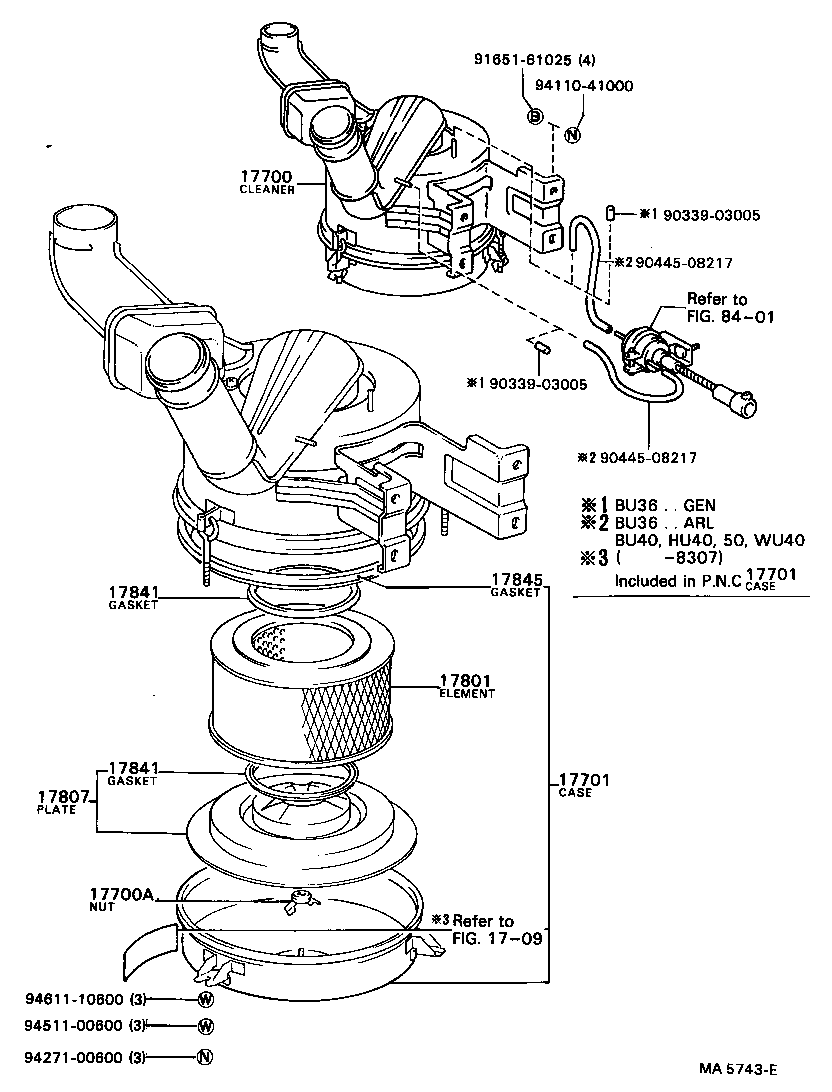

Figure MA3620F MA3620F 1977-08 → — Figure MA3621D MA3621D 1977-08 → — Figure MA4500C MA4500C 1977-08 → — Figure MA4502C MA4502C 1977-08 → 1982-04 Figure MA5737B MA5737B 1982-04 → 1984-08 Figure MA3622K MA3622K 1978-03 → — Figure MA3623J MA3623J 1978-03 → — Figure MA3600B MA3600B 1978-03 → — Figure MA5743E MA5743E 1982-04 → 1984-08 Figure MA5734C MA5734C 1982-04 → 1984-08 Figure MA3620F MA3620F 1977-08 → — Figure MA3621D MA3621D 1977-08 → — Figure MA4501C MA4501C 1977-08 → 1981-04 Figure MA4503B MA4503B 1977-08 → 1981-04 Figure MA5743E MA5743E 1982-04 → 1984-08 Figure MA5734C MA5734C 1982-04 → 1984-08 Figure MA3620F MA3620F 1977-08 → — Figure MA3621D MA3621D 1977-08 → — Figure MA4503B MA4503B 1977-08 → 1981-04 Figure MA3620F MA3620F 1977-08 → — Figure MA3621D MA3621D 1977-08 → — Figure MA4500C MA4500C 1977-08 → — Figure MA4502C MA4502C 1977-08 → 1982-04 Figure MA5737B MA5737B 1982-04 → 1984-08 Figure MA3622K MA3622K 1978-03 → — Figure MA3623J MA3623J 1978-03 → — Figure MA3600B MA3600B 1978-03 → — Figure MA5743E MA5743E 1982-04 → 1984-08 Figure MA6780A MA6780A 1983-04 → 1984-08

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17701 Case Sub-assy, Air Cleaner
17703B Bracket Sub-assy, Air Control Cable
17706 Inlet Sub-assy, Air Cleaner, NO.2
17709 Inlet Sub-assy, Air Cleaner
17710A Bracket Sub-assy, Air Cleaner Inlet Duct
17710B Grommet
17710C Clamp(FOR AIR CLEANER INLET DUCT)
17714 Rubber Seal, Air Intake
17741 Packing, Air Cleaner Inlet Cover
17742 Plate, Air Cleaner Inlet Cover
17751 Inlet, Air Cleaner, NO.1
17768 Cover, Air Cleaner Inlet
17770 Cable Assy, Air Control
17771 Bracket, Air Cleaner Inlet Duct
17780 Shutter Assy, Cool Air
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806B Pipe Sub-assy, Air Cleaner, NO.3
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
